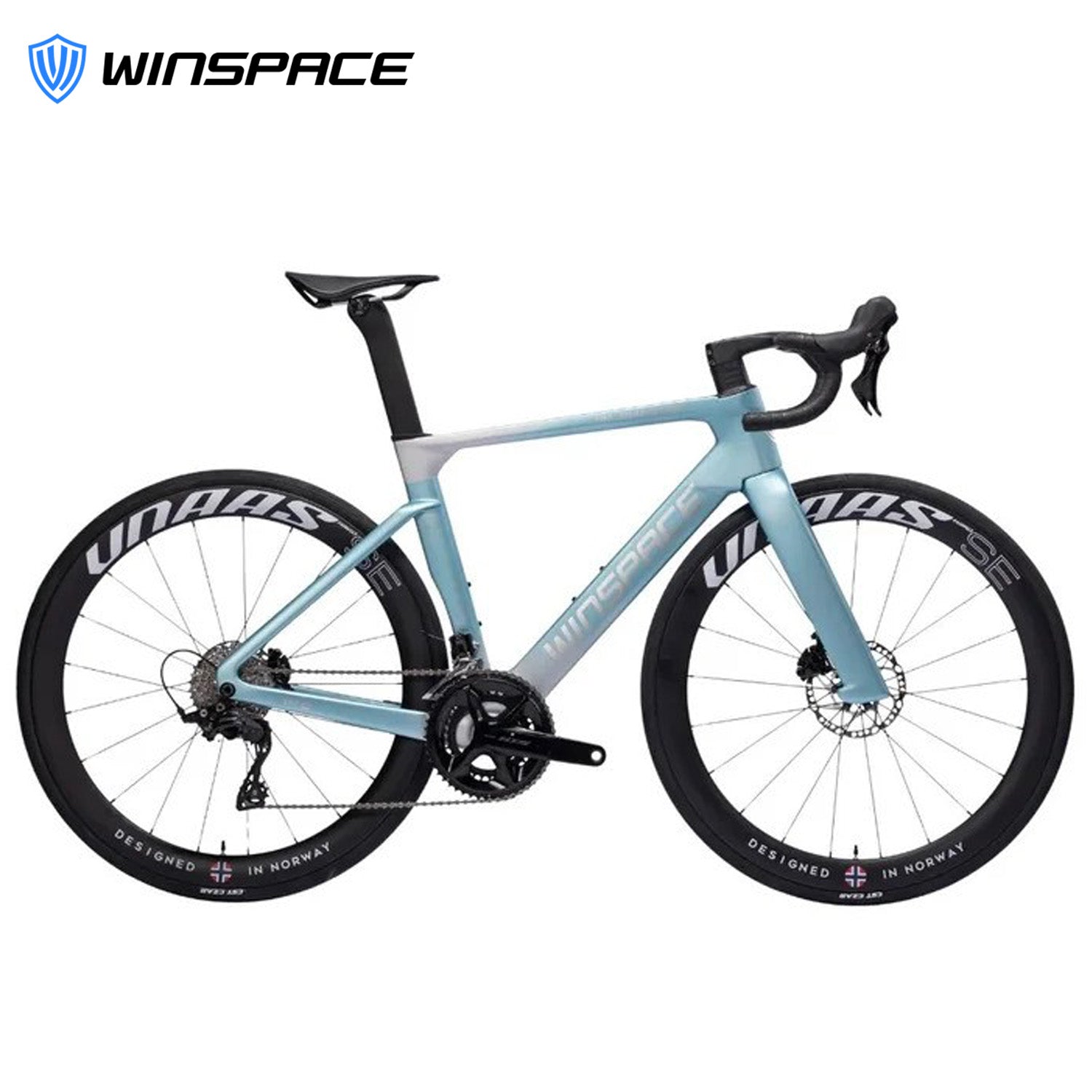

M6 105 Di2

**Crankset Availability Update: 165mm / 172.5mm— Back in stock, 52-36T chainrings. 170mm— Currently 50-34T (will transition to 52-36T once stock is depleted). Need 52-36T in 170mm? Please leave a note at checkout or contact our support team before ordering.**

**M6 colorways are custom-built to order and undergo multiple quality inspections before shipment. Current lead time is 20–25 business days — worth the wait.**

Build Specs

Complete Bike Weight

• ~8.1 kg (Size M, without pedals)

Frame & Fork

• Frame: T700 + T800 + M40 + M60 carbon fiber
• Fork: Full carbon
• Headset: 1-1/2"
• Sizes: XS / S / M / L / XL / XXL
• Frame Weight: Approx. 900 g (Size M, unpainted)

Groupset

• Shifters: SHIMANO 105 ST-R7170
• Front Derailleur: SHIMANO 105 FD-R7150
• Rear Derailleur: SHIMANO 105 RD-R7150
• Crankset: SHIMANO 105 FC-R7100, 50/34T
• Cassette: SHIMANO 105 CS-R7101, 11–34T
• Chain: SUMC
• Brakes: Hydraulic Disc

Wheel & Tire System

• Wheelset: Unaas Hard D50
• Tires: Continental Grand Prix 700×28C, Folding
• Axles: Front M12×P1.0×114L / Rear M12×P1.0×163L

Cockpit & Contact Points

• Integrated Handlebar: Hyper Integrated Handlebar
• Stem Length Options: 85 / 95 / 105 / 115 / 125 mm
• Bar Tape: Selle Italia Smart Tape Comfort
• Saddle: Selle Italia Novus Boost Evo X-Cross Superflow
• Seatpost: AERO Seatpost

Bottom Bracket

• Shell: T47-85.5

What's in the Box?

Your new bike arrives 90% assembled. In addition to the pre-assembled frameset and components, the accessory box includes the following items for final installation:

• Saddle
• Seatpost
• Seatpost Wedge
• Steel Rail Saddle Clamp
• Computer Mount Kit
• Includes 1 UDH derailleur hanger (pre-installed). No spare hanger included.
• Seatpost Dust Cover
• Water Bottle Cage Bolts (x4)
• Assembly Tool Kit
• Pedal

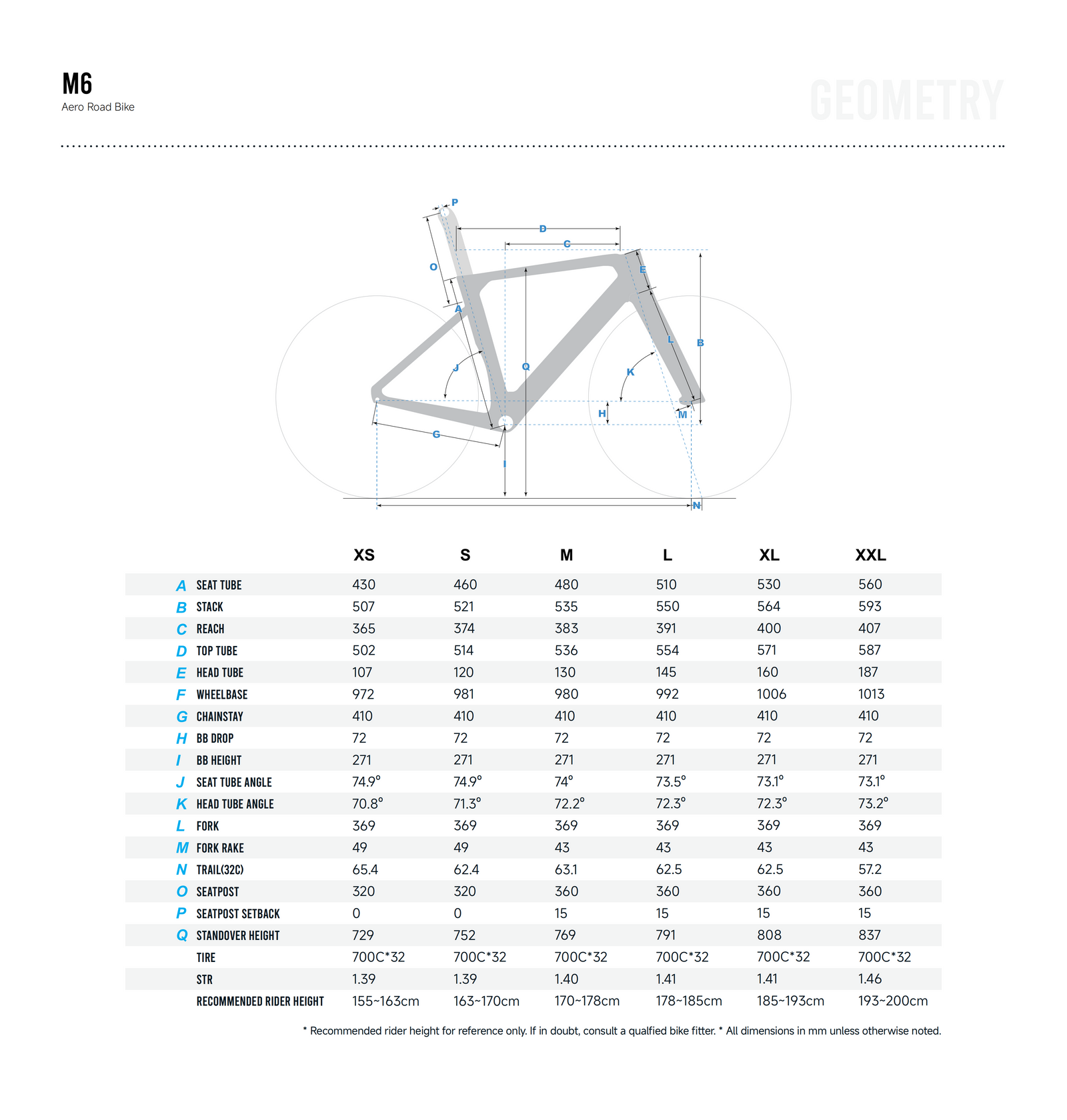

Geometry Chart
