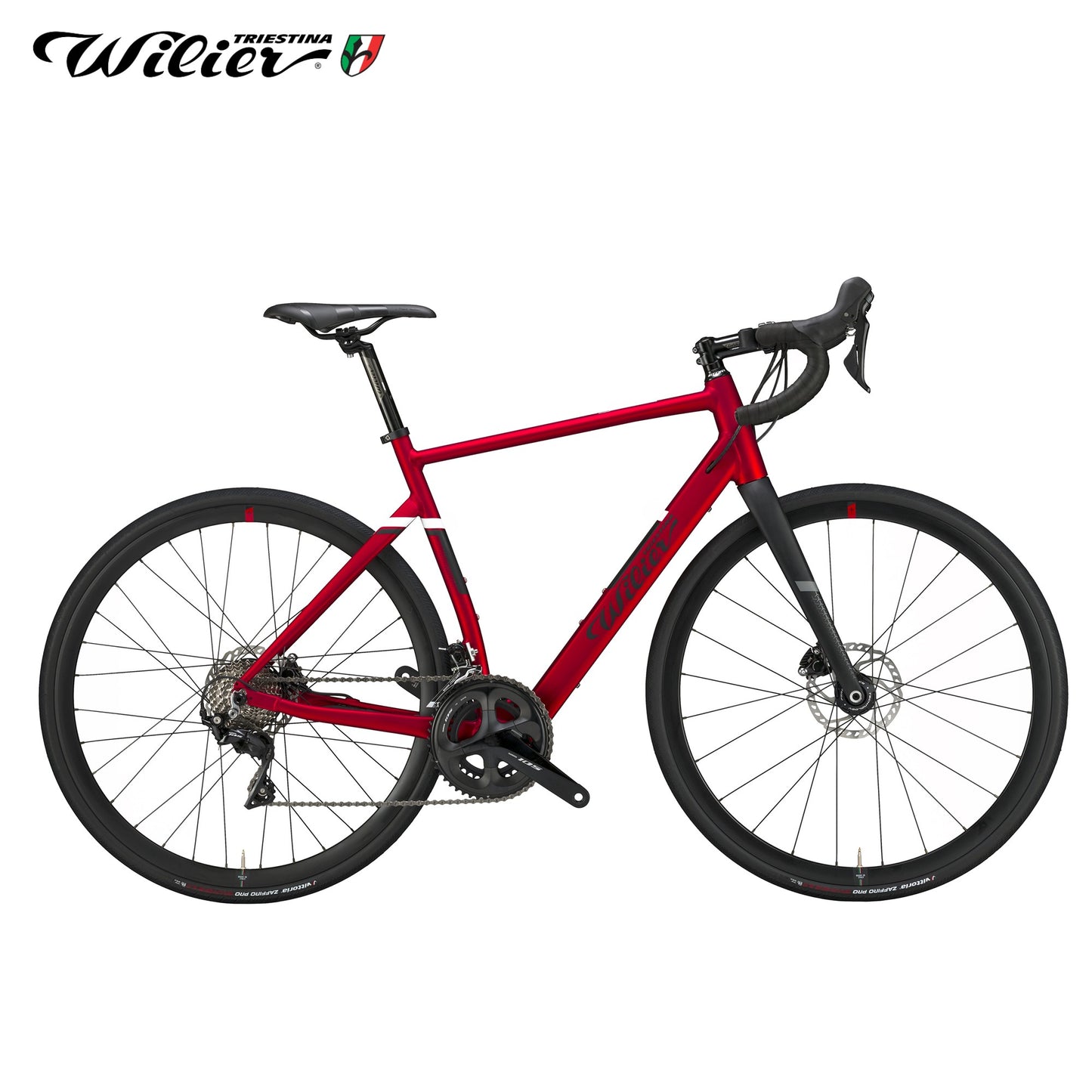

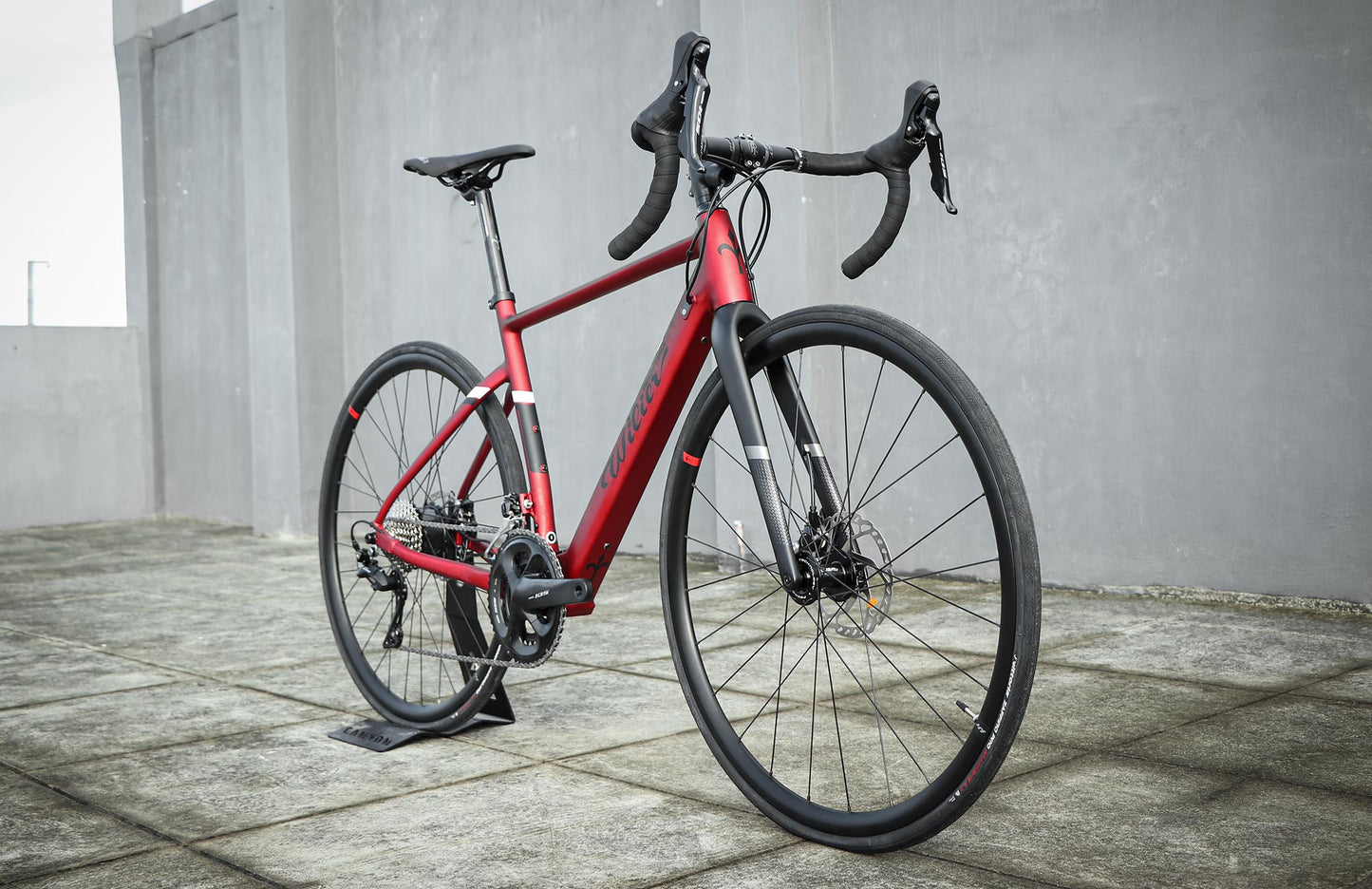

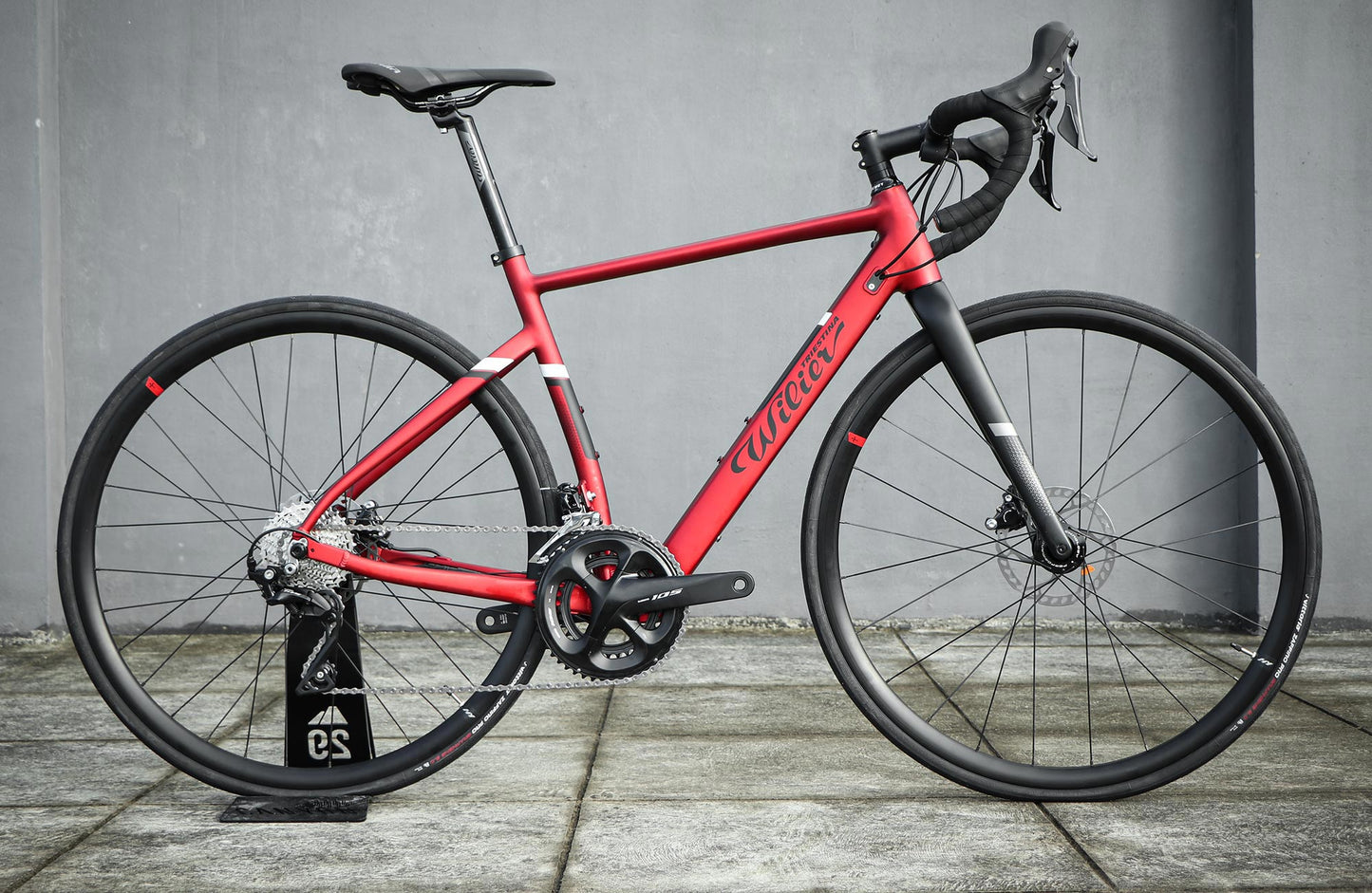

TRIESTINA ROAD E-BIKE 105

MOVE FAST

A fast ride on a pedal-assist bicycle requires lightweight and efficient components. Triestina Hybrid bicycles guarantee top performance for city and leisure cycling alike. The aluminum frame contains within it the same pedal assist system as the Cento 10 Hybrid, making anything possible. Every detail of the Triestina Hybrid has been designed to keep pace with the latest advances in bicycle design.

ENDURANCE GEOMETRIES

We have borrowed the geometries from top-of-the-range endurance models for a perfect balance between comfort and performance.

RIDING SAFETY

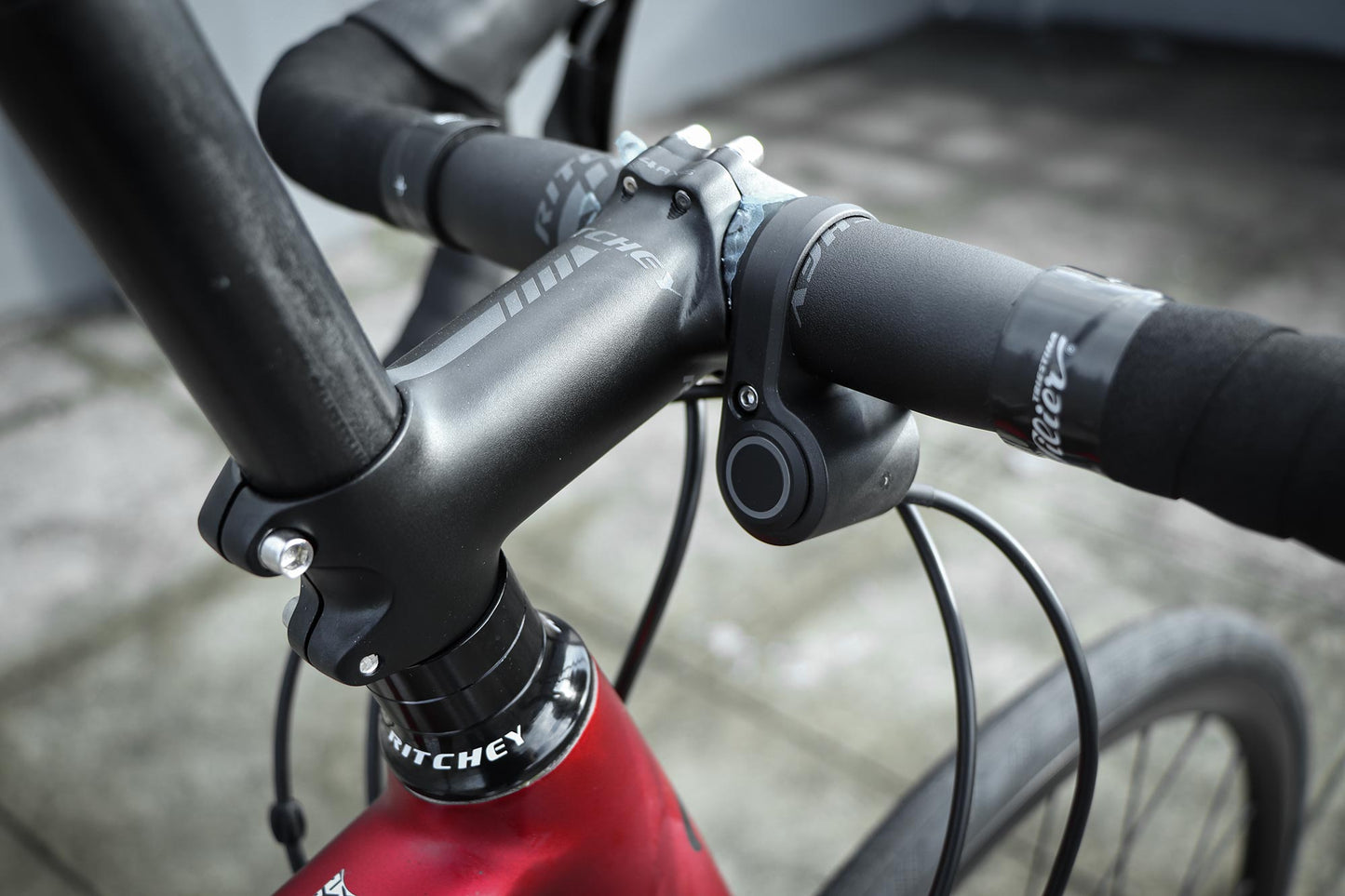

Like the Cento10 HY, the Mahle - Ebikemotion system control button is located on the handlebar, near the stem. This configuration improves riding safety because riders can press the button without removing their hands from the handlebar.

GERMAN EXCELLENCE

Our Ebikemotion division has partnered with automotive technology supply leader Mahle to develop and manufacture some of the lightest and best integrated pedal assist systems on the market.

JUST LIKE RIDING A REGULAR BIKE

The X35+ PAS includes a series of components that integrate seamlessly into the latest racing bikes. Weighing just 3.5 kg overall (motor, battery, cables and controller), it’s one of the lightest PAS on the market. Our X35+ version uses the ANT+ communication protocol to connect to the most advanced cyclocomputers on the market.

MOTOR IN REAR HUB

The drive motor is installed in the rear wheel hub, engaging assistance fluidly and silently. When you stop pedalling, or your speed exceeds 25 km/h, power output stops with no sensation of braking friction.

GENTLE POWER

40 Nm torque is perfect for road or light gravel use. This well-balanced power helps better manage battery life on faster and more competitive routes. The sensation when assistance engages is similar to when someone gives the bike a push on a hill or in a standing start.

250 WH BATTERY CAPACITY

Modest capacity perfect for lightweight pedal-assist bikes like our Hybrid series. The battery is small for easy containment inside the down tube. The system's total capacity gives you peace of mind for outings with major altitude differences.

INCREASE YOUR DISTANCE

Extra battery life expands your pedalling horizons. Battery capacity increases power delivery time by about 80%. The additional battery can be attached to the seat tube using the rivets for the second water bottle holder.

RECORD-BREAKING WEIGHT

The lightest PAS on the market. The miniaturized components plus a hearty dose of technical characteristics provide record weight performance.

ANT+ CONNECTIVITY

The system uses ANT+ to dialogue with third-party devices. This provides all kinds of additional information that can be displayed on the latest cyclocomputers, such as Garmin and Polar.

EFFECTIVE PUSH

The truly lightweight motor’s maximal 250 W of power boosts pedaling effectiveness. The motor engages following the power delivery curve based on how you use the bike. Cadence triggers fluid and effective power with no feeling of resistance.

THE FEEL OF A NORMAL TRADITIONAL BIKE

The motor is positioned inside the hub of the rear wheel so the lower bracket can be sized like that of a regular bicycle. This lets you install standard chainsets. This solution maintains the pedaling sensation of a traditional bicycle.

SPECS

Drivetrain		SHIMANO 105 R7020 DROP BAR
Wheelset		WILIER TRIESTINA HY-NDR28AC
Drive system		MAHLE EBIKEMOTION X35+
Frame		TRIESTINA HYBRID - ALU 6061, DOUBLE BUTTED
Fork		TRIESTINA HYBRID CARBON MONOCOQUE
Handlebar		FSA OMEGA
Stem		FSA OS-168 - CUSTOM WILIER
Headset		RITCHEY PRD15862
Shifters		SHIMANO 105 ST-R7020
Brakes		SHIMANO 105 BR-R7020
Rotors		SHIMANO SM-RT66 6 BOLTS 160 MM / 160 MM
Front derailleur		SHIMANO 105 FD-R7000

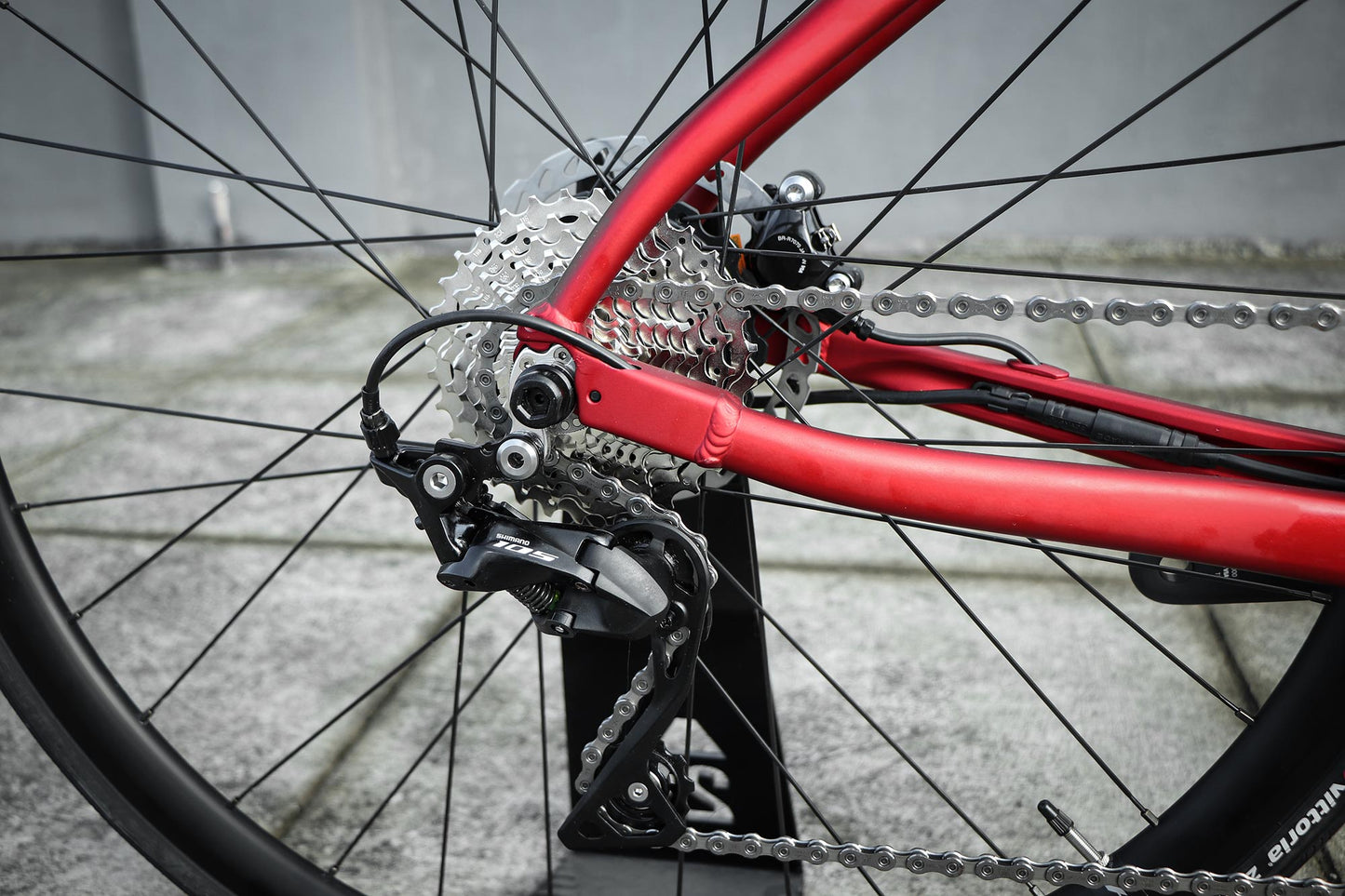

Rear derailleur		SHIMANO 105 RD-R7000-SS

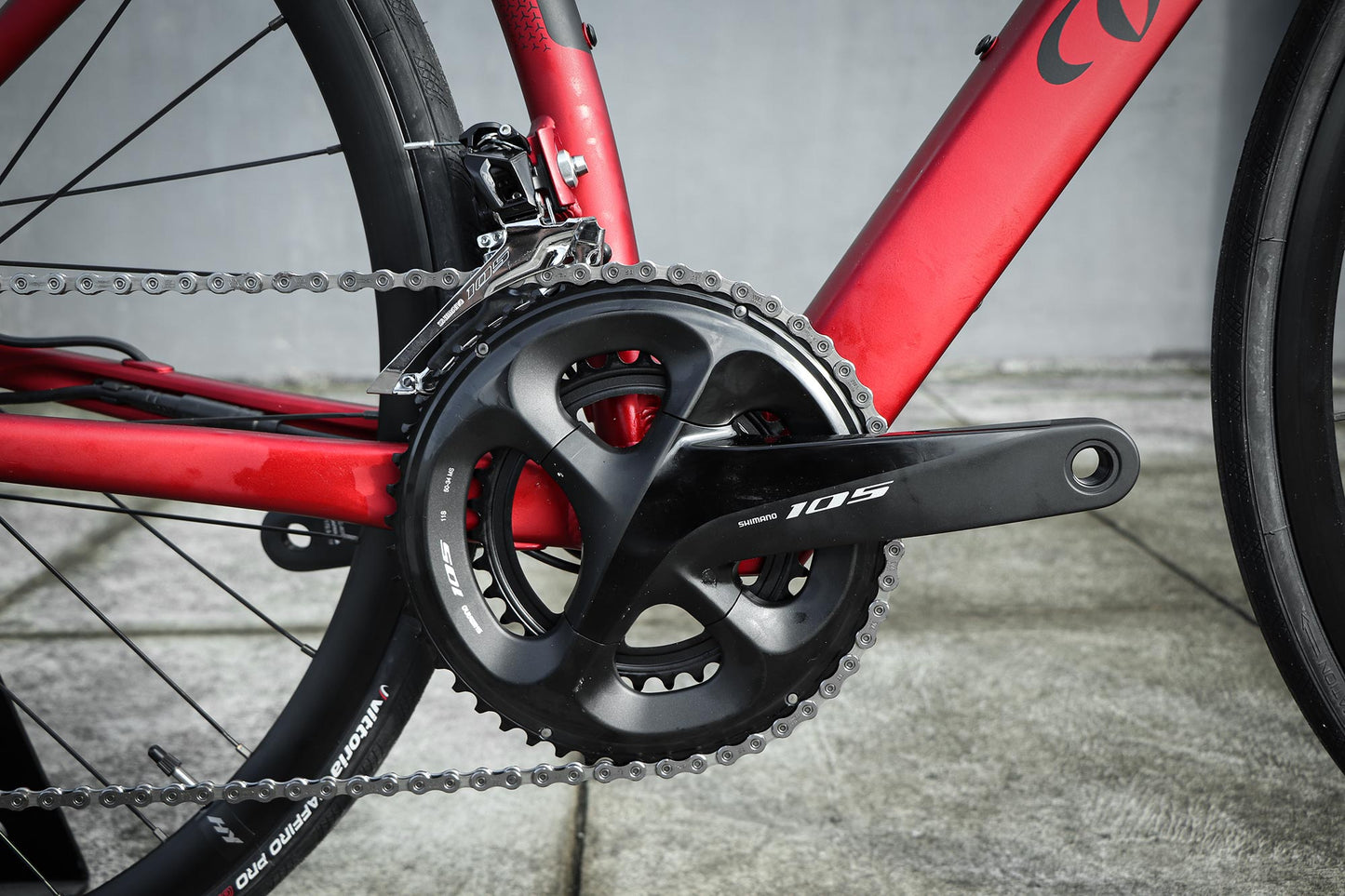

Crankset		SHIMANO 105 FC-R7000 50-34T
BB Shell		SHIMANO PRESSFIT BB-RS500-PB
Cassette		SHIMANO 105 CS-R7000 11-30T
Chain		SHIMANO CN-HG600-11
Tires		VITTORIA ZAFFIRO PRO 4 700X28
Saddle		SELLE ITALIA MODEL X
Seatmast		FSA GOSSAMER SB20
Weight		13,10 KG +/- 5%
