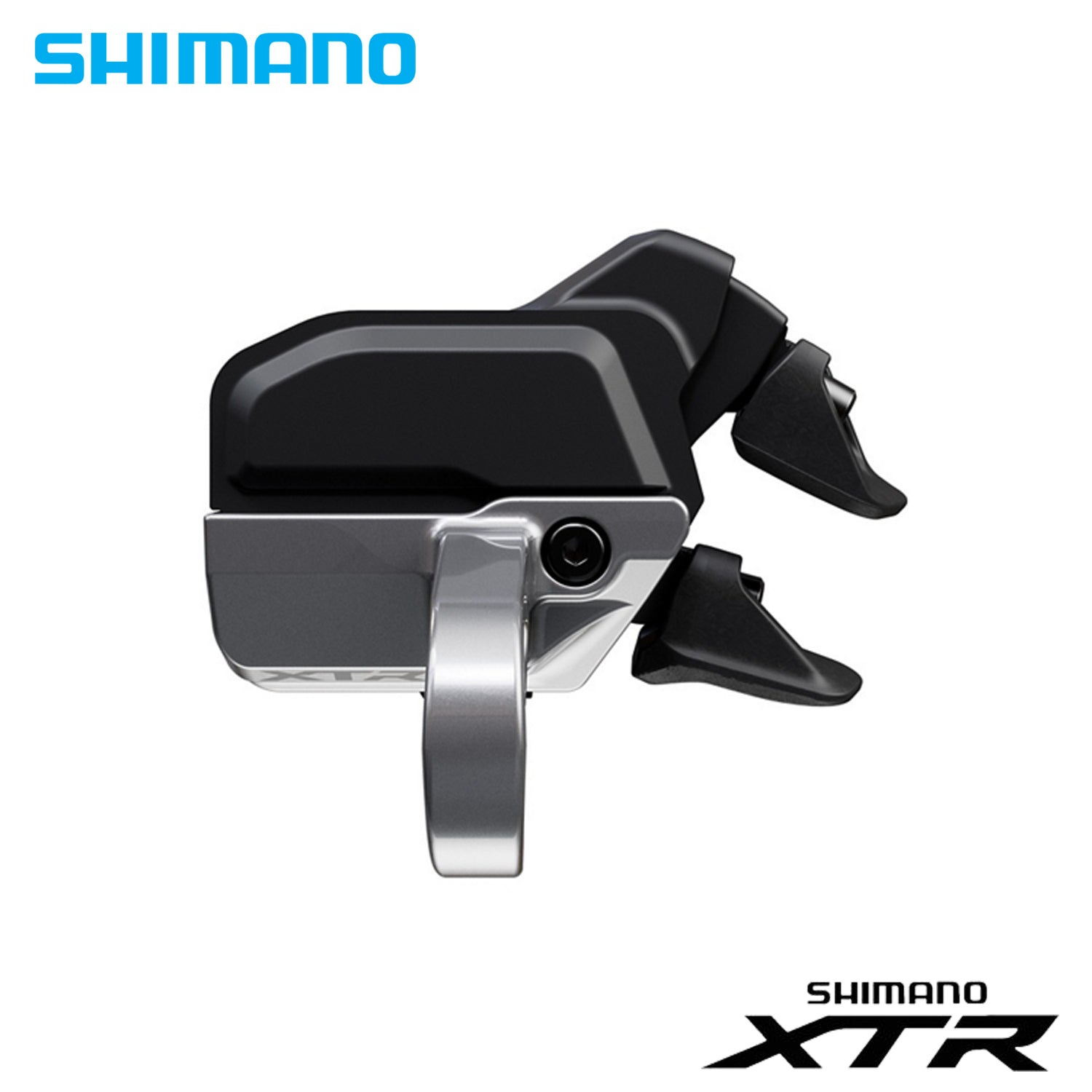

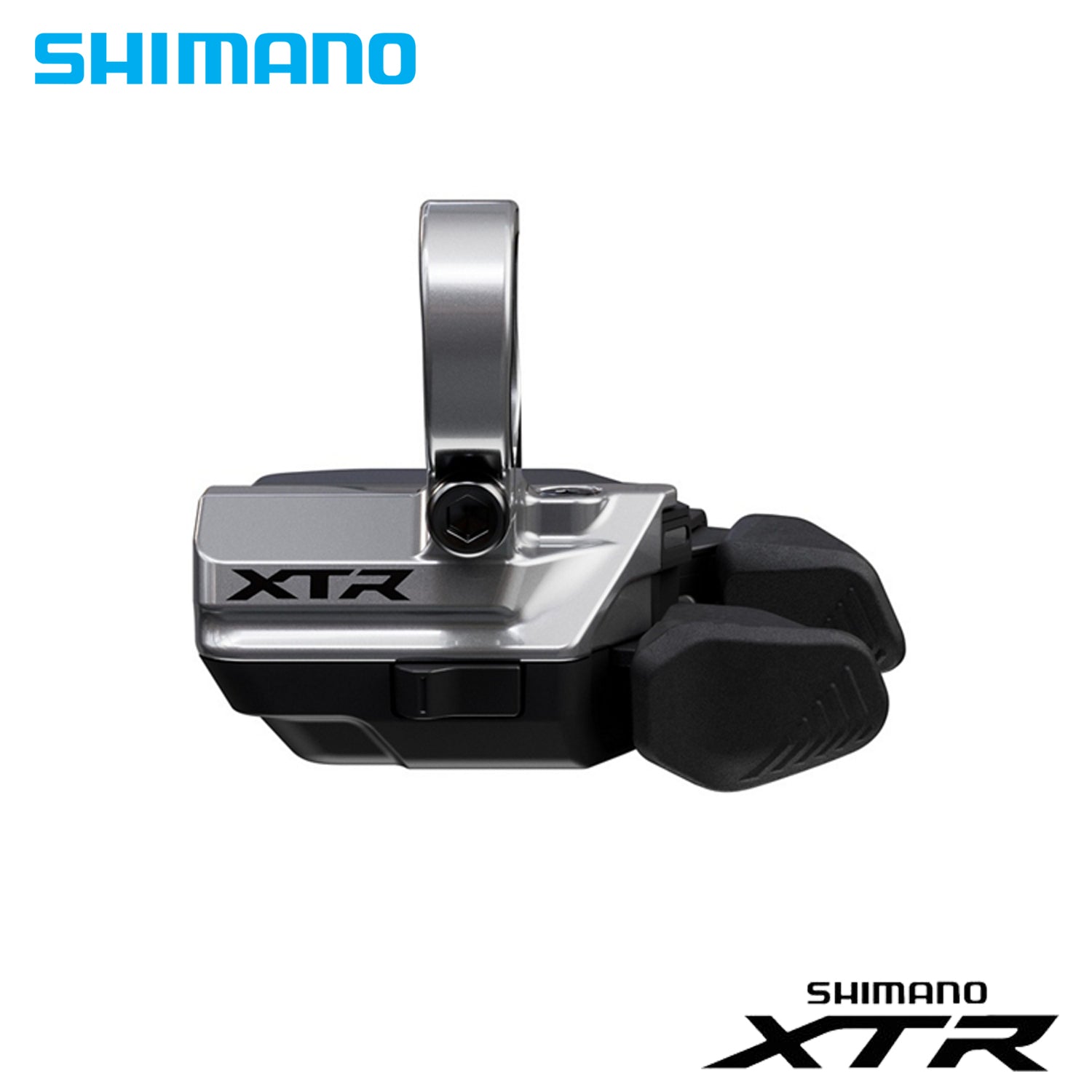

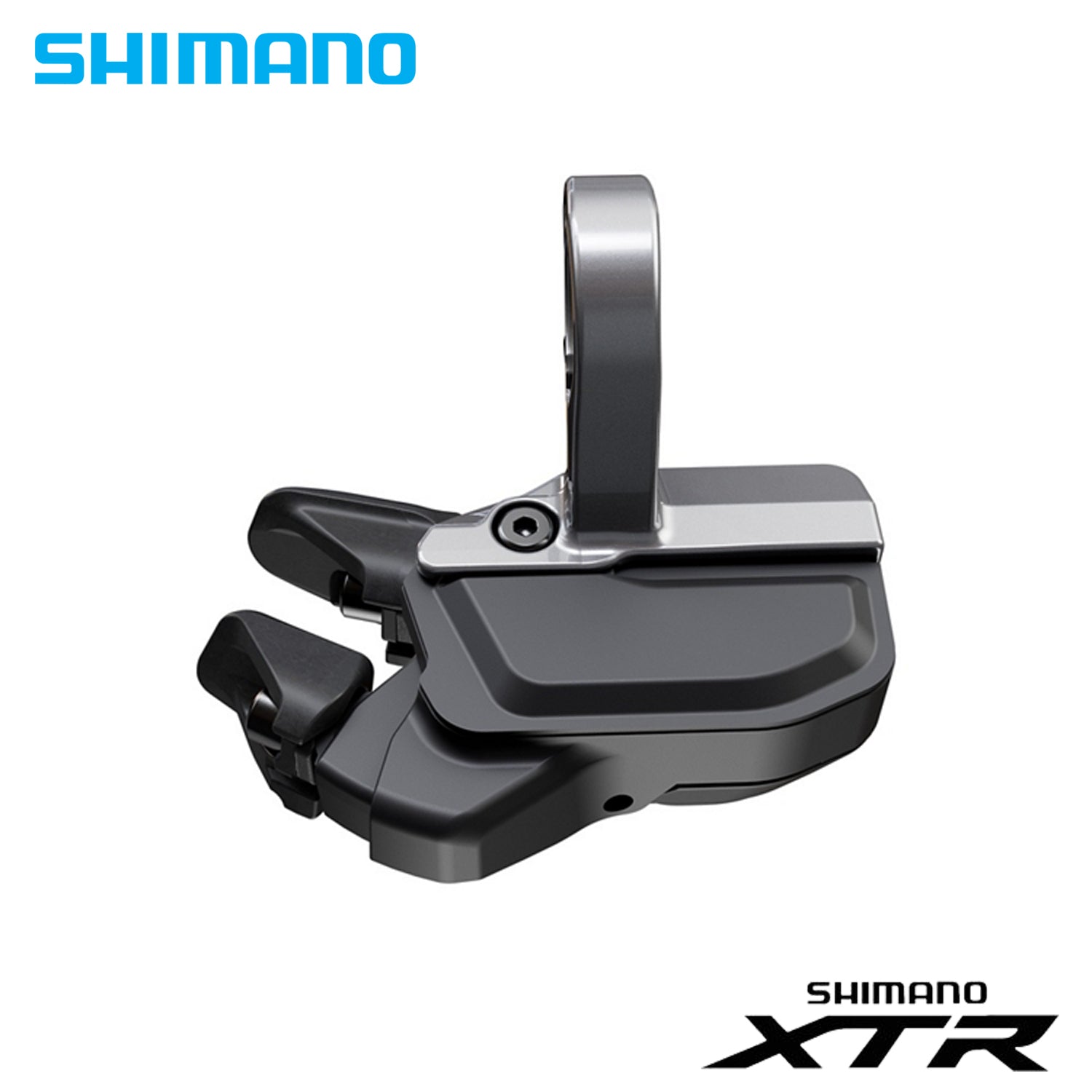

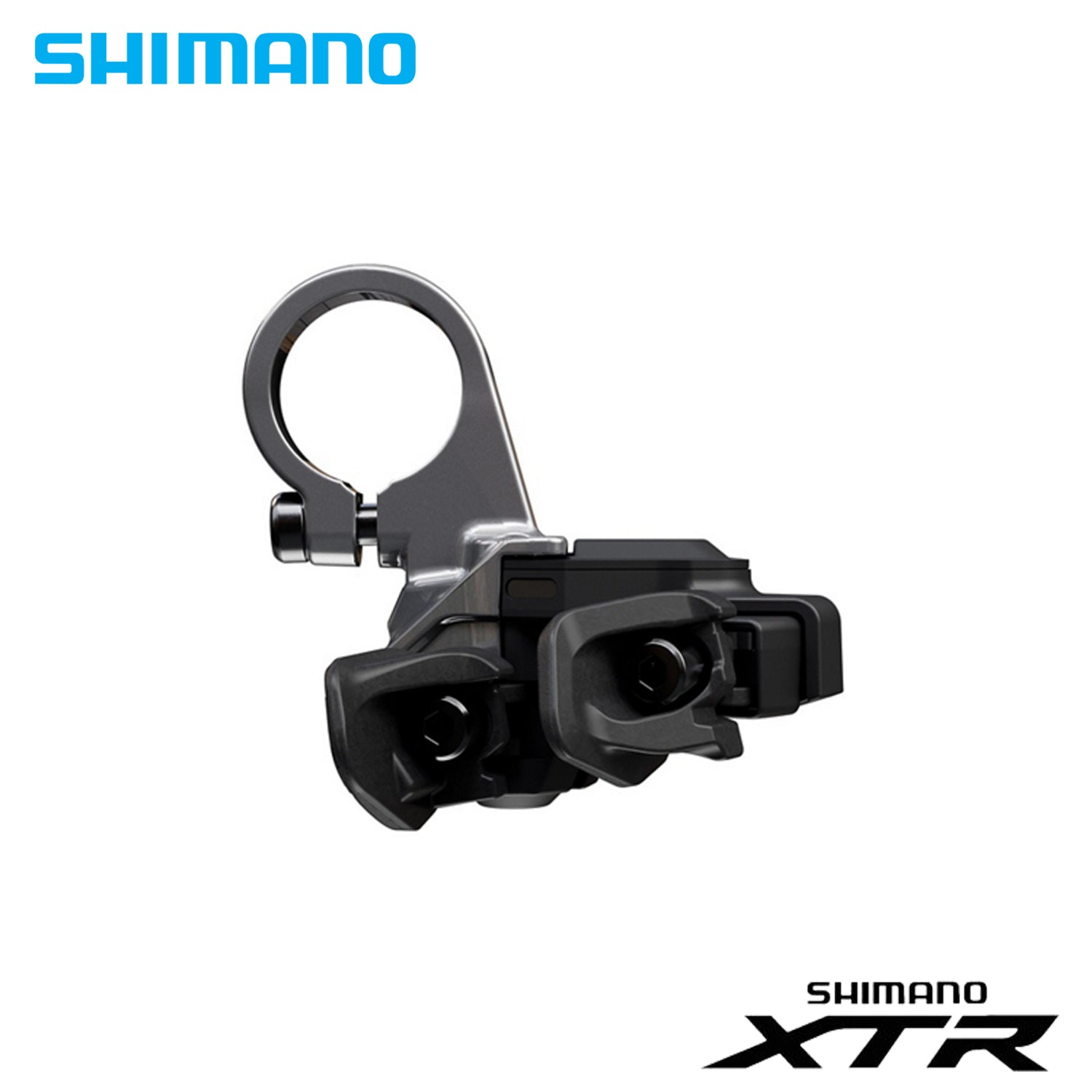

XTR Di2 SHIFTING SWITCH

SW-M9250-R

The XTR M9250 SHIMANO RAPID ES shifter feels instantly natural out of the box, but can also be molded to fit any hand, thanks to its familiar fit and evolved adjustability design. Multiple shift modes, like hold-down multi-shift, tactile click-through double shift, or locked-out single shift, deliver precision, while a tunable third button allows for additional system tuning or third-party connection.

FEATURE

• Ergonomic Evolution: Familiar fit and multi-axis adjustability provide natural-feeling when shifting.
• Fast Action: Precise, lightning-quick wireless shifting activated by Shimano’s most adjustable, customizable, and satisfyingly tactile shifting switch.
• Finely Tuned: Assign a function to the programmable third button through the E-TUBE app, with full switch and e-bike customization.
• Feature Rich: Tech-packed, with a four-way adjust, two-step double shift or hold down multi-shift, rubber traction pad, clamp band and single/double mode converter.

PRODUCT SPECIFICATION

• Model No: SW-M9250-R
• Series: XTR
• Switch type: Adjustable lever position
• Position: Clamp band
• Button numbers (pcs): 3
• SD50 port (pcs): 0
• SD300 port (pcs): 0
• SD50 connector (pcs): 0
• SD300 connector (pcs): 0
• Switch1:
  • Default function: RD outward
  • Multiple input|2 step: ✔
  • Multiple input|Hold: ✔
  • Adjustable lever position: Forward/backward, upward/downward
• Switch2:
  • Default function: RD inward
  • Multiple input|2 step: ✔
  • Multiple input|Hold: ✔
  • Adjustable lever position: Forward/backward, upward/downward
• Switch3:
  • Default function: Shifting/Adj. mode
  • Multiple input|Hold: ✔
• Battery: CR1632 x 2
• LED:
  • Shimano System Status: ✔

FEATURED TECHNOLOGY
