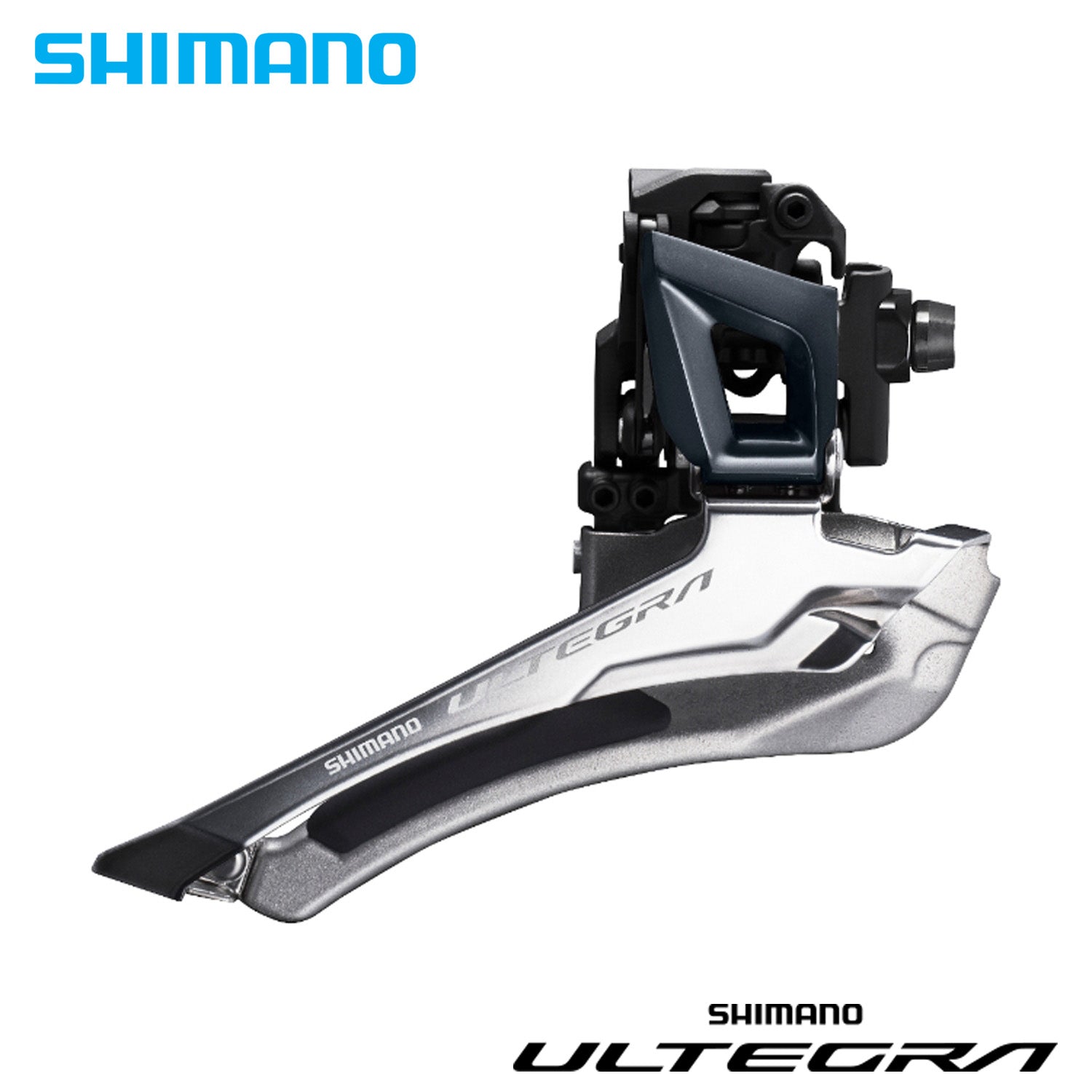

The SHIMANO ULTEGRA R8000 series front derailleur offer lighter front shifting operation and easier setup thanks to the new link construction and integrated cable tensioner. It also matches the wider pitch of the new R8000 crank, creating increased compatibility with disc brake road frames.

FEATURES

Brazed-on type



PRODUCT SPECIFICATIONS

MODEL NO	FD-R8000-F
SERIES	ULTEGRA R8000 Series
Color	Series color
Average weight	92

Front speeds	2
Rear speeds	11
Compatible chain	LINKGLIDE, HG 11-speed
Action|Down swing	✔
Mount|Brazed-on	✔
Cable adjust	✔
Chain line (mm)	43.5
Chainstay angle (deg.)	61-66
Top gear teeth	46-53T
Total capacity	16T
Link bushings	8
