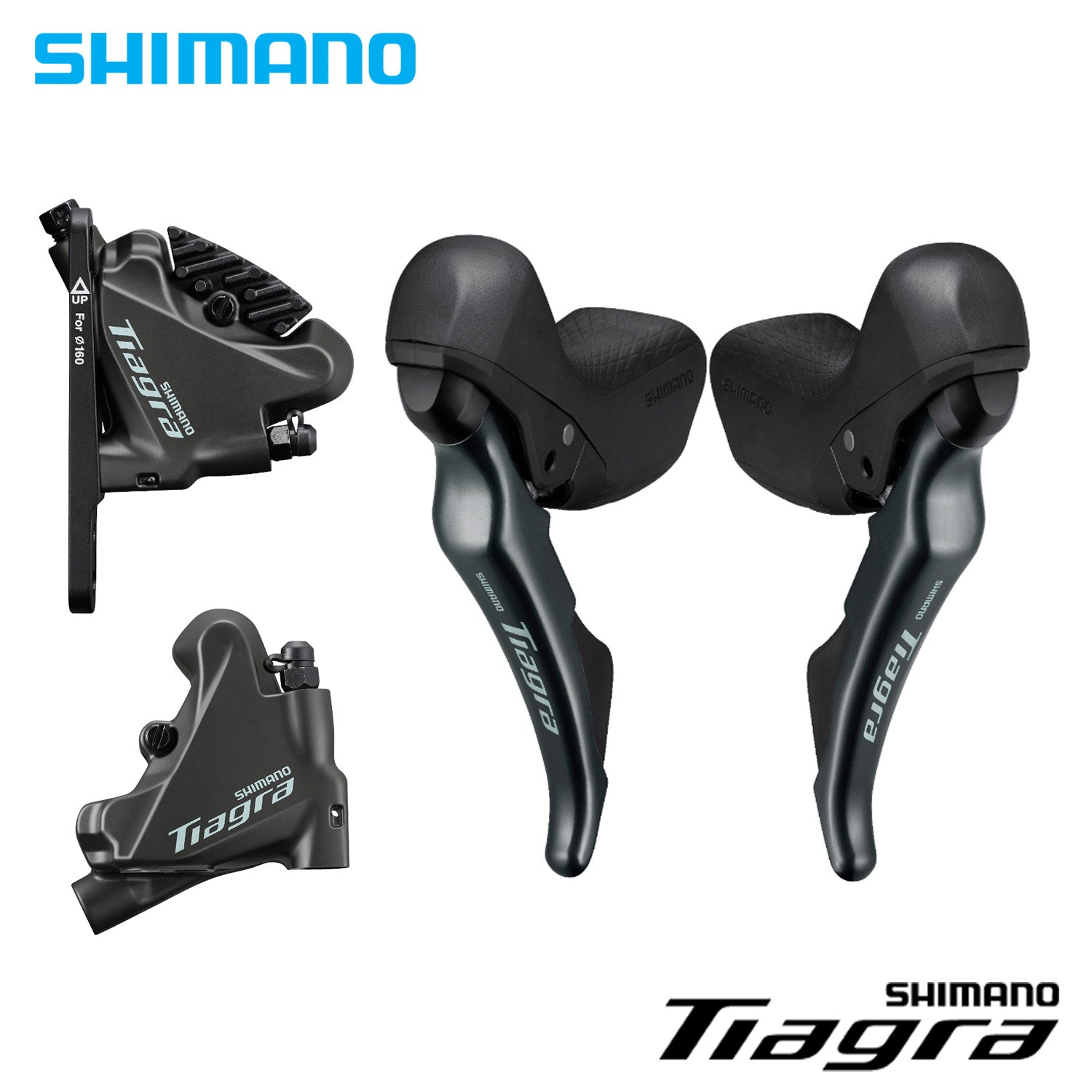

TIAGRA HYDRAULIC DISC BRAKE DUAL CONTROL LEVER 2X10s

ST-4720-L/R

BENEFIT

• Greater rider comfort and control in all conditions
• Quick and intuitive rear shifting operation
• Same level of shifting operation as more high end road groupsets

FEATURE

• Ergonomics cascaded from 105
• Greater reach adjust range
• Smooth and effortless operation
• Redesigned internal shifting unit

TECHNOLOGY

• DUAL CONTROL LEVER

PRODUCT SPECIFICATION

• Model No: ST-4720-L / ST-4720-R
• Series: TIAGRA
• Bracket Cover Color:
  • 1: Standard
• Shifter Type: DUAL CONTROL LEVER
• Shift Lever (ST-4720-L):
  • Front Speeds: 2
• Shift Lever (ST-4720-R):
  • Rear Speeds: 10
  • Max. Multiple Shifts (Main Lever/Rear): 2
  • Compatible Rear Derailleur Type: Road 10-speed
• Shift Lever Cable:
  • Outer Casing|Lever Side: OT-SP41
  • Outer Casing|Rear Derailleur Side: OT-SP41
  • Inner Cable|OPTISLICK: ✔
• Brake Lever:
  • Brake Hose (Kit): SM-BH90-J-SSR, SM-BH90-JK-SSR
  • Hose Joint: Straight
  • Brake Hose Color (Kit)|1: Black
  • Recommended Brake Caliper: BR-4770
  • Oil: SHIMANO Mineral
  • Reach Adjust|Tool: X
  • Reach Adjust: ✔
  • Clamp Band (mm): 23.8-24.2
  • Funnel Bleeding: ✔
• Clamp Band:
  • Diameter (mm): 23.8-24.2
• Shifter Lever Body:
  • Release: Resin & Steel
• Color: Series Color

FEATURED TECHNOLOGY

TIAGRA HYDRAULIC DISC BRAKE CALIPER

BR-4770-F/R

BENEFIT

• Greater rider control and confidence in all conditions
• Simple set up and maintenance

FEATURE

• Integrated hydraulic brake and shifting lever
• Convenient tool access
• Simple wheel replacement
• Easy and clean bleeding system

TECHNOLOGY

• Easy hose joint system (J-kit)
• ONE WAY BLEEDING

PRODUCT SPECIFICATION

• Model No: BR-4770-F / BR-4770-R
• Series: TIAGRA
• Brake Type: Hydraulic Disc Brake
• Brake Hose (Kit): SM-BH90-JK-SSR
• Hose Joint: Straight
• Brake Hose Color (Kit):
  • 1: Black
• J-Kit Spec (for OEM): ✔
• Pad:
  • Standard 1: K05S-RX Resin (w/o fin)
  • Standard 2: K04S-MX Metal (w/o fin)
  • Option 1: L03A-RF Resin (w/ fin)
• Fixing Screw Spec for Rear Mount:
  • 10 mm mount: ✔
  • 15 mm mount: ✔
  • 20 mm mount: ✔
  • 25 mm mount: ✔
  • 30 mm mount: ✔
  • 35 mm mount: ✔
• Recommended Brake Lever: ST-4720 ST-4725
• Recommended Disc Brake Rotor: SM-RT64
• Oil: SHIMANO Mineral
• ONE WAY BLEEDING: ✔
• Mount Type: Flat mount
• Piston: 2
• Caliper Fixing Screw:
  • Tool Size: 4mm
  • Anti Loosen Method: Screw Fix Pin + Snap Ring
• Pad Mount: Pad Axle
• Color: Series Color
