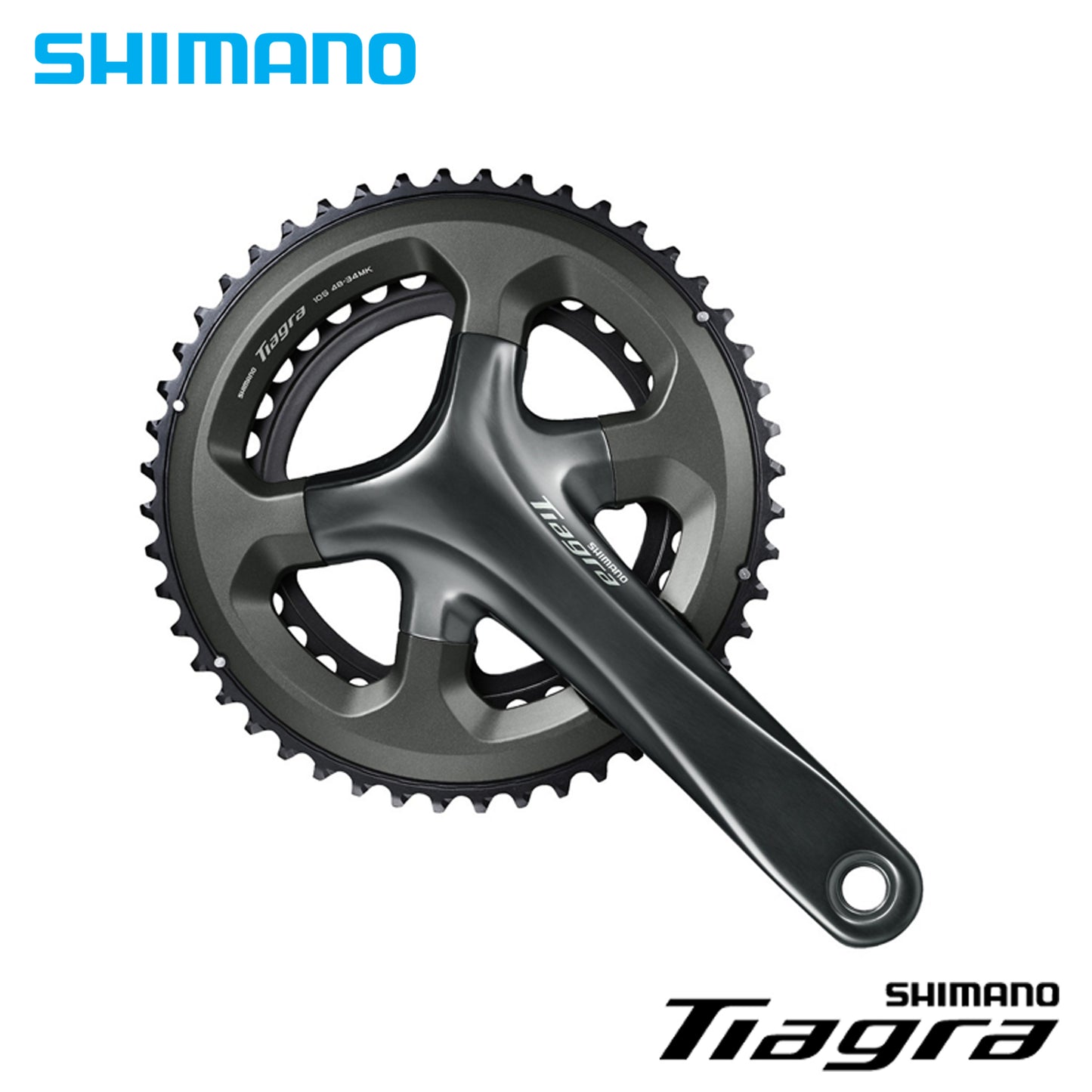

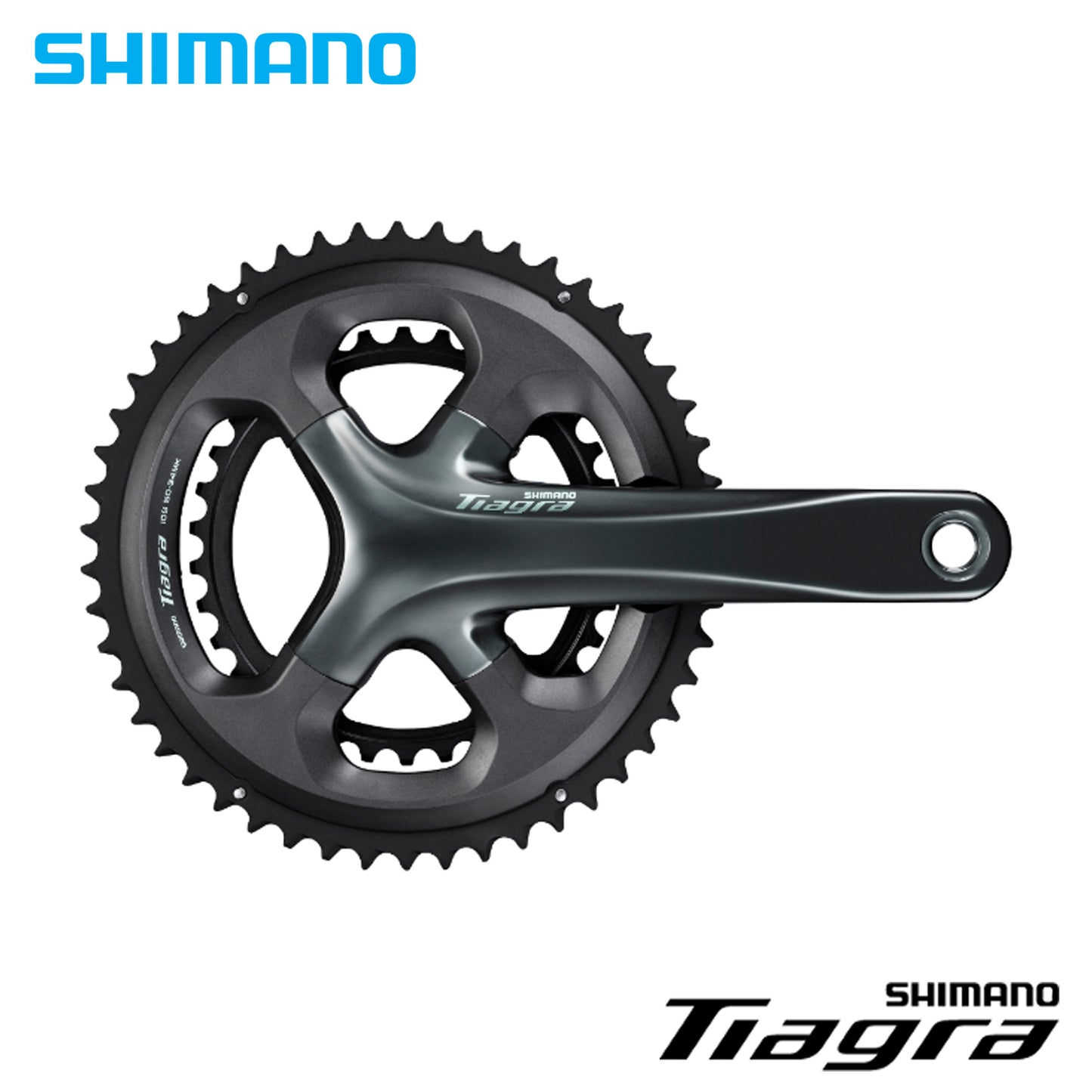

TIAGRA CRANKSET 2X10s

FC-4700

The new SHIMANO TIAGRA FC-4700 crank balances weight and efficiency without sacrificing stiffness. It is offered in 52-36, 50-34T, and a new 48-34T chainring options and 165, 170, 172.5, and 175mm crank arm lengths.

BENEFIT

• Optimum power transfer motivates riders to pedal further and faster
• Gear combinations to match more riding styles
• Gear combination: 50-34T, 52-36T, 48-34T
• Crank arm length: 165, 170, 172.5, 175

FEATURE

• Optimal balance between stiffness and lightweight
• Reinforced 4-arm construction
• 110 PCD
• Optimized gear shape for HG-X chain
• Additional gear combination: 48-34T

PRODUCT SPECIFICATION

• Model No.: FC-4700
• Series: TIAGRA
• Rear Speeds: 10
• Compatible Chain: HG-X 10-speed
• Chain Line (mm): 43.5
• P.C.D. left / right (mm): 110
• P.C.D. (mm): 110
• Spider/Gear Arms: 4
• Chainring Combination: 48-34T, 50-34T, 52-36T
• Q-Factor (mm): 150
• Crank Arm Length (mm);
  • 165: ✔
  • 170: ✔
  • 172.5: ✔
  • 175: ✔
• Optional Chain Guard:
  • Without Chain/Bash Guard: ✔
• 2-PIECE CRANKSET: ✔
• Compatible Bottom Bracket Type:
  • Outboard: ✔
• Recommended Bottom Bracket Type:
  • Threaded (Normal): BB-RS501
  • Press-Fit: BB-RS500-PB
• Threaded Bottom Bracket Shell Width 9mm):
  • 68: ✔
  • 70: ✔
• Crank Fixing Screw Included: ✔
• Color: Series Color
