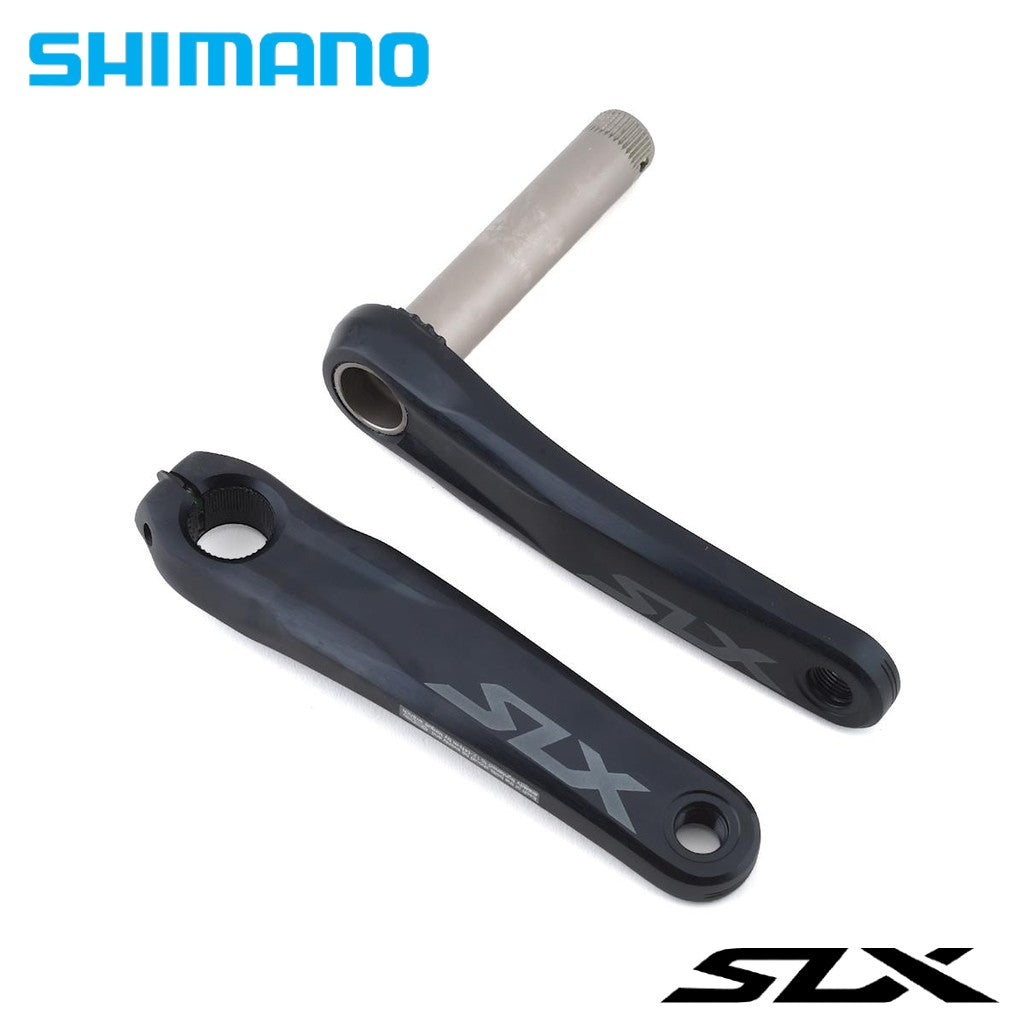

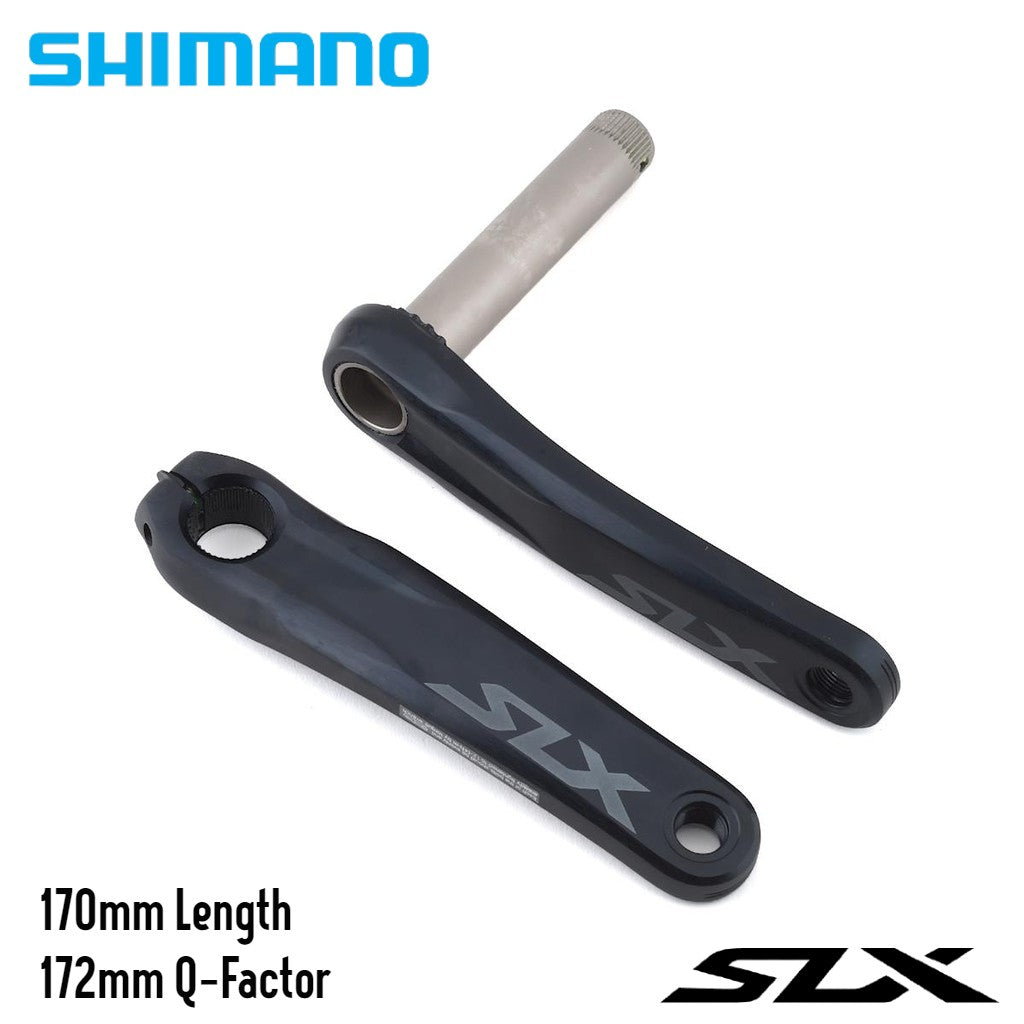

Shimano SLX FC-M7100-1 1by Crank Arm Set without Chainring

Shimano SLX FC-M7100-1 1by Crank Arm Set without Chainring

₱4,295.00
₱4,295.00
Sale Sold out
Tax included.
Length - Q

SKU:

SLX HOLLOWTECH II MTB Crankset 172 mm Q-Factor 1x12-speed

  • FC-M7100-1 - 172mm Q-Factor
  • FC-M7120-1 - 178mm Q-Factor

SLX - HOLLOWTECH II - MTB Crankset - 172 mm Q-Factor - 1x12-speed

The SLX FC-M7100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention.

FEATURES

  • Superior chain retention
  • Special MTB gear teeth profile improves chain engagement and retention
  • DYNAMIC CHAIN ENGAGEMENT+
  • Rigid and lightweight design boosts trail-riding enjoyment
  • Hollow forged crank maximizes power transfer while limiting weight
  • HOLLOWTECH II
  • Easier gearing than racing groupsets
  • Q-factor: 172 mm / 178mm
  • Chainline: 52 mm / 55mm

    •

    PRODUCT SPECIFICATIONS (FC-M7100)

    MODEL NO FC-M7100-1
    SERIES SLX M7100 Series
    Color Series color
    Average weight 646 (34T) 631 (32T) 634 (30T)
    Chainring combination 30T, 32T, 34T
    Compatible bottom bracket type_Outboard ✔
    Crank fixing screw included ✔
    Crank arm length (mm)_165 ✔
    Crank arm length (mm)_170 ✔
    Crank arm length (mm)_175 ✔
    Spider/Gear arms 4
    HOLLOWTECH II ✔
    Optional chain guard_Without chain/bash guard ✔
    Recommended bottom bracket_Press-fit BB-MT800-PA
    Recommended bottom bracket_Threaded (normal) BB-MT800
    Threaded bottom bracket shell width (mm)_68 ✔
    Threaded bottom bracket shell width (mm)_73 ✔
    Q-factor (mm) 172
    Chain line (mm) 52
    Compatible chain HG 12-speed
    P.C.D. (mm) Direct
    Rear speeds 12
    O.L.D._QR/Nut (mm) 135, 141
    O.L.D._Thru (mm) 142, 148



    PRODUCT SPECIFICATIONS - FC-M7120

    MODEL NO FC-M7120-1
    SERIES SLX M7100 Series
    Color Series color
    Average weight 653 (34T) 638 (32T) 641 (30T)
    Chainring combination 30T, 32T, 34T
    Compatible bottom bracket type_Outboard ✔
    Crank fixing screw included ✔
    Crank arm length (mm)_165 ✔
    Crank arm length (mm)_170 ✔
    Crank arm length (mm)_175 ✔
    Spider/Gear arms 4
    HOLLOWTECH II ✔
    Optional chain guard_Without chain/bash guard ✔
    Recommended bottom bracket_Press-fit BB-MT800-PA
    Recommended bottom bracket_Threaded (normal) BB-MT800
    Threaded bottom bracket shell width (mm)_68 ✔
    Threaded bottom bracket shell width (mm)_73 ✔
    Q-factor (mm) 178
    Chain line (mm) 55
    Compatible chain HG 12-speed
    P.C.D. (mm) Direct
    Rear speeds 12
    O.L.D._QR/Nut (mm) 141
    O.L.D._Thru (mm) 148
