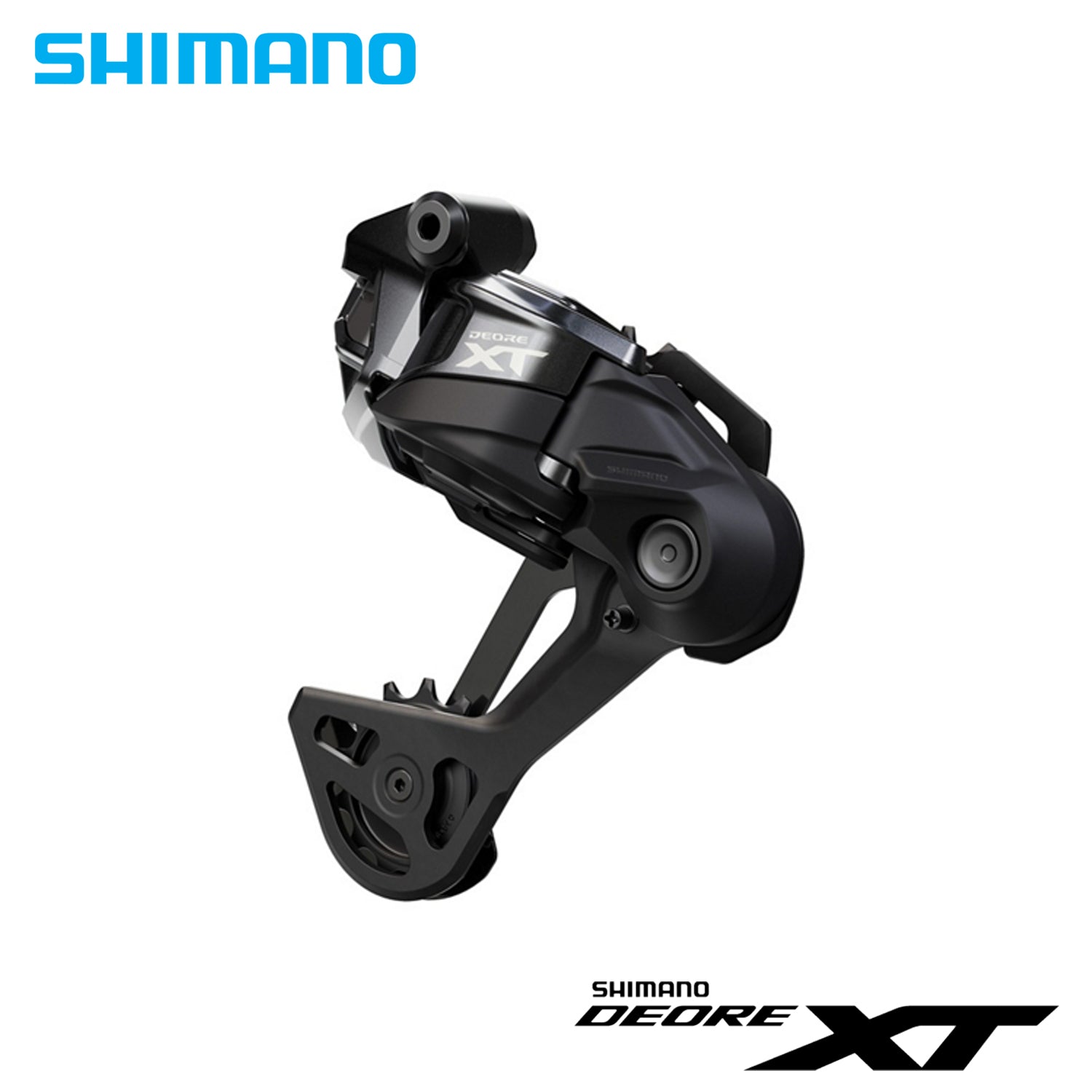

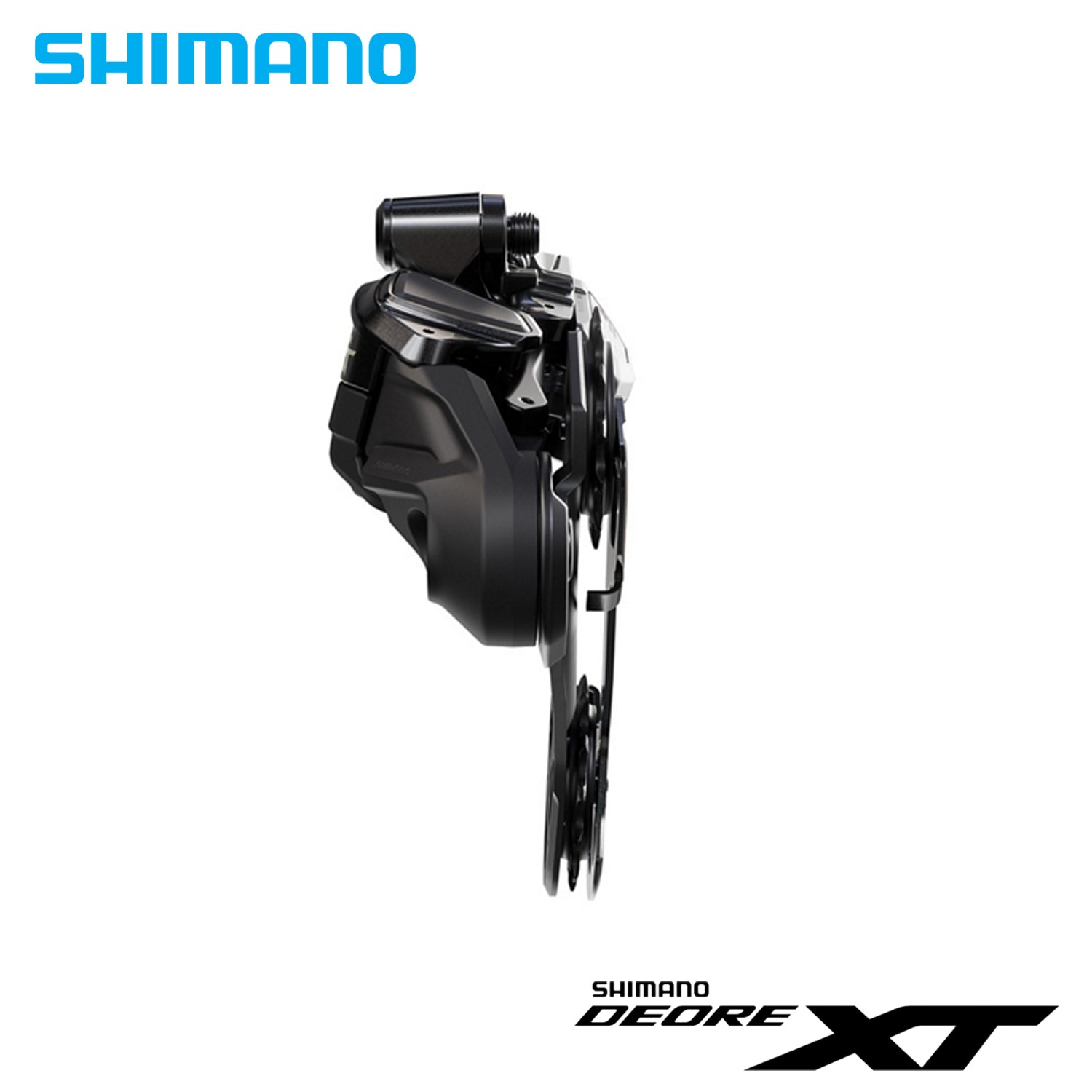

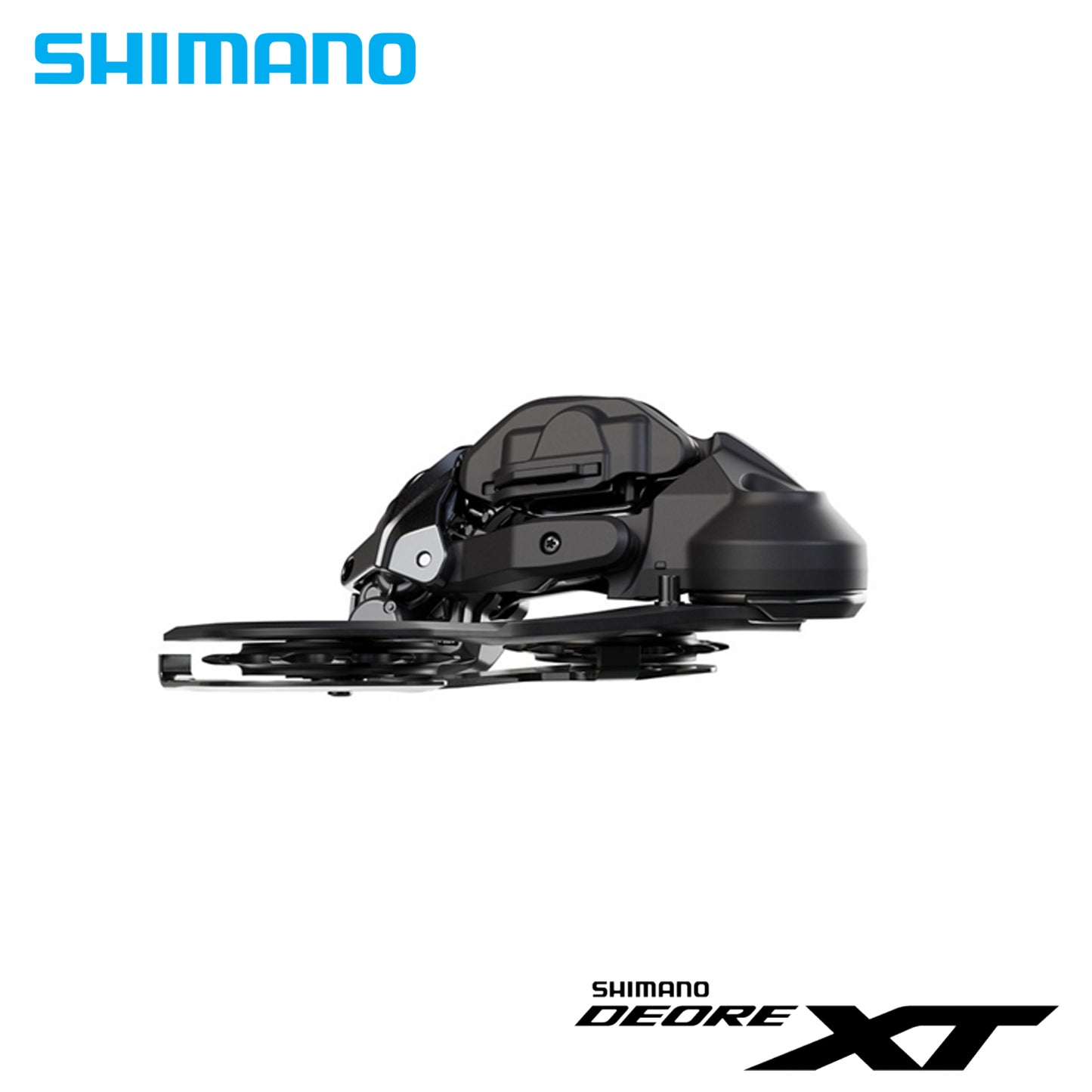

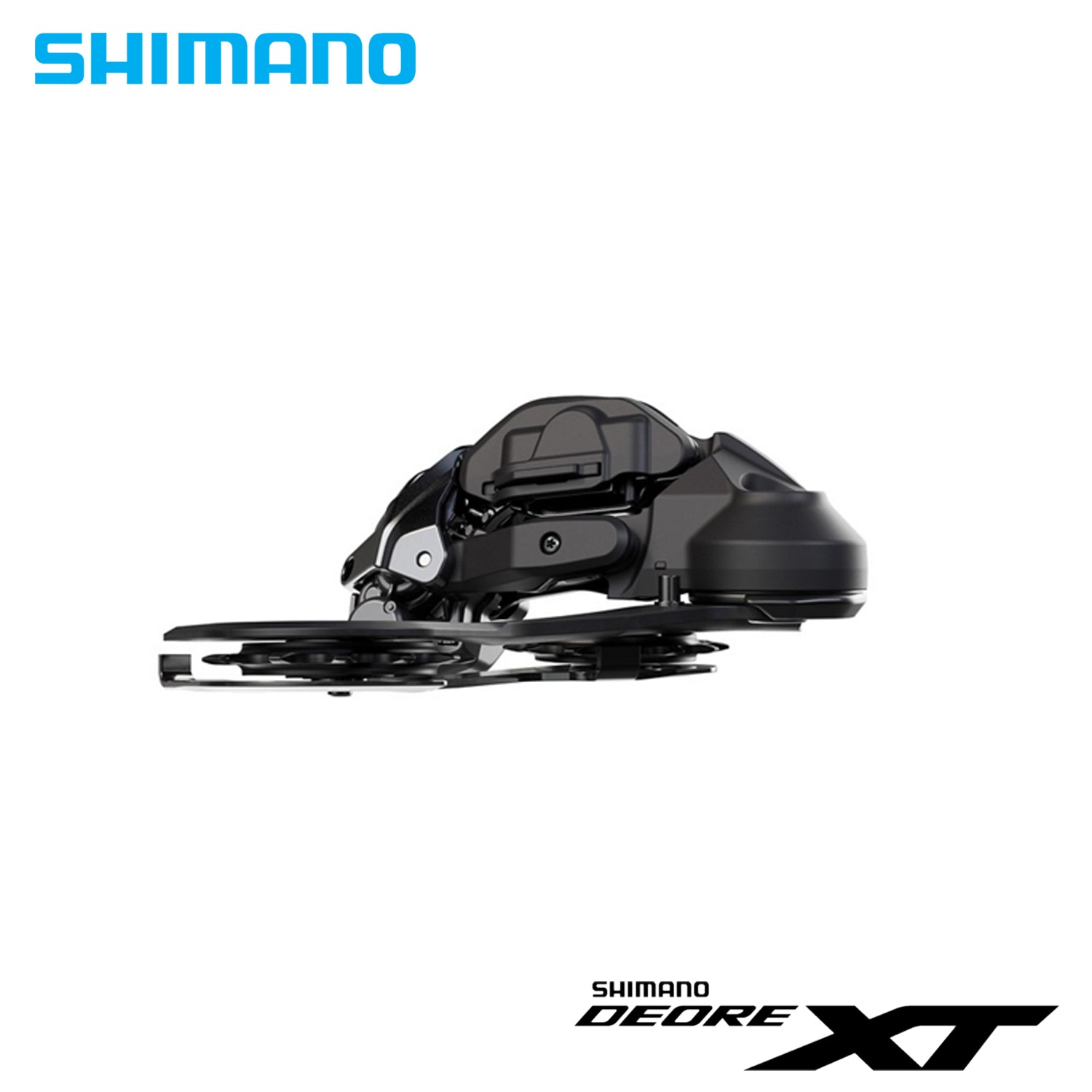

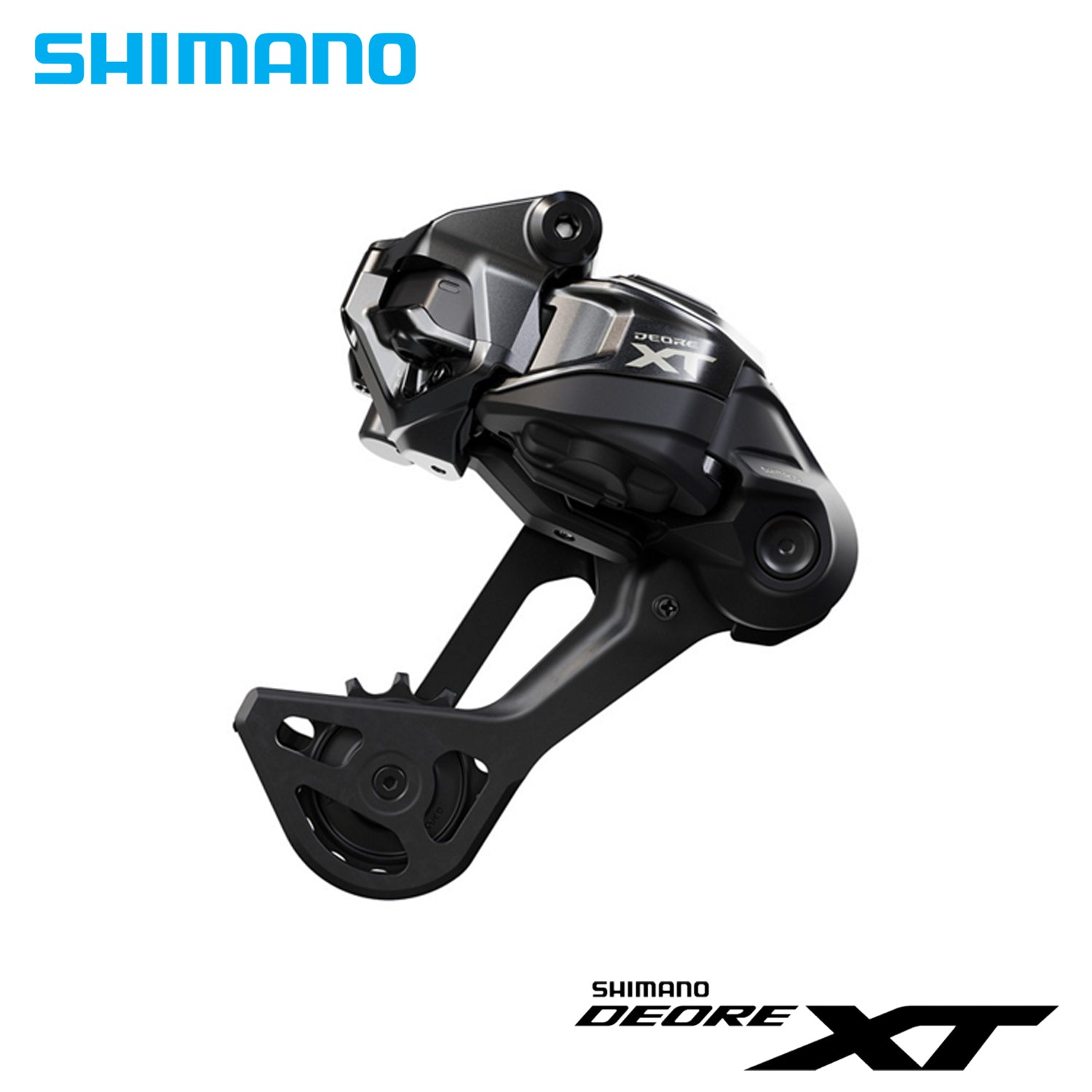

DEORE XT Di2 REAR DERAILLEUR LONG CAGE 12s

RD-M8250-SGS

The all-new DEORE XT M8250 long-cage derailleur paired with a standard 10-51T M8200 cassette gives all types of riders the range and robustness to tackle every trail on the mountain. With built-in Automatic Impact Recovery, a new, impact-deflecting wedge shape, and simple covered-pulley solutions, this derailleur stands up to harsh trail impacts and still retains its lightning-quick shifting speed and high level of performance.

FEATURE

• Robust Design: A wide link structure, skid-plate design, durable aluminum plate and solid pulley add robustness and longevity.
• RD Protection Function: The new Automatic Impact Recovery function instantly returns the derailleur to its original position after impact.
• SHIMANO SHADOW ES: A slimmer, stronger evolution of SHIMANO's pioneering chain-stabilizing SHADOW RD+ concept.
• Precise & Clean Wireless Shifting: Ultra-fast shifting and a no-sacrifice 500% gear range.
• Protected Battery: Tucked safely inside an enclosed space, the battery won't budge even in rough terrain, while remaining easily removable for charging.
• Covered Pulleys/Cage: The solid pulley and shielded pulley teeth prevent trail debris from jamming up your flow.

PRODUCT SPECIFICATION

• Model No: RD-M8250-SGS
• Series: DEORE XT
• Rear speeds: 12
• Compatible chain: HG 12-speed
• Mount:
  • Direct attachment (conventional): ✔
• Max. front difference: 0T
• Total capacity: 41T
• Low sprocket:
  • Max.: 51T
  • Min.: 51T
• Top sprocket:
  • Max.: 10T
  • Min.: 10T
• Fluoric coated link bushings: TBD
• Pulley:
  • Guide pulley bearing: Sealed bearing
  • Tension pulley bearing: Sealed bearing
  • Teeth: 13
  • Sunken type pulley screw: TBD
• B-axle
  • Hollow axle: TBD
• Di2 connectivity wireless:
  • Di2 shifting: ✔
  • Bluetooth® LE custom (*1)|Adjust mode information: ✔
  • Bluetooth® LE custom (*1)|Di2 battery level: ✔
  • Bluetooth® LE custom (*1)|Gear position: ✔
  • Bluetooth® LE custom (*1)|SHIMANO E-BIKE SYSTEMS data items (*3): ✔
  • Bluetooth® LE custom (*1)|Compatible with E-TUBE RIDE: ✔
  • Bluetooth® LE custom (*1)|Compatible with E-TUBE PROJECT: ✔
  • ANT private (*2)|Adjust mode information: ✔
  • ANT private (*2)|Di2 battery level: ✔
  • ANT private (*2)|Gear position: ✔
  • ANT private (*2)|SHIMANO E-BIKE SYSTEMS data items (*3): ✔
• SD50 port (pcs): 0
• SD300 port (pcs): 0
• SD50 connector (pcs): 0
• SD300 connector (pcs): 0
• LED for system status: YES
