Shimano

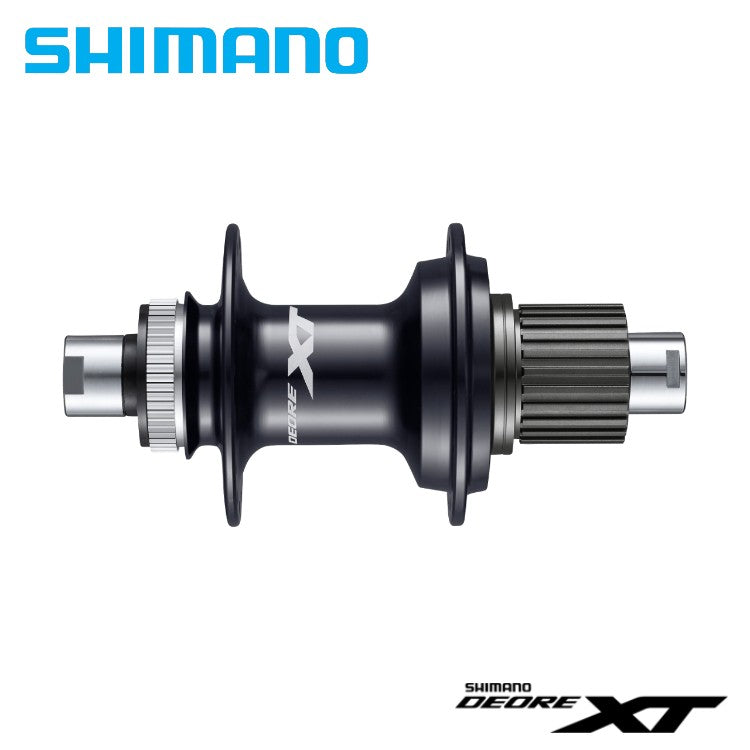

Shimano Deore XT FH-M8110 Rear Freehub- Microspline Centerlock Disc Brake E-THRU Axle - 12-speed - 32H

Shimano Deore XT FH-M8110 Rear Freehub- Microspline Centerlock Disc Brake E-THRU Axle - 12-speed - 32H

₱4,695.00
₱5,215.00 ₱4,695.00
Sale Sold out
Tax included.

SKU:

SHIMANO DEORE XT Rear FREEHUB 142x12mm E-THRU Axle 12-speed

FH-M8110

SHIMANO DEORE XT - Rear FREEHUB - MICRO SPLINE - CENTER LOCK - Disc Brake - 142x12 mm E-THRU Axle - 12-speed

Compatible with 12-speed MICRO SPLINE cassettes.

FEATURES

  • Faster acceleration amplifies riding excitement
  • Smaller spline diameter for 10T top gear by MICRO SPLINE
  • Simple setup and reliable trail performance
  • Easy disc brake rotor installation with spline mount and lock ring
  • CENTER LOCK
  • O.L.D.: 142 mm

    • PRODUCT SPECIFICATIONS

    MODEL NO FH-M8110
    SERIES DEORE XT M8100 Series
    Color Series color
    Average weight 305
    Brake type CENTER LOCK disc brake
    Axle fixing method 12 mm E-THRU
    Bearing_Cone CBN & Polish
    Bearing_Cup Polish
    External serration disc brake rotor lock ring_without ✔
    Flange diameter Left/Right (mm) 69.8/69.8
    Flange distance (mm) 55.17
    Internal serration disc brake rotor lock ring_without ✔
    Offset (mm) 6.72
    P.C.D. left / right (mm) 61/61
    Quick engagement X (max 7.0 deg.)
    10 tooth cog compatible ✔
    O.L.D. (mm) 142
    Spoke hole_28H ✔
    Spoke hole_32H ✔
    Spoke hole_36H ✔
    Rear speeds 12
    Thru Axle (Length x Inner diameter ; mm)_142 x 12 ✔
    Seal_FREEHUB body Contact
    Seal_Hub Labyrinth & Contact
    Color_1 Hub shell Series color
    MICRO SPLINE ✔
    Engagement type Direct engagement



    TECHNOLOGIES

    centerlock_2003_s1_l_3 quick_engagement  MicroSpline_2019_s1_l
