Shimano

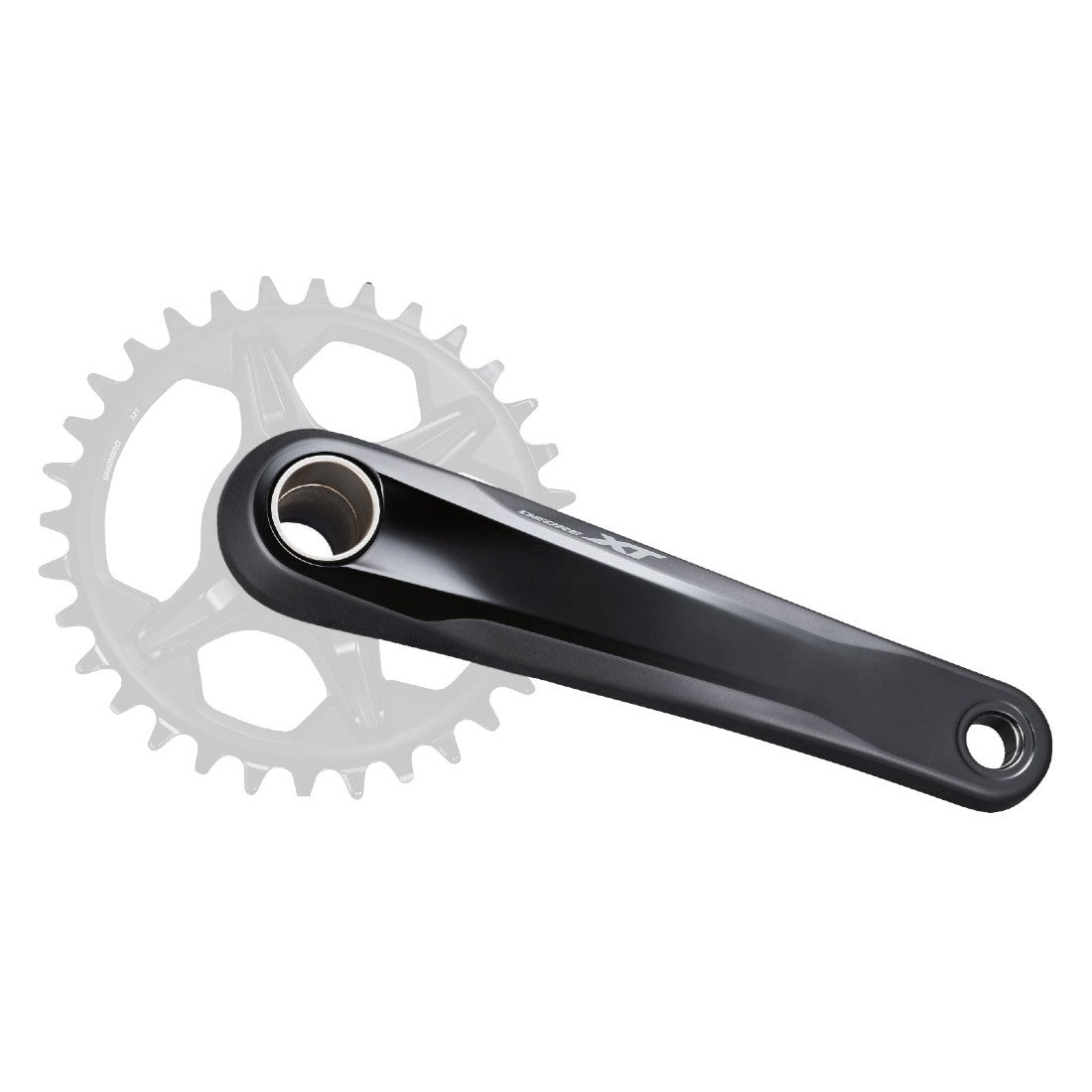

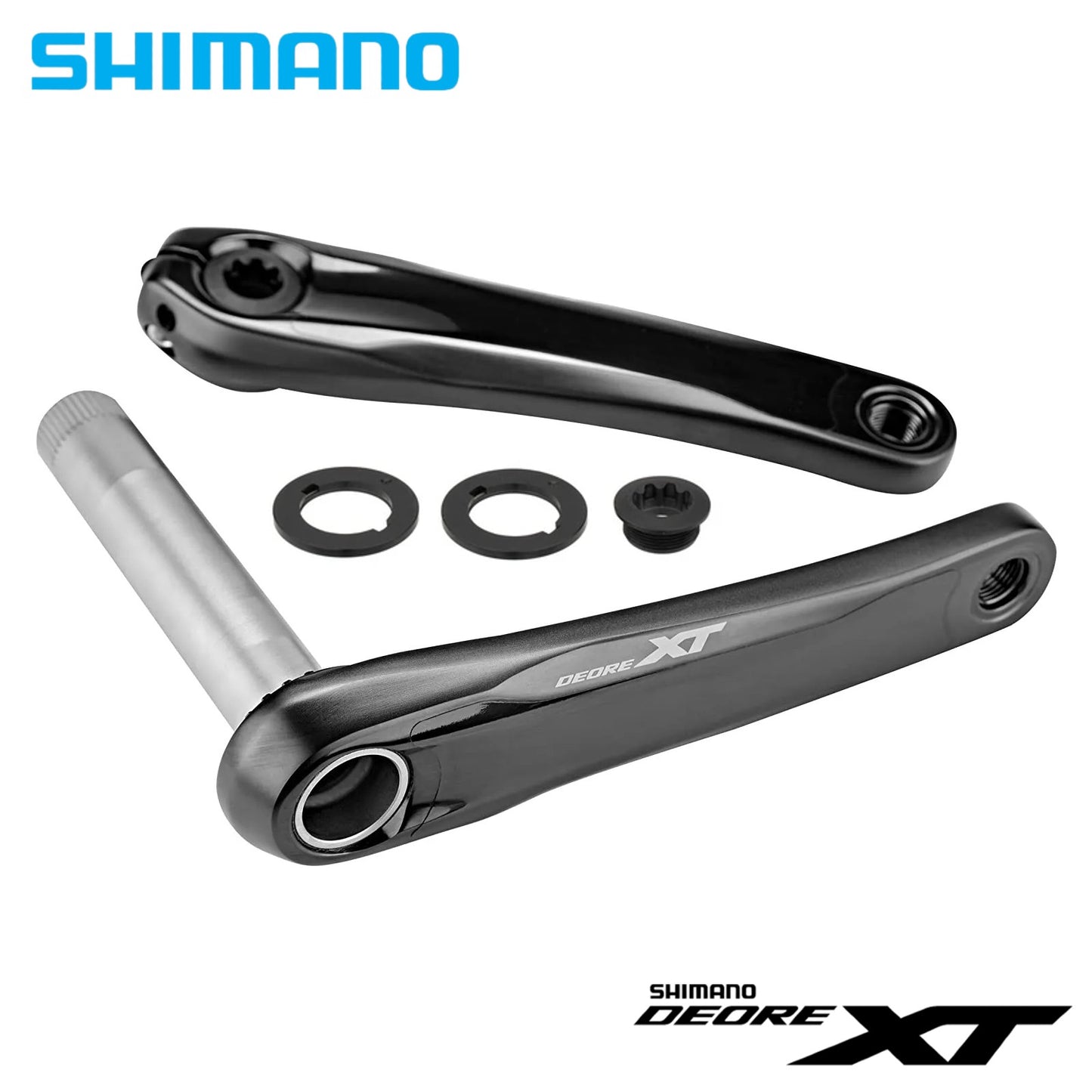

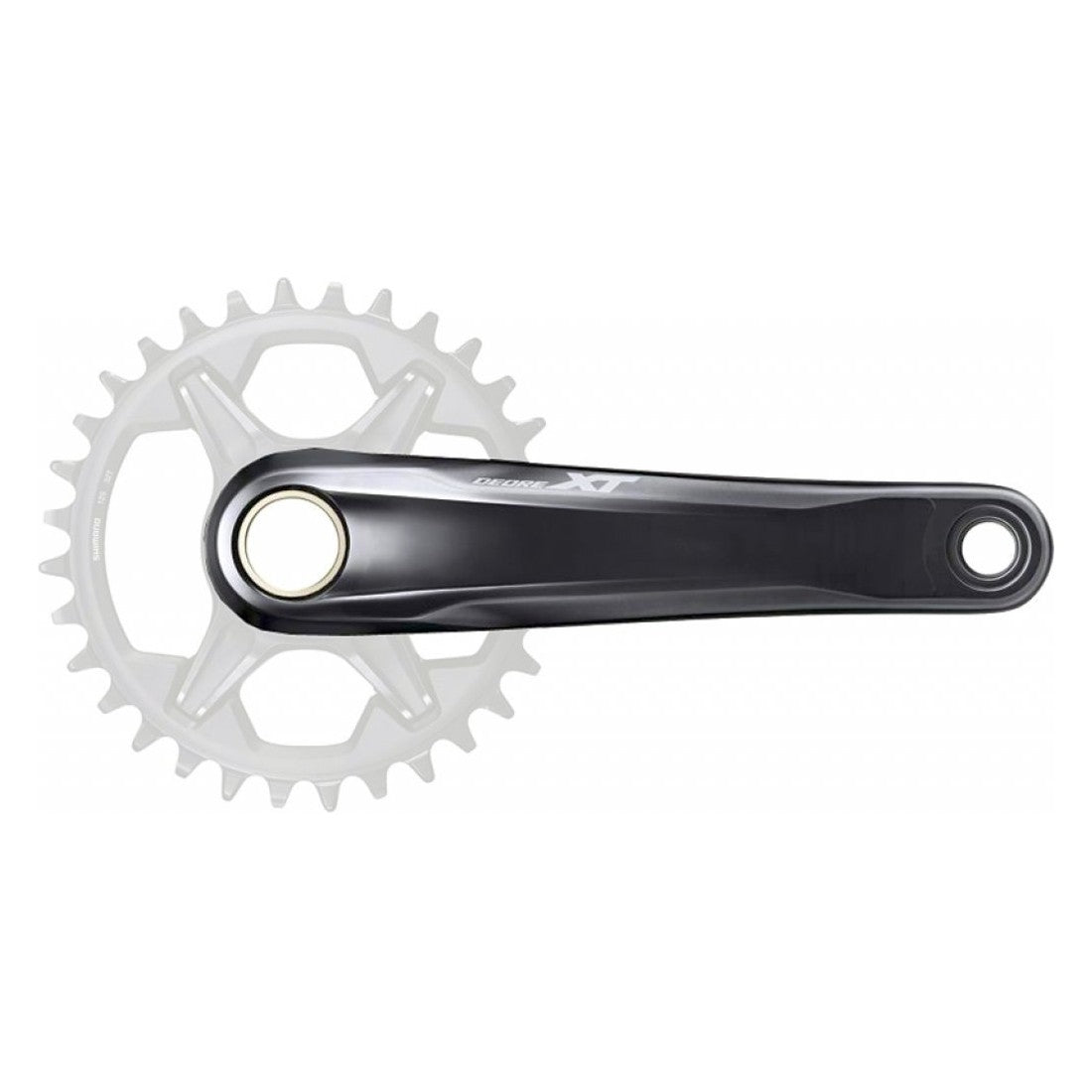

Shimano Deore XT FC-M8120-1 1by Crank Arm Set without Chainring

Shimano Deore XT FC-M8120-1 1by Crank Arm Set without Chainring

Regular price ₱7,550.00
Regular price ₱8,490.00 Sale price ₱7,550.00
Sale Sold out
Tax included.
Length - Q

SKU:

FEATURES

  • Superior chain retention
  • Special MTB gear teeth profile improves chain engagement and retention
  • DYNAMIC CHAIN ENGAGEMENT+
  • Rigid and lightweight design for aggressive trail riding
  • Hollow forged crank maximizes power transfer while limiting weight
  • HOLLOWTECH II
  • Q-factor: 178 mm
  • Chainline: 55 mm
  • Weight: 616 g (28T), 630 g (30T), 628 g (32T), 642 g (34T), 660 g (36T)
  •

    PRODUCT SPECIFICATIONS

    MODEL NO FC-M8120-1
    SERIES DEORE XT M8100 Series
    Color Series color
    Average weight 660 (36T) 642 (34T) 628 (32T) 630 (30T) 616 (28T)
    Chainring combination 28T, 30T, 32T, 34T, 36T
    Compatible bottom bracket type_Outboard
    Crank fixing screw included
    Crank arm length (mm)_165
    Crank arm length (mm)_170
    Crank arm length (mm)_175
    Crank arm length (mm)_180
    Spider/Gear arms 4
    HOLLOWTECH II
    Optional chain guard_Without chain/bash guard
    Recommended bottom bracket_Press-fit BB-MT800-PA
    Recommended bottom bracket_Threaded (normal) BB-MT800
    Threaded bottom bracket shell width (mm)_68
    Threaded bottom bracket shell width (mm)_73
    Q-factor (mm) 178
    Chain line (mm) 55
    Compatible chain HG 12-speed
    P.C.D. (mm) Direct
    Rear speeds 12
    O.L.D._QR/Nut (mm) 141
    O.L.D._Thru (mm)

    148



    TECHNOLOGIES

    dynamic_chain_engagement_plus hg_2019_s1_l  hollowtech_2_3
