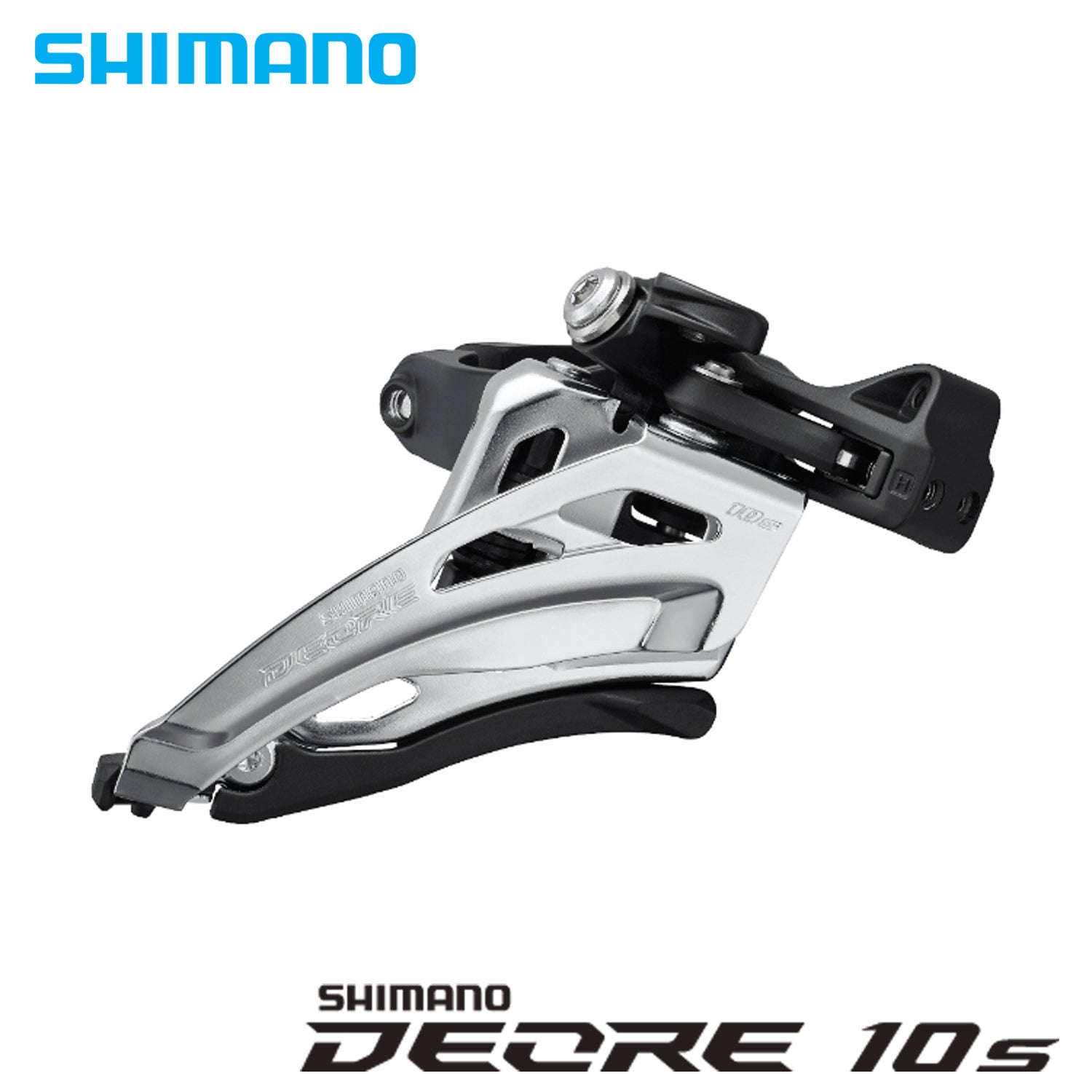

Shimano Deore FD-M4100-M Front Derailleur - SIDE SWING - Clamp Band Mount - 2x10-speed
Shimano Deore FD-M4100-M Front Derailleur - SIDE SWING - Clamp Band Mount - 2x10-speed
Regular price
₱1,100.00
Regular price
Sale price
₱1,100.00
Unit price
per
Tax included.
SKU:
Couldn't load pickup availability
SHIMANO DEORE - Front Derailleur - SIDE SWING - Clamp Band Mount - 2x10-speed
The SHIMANO FD-M4100 2x10-speed front derailleurs use SHIMANO's new SIDE SWING technology for enhanced cable routing, light action, and smooth operation. The new design also increases clearance for large wheels and short chain stays.
- Smooth and quiet front shifting on the trail
- More powerful outward shifting
- Wider traction range reduces chain rub for rear suspension bikes
- Extra wide range with front double 36-26T
- Wider tire clearance
- Compatible with 2.3-inch tire on wider rims
- Different options available
- Available in D, E, and M-type mounts
- *M type mount requires adapter (ø34.9 mm)
- One spec for 48.8 mm & 51.8 mm chainline
| MODEL NO | FD-M4100-M |
|---|---|
| SERIES | DEORE M4100 Series |
| Color | Series color |
| Remarks | * S-size adapter is available in OTC package only. |
| Action_SIDE SWING | ✔ |
|---|---|
| Angled clamp band design | ✔ |
| Angled stroke adjust screw | ✔ |
| Cable route type_Front-Pull | ✔ |
| Chain line (mm) | 48.8/51.8 |
| Chain stay angle (deg.) | 66-69 |
| Compatible chain | HG-X 10-speed |
| Link bushings | 4 |
| Mount_Clamp Band (mm)_28.6 | - * |
| Mount_Clamp Band (mm)_31.8 | X (w/ M size adapter) |
| Mount_Clamp Band (mm)_34.9 | ✔ |
| Top gear teeth | 36T |
| Total capacity | 10T |
| Front speeds | 2 |
| Rear speeds | 10 |
