DEORE BRAKE LEVER

BL-M6200-L/R

When you need reliably consistent braking action and a streamlined, clean appearance without shelling out big cash, the DEORE M6200 brake lever delivers. SERVO WAVE serves up quick pad contact and an optimized power curve, and the new low-viscosity oil helps braking remain stable over a wide range of temperatures. It's also I-SPEC EV compatible for full on-bar system integration.

FEATURE

• SERVO WAVE: Greater power with improved control through rapid pad travel from the first pull.
• Low Viscosity Oil: Braking remains stable over a wide range of temperatures.
• Clean Aesthetic: The hose runs parallel to the bar, along with I-SPEC EV compatibility for added handlebar adjustability.

PRODUCT SPECIFICATION

• Model No: BL-M6200
• Series: DEORE
• Brake type: Hydraulic disc brake
• Lever size (finger): 2
• Brake hose (kit): SM-BH90-SS
• Hose joint: Straight
• Brake hose color (kit):
  • 1: Black
• J-Kit spec (for OEM): ✔
• SERVO WAVE: ✔
• Reach adjust:
  • Tool: ✔
• Compatible shifter mount:
  • Clamp band: ✔
  • I-SPEC EV: ✔
• Clamp band:
  • Open clamp: ✔
• Recommended brake caliper: BR-M6200 BR-M6220
• Oil: SHIMANO LOW VISCOSITY OIL
• Funnel bleeding: ✔

FEATURED TECHNOLOGY

OTHER TECHNOLOGY

Deore BR-M6200 2-Piston Disc Brake

The Deore M6200 brake set pairs the two-piston caliper and lever for consistent braking and precise modulation at a lower weight than the four-piston M6220. Engineered with the same features found across Shimano's Deore caliper line, it maintains stable braking performance across a wide temperature range. Servo Wave technology delivers quick pad contact and an optimized power curve, while new low-viscosity oil keeps performance consistent in varying conditions. I-SPEC EV compatible for full on-bar integration.

FEATURE

• Servo Wave: Greater power with improved control through rapid pad travel from the first pull
• Low Viscosity Oil: Braking remains stable over a wide range of temperatures
• Clean Aesthetic: The hose runs parallel to the bar, along with I-SPEC EV compatibility for added handlebar adjustability
• Two-Piece Construction: Rigid, durable design
• 2-Piston Design: Weight savings and modulation are top priorities.
• Temperature Stability: A new low-viscosity oil, a new piston seal, and a new heat-resistant resin piston result in stability over a wider temperature range
• Pad Compatibility: Works seamlessly with non-finned metal or resin pads.

PRODUCT SPECIFICATION

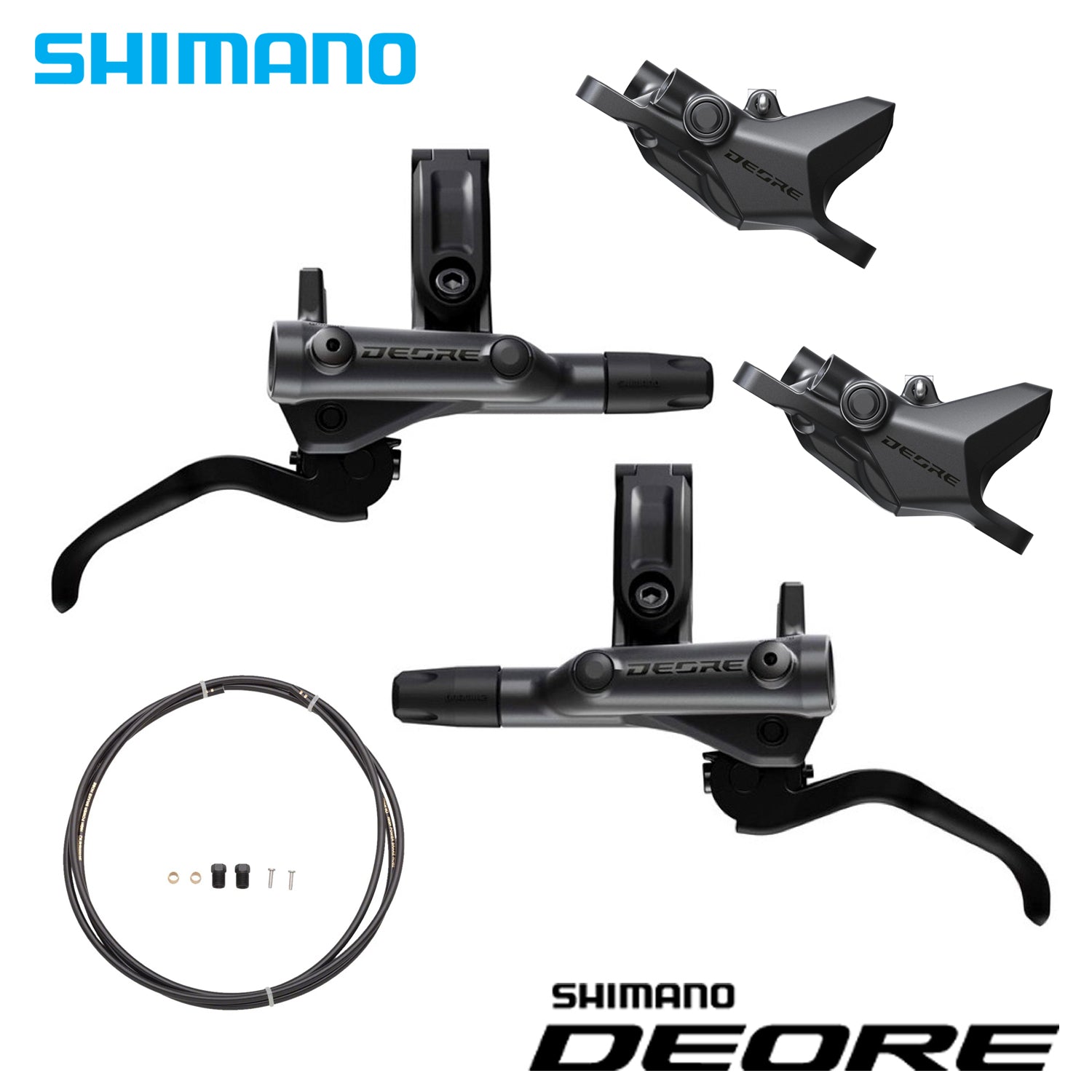

Front Brake is shipped pre-bled and includes the lever, caliper, brake hose (not installed), G04S-MX Metal pads, and all fittings needed for the install.

Rear Brake is shipped pre-bled and includes the lever, caliper, brake hose (not installed), G04S-MX Metal pads, and all fittings needed for the install.
