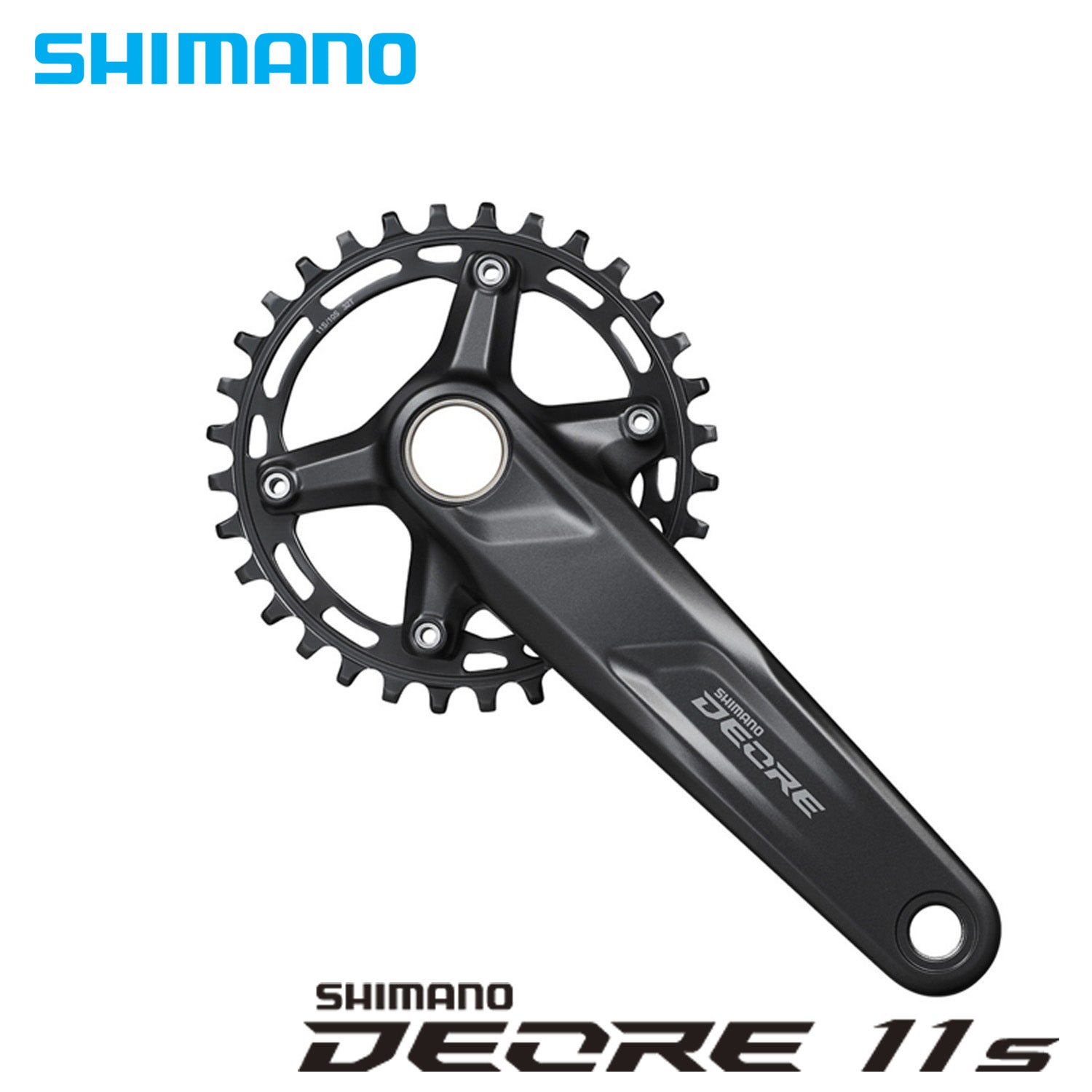

DEORE CRANKSET FOR 135/142/148 MM O.L.D. FRAMES 1X11/10s

FC-M5100-1

The SHIMANO DEORE FC-M5100-1 mountain bike crank delivers precise and reliable shifting for 1x10 or 1x11-speed drivetrains.

BENEFIT

• 2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently
• For 10/11-speed

PRODUCT SPECIFICATION

• Model No: FC-M5100-1
• Series: DEORE
• Rear speeds: 11/10
• Compatible chain: HG 11-speed, HG-X 10-speed
• Chain line (mm): 52
• O.L.D.:
  • Thru (mm): 142, 148
  • QR/Nut (mm): 135, 141
• P.C.D. (mm): 96
• Spider/gear arms: 4
• Chainring combination: 30T, 32T
• Q-factor (mm): 178.5
• Crank arm length (mm)
  • 170: ✔
  • 175: ✔
• Optional chain guard:
  • Without chain/bash guard: ✔
• 2-PIECE CRANKSET: ✔
• Recommended bottom bracket:
  • Threaded (normal): BB-MT501
  • Press-Fit: BB-MT500-PA
• Threaded bottom bracket shell width (mm):
  • 68: ✔
  • 73: ✔
• Crank fixing screw included: ✔
• Color: Series color
