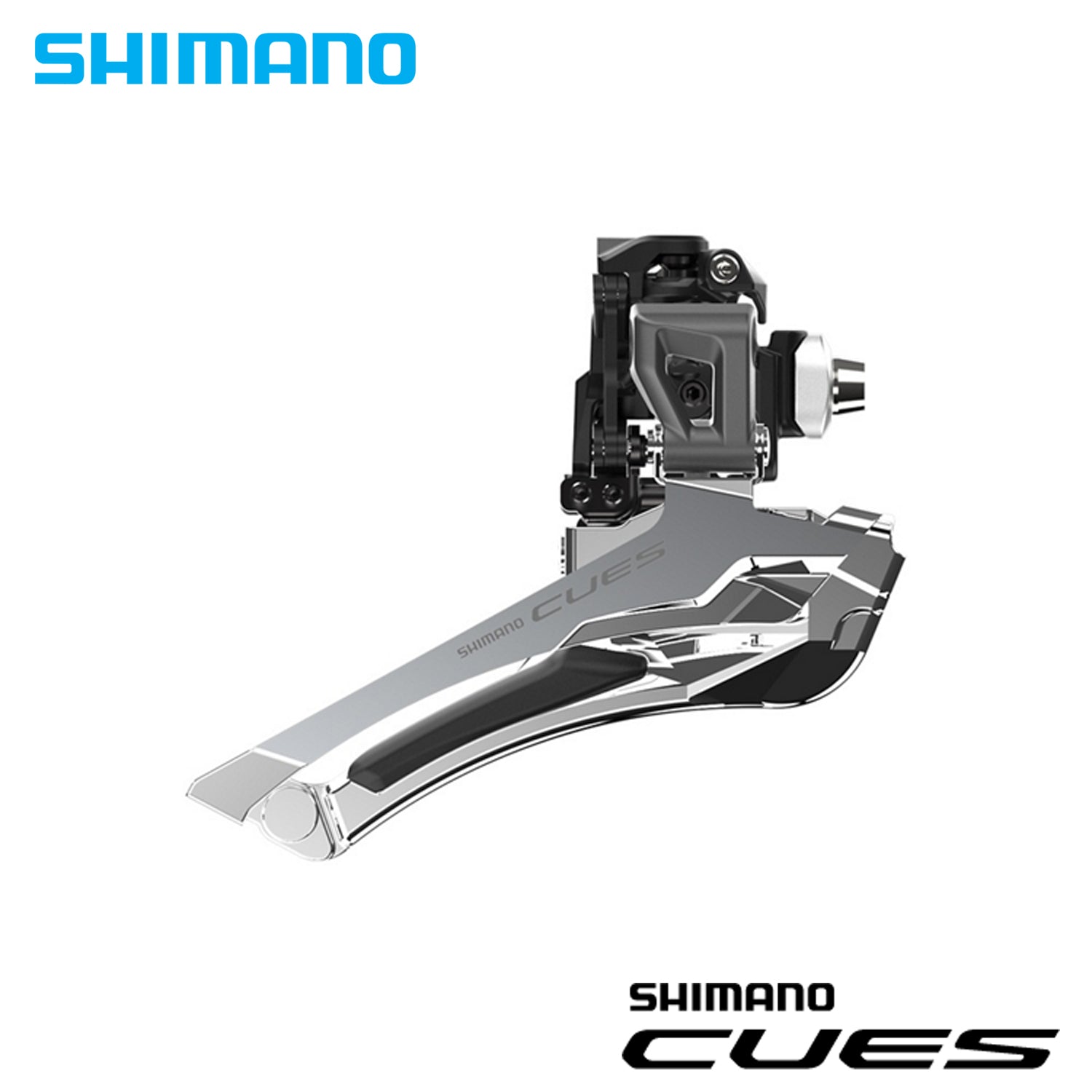

CUES FRONT DERAILLEUR 2x10/9s (BRAZED-ON MOUNT)

FD-U6030-F

One FD for All CUES Drop Handle Bikes. The SHIMANO CUES U6030 Front Derailleur offers lighter front shifting operation and easier setup thanks to the toggle link construction and integrated cable tensioner. It features a 2.5 mm outboard chain line design to allow wider tire clearance.

FEATURE

• The toggle link construction delivers lighter front shifting with a smooth, natural shift action.
• The chain line is 2.5 mm wider than conventional road front derailleurs, allowing for greater tire clearance.

PRODUCT SPECIFICATION

• Model No: FD-U6030-F
• Series: CUES
• Front speeds: 2
• Rear speeds: 10/9
• Compatible chain: LINKGLIDE, HG 11-speed
• Action:
  • Down Swing: ✔
• Mount:
  • Brazed-On: ✔
• Cable Adjust: ✔
• Cable Route Type:
  • Down-Pull Exclusive: ✔
• Chain Line (mm): 47
• Chainstay angle (deg.): 62-66
• Top gear teeth: 46T, 50T
• Total capacity: 16T
• Link bushings: 7
