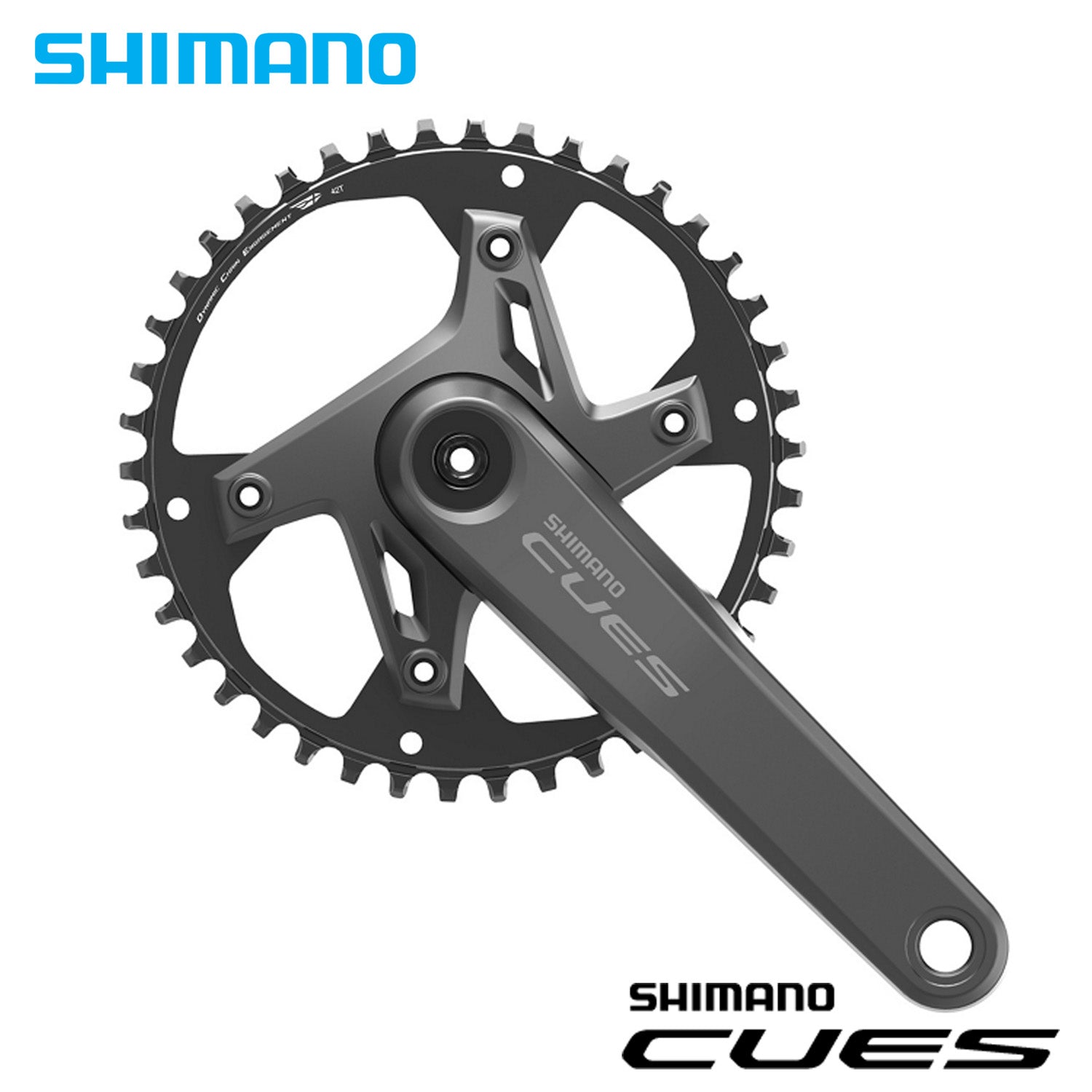

CUES 2-PIECE CRANKSET 1X11/10/9s

FC-U6000-1

Grow your confidence riding hard over the rough stuff with this crankset's wide-range gearing and seamless pedaling.

BENEFIT

• 2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently
• Special gear tip shape improves chain engagement and retention for smooth riding over rough terrain

TECHNOLOGY

• DYNAMIC CHAIN ENGAGEMENT+

PRODUCT SPECIFICATION

• Model No: FC-U6000-1
• Series: CUES
• Rear speeds: 11/10/9
• Compatible chain: LINKGLIDE, HG 11-speed
• Chain line (mm): 55 (30T, 32T), 52 (30T, 32T), 50 (40T, 42T)
• O.L.D.:
  • Thru (mm): *148, 142 (30T, 32T), 142 (40T, 42T)
  • QR/Nut (mm): *141, 135 (30T, 32T), 135 (40T, 42T)
• P.C.D. (mm): 96 (30T, 32T), 110 (40T, 42T)
• Spider/gear arms: 4
• Chainring combination: 30T, 32T, 40T, 42T
• Q-factor (mm): 180
• Crank arm length (mm):
  • 170: ✔
  • 175: ✔
• Optional chain guard:
  • With chain guard: ✔ (40T, 42T)
  • Without chain/bash guard: ✔
• 2-PIECE CRANKSET: ✔
• Compatible bottom bracket type:
  • Outboard: ✔
• Recommended bottom bracket:
  • Threaded (normal): BB-MT501
  • Threaded (chain case): BB-MT501
  • Press-Fit: BB-MT500-PA
• Threaded bottom bracket shell width (mm):
  • 68: ✔
  • 73: ✔
• Chain case compatible: ✔ (40T, 42T)
• Stainless chain guard fixing screw: ✔
• Crank fixing screw included: ✔
• Remarks: * Chain line 55 mm spec. is for rear O.L.D 148(Thru)/141(QR) only (NEW)
• Color: Series color
