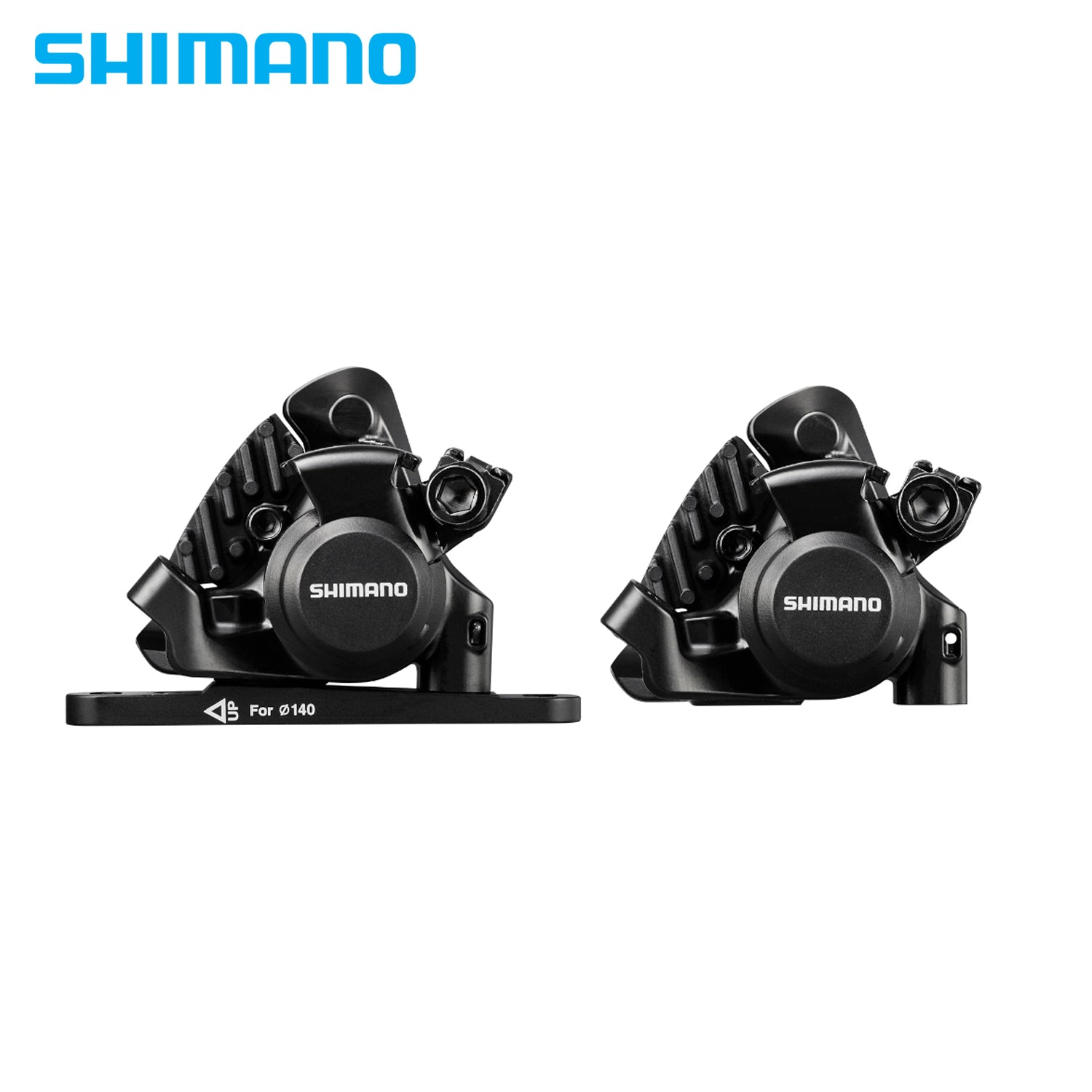

MECHANICAL DISC BRAKE FRONT/REAR CALIPER

BR-RS305-F/BR-RS305-R

The SHIMANO RS305 mechanical disc brake is easy to control as well as set up and maintain. It mounts via SHIMANO's Flat Mount interface.

BENEFIT

• Easy to control and clean appearance with stable brake performance for ordinary riders
• Easy set up and maintenance

FEATURE

• Heat management system
• Low profile disc caliper
• Wide pad clearance
• Easy tool access
• Both 140mm and 160mm rotor available with one bracket

TECHNOLOGY

• ICE TECHNOLOGY pad with fin
• SHIMANO Flat mount system
• SHIMANO Easy Flip-Flop bracket system

PRODUCT SPECIFICATION

• Model No: BR-RS305-F/BR-RS305-R
• Series: SHIMANO
• Brake type: Mechanical disc brake
• Compatibility: NEW SUPER SLR
• ICE TECHNOLOGIES pad compatible caliper: ✔
• Pad:
  • Standard 1: K05S-RX Resin (w/o fin)
  • Option 1: L05A-RF Resin (w/ fin)
• Fixing screw spec for rear mount:
  • 10 mm mount: ✔
  • 15 mm mount: ✔
  • 20 mm mount: ✔
  • 25 mm mount: ✔
  • 30 mm mount: ✔
  • 35 mm mount: ✔
• Recommended disc brake rotor: SM-RT54/RT56 (160 mm), SM-RT70 (140 mm/160 mm)
• Mount Type: Flat Mount
• Piston: 1
• Caliper Fixing Screw:
  • Tool Size: 4mm
  • Anti-Loosen Method: Screw fix pin+Snap ring (Front), Screw fix pin (Rear)
• Pad mount: Pad axle
• Remarks: SHIMANO logo
• Color: Black
