Shimano

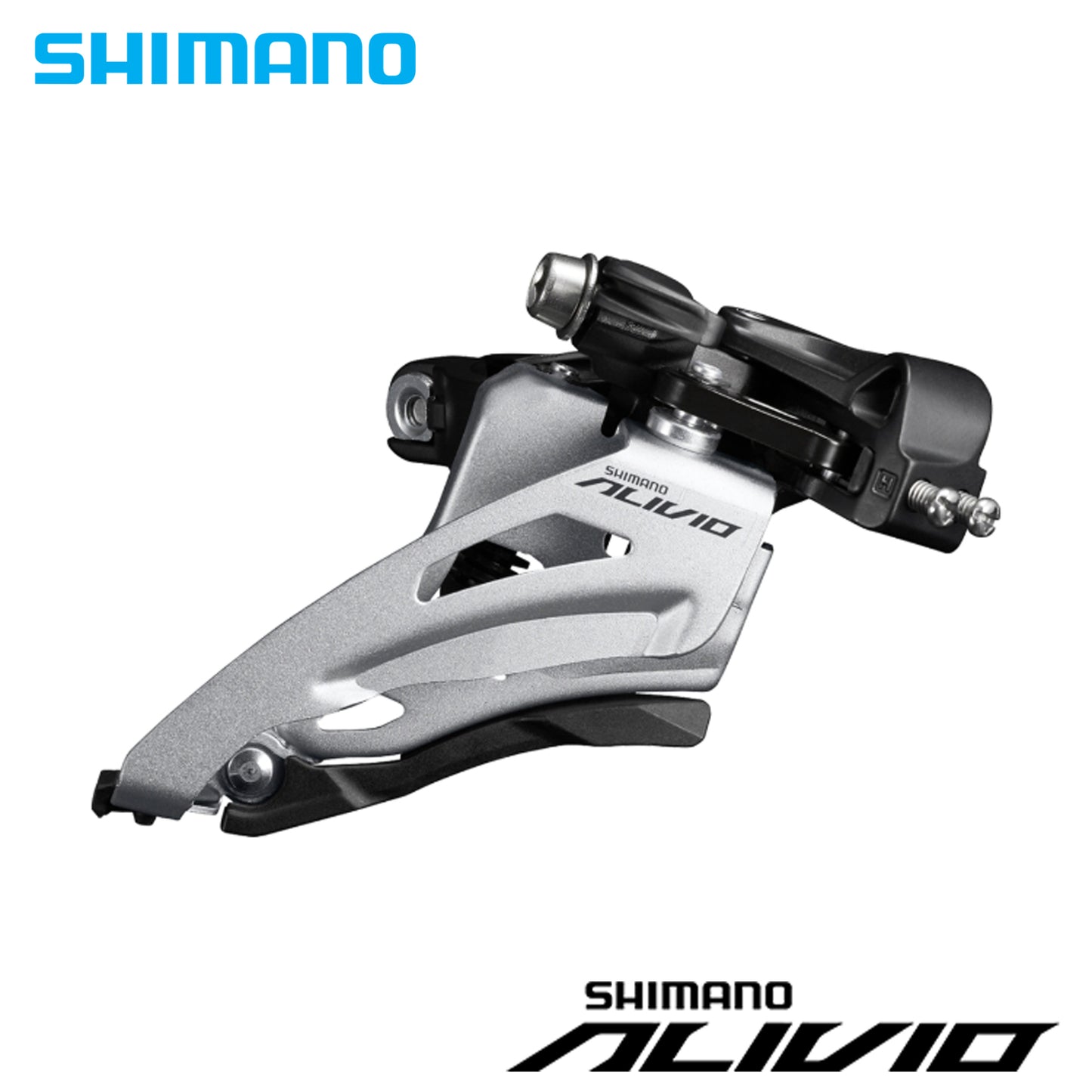

Shimano Alivio FD-M3120-M Front Derailleur - SIDE SWING - Clamp Band Mount - 2x9-speed
Shimano Alivio FD-M3120-M Front Derailleur - SIDE SWING - Clamp Band Mount - 2x9-speed
Regular price
₱895.00
Regular price
Sale price
₱895.00
Unit price
per
Tax included.
SKU:
Couldn't load pickup availability
SHIMANO ALIVIO - Front Derailleur - SIDE SWING - Clamp Band Mount - 2x9-speed
The SHIMANO ALIVIO FD-M3120 2x9-speed front derailleurs use SHIMANO's new SIDE SWING for enhanced cable routing, light action, and smooth operation. The new design also increases clearance for large wheels and short chain stays.
- For front double chainring
- Smooth and quiet front shifting on the trail
- More powerful outward shifting
- Wider traction range reduces chain rub for rear suspension bikes
- Extra wide range with front double 36-22T
- Wide frame mounting compatibility
- Available in D, E, and M-type mounts
- *M type mount requires adapter (ø34.9 mm)
- Compatible with 2.3-inch tire on wider rims
- 48.8 mm chainline
| MODEL NO | FD-M3120-M |
|---|---|
| SERIES | SHIMANO ALIVIO M3100 Series |
| Color | Series color |
| Action_SIDE SWING | ✔ |
| Angled clamp band design | ✔ |
|---|---|
| Angled stroke adjust screw | ✔ |
| Cable route type_Front-Pull | ✔ |
| Chain line (mm) | 48.8 |
| Chain stay angle (deg.) | 64-69 |
| Compatible chain | CN-HG53 9-speed |
| Link bushings | 4 |
| Mount_Clamp Band (mm)_28.6 | X (w/ S size adapter) |
| Mount_Clamp Band (mm)_31.8 | X (w/ M size adapter) |
| Mount_Clamp Band (mm)_34.9 | ✔ |
| Top gear teeth | 36T |
| Total capacity | 14T |
| Front speeds | 2 |
| Rear speeds | 9 |
