Shimano

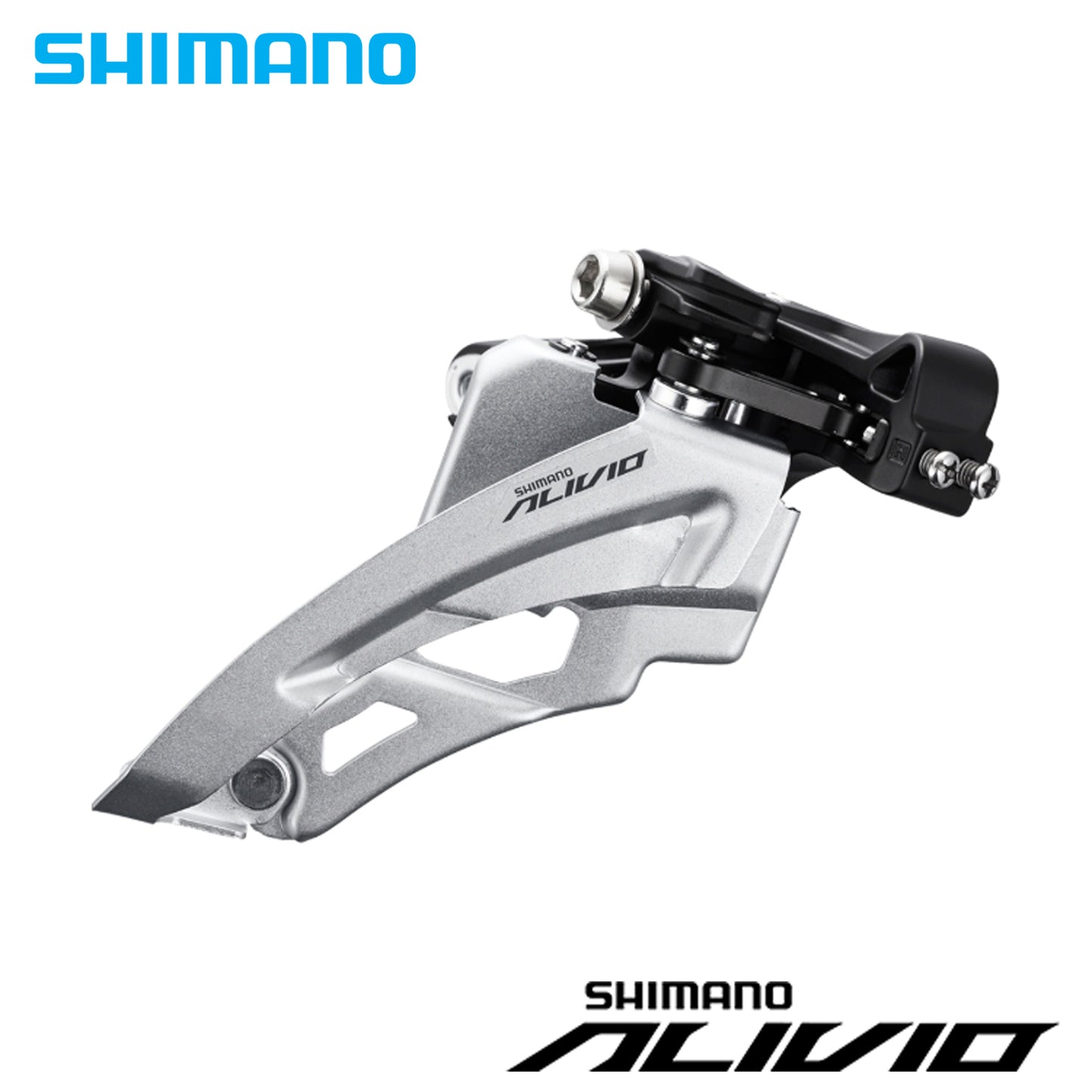

Shimano Alivio FD-M3100-M Front Derailleur - SIDE SWING - Clamp Band Mount - 3x9-speed

Shimano Alivio FD-M3100-M Front Derailleur - SIDE SWING - Clamp Band Mount - 3x9-speed

Regular price ₱895.00
Regular price Sale price ₱895.00
Sale Sold out
Tax included.

SKU:

FD-M3100-M

SHIMANO ALIVIO - Front Derailleur - SIDE SWING - Clamp Band Mount - 3x9-speed

The SHIMANO ALIVIO FD-M3100 3x9-speed front derailleur uses SHIMANO's new SIDE SWING for enhanced cable routing, light action, and smooth operation. The new design provides extra wide range for triple front chainring cranksets and increases clearance for large wheels and short chain stays.

  • For front triple chainring
  • Smooth and quiet front shifting on the trail
    • More powerful outward shifting
    • Wider traction range reduces chain rub for rear suspension bikes
    • Extra wide range with front triple 40-30-22T
  • Compatible with 2.3-inch tire on wider rims
  • Chainline: 50 mm
MODEL NO FD-M3100-M
SERIES SHIMANO ALIVIO M3100 Series
Color Series color
Action_SIDE SWING
Angled clamp band design
Angled stroke adjust screw
Applicable Top-Mid tooth difference 10T
Cable route type_Front-Pull
Chain line (mm) 50
Chain stay angle (deg.) 66-69
Compatible chain CN-HG53 9-speed
Link bushings 4
Mount_Clamp Band (mm)_28.6 X (w/ S size adapter)
Mount_Clamp Band (mm)_31.8 X (w/ M size adapter)
Mount_Clamp Band (mm)_34.9
Top gear teeth 40T
Total capacity 18T
Front speeds 3
Rear speeds 9
