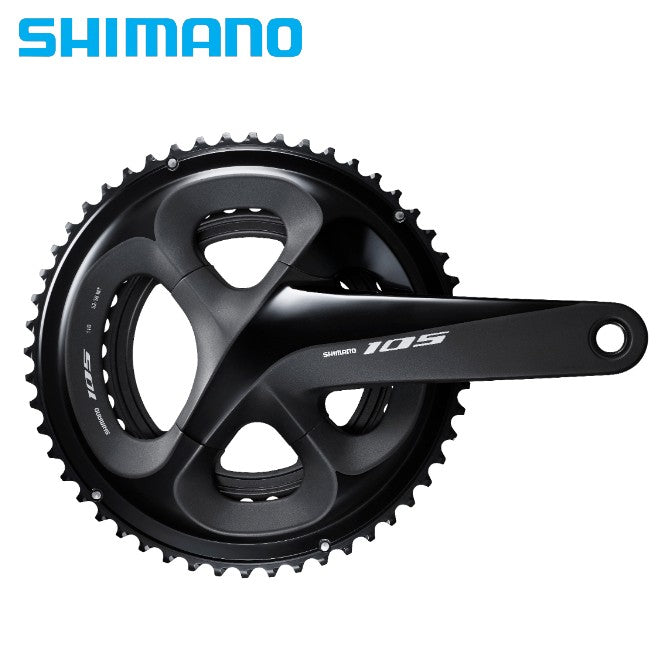

The redesigned SHIMANO 105 FC-R7000 crank balances weight and efficiency without sacrificing stiffness. Its wider gear pitch increases clearance with small gearings on modern 135mm O.L.D. frames.

FEATURES

Optimum power transfer

Balances weight and efficiency without sacrificing stiffness

Multiple options provide greater choice

Rider Tuned performance with numerous gear combinations

Greater frame compatibility

Wider gear pitch increases chain clearance with small gearings and allows for 410 mm chain stays on 135 mm O.L.D.



PRODUCT SPECIFICATIONS

MODEL NO	FC-R7000
SERIES	SHIMANO 105 R7000 Series
Color	Silky black | Spark silver
Average weight	713.4 (50-34T) 742.6 (52-36T) 757.8 (53-39T)

Threaded bottom bracket shell width (mm)_70	✔
Chainring combination	50-34T 52-36T 53-39T
Compatible bottom bracket type_Outboard	✔
Crank fixing screw included	✔
Crank arm length (mm)_160	✔
Crank arm length (mm)_165	✔
Crank arm length (mm)_170	✔
Crank arm length (mm)_172.5	✔
Crank arm length (mm)_175	✔
Spider/Gear arms	4
HOLLOWTECH II	✔
HOLLOWTECH crank arm	✔
Optional chain guard_Without chain/bash guard	✔
Recommended bottom bracket_Press-fit	SM-BB72-41B
Recommended bottom bracket_Threaded (normal)	SM-BBR60
Threaded bottom bracket shell width (mm)_68	✔
Q-factor (mm)	146
Chain line (mm)	43.5
Compatible chain	LINKGLIDE, HG 11-speed
P.C.D. left / right (mm)	110
P.C.D. (mm)	110
Rear speeds	11
