Pinarello

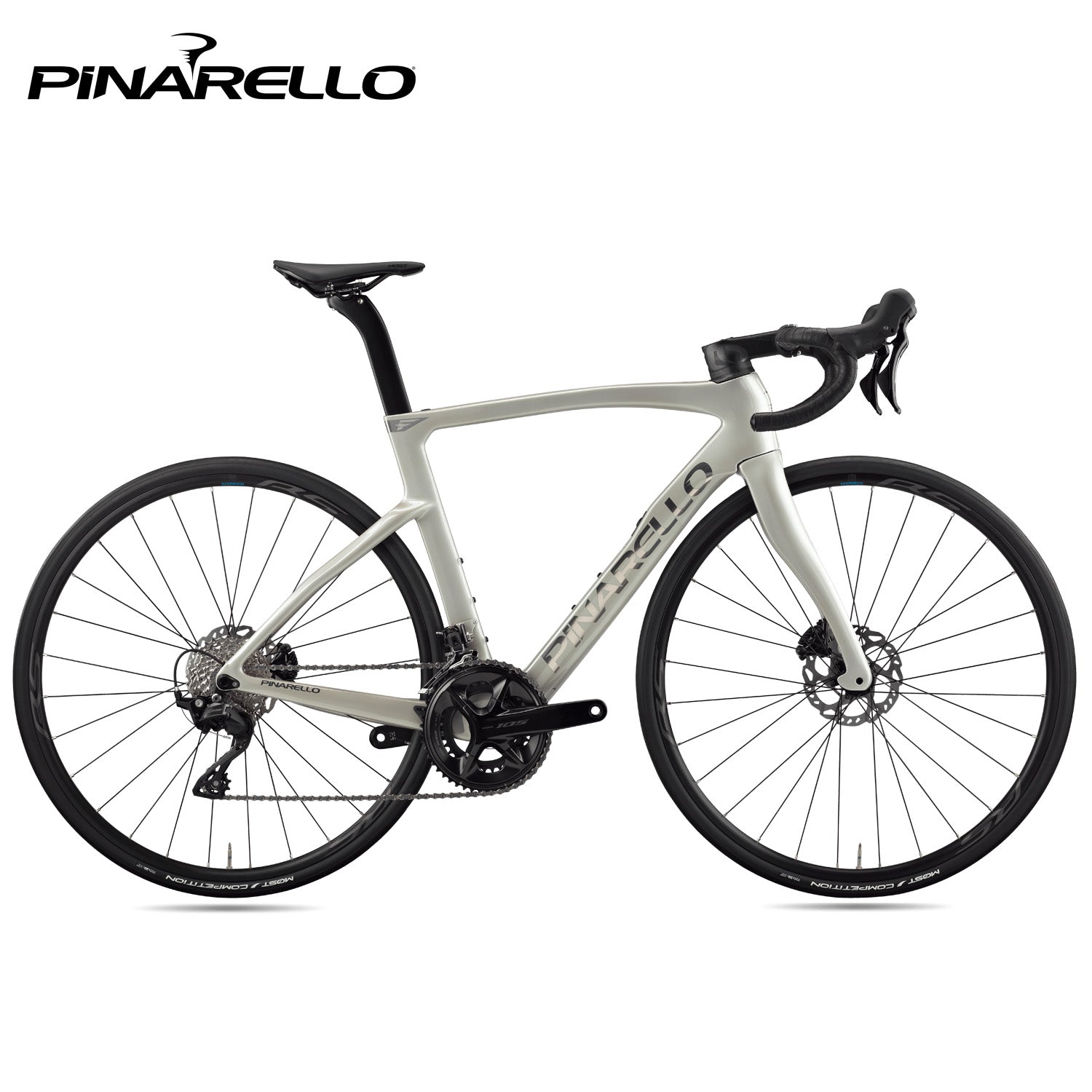

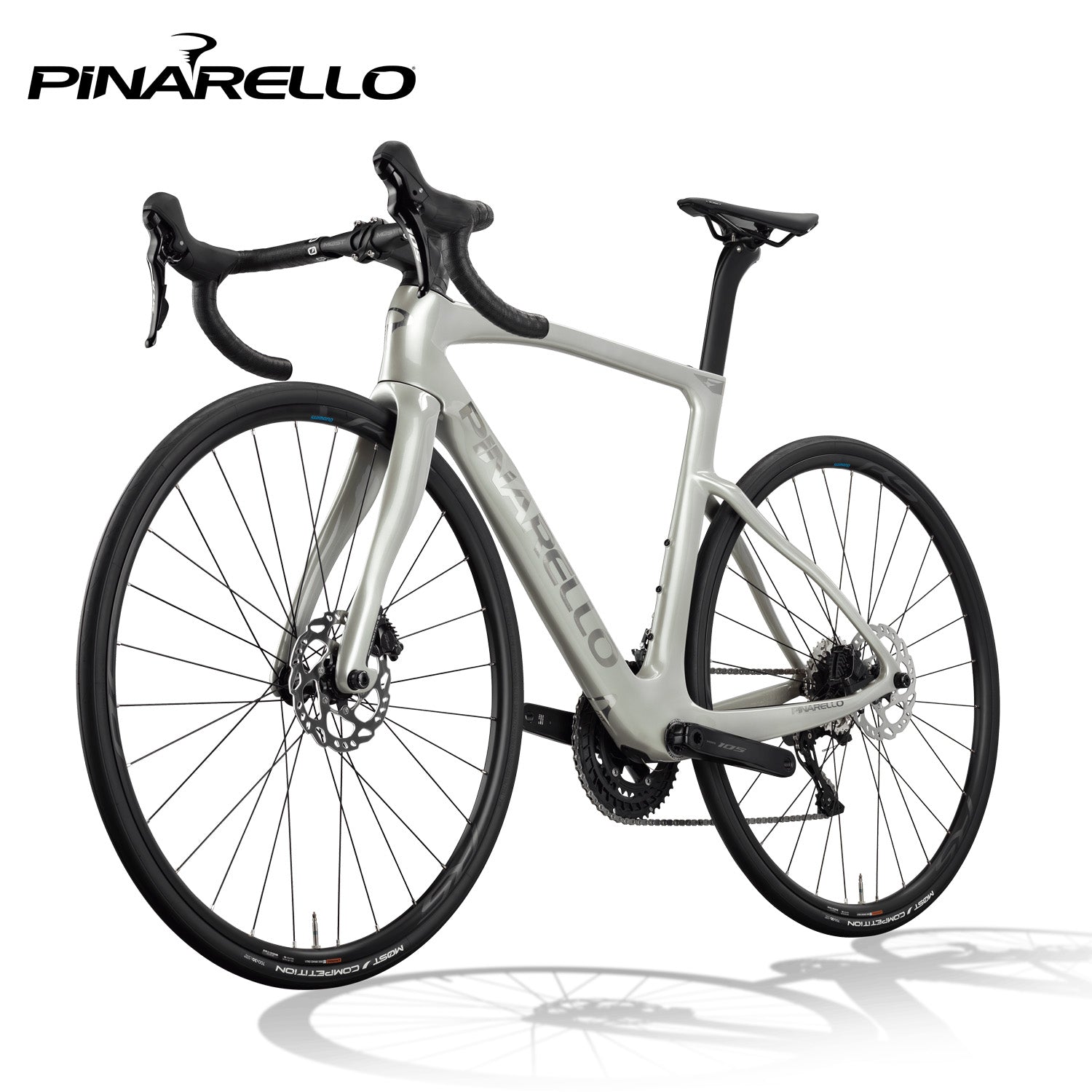

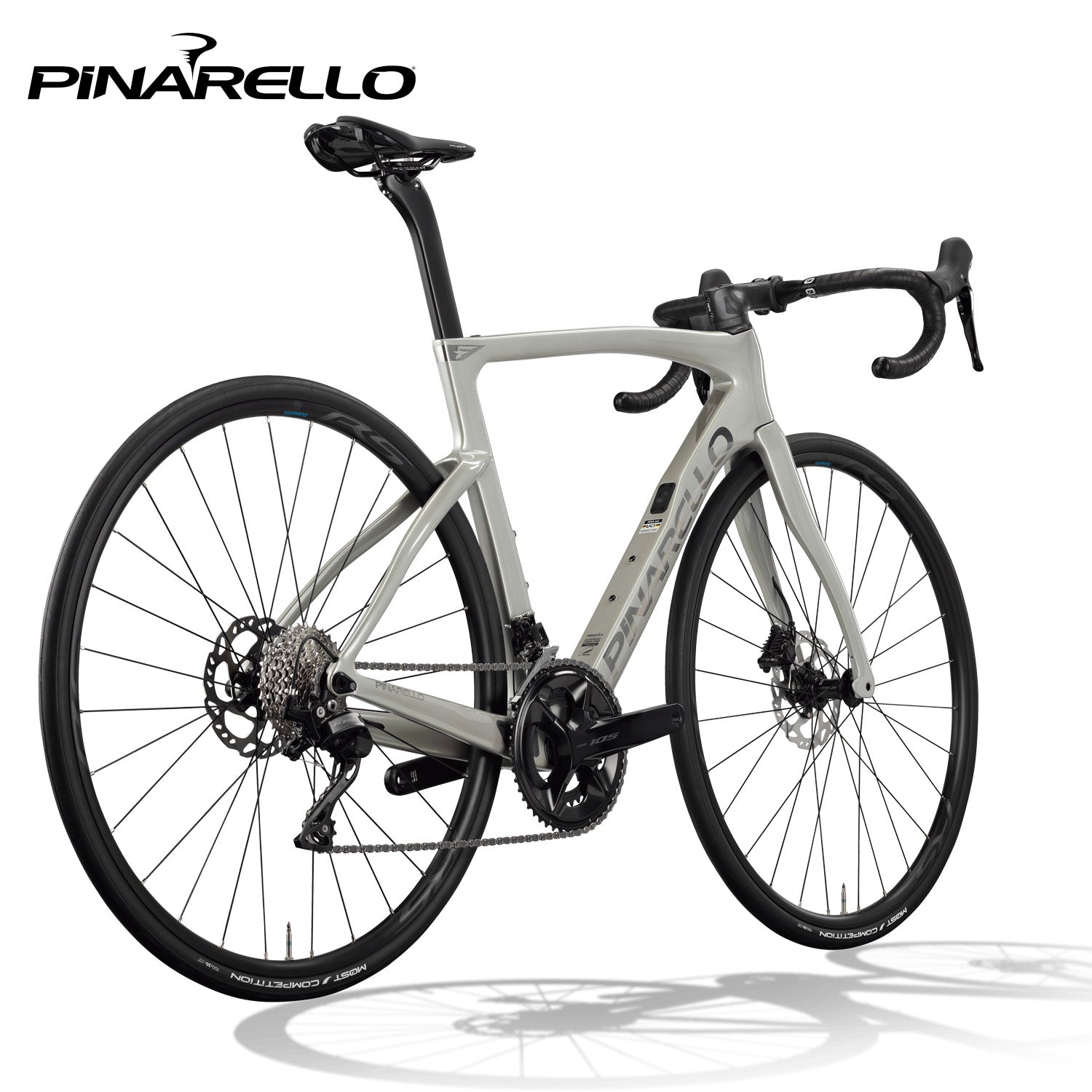

Pinarello F1 105 Race Road Bike Shimano 105 - Comet Silver Shiny

Pinarello F1 105 Race Road Bike Shimano 105 - Comet Silver Shiny

₱255,000.00
₱255,000.00
Sale Sold out
Tax included.
Size

SKU:

NEW PINARELLO F1 105

* groupset on the picture might differ from bike specification

BORN TO RACE, NO DISCUSSION

Our history is one of extraordinary victories, iconic bicycles, passion, and expertise. The new Pinarello F was born with this unique DNA, created to offer extremely high performance and guide you straight to victory. All true riders know that what goes up, must go down. For this reason, the Pinarello F is designed to excel on all terrain and is as adept at climbing as it is comfortable on a high-speed descent. This is what we mean by ALL-ROUND PERFORMANCE.

NEW PINARELLO F1 105

INNOVATION

  • TYRE CLEARANCE UP TO 32MM
  • DOWN TUBE
  • E-TICR HEADSET
  • ONDA FORK
  • HEAD TUBE
  • AERO KEEL
  • INTEGRATED SEATCLAMP

TYRE CLEARANCEUP TO 32MM

32mm tires to unlock the frames’ true potential in terms of both comfort and speed.

DOWN TUBE

New DOWNTUBE shape, reduced thickness for improve aero performance

E-TICR HEADSET

To reduce the width of the headtube, we designed an innovative elliptical steering tube and completely new headset using bearings of a different diameter, wider on the bottom and narrower at the top. We also moved the internal cable routing from the sides to the front of the steering tube.

ONDA FORK

The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling and speed on descents.

HEAD TUBE

New Aero headtube, with increased surface and softer lines to improve aerodynamics and stiffness.

AERO KEEL

New Aero KEEL BB, reduced volume compared with Dogma F, improved stiffness, cleaner look.

INTEGRATED SEAT CLAMP

Frontal integrated seat clamp, for a cleaner look and protection from sweat and dust.

GEOMETRIES

CE CC L A [°] B [°] P T D R G REACH STACK
425 430 500 74.4 69.5 406 97 67 43 373 351.3 502.5
450 465 515 74.4 70.5 406 104 72 43 373 365.2 517.7
465 500 525 74 71.4 408 109 72 43 373 372.1 525.5
485 515 535 73.7 72 408 114 72 43 373 378.1 532.3
500 530 545 73.7 72.5 408 123 72 43 373 385.6 542.6
515 545 555 73.4 72.8 410 138 72 43 373 388.3 557.9
525 560 565 73 73.2 410 149.5 72 43 373 390.8 570.3
560 575 578 73 73.7 410 178 72 43 373 395.4 599.3
580 595 600 72.4 73.4 410 220 67 43 373 400.3 633.5

NEW PINARELLO F1 105 Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET

  • FRAME: Torayca T600 UD, internal cable routing, Italian BB, UCI approved

DRIVETRAIN

  • CRANKSET AND CHAINRINGS: Shimano 105
  • FRONT DERAILLEUR:  Shimano 105
  • CASSETTE: Shimano 105
  • BOTTOM BRACKET: Shimano 105

BRAKES

  • FRONT BRAKE DISC: Shimano 105 2 pistons, 160mm rotor
  • REAR DISC BRAKE: Shimano 105 2 pistons, 160mm rotor

COCKPIT

  • STEM: Jaguar XA Aero TiCR
  • SADDLE: ATMOS F24-97 STEEL RAIL
  • SEATPOST: fsc frontal seat clamp

WHEELS AND TIRES

  • TYRES DISC: MOST 30
  • AXLES DISC: MOST Ultralight Custom Axle 12x100 & 12x142, Tool-free removal
View full details
