MicroShift AdventX Gravel 1x10 Upkit Groupset Drop Bar Shifter 11-48 10-Speed
MicroShift AdventX Gravel 1x10 Upkit Groupset Drop Bar Shifter 11-48 10-Speed
SKU:
Couldn't load pickup availability

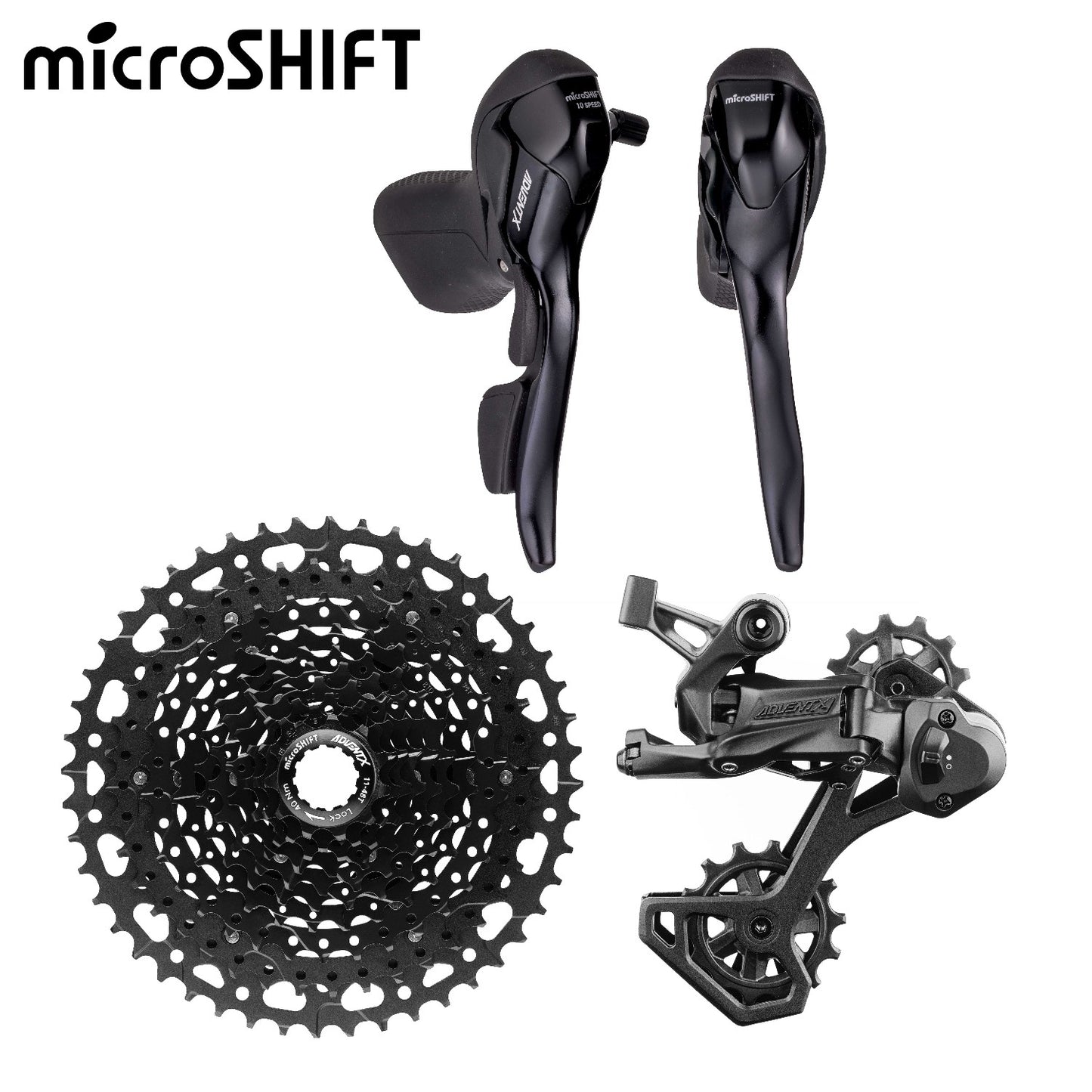

Microshift AdventX 10-Speed MTB Upkit Groupset (MIC022)
This groupset contains the following components
- SB-M100A ADVENT X Drop Bar Shifters 1×10
- RD-M6205AM ADVENT X Rear Derailleur 10 Speed
- CS-G104 11-48T ADVENT X G-Series 10 Speed Cassette 11-48

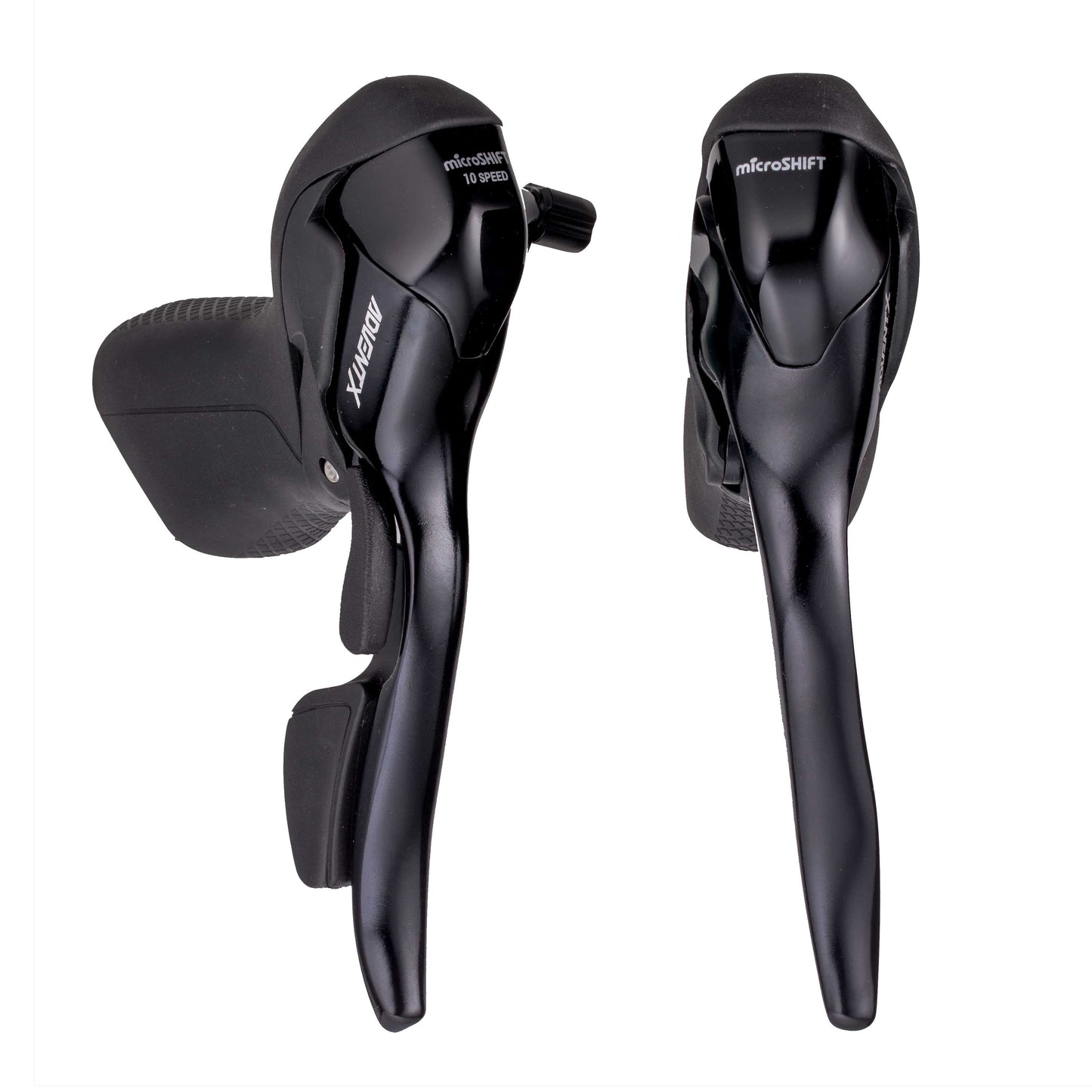

ADVENT X Drop Bar Shifters 1x10
Pair these integrated drop bar shifters with an ADVENT X rear derailleur and cassette for a 1x setup with unparalleled range.
Features.
- External shifter cable routing, internal brake routing
- Left side brake only for 1×10 setups
- Shifter levers are separated from brake lever to avoid accidental braking
- Crisp and positive shifting action
- Road brake cable pull
- Compatible with ADVENT X derailleurs only
Specification
| Group |
ADVENT X |
|---|---|
| Shifter Style |
Integrated Drop Bar |
| Speed |
10-Speed |
| Chainring Count |
1x Single |
| Side |
Pair |
| Left Side |
Brake Lever Only |
| Cable Routing |
External |
| Brake Reach |
Standard |
| Color Options |
Anodized Black (BK), Polished Silver (SV) |
| Lever Material |
Aluminum / Steel |
| Compatibility |
ADVENT X |

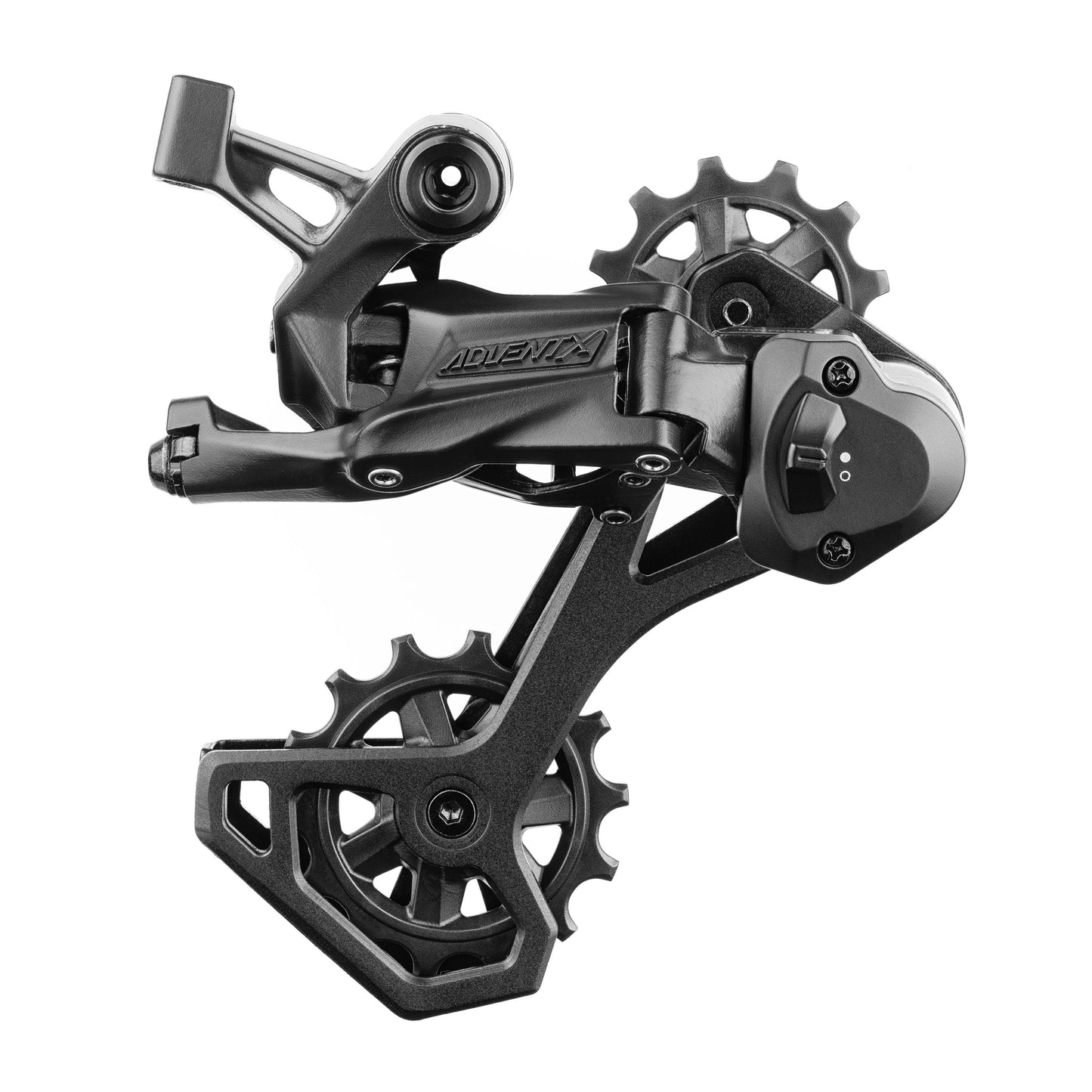

ADVENT X Rear Derailleur 10 Speed
With a raceworthy weight and the right gearing for any situation, microSHIFT’s top-of-the-line ADVENT X rear derailleur delivers high-end performance without high-end headaches. By using a 10-speed chain and wide range 11-48t cassette with predictable, evenly spaced gear steps, ADVENT X allows you to find the right gear even in challenging conditions. Add in microSHIFT’s proprietary ratchet-and-pawl clutch, larger pulleys with taller teeth for better chain retention, and metric adjustment hardware, and you’ve got everything you want and nothing you don’t.
Features.
- Compatible with ADVENT X 10-speed drivetrains only
- Compatible with standard 10-speed chains
- Ratchet-and-pawl clutch provides chain security and can be turned on and off with a switch
- Metric adjustment hardware
- Larger pulleys with taller teeth improve chain security and provide higher overall ride height
- Aluminum cage
Specification
| Group |
ADVENT X |
|---|---|
| Speed |
10-Speed |
| Cage Length |
Medium Cage |
| Max Cog |
46-48T |
| Capacity |
41T |
| Clutch |
Yes |
| Cage Material |
Aluminum |
| Outer Link Material |
Aluminum |
| Compatibility |
ADVENT X |
| Weight |
313g |

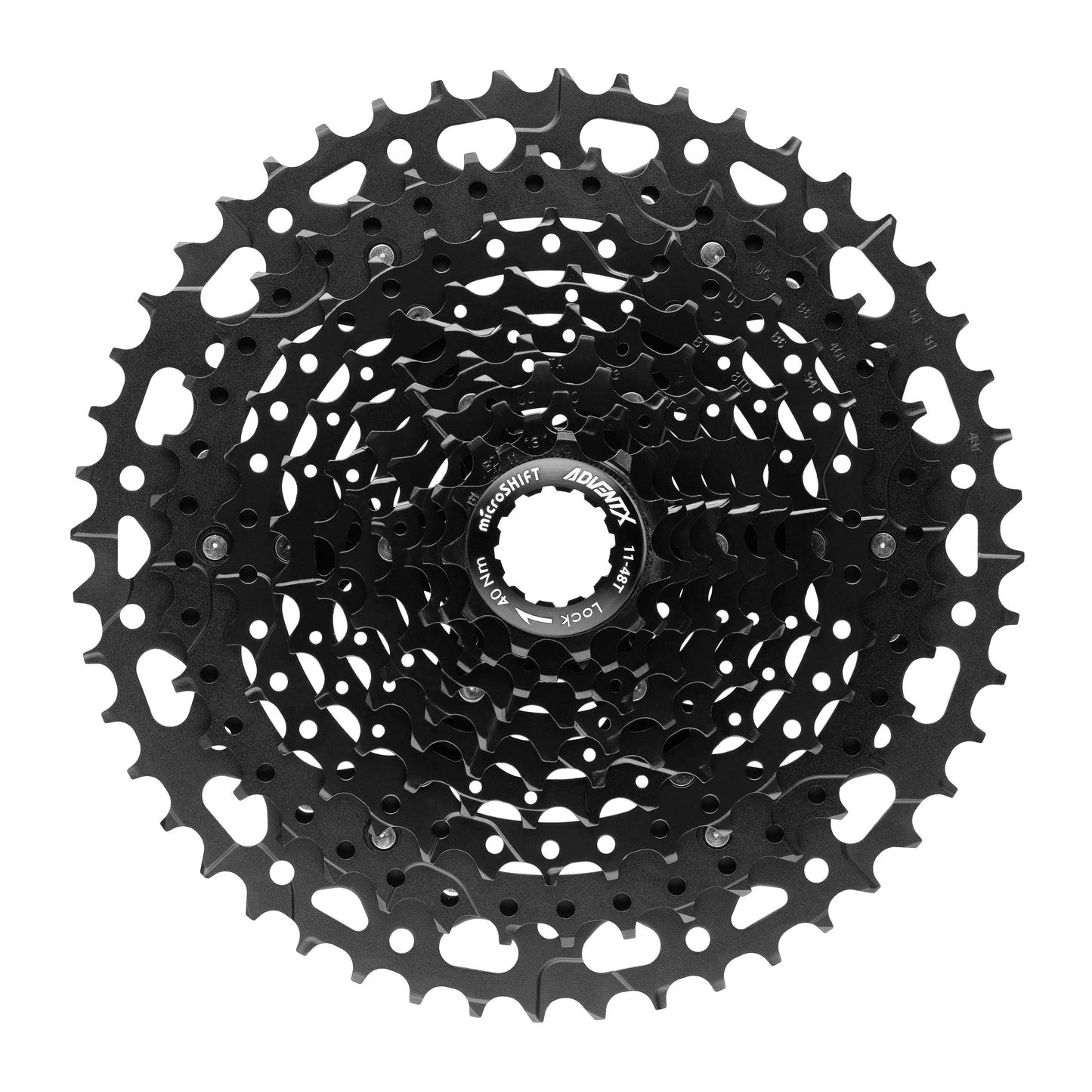

ADVENT X G-Series 10 Speed Cassette 11-48
Sometimes less is more. With 10-speeds, 11-48t range and evenly spaced gear steps, the ADVENT X cassette allows riders to shift less often to find the right gear, while still having enough range to ride what they want. Fewer cogs also means less weight, a wider chain for better mud shedding — it even fits on standard 10-speed freehub bodies so you don’t need to buy new wheels for no reason. In short, it’s everything you want in a high end drivetrain.
Features.
- Compatible with standard HG cassette hub bodies
- Continuosly molded cogs achieve a high standard of durability and straightness
- Spider carrier reduces wear on aluminum cassette hub bodies
Specification
| Group |
ADVENT X |
|---|---|
| Speed |
10-Speed |
| Range |
11-48T |
| Surface Finish |
2 Layered ED Black |
| Combination |
11-13-15-18-21-24-28-34-40*-48* |
| Spider |
Yes |
| Cog Material |
Steel / *Aluminum |
| Hub Compatibility |
Standard Freehub |
| Weight |
424g |
