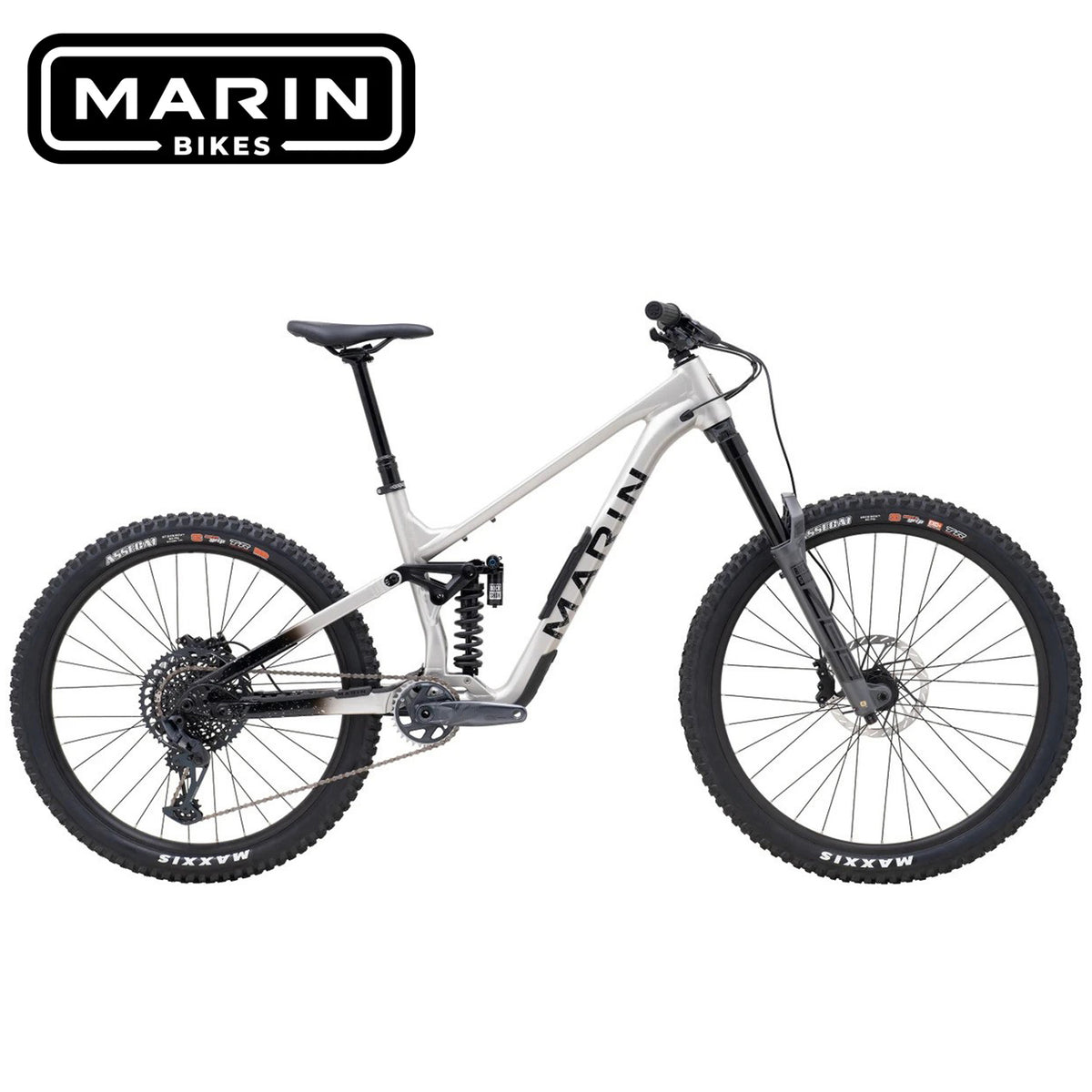

Alpine Trail XR

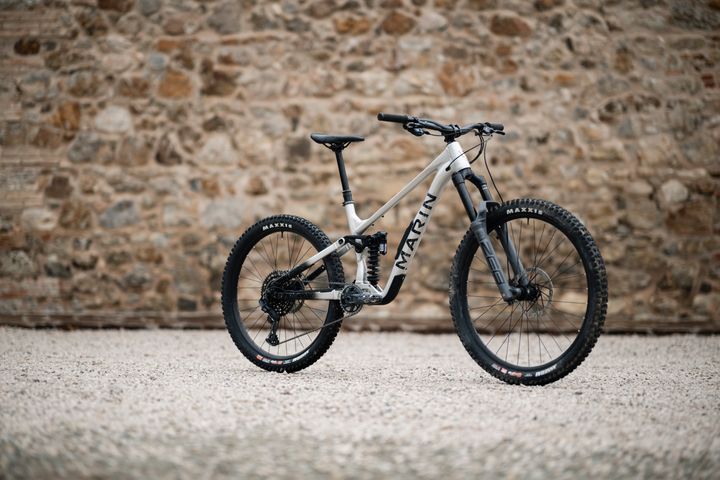

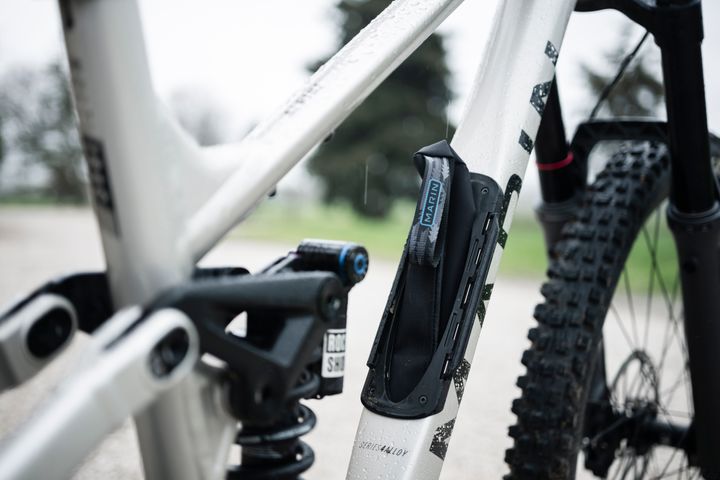

The new Marin Alpine Trail Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seat post increases strength and is compatible with the latest dropper posts.

"XR" = "Xtra Rad" at Marin, and like the XR models that have preceded the new Alpine Trail, we created a model for the more discerning rider. We focused our efforts on building a bike with high performance RockShox Ultimate-level suspension, a SRAM GX Eagle Lunar 12-speed drivetrain and DB8 4-piston brakes - all equipment that helps the rider level up, but without blowing the budget. Don't forget the Maxxis rubber and our proprietary CNC machined 35mm stem and matching Trail Bar.

SPECIFICATIONS

• Frame: All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
• Front Suspension: RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
• Rear Suspension: RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, S/M = 350 lbs, L/XL = 450 lbs
• Rim: Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
• Hub Rear: Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
• Hub Front: Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
  Spokes: 14g Black Stainless Steel
• Tires: Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5" DoubleDown, Tubeless compatible
• Derailleur Rear: SRAM GX Eagle Lunar
• Shift Lever: SRAM GX Eagle Lunar MMX Mount
• Crankset: SRAM GX Eagle, 32T, 55MM CL, 170MM Length
• Bottom Bracket: SRAM DUB MTB 73
• Chain: SRAM NX Eagle
• Cassette: SRAM XG 1275 Eagle Cassette 10-52T
• Brakes Front: SRAM DB8 4-Piston Hydraulic Disc , HSC 200mm Rotor
• Brakes Rear: SRAM DB8 4-Piston Hydraulic Disc , HSC 180mm Rotor
• Brake Levers: SRAM DB8 Hydraulic Disc
• Handlebar: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back\\
• Stem: Marin CNC, 35mm Length, 35mm Bar Bore
• Grips: Marin Grizzly Lock-On
• Headset: FSA Custom Headset, Adjustable HTA Design
• Seatpost: TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
• Saddle: Marin Speed Concept
• Extras: Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

GEOMETRY

TECHNOLOGY

• Sram GX 12 Speed Drivetrain
• Trans X Dropper Post
• Series 4 Aluminum MultiTrac 2 LT Adjustable Frame
• Rock Shox Zeb Ultimate Fork
