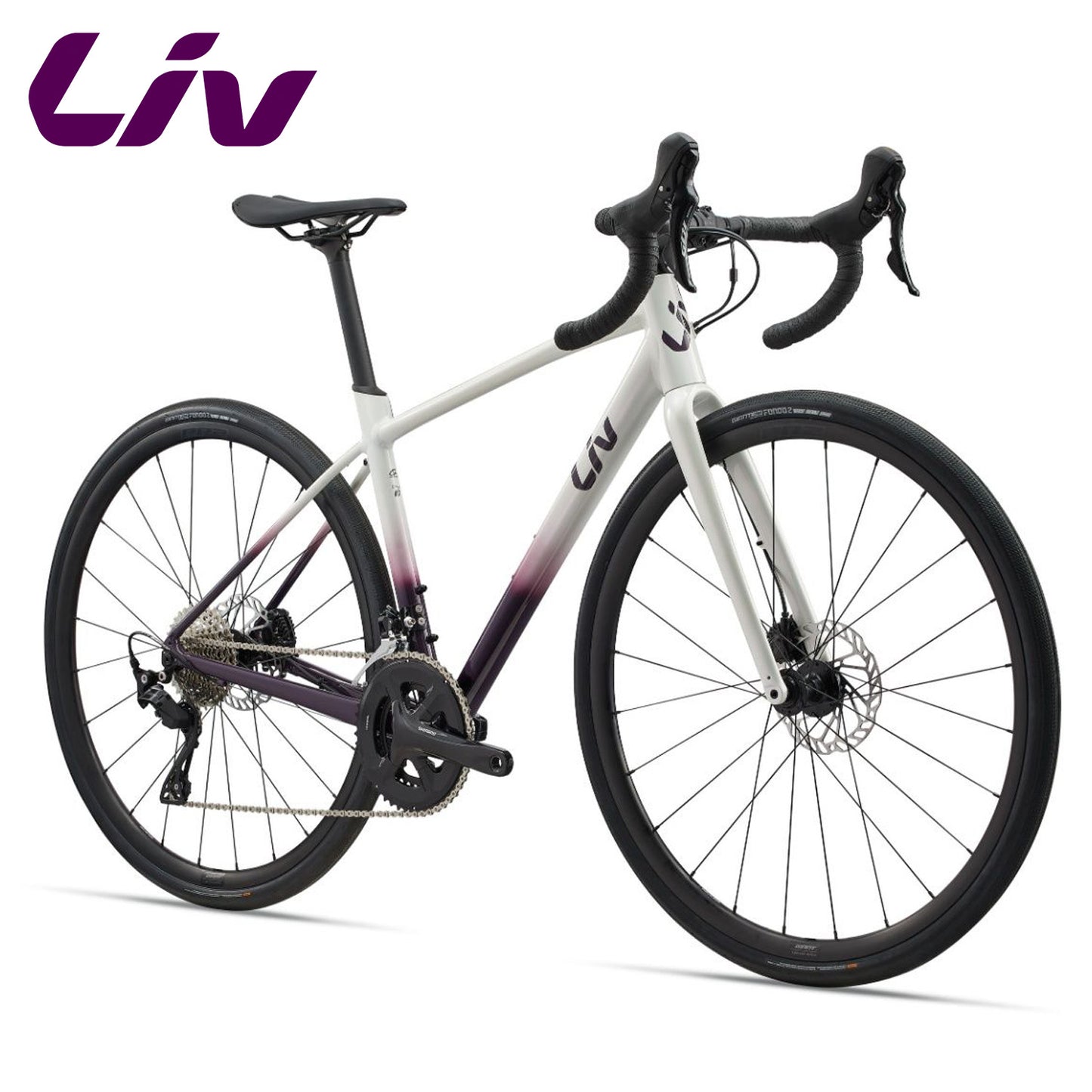

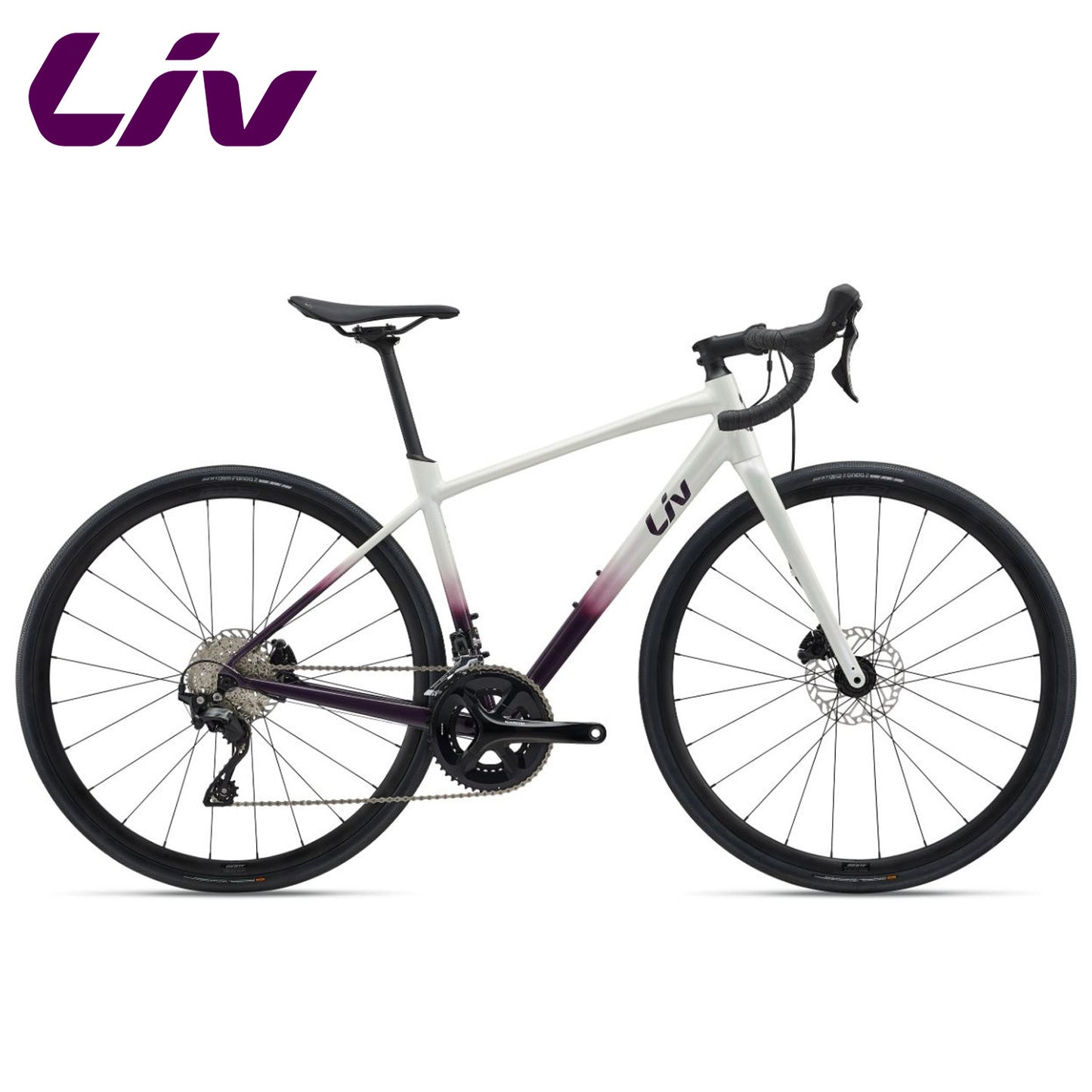

Avail AR 1

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.

Key Performance Factors

Comfort

The lightweight ALUXX frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control

The 32c tyres provide stability both on-road and off-road, and select models offer compatibility with tubeless tyres up to 38c. With the OverDrive steerer and powerful disc brakes, you'll enjoy precise handling and reliable stopping power for confident riding in any terrain.

Carrying Capacity

Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

Techs & Features

ALUXX Aluminium Technology

This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

Compact Road Design

When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

D-Fuse Seatpost

The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.

OverDrive

Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

Tubeless System

Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

• XS: 153cm to 162cm
• S: 158cm to 169cm
• M: 165cm to 174cm
• L: 171cm to 182cm

• Sizes: XS, S, M, L
• Colours: Fancy White
• Frame: ALUXX-grade aluminium, 12x142mm thru-axle, disc
• Fork: Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
• Shock: N/A
• Handlebar: Liv D-Fuse SL, 31.8mm
• Grips: Liv All Condition
• Stem: Giant Contact
• Seatpost: Giant D-Fuse, composite
• Saddle: Liv Approach
• Pedals: PEDALS NOT SUPPLIED
• Shifters: Shimano 105 2x12
• Front Derailleur: Shimano 105
• Rear Derailleur: Shimano 105
• Brakes: Shimano 105 hydraulic, 160mm rotors
• Brake Levers: Shimano 105 GS
• Cassette: Shimano 105, 12-speed, 11x36
• Chain: KMC X12
• Crankset: Shimano FC-RS520, 34/50
• Bottom Bracket: cartridge
• Rims: Giant P-R2 Disc wheelset, alloy, 22mm inner width
• Hubs: Giant alloy, 12mm thru-axle
• Spokes: Sapim
• Tyres: Giant Gavia Fondo 2, 700x32c, tubeless
• Extras: Factory tubeless set up
• Max Tyre Clearance: 38mm
