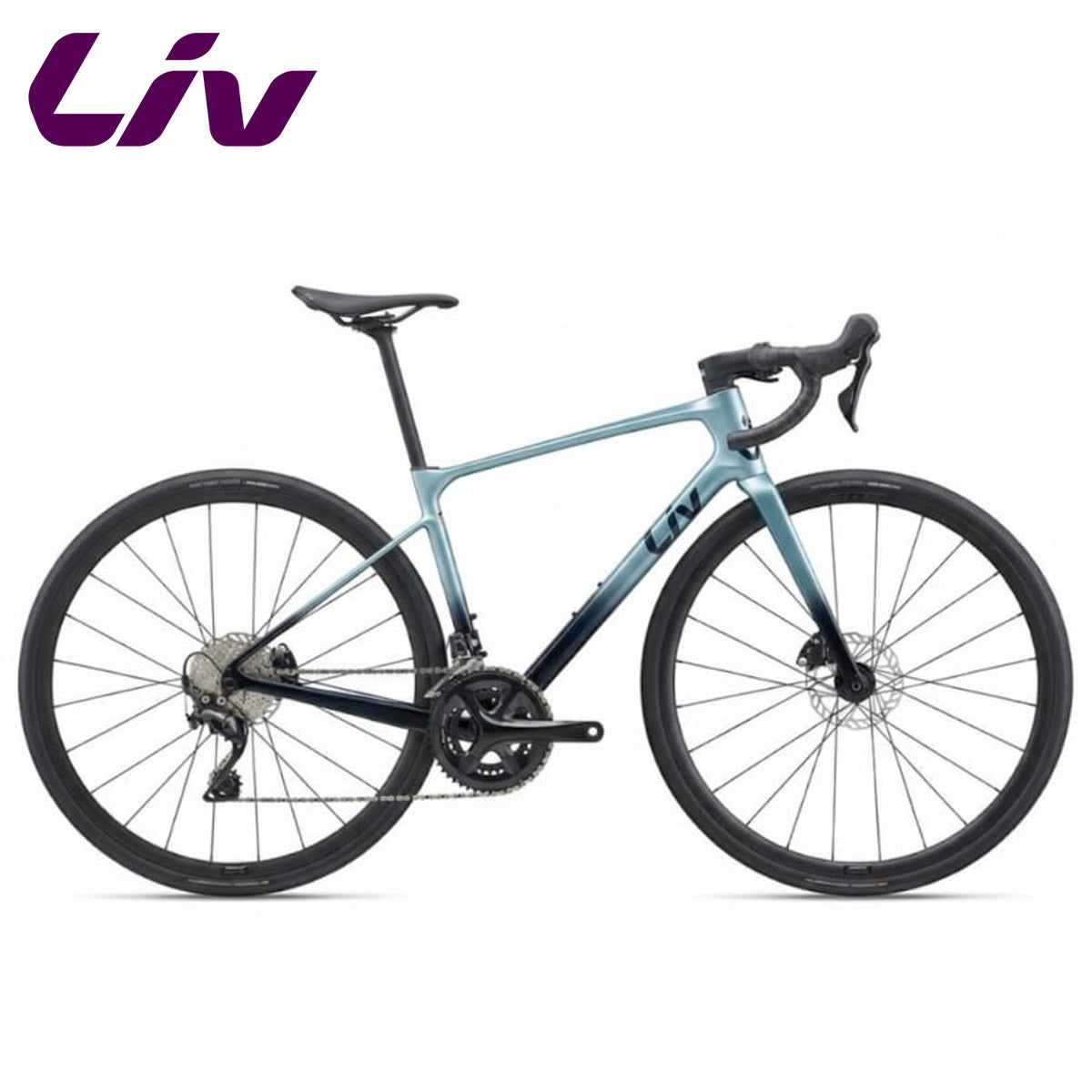

Avail Advanced 3

The Avail Advanced is that riding buddy who’s up for any adventure on the road—from solo backroad explorations to after-work shop rides to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.

Key Performance Factors

Lightweight Advantage

The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.

Superior Compliance

Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.

Maximum Control

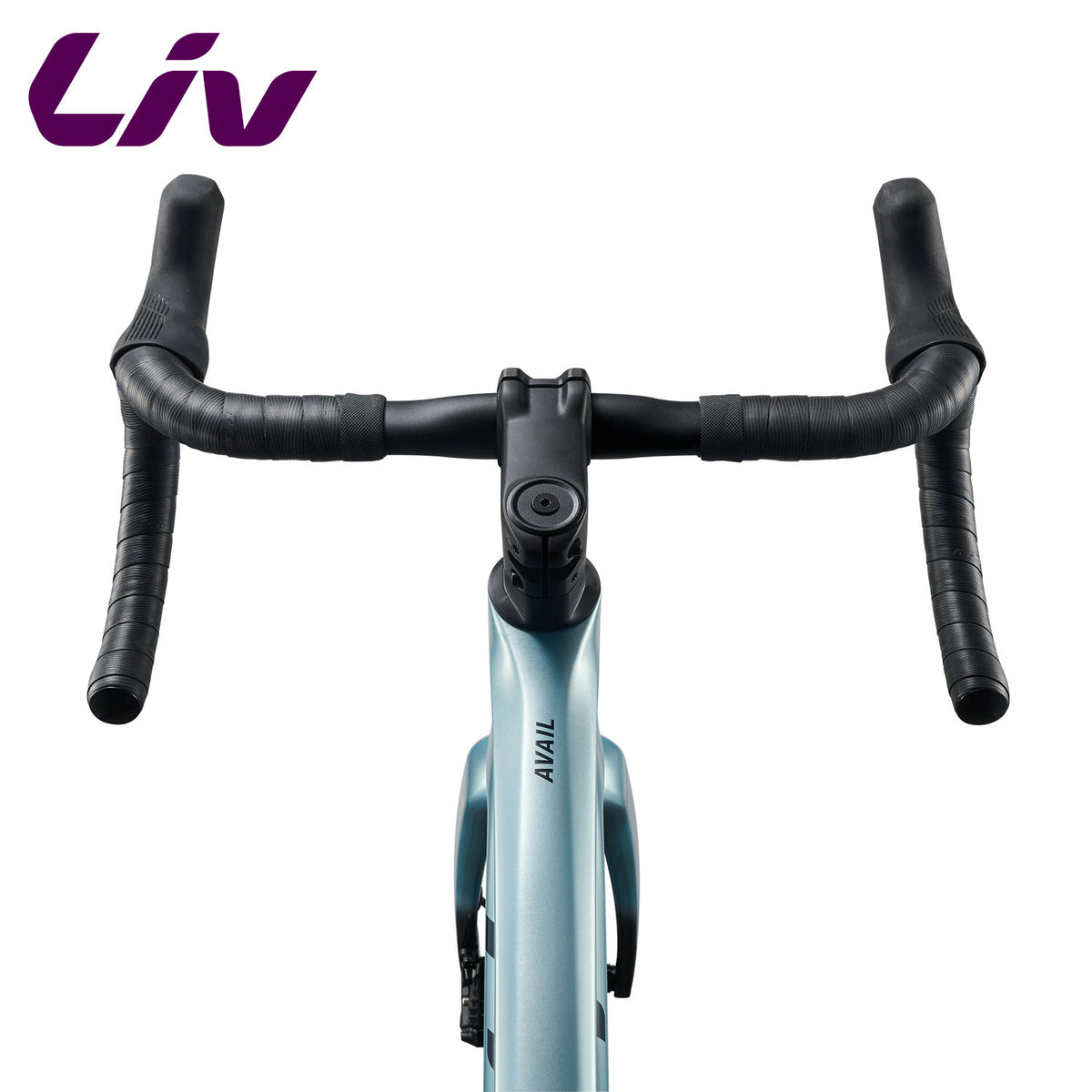

The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.

Techs & Features

Advanced Composite Technology

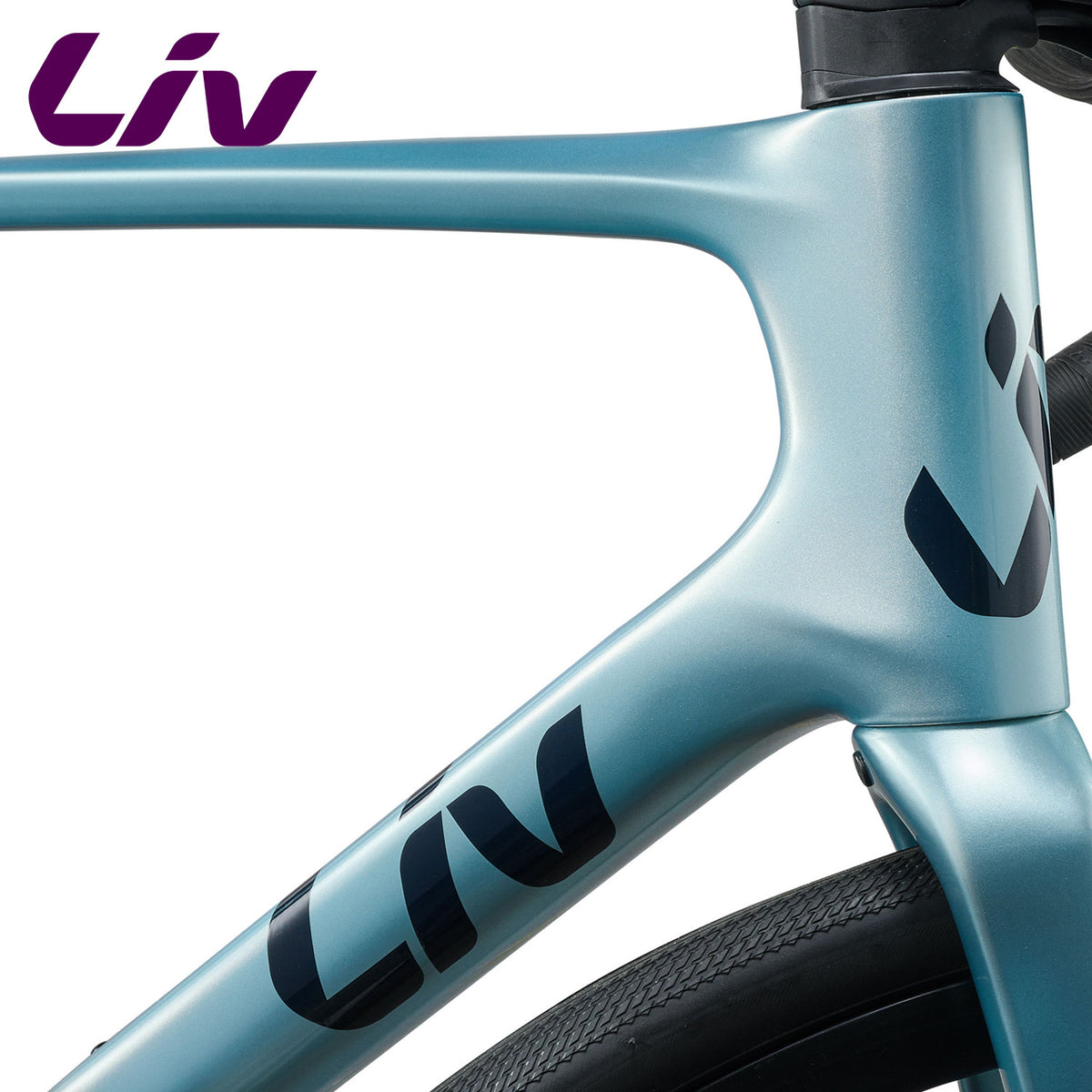

Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

Compact Road Design

When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

OverDrive

Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

Tubeless System

Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless ready composite WheelSystem delivers superior efficiency, pinpoint control and comfort.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

• XXS: 145 to 156cm
• XS: 153 to 162cm
• S: 158 to 169cm
• M: 165 to 174cm
• L: 171 to 182cm

• Frame sizes: XXS, XS, S, M, L
• Color(s): Cryo Silver/Mariana Blue
• Frame: Advanced Carbon Frame, 12x142 mm Max. Tire clearance: 40mm

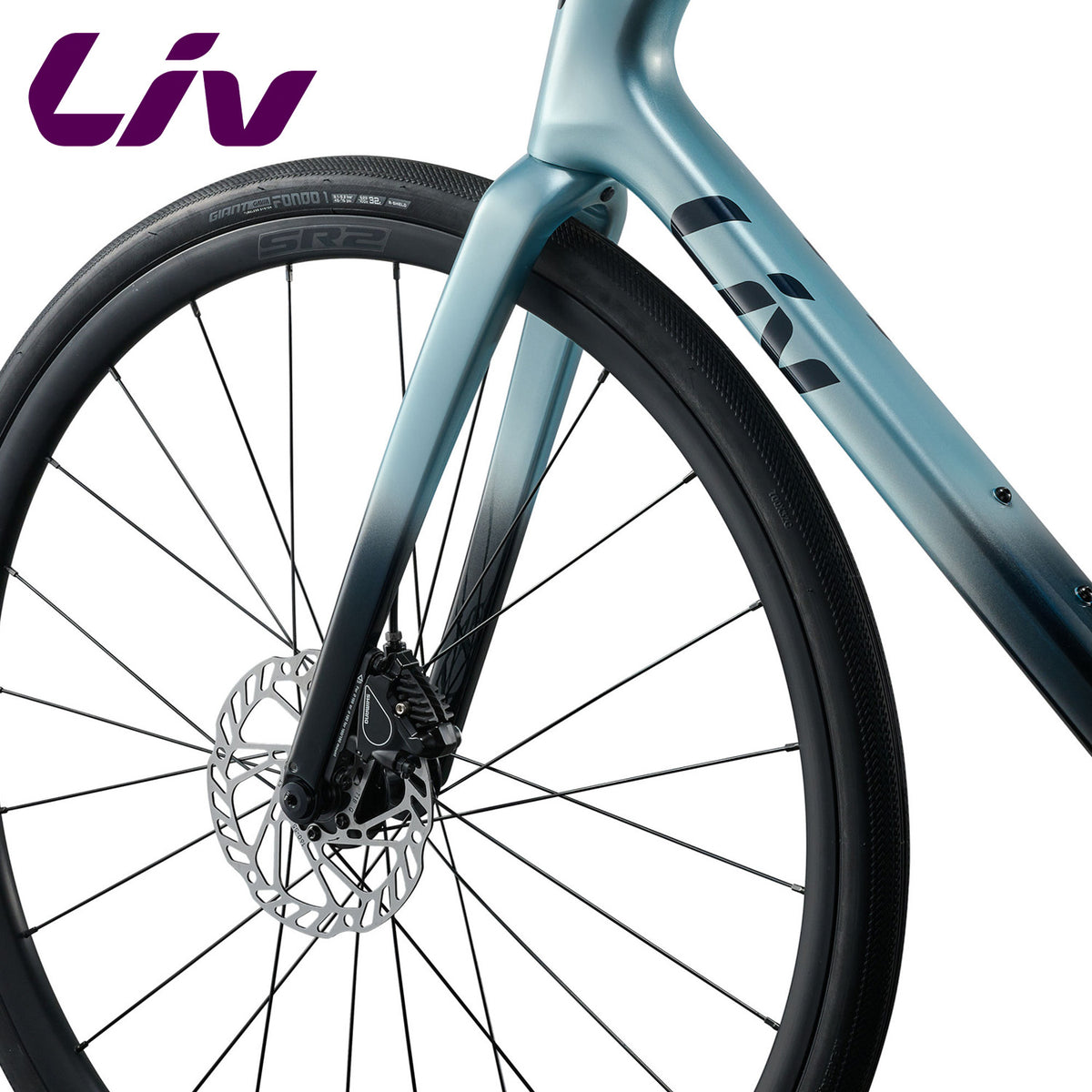

• Fork: Advanced full carbon fork, OD1 fork shank, 12x100 mm
• Handlebars: Liv Contact SL D-Fuse
• Handles: Liv Stratus Elite 2.0
• Extension: GIANT Contact Aerolight
• Seatpost: GIANT Contact D-Fuse Carbon
• Saddle: Liv Approach
• Pedals: platform pedal [GCS,GTS] N/A [all other GSC]

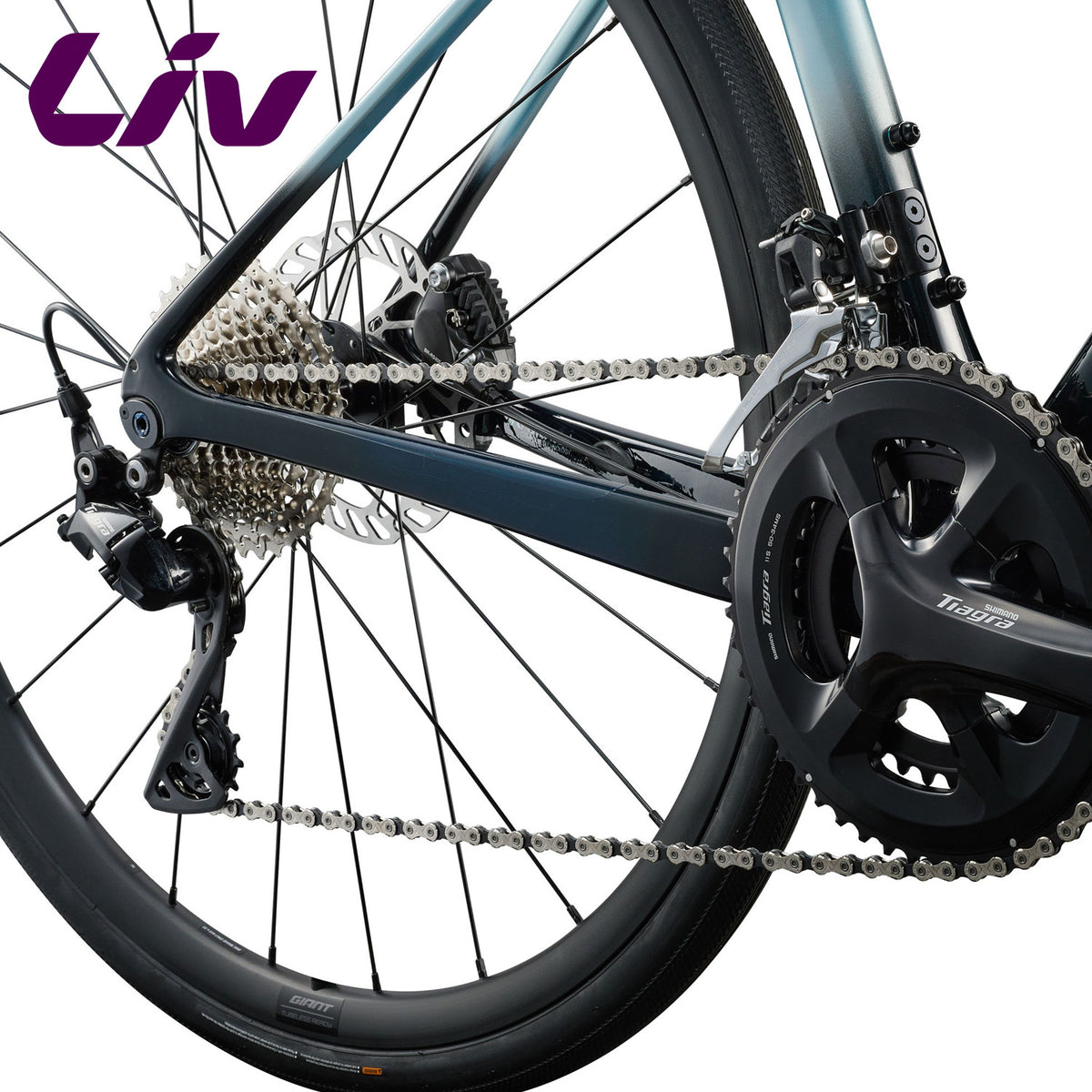

• Gearshift Lever: Shimano Tiagra ST-R4000
• Derailleur: Shimano Tiagra FD-R4000
• Switchgear: Shimano Tiagra RD-R4000 11-speed
• Brakes: Shimano BR-RS405, 160mm
• Brake Lever: Shimano Tiagra ST-R4000
• Cassette: Shimano CS-RS400-11 11-36
• Chain: KMC X-11
• Crank Set: Shimano Tiagra FC-R4000 50 34
• Bottom Storage: Shimano Pressfit
• Rims: GIANT S-R2 Disc, Tubeless Ready
• Hubs (v/h): Giant
• Spokes: Sapim
• Tires: Giant Gavia Fondo 1 700x32C 28
• Accessories (partially. built): Tubeless Kit (sealant, valves, tire lifter, valve core tool, user manual)
• Max. zul. Total mass (kg): 126.5
• Max. Tire width: 40
• Weight (kg): 8.88
