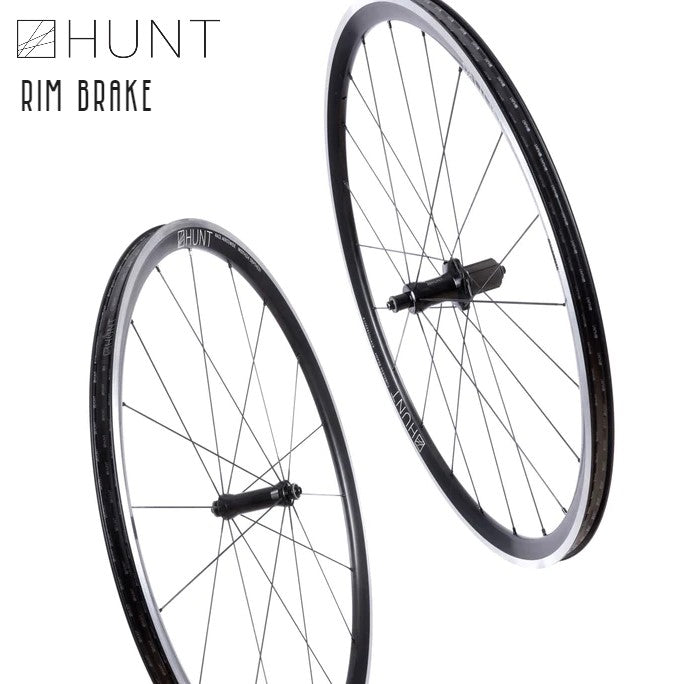

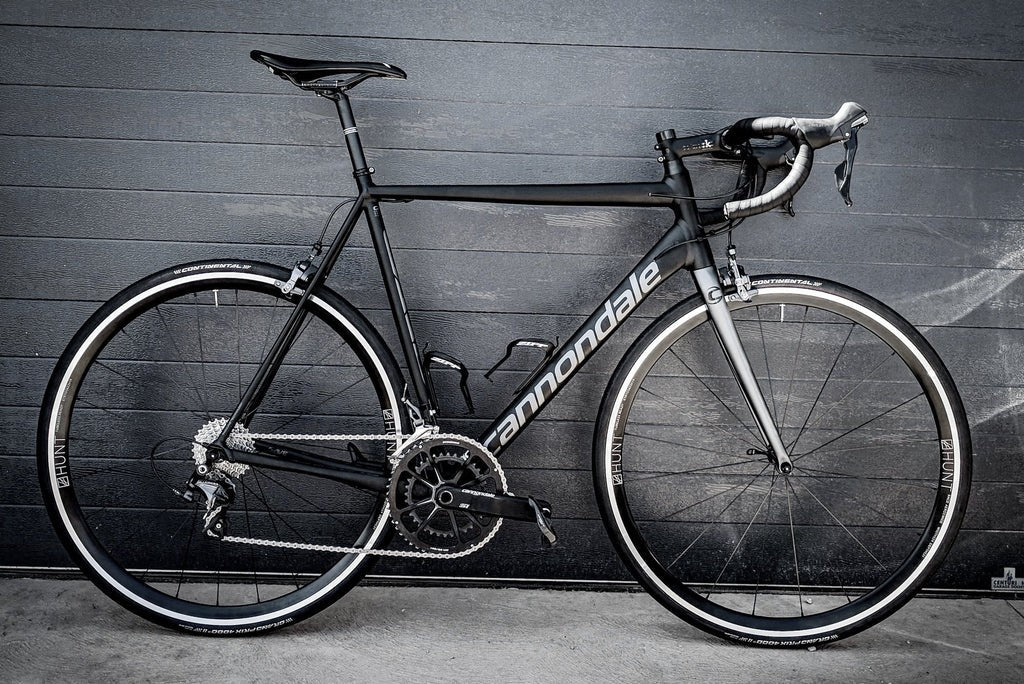

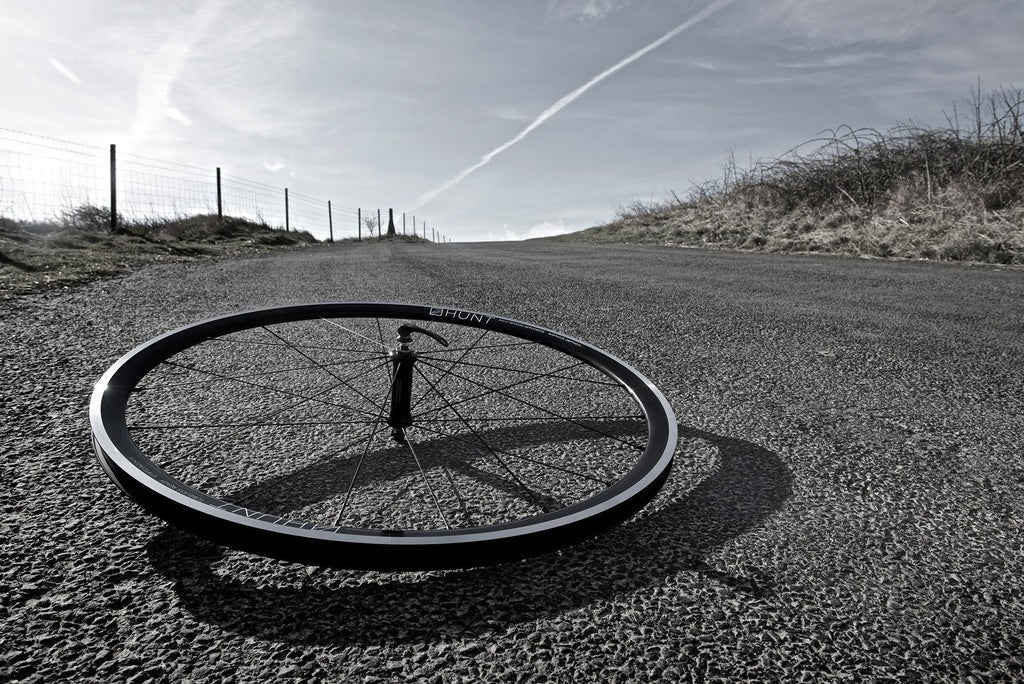

HUNT Race Aero Wide Alloy RIM Brake Wheelset QR 1496 grams

HUNT Race Aero Wide Alloy RIM Brake Wheelset QR 1496 grams

₱33,990.00
₱33,990.00
Sale Sold out
Tax included.
Variant
Other Options

SKU:

HUNT RACE AERO WIDE WHEELSET

WIDE, AERO, LIGHT. PICK THREE

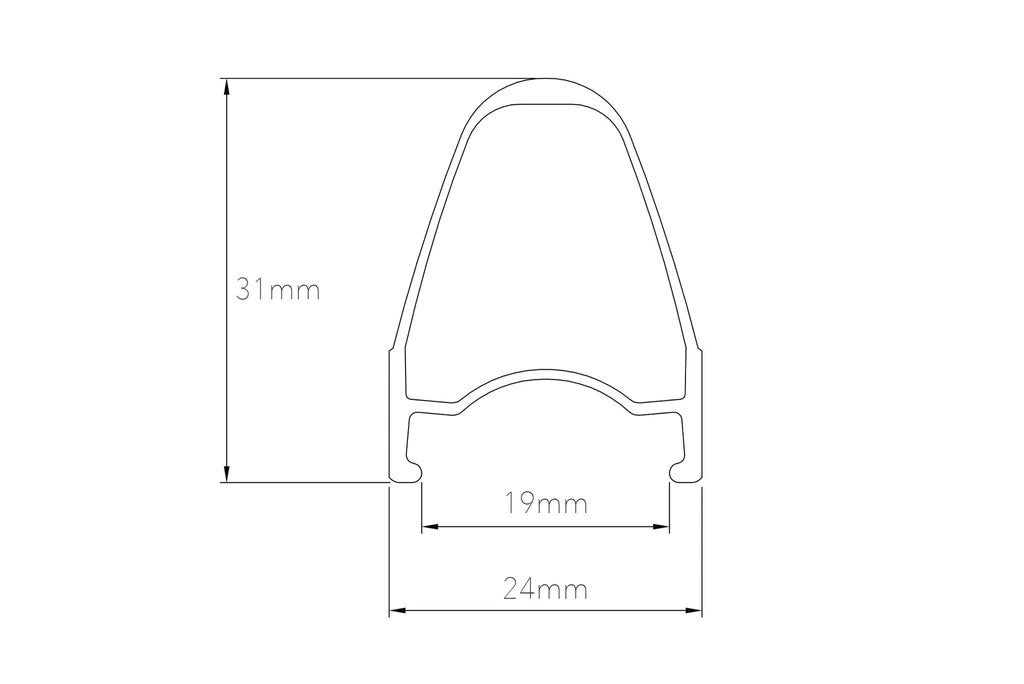

31 DEEP | 24 WIDE EXT | 19 WIDE INT | 1496G

THE PURPOSE

Stretch the gaps and burn the legs of your riding compatriots with incredible fast riding performance. You will take the corners faster and tighter than ever before due to the 24mm rim width opening out your tire profile and providing incredible grip.

The wide rim, working with a 25 or 28c tire, will eat up rough roads allowing you to hold your line and carry your speed. The upgraded straight pull hubs and spokes reduce weight, add strength and respond instantly to your accelerations.

KEY FEATURES

THE SUPER-WIDE, SERIOUSLY-LIGHT, AERO-BEATING 31MM DEEP ROAD WHEELSET

  • Rims | Our HFR Alloy+ rims are constructed using a heat treatment process, delivering far higher fatigue resistance than 6061-T6. High-polished aluminium finish. 31mm deep. 19mm internal and 24mm external width, creating an excellent tire profile for wide road tires and cross tires up to 45c.
  • Tires | Designed with a wide 19mm rim bed to create a wider tire profile. Great with 700x23mm tires but ideal for 25, 28 and cross tires. Also works excellently with clincher tires and tubes.
  • Hubs | HUNT Race Straight-Pull with 10° RapidEngage 4-pawl freehub, with H_CERAMIK coating for enhanced durability.
  • QR | Hunt Race Season super-light with heat-treated alloy/brass cam plate actuation and stainless steel springs.
  • See the full specs here

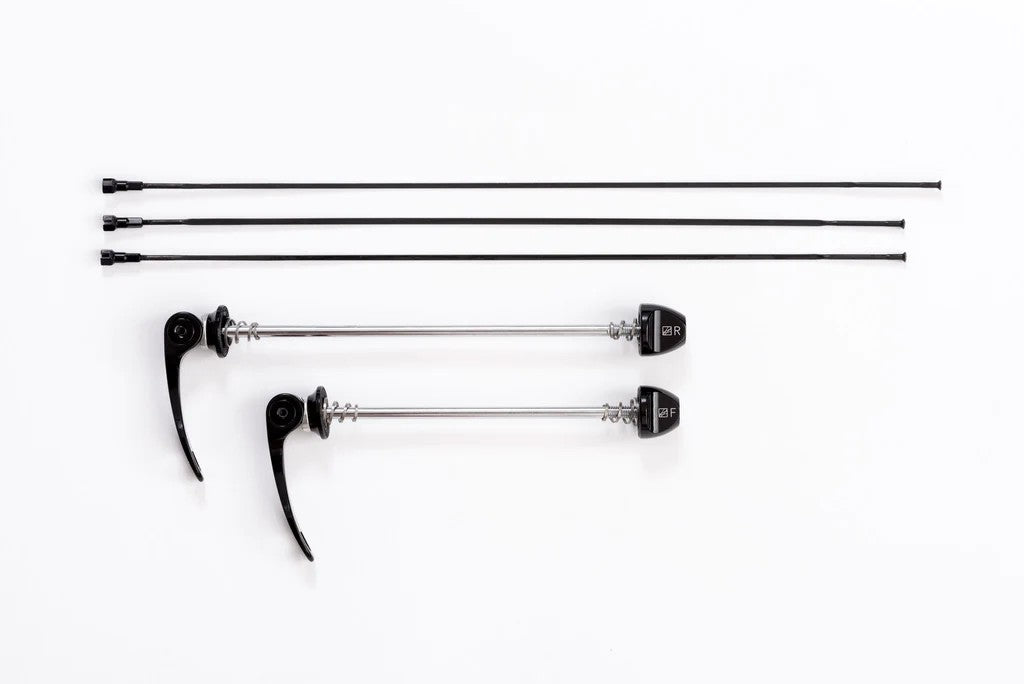

  • Included | QRs, Spare of each spoke & nipples, tubeless tape. Please note: If you require tubeless valves you can purchase separately here
  • Weight | 1496g
  • UCI Approved

THE EXPERTS' VIEW

Cycling Weekly Editor's Choice Logo   Bikeradar Logo   Roadcc Logo   Bikerumor Logo



FULL SPECS

  • RIMS

    • Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Hunt Black Shield tubeless rim tape fitted.
    • HFR Alloy+ rims constructed using a heat treatment process, delivering far higher fatigue resistance than 6061-T6.
    • 24mm outer and 19mm inner width ideal for 23-34mm tire widths.
    • 31mm deep rounded aero section.
    • Precision machined rim brake track.
    • Matt black anodized finish with matt white heated decals for excellent durability.


    SPOKES

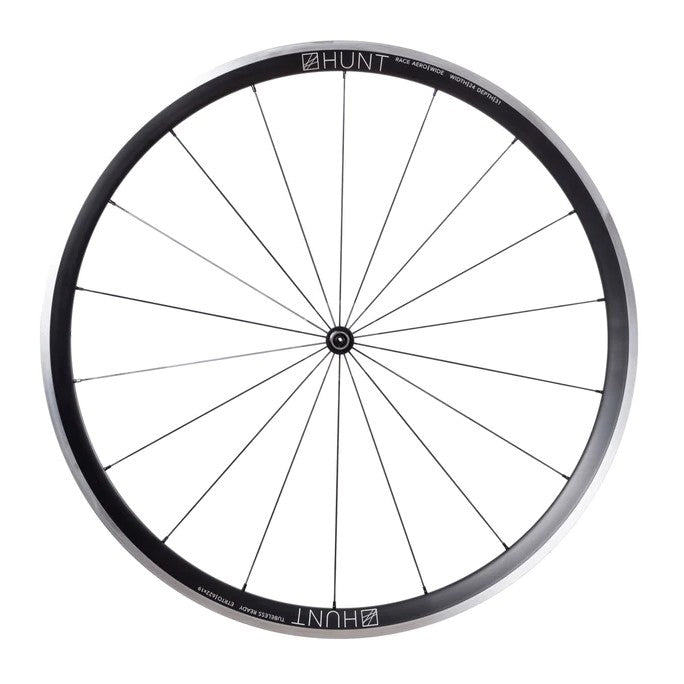

    • Front: 18 spokes laced radially - Aero triple-butted profile.
      • Butted 2.0-2.0/0.95-2.0 then PSR section is 2.2.

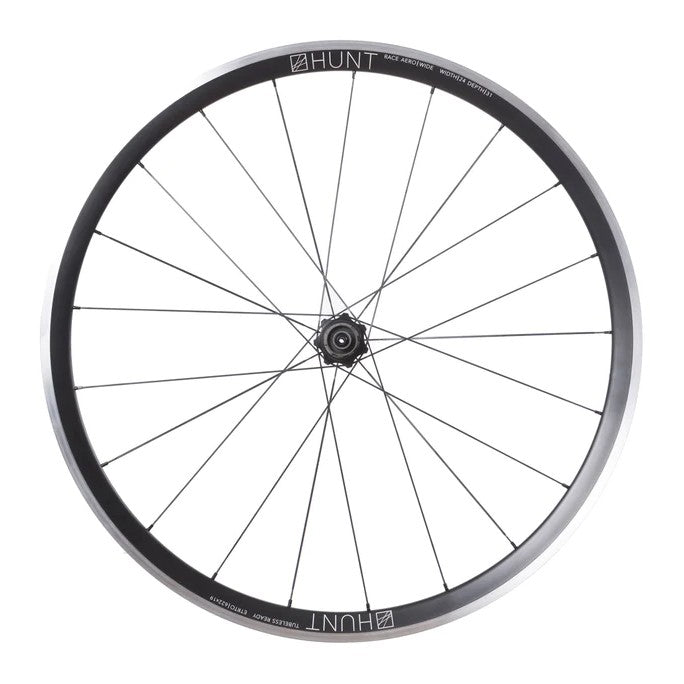

    • Rear: 21 spokes laced 2 cross.
      • Asymmetric spoke gauges on rear wheel creates a more stable wheel build.
      • Drive side - butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
      • Non-drive side - butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
    • Straight-pull for excellent torsional strength and direct power transfer.
    • Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
    • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
    • Black stainless treatment


    NIPPLES

    • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
    • 14mm length for a strong connection to the spoke.
    • 14 gauge
    • Black anodized finish


    TIRES INFO

    • Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. Maximum tire pressures for other tire sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi 100 psi is more than enough for any rider on road.
    • The maximum pressure of your tire may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tire
    • Suitable for tires from 23mm up to 50mm wide.
    • Suitable tubeless road, gravel and CX tires are available from a huge range of companies including Schwalbe, Hutchinson, Panaracer, Maxxis and many more. Schwalbe Pro One 25mm tire weighs just 255g, is tubeless ready and is Schwalbe's class leading clincher racing tire.

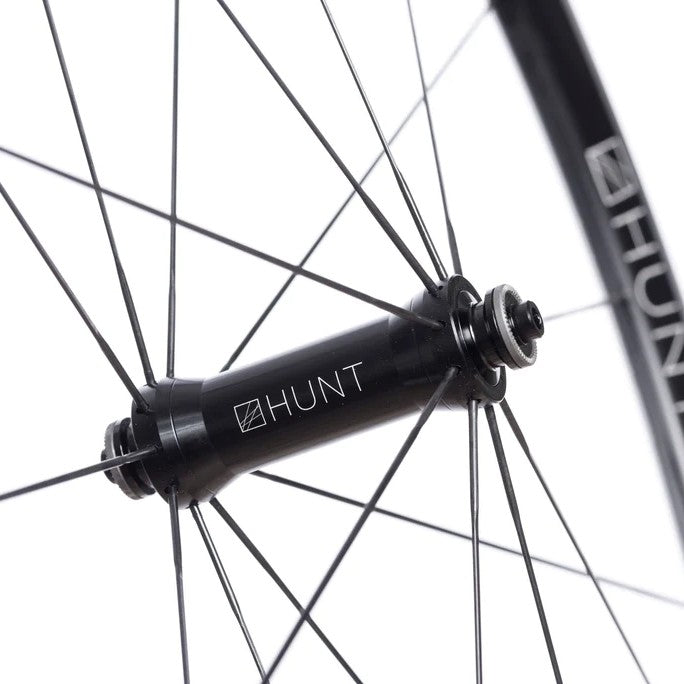

    FRONT HUB

    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Circular machined dropout interface steps for added stiffness
    • Polished anodized black finish with laser graphics.

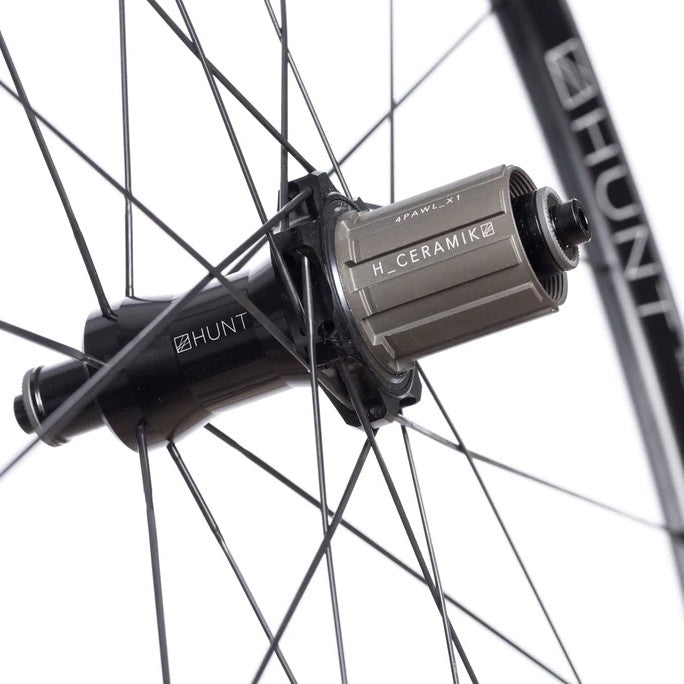

    REAR HUB

    • 7075-T6 heat-treated aluminium alloy freehub body.
    • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
    • 4 pawl, 10° engagement.
    • All freehub standards accounted for, including:
      • Shimano/SRAM
      • Campagnolo
      • SRAM XD Driver
      • SRAM XDR Driver
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles, 12mm front, 15mm rear.
    • Polished anodized black finish with laser graphics.


    BEARINGS

    • Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
    • Sealed cartridge replaceable units.
    • Rear hub upgraded to even faster rolling S&S LU/LB low-friction sealed internal face, dual sealed external face bearings.
    • Incredibly fast rolling

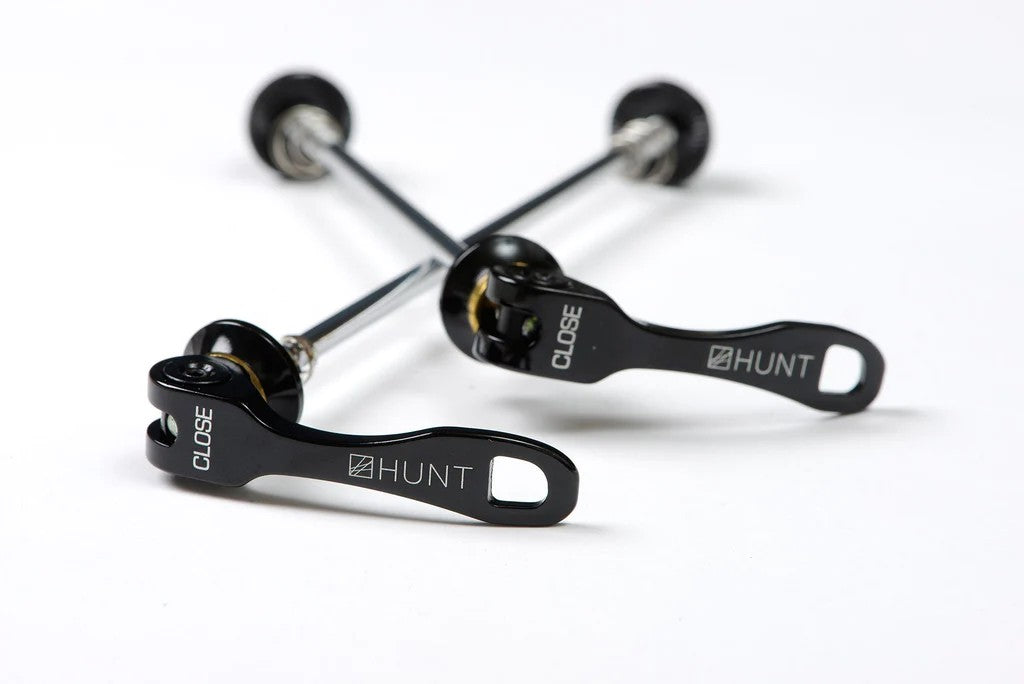

    QUICK-RELEASES

    • Hunt Super-light Race Season design, only 33g front and 37g rear.
    • 7075-T6 heat-treated alloy lever, head and nut.
    • Brass cam plate actuation.
    • 1000kgf tested high-strength cro-moly spindles.
    • Corrosion resistant stainless steel springs.
    • Polished anodized black finish with laser graphics.
