RIMS FOR WHEELS SPECIFICALLY CREATED FOR THE NEW BREED OF ADVENTUROUS THRASHER GO-ANYWHERE DROP-BAR BIKES DESIGNED TO WORK WITH MULTIPLE WHEEL AND TIRE SIZES.

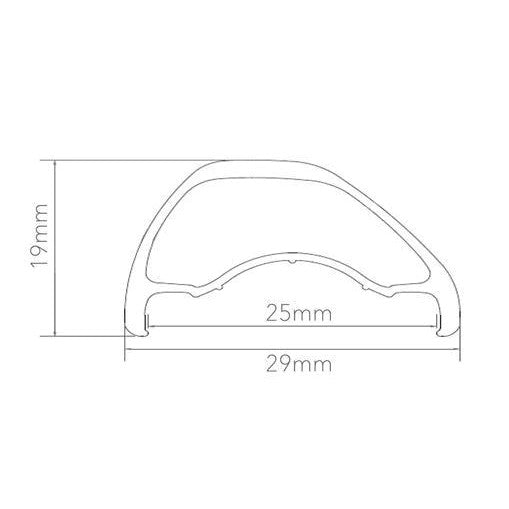

19 DEEP | 29 WIDE EXT | 25 WIDE INT | 400G

Key features of this rim that make it great for the focused purpose of drop-bar adventure/gravel road riding are:

• Wider 29mm external/25mm internal rim provides excellent ride handling and support for wider tires and they work perfectly with up to 2.3” MTB tires.
• The 19mm deep rim delivers excellent strength needed for the lower spoke counts and higher gear torques from road groupsets when compared to MTB setups.
• Asymmetric rim accommodates the front disc and rear cassette hub offsets and helps build an even stronger and more durable wheelset thanks to balanced spoke tensions.

DETAILED SPECIFICATIONS

Rim

• Tubeless-ready – designed to work excellently with normal clincher tires and tubes or tubeless tires. Tubeless rim tape offered separately.
• H-lock bead-seat up-kicks for easy and secure tubeless installation
• 6066-T6 (+34% tensile strength vs 6061-T6) heat-treated aluminum alloy.
• Asymmetric to balance spoke tensions
• Disc-specific tubeless-ready profile
• 29mm outer and 25mm inner width ideal for 28-54mm tire widths
• 19mm depth
• Matt black anodized finish with laser-etched graphics for excellent durability

• Maximum tire pressure for this rim: 35mm do not exceed 50psi, 45mm do not exceed 45psi, 45mm+ do not exceed 40psi.
• The maximum pressure of your tire may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tire.
• Suitable for tires from 35mm to 65mm wide (always check compatibility with your tire manufacturer).
• ERD 558mm
• Lacing
• Front - Cross 2
• Rear - Cross 2
• Recommended spoke tension:
• Front - 115-130 kgf
• Rear - 110-125 kgf
