Tyres
Tubeless-ready for lower weight, lower rolling resistance and improved puncture resistance. Also works excellently with clincher tyres and tubes. Optimised for 35-55mm tyres, and compatible with 29-65mm tyres.
Technology.
Full Specs.

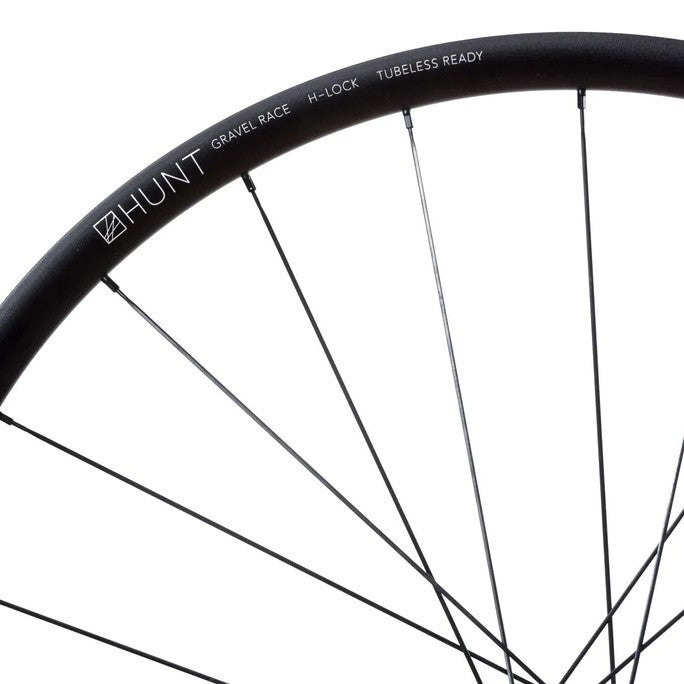

Rims
Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included. Hooked H_LOCK bead-seat up-kicks for easy and secure tubeless installation. 6069-T6 | 490 MPa + 69% UTS than 6061-T6, with higher fatigue and impact strength 28mm outer and 24mm inner width. Rounded 17mm deep profile. Micro-peened black finish strengthens the surface even further. Laser etched graphics for excellent durability.
- Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres. Tubeless-rim tape and valves included.
- Hooked
- H_LOCK bead-seat up-kicks for easy and secure tubeless installation.
- 6069-T6 | 490 MPa + 69% UTS than 6061-T6, with higher fatigue and impact strength
- 28mm outer and 24mm inner width.
- Rounded 17mm deep profile.
- Micro-peened black finish strengthens the surface even further.
- Laser etched graphics for excellent durability.
Spokes
24 front and 24 rear laced 2 cross. Sapim CX-Delta Aero Butted 2.0-2.2/0.9-2.0mm Straight-pull for excellent torsional strength and direct power transfer Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden Black stainless treatment
- 24 front and 24 rear laced 2 cross.
- Sapim CX-Delta Aero Butted 2.0-2.2/0.9-2.0mm
- Straight-pull for excellent torsional strength and direct power transfer
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
- Black stainless treatment
Nipples
Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length for a strong connection to the spoke and added durability. 14 gauge. Black anodized finish.
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
- 16mm length for a strong connection to the spoke and added durability.
- 14 gauge.
- Black anodized finish.

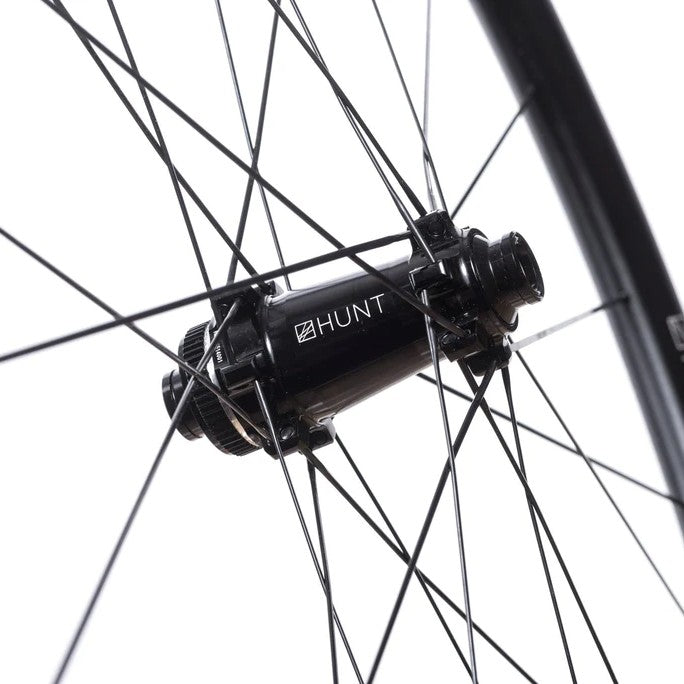

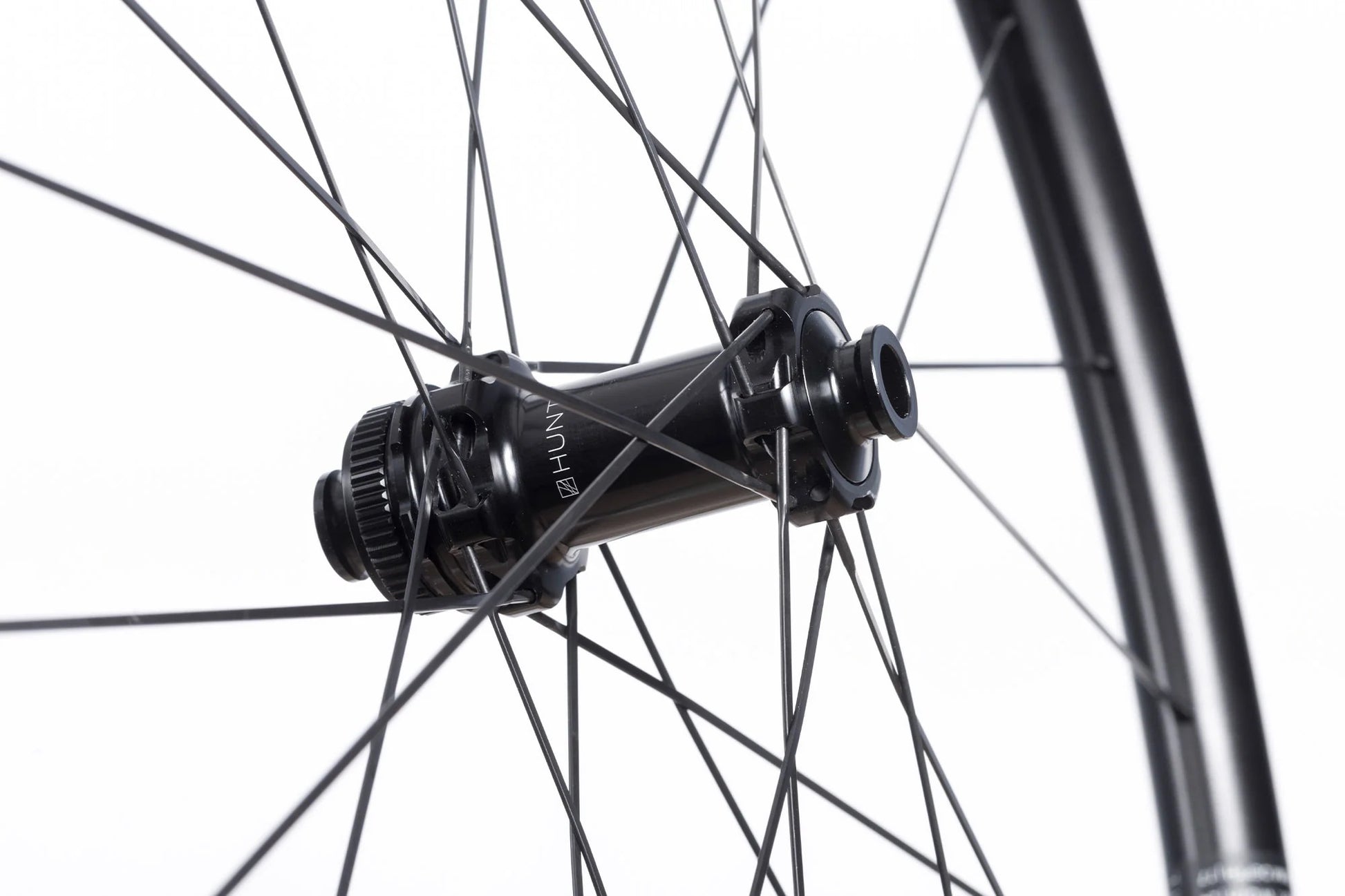

Front Hub
HUNT disc straight-pull super-light alloy Forged and CNC’d 6066-T6 aluminium alloy body. 7075-T6 Heat treated aluminium alloy axles. Polished anodized black finish with laser graphics. Center-lock disc mount. Please note: If you require a 6 bolt adaptor you can purchase separately here.
- HUNT disc straight-pull super-light alloy
- Forged and CNC’d 6066-T6 aluminium alloy body.
- 7075-T6 Heat treated aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Center-lock disc mount.
- Please note: If you require a 6 bolt adaptor you can purchase separately here.

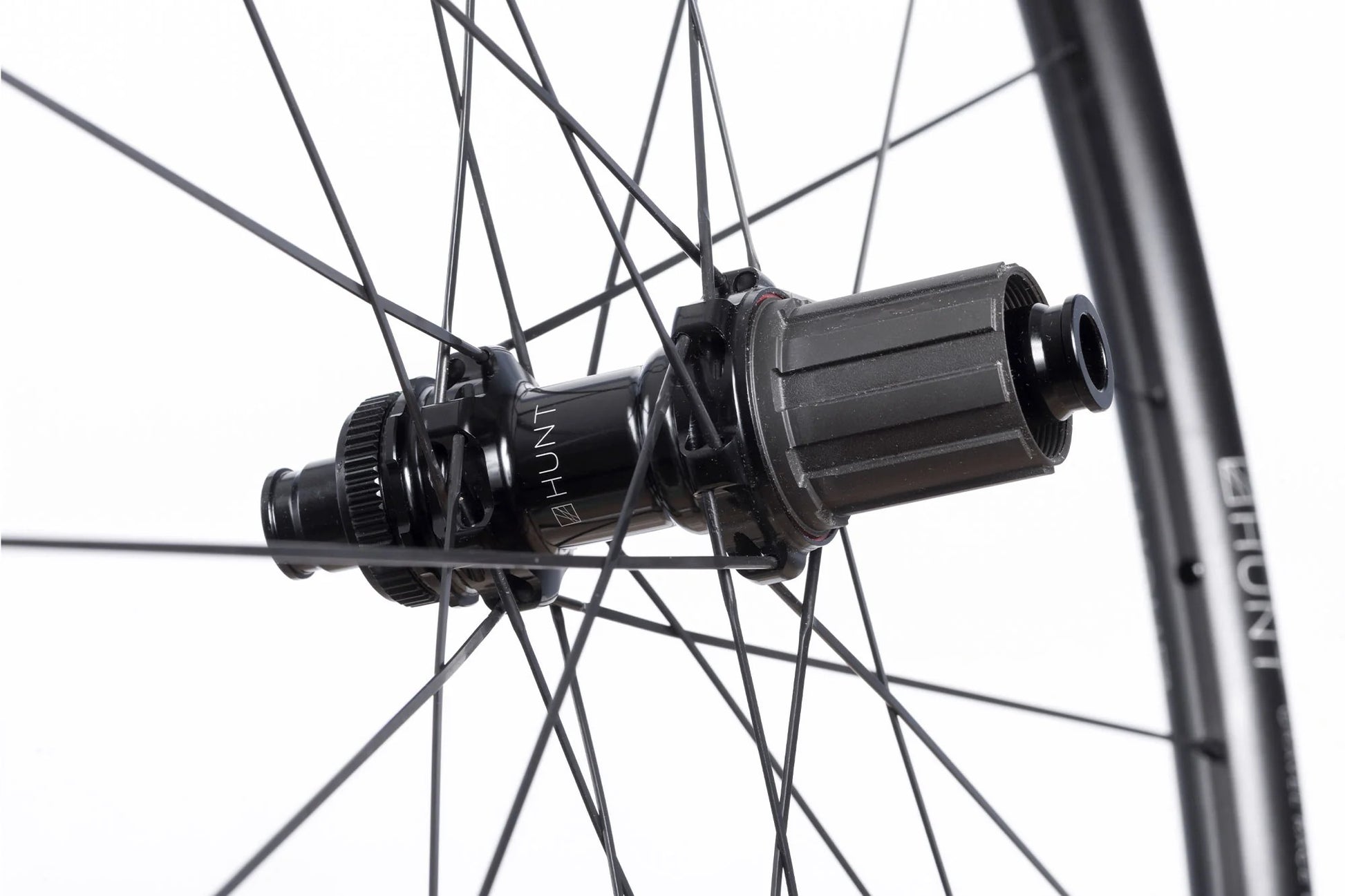

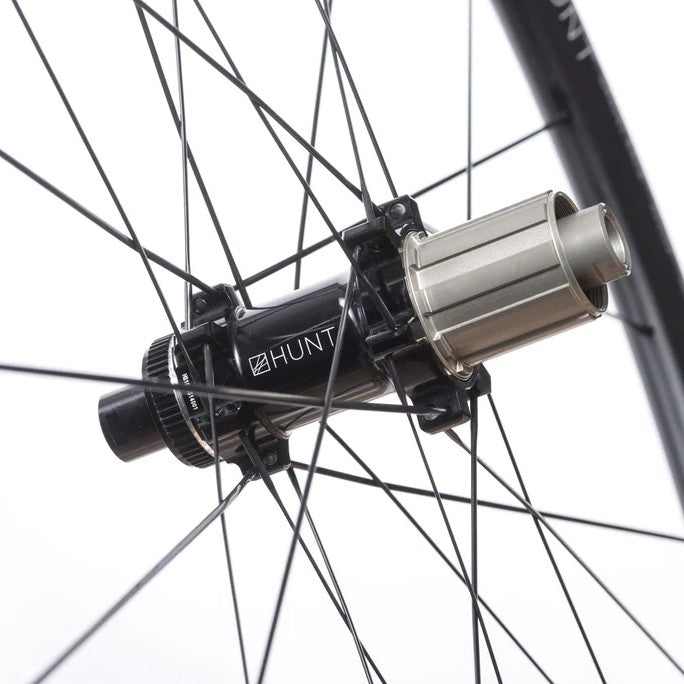

Rear Hub
HUNT H_Ratchet DBL disc straight-pull super-light alloy. H_Ratchet 40t ratchet rings on floating carrier with 9˚ engagement H_Ceramik freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. All freehub standards accounted for. 6066-T6 CNC’d aluminium alloy hub shell. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here. Polished anodized black finish with laser graphics.
- HUNT H_Ratchet DBL disc straight-pull super-light alloy.
- H_Ratchet 40t ratchet rings on floating carrier with 9˚ engagement
- H_Ceramik freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- All freehub standards accounted for.
- 6066-T6 CNC’d aluminium alloy hub shell.
- Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here.
- Polished anodized black finish with laser graphics.
Bearings
Super smooth precision bearings with waterproof grease specially selected for even the worst weather. Sealed cartridge replaceable units. Dual full-contact seals
- Super smooth precision bearings with waterproof grease specially selected for even the worst weather.
- Sealed cartridge replaceable units.
- Dual full-contact seals
Axle Sizes
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.
These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:
- Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
- Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Please note; this form is shown after you have completed your order.
Tyres Info
HUNT recommend a 35-55mm tyre for best performance, tyre widths between 29mm and 65mm are also safe to use. You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower. Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this. These wheels arrive tubeless-ready, with tubeless tape installed and tubeless valves included, but are also designed to work perfectly with inner tubes and clincher tyres. You must not exceed the maximum pressure stated on your tyre.
- HUNT recommend a 35-55mm tyre for best performance, tyre widths between 29mm and 65mm are also safe to use.
- You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
- Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post here about this.
- These wheels arrive tubeless-ready, with tubeless tape installed and tubeless valves included, but are also designed to work perfectly with inner tubes and clincher tyres.
- You must not exceed the maximum pressure stated on your tyre.
High Specification Components.

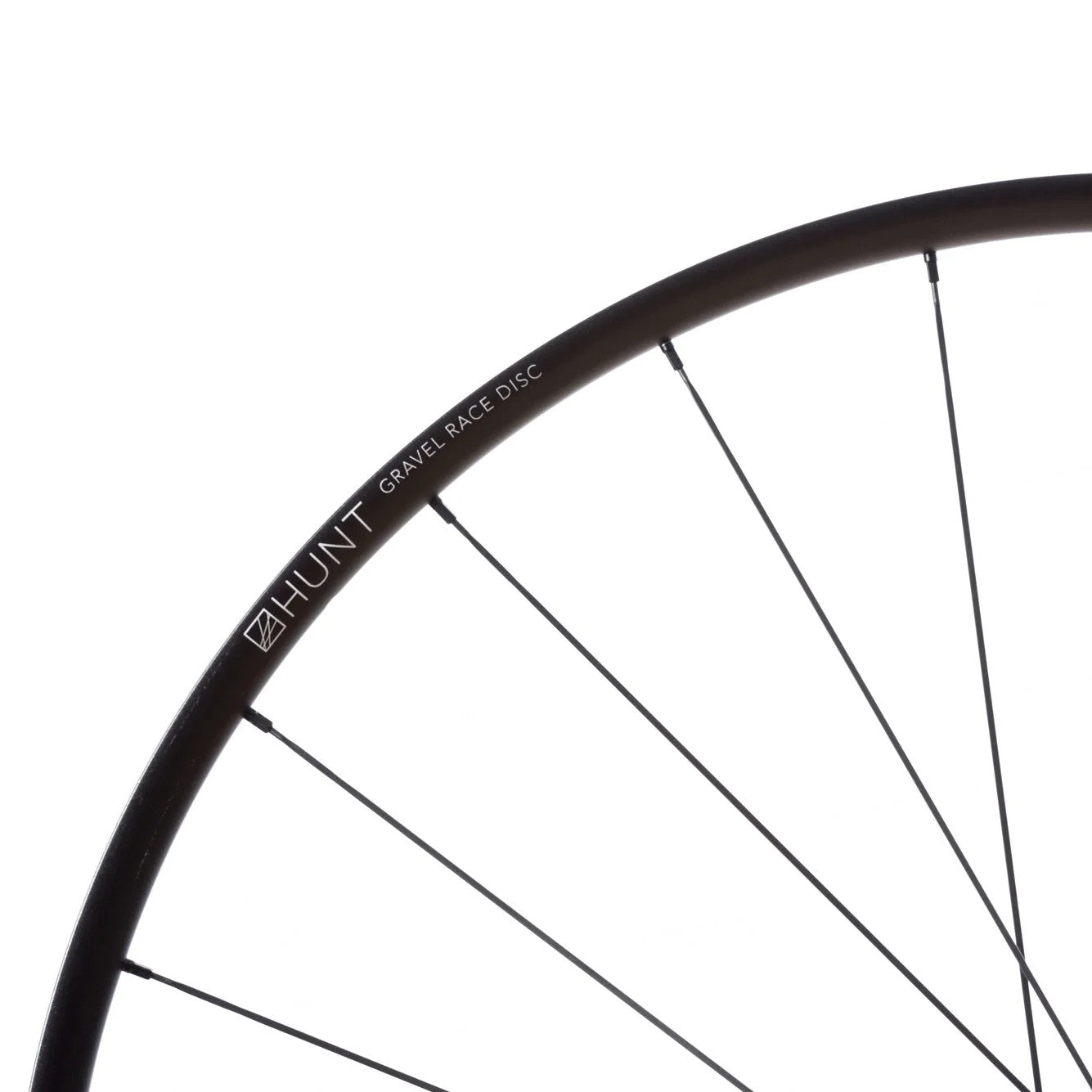

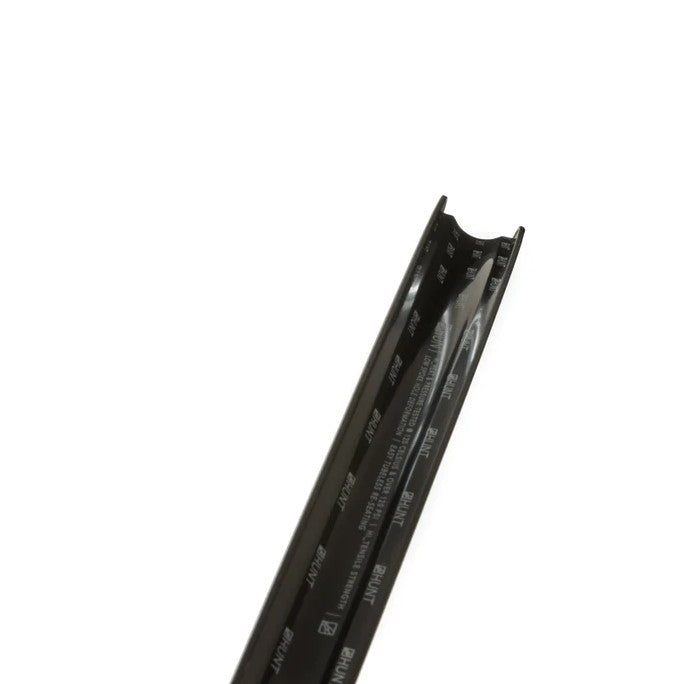

Rims
A strong and lightweight 6069-T6 heat-treated rim boasts 69% higher tensile strength vs 6061-T6 alloy. The updated Gravel Race Disc features a wider 24mm internal and 28mm external rim width, creating an optimal tyre profile for wider gravel tyres, giving excellent grip and lower rolling resistance.
Spokes
The CX Delta is one of the latest offerings from Sapim, offering the aero advantage of a bladed CX Ray, with the durability of a D-Light. SCFT (Sapim Cold Forging Technology) ‘Stretch’ the spoke while retaining the linear Molecular structure of the material, thereby increasing the spoke strength at the middle by at least 48%.
H_RATCHET 40T DBL HUB
H_Ratchet double-sided system (with two floating ratchet rings). With a 40t ratchet ring resulting in rapid 9˚ engagement. The freehub body features H_Ceramik anti-bite coating to ensure maximum durability.
BEARINGS
The heart of any wheel. Investing in them makes huge sense. We use high-grade double sealed smooth-rolling sealed cartridge bearings.
NIPPLES
The conical shape of the double square nipple allows for increased accuracy in wheel building when combined with a nipple washer, allowing us to create evenly tensioned wheels with reduced stress points at the spoke hole.
WEIGHT

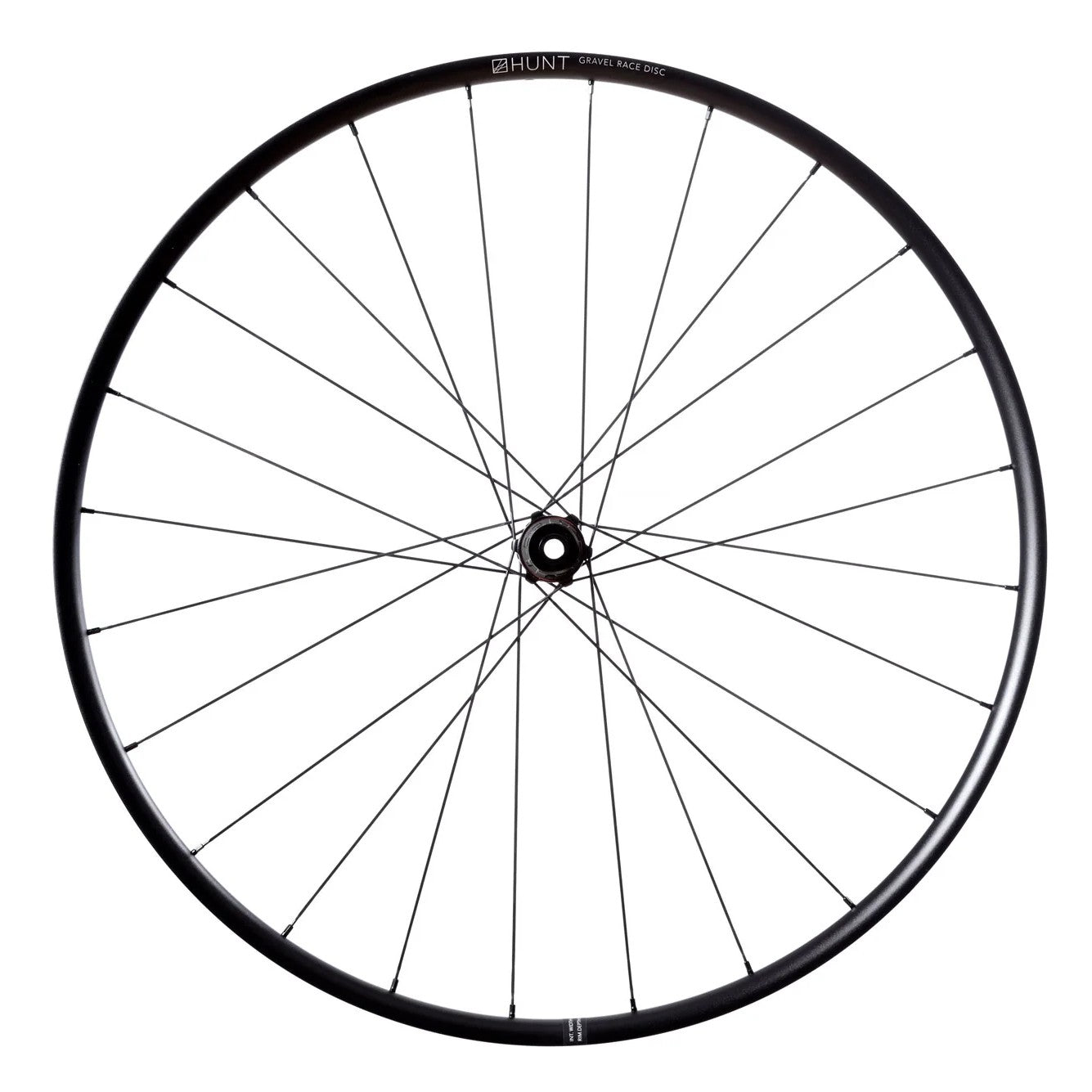

The consequence of the fanatic attention to detail is incredible durability and a resulting low 1403 gram wheelset weight. Acceleration and climbing are massively improved over many of the stock wheels supplied on CX/gravel disc brake bikes.
What's in the box.
- Hunt Black Shield tubeless tape fitted to wheels.
- The axle adapters needed for your bike, just fill in the simple form shown after order completion, the form is also included in your order confirmation page.
- Cassette spacer for 8/9/10 speed

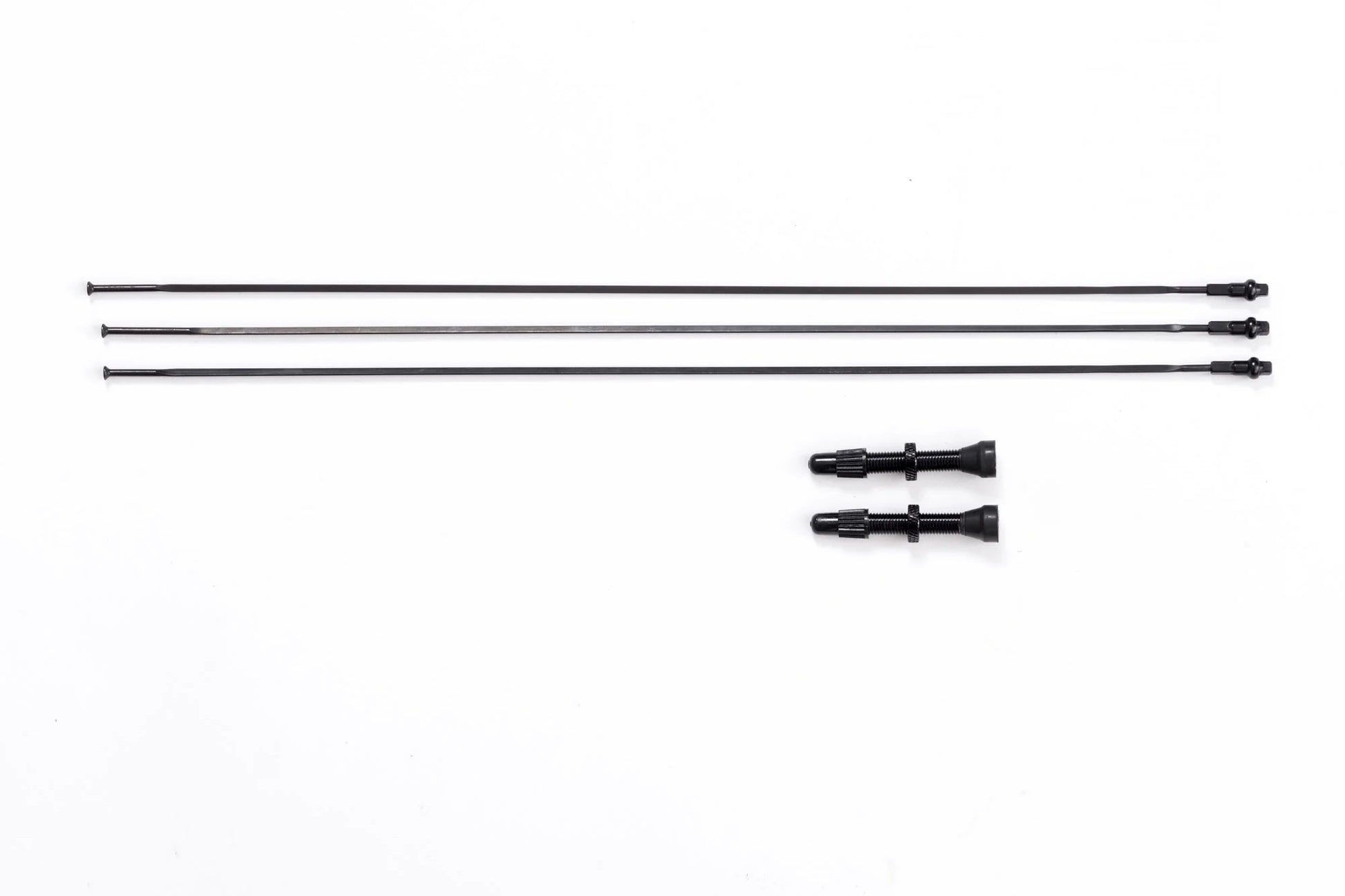

- 35mm Tubeless Valves
- Spare of each spoke plus nipples
- Quality control card signed by your wheel builder
Warranty.
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects, please click here to read full details.
Stated wheel weights: Our stated wheel weights reflect the wheelset only; without rim tape, tubeless valves or disc brake lock rings, as is industry standard. A 3% variance (lower or higher) in total system weight is normal for wheelset manufacturing.
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, please see here for more details. Max system weight 130 kg (system weight - total weight of fully kitted up rider, bike and luggage). If the system is over 120 kg then an experienced bike mechanic should check the wheel regularly.
Spares.
To see spares for the current version of these wheels, please click the button below.
Alternatively, please use our Spares Finder to find parts for all our wheels, or contact us via Live Chat.
