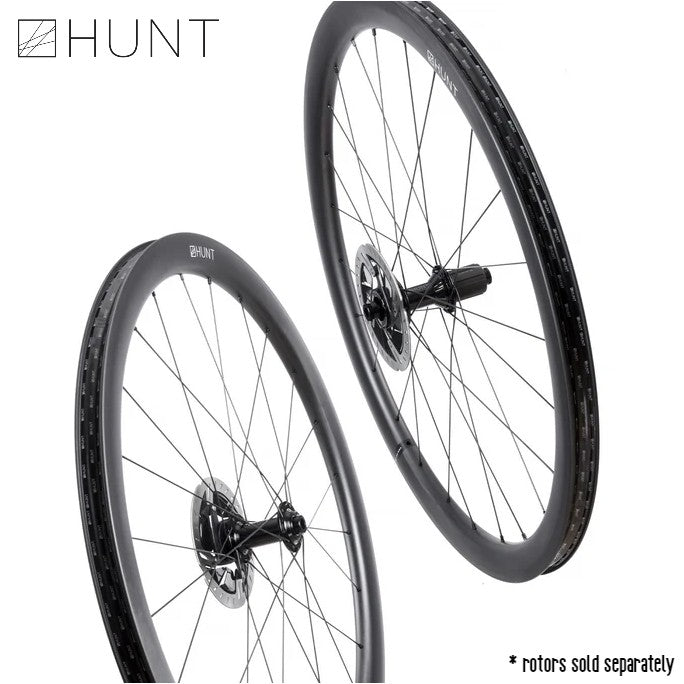

HUNT 40 CARBON DISC WHEELSET

THE PERFECT MID-DEPTH UPGRADE WHEELSET, BALANCING AERODYNAMICS AND LOW WEIGHT.

40 DEEP | 30 WIDE EXT | 22 INT | 1433G

We can swap freehub body to XDR or HG for FREE (applicable only to steel bearing hubs).  All wheelset are Thru Axle unless otherwise specified, but we can convert it to QR if required.  Call us or visit our shop to inquire.

THE PURPOSE

Positioned between two popular Carbon Disc offerings (30 Carbon Disc and 50 Carbon Disc), the 40 Carbon Disc was built for riders looking to upgrade their experience with quicker acceleration and lower rotational weight on climbs and rolling terrain, while still benefitting from the aerodynamic gains offered by a 40mm-deep, U-shaped carbon rim profile. Updated with wider rim dimensions and an all-new ratchet hub system, the 40 Carbon Disc is optimized for 25mm-35mm tyres for fast road riding and racing, increasingly popular all-road terrain, as well as gravel riding (ETRTO compatible with tyres ranging from 25mm-55mm).

The mid-depth, 30mm-wide carbon profile provides stable and predictable handling while reducing drag across multiple wind yaw-angles. The wider 22mm internal rim bed opens out your tyre profile providing exceptional vibration reduction, improved cornering traction and low rolling-resistance, especially when ridden at lower pressures with modern-width tubeless tyres.

The HUNT team have paired the wide hooked rim with new H_Ratchet 36T SGL hubs, offering a rapid 10-degree engagement angle, in a reliable, easy-to-service and long-lasting single-sided ratchet drive system. Increased engagement surface area improves power transfer and longevity of the hubs, while using less material compared to a spring-and-pawl system, resulting in a light but robust hub system designed and tested to cope with the torque demands of road or gravel drivetrains. Hand-built with top-of-the-range, easily serviceable Pillar PSR triple butted J-bend spokes and precision sealed cartridge bearings, this wheelset is ready to speed up your road, CX, or gravel rides.

KEY FEATURES

THE MID-DEPTH ALL-ROAD WHEELSET, READY FOR ANY ROAD RACE OR LIGHT GRAVEL.

    • Rims | 30mm external rim profile with 22mm-wide internal rim bed with hooks.
    • Tires| Optimized for 25-35mm tires, and ETRTO compatible with 25mm-50mm tires. Tubeless-ready for lower weight and rolling resistance. Also work excellently with clincher tires and tubes.
    • Hubs | HUNT H_Ratchet 36T SGL hub system with J-bend spoke interface and extra bearing shielding. 10-degree engagement angle with 36 tooth ratchet internals. H_CERAMIK freehub body coating for enhanced durability and protection against cassette gouging. Center-lock disc mount. Please note: If you require a 6-bolt adaptor you can purchase separately here
    • Bearings | Precision stainless steel cartridge bearings with waterproof grease specially selected for the worst weather.
    • Spokes | Hand-built with top-of-the-range, reinforced Pillar PSR triple butted J-bend spokes for durability.
    • Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change. Click here to see all axle sizes.
    • Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.

Included

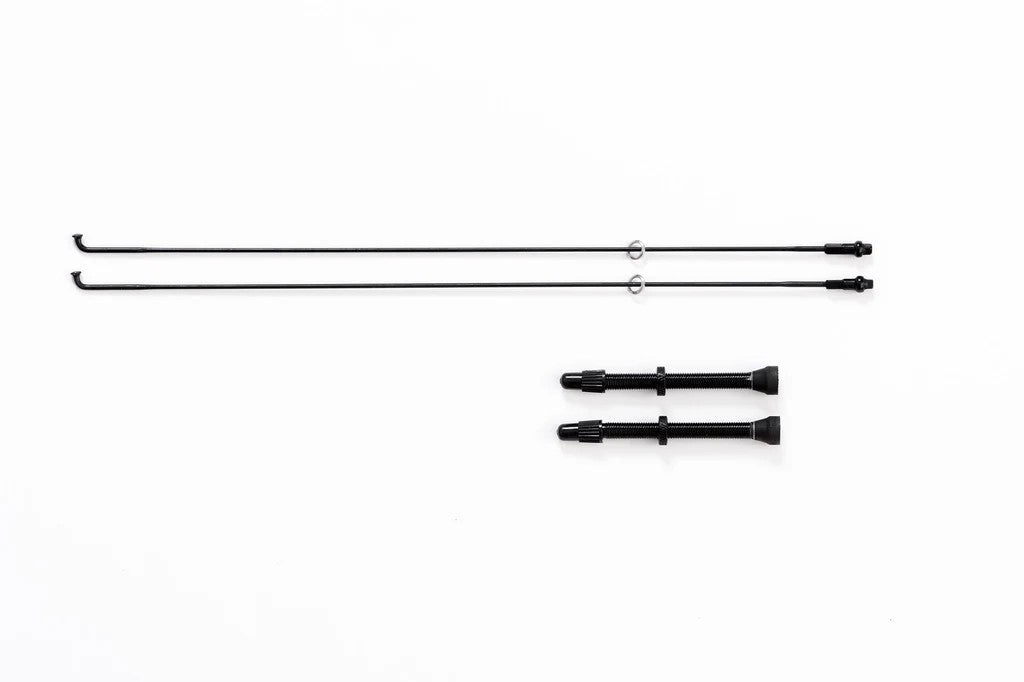

    | Tubeless tape & valves, spare spokes, nipple washers, axle adapters (please fill in the simple form after checkout to select your required size) and lock rings.
  • Weight | 1433g
  • See the full specs here

FULL SPECS

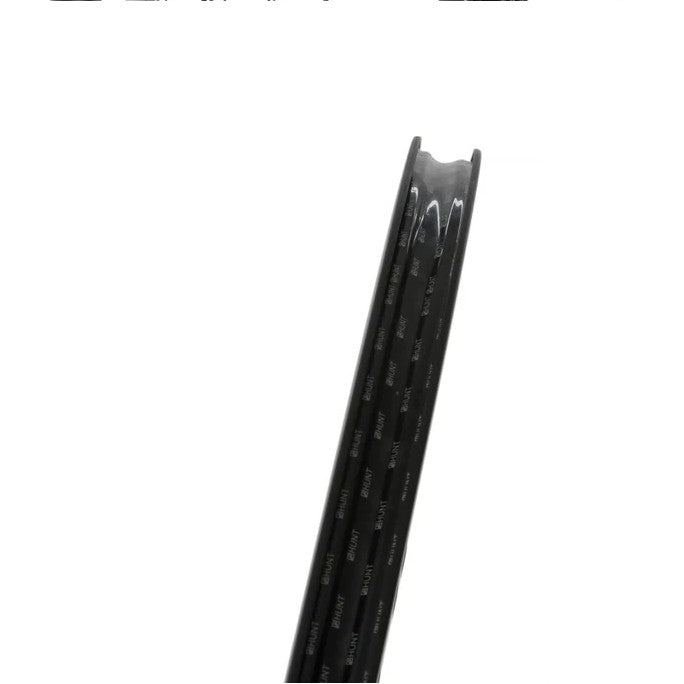

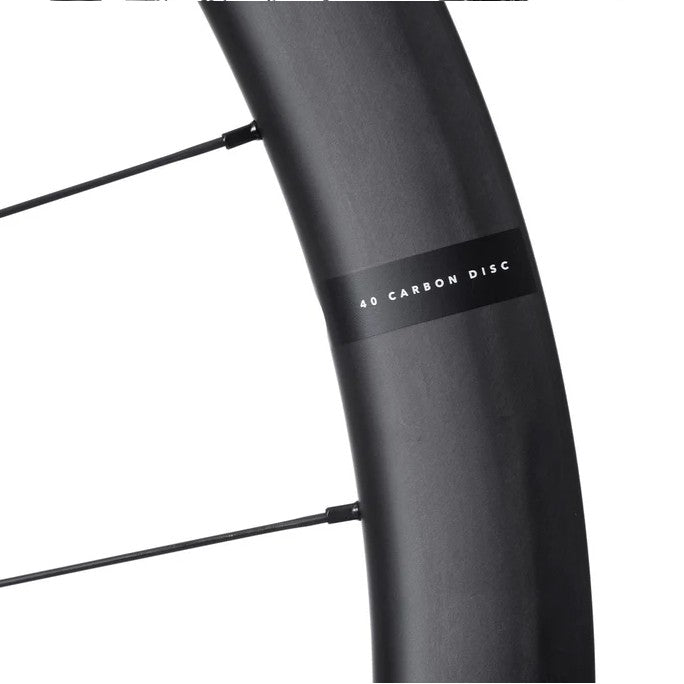

  • RIMS

    • Hooked tubeless-ready rim profile.
    • Full carbon fiber construction with re-enforced spoke holes.
    • 30mm external and 22mm internal width
    • 40mm depth
    • UD finish with matte white contrasting graphics.

  • SPOKES

    • 24 Front & 24 Rear spokes with a 2-Cross lacing pattern.
    • J-bend cold drawn.
    • Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
    • Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
    • Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
    • Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
    • Black stainless treatment

  • NIPPLES

    • Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
    • 16mm length with washer for a strong connection to the spoke added durability.
    • 14 gauge.
    • Black anodized finish.

  • TIRES INFO

      • For the 40 Carbon Disc, HUNT recommends a 25-35mm tire for best performance, tire widths between 25mm and 50mm are also safe to use.
      • You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower.
      • Best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post  here about this.

  • AXLE SIZES

    These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:

    • Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
    • Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

    If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

  • FRONT HUB

    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Polished anodized black finish with laser graphics.
    • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

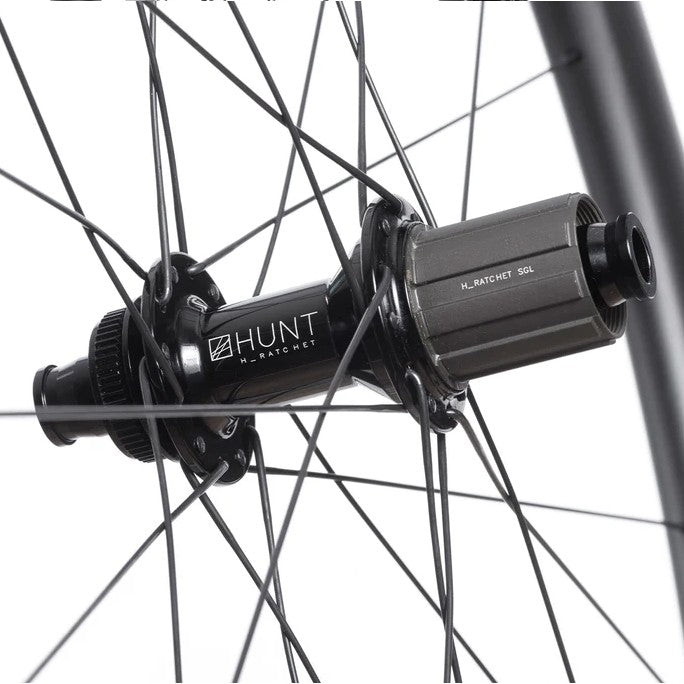

  • REAR HUB

    • HUNT H_Ratchet 36T SGL
    • H_CERAMIK freehub body reinforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
    • Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.
    • Single 36T Ratchet Ring equals 10° engagement.
    • Hunt Race Season Disc straight-pull super-light alloy.
    • Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
    • 7075-T6 aluminium alloy axles.
    • Polished anodized black finish with laser graphics.
    • All freehub standards accounted for.
    • Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

  • BEARINGS

    • Super smooth precision bearings with waterproof grease specially selected for even the worst weather.
    • Sealed cartridge replaceable units.
    • Dual full-contact seals.
