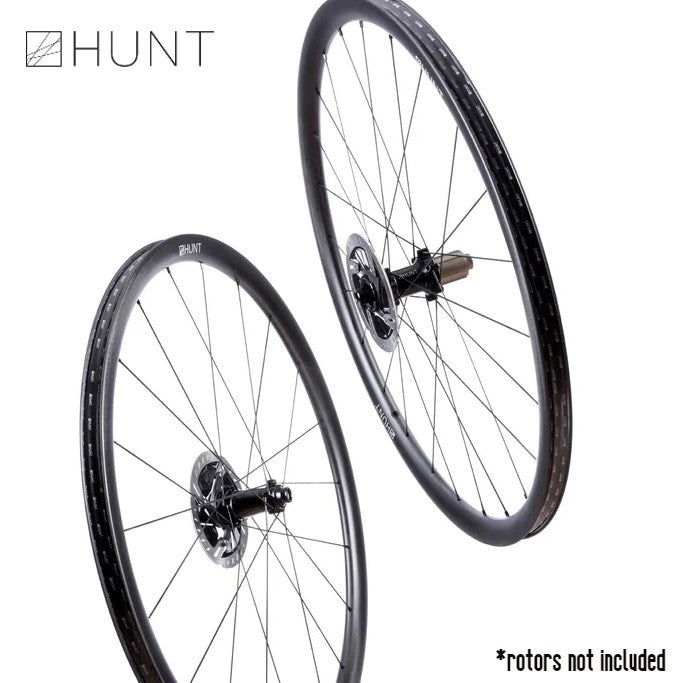

HUNT Aero 30 Carbon Disc Wheelset TA 1374 grams
HUNT Aero 30 Carbon Disc Wheelset TA 1374 grams
SKU:
Couldn't load pickup availability

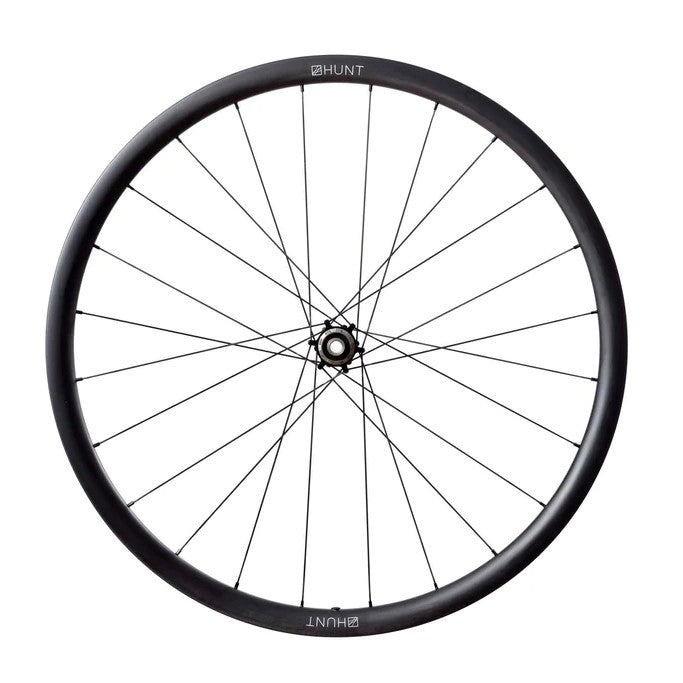

HUNT 30 CARBON AERO DISC WHEELSET
AERO, SUPER WIDE, INCREDIBLY LIGHTWEIGHT. DESIGNED SPECIFICALLY FOR DISC BRAKING FROM THE GROUND UP!
30 DEEP | 27 WIDE EXT | 21 WIDE INT | 1374G
We can swap freehub body to XDR or HG for FREE (applicable only to steel bearing hubs). All wheelset are Thru Axle unless otherwise specified, but we can convert it to QR if required. Call us or visit our shop to inquire.
THE PURPOSE
Look no further for a do-it-all carbon disc-brake wheelset than the 30 Carbon Aero Disc. Ultimate climbing performance, and incredibly capable on rolling terrain. The super-wide 27mm rim provides superior aerodynamic performance. The U-profile serves up great handling and reduces drag across multiple wind yaw-angles. The extra-wide 21mm internal rim bed opens out your tire profile providing exceptional vibration reduction, grip and low rolling-resistance. Stretch the gaps and burn the legs of your riding compatriots. Read More
THE EXPERTS' VIEW
Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. Maximum tire pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. 100psi is more than enough for any rider on road. Please do not exceed the maximum pressure stated on your tire. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
KEY FEATURES
THE ULTIMATE ROAD DISC WHEELSET
- Rims | 700c Toray T700/T800 carbon-fibre. Unidirectional sidewalls with 3K weave bed and spoke areas, the wide aero profile delivers excellent handling and speed.
- Tires | Tubeless-ready for lower weight and rolling resistance. Also work excellently with clincher tires and tubes.
- Hubs | Race Season SPRINT straight-pull hubs, boasting an engagement rate of just 7.5° owing to the leaf-sprung, multi-point pawls and 48 ratchets in the hub shell. Center Lock. Please note: If you require a 6 bolt adaptor you can purchase separately here
- Spokes | Black Pillar PSR EXTRA Spokes with increased wear and corrosion resistance.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change. Click here to see all axle sizes.

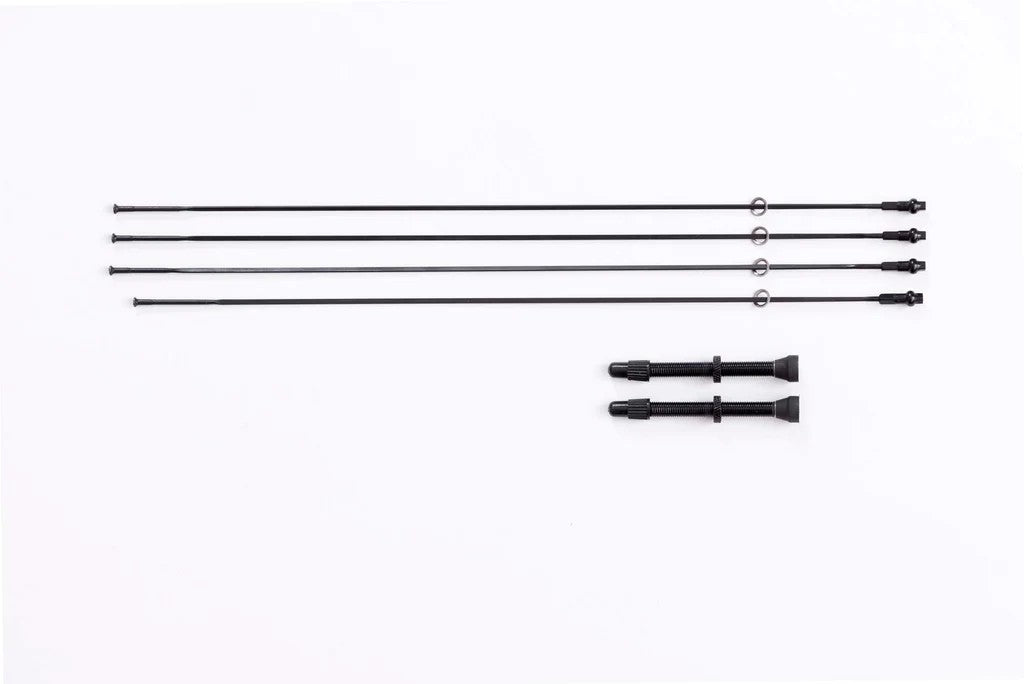

- Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size).
- See the full specs here
- Weight | 1374g
MORE TECH

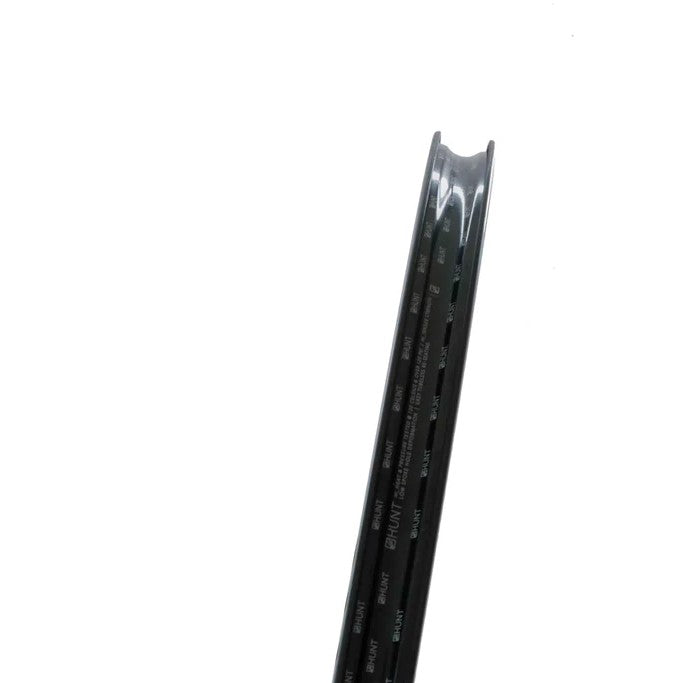

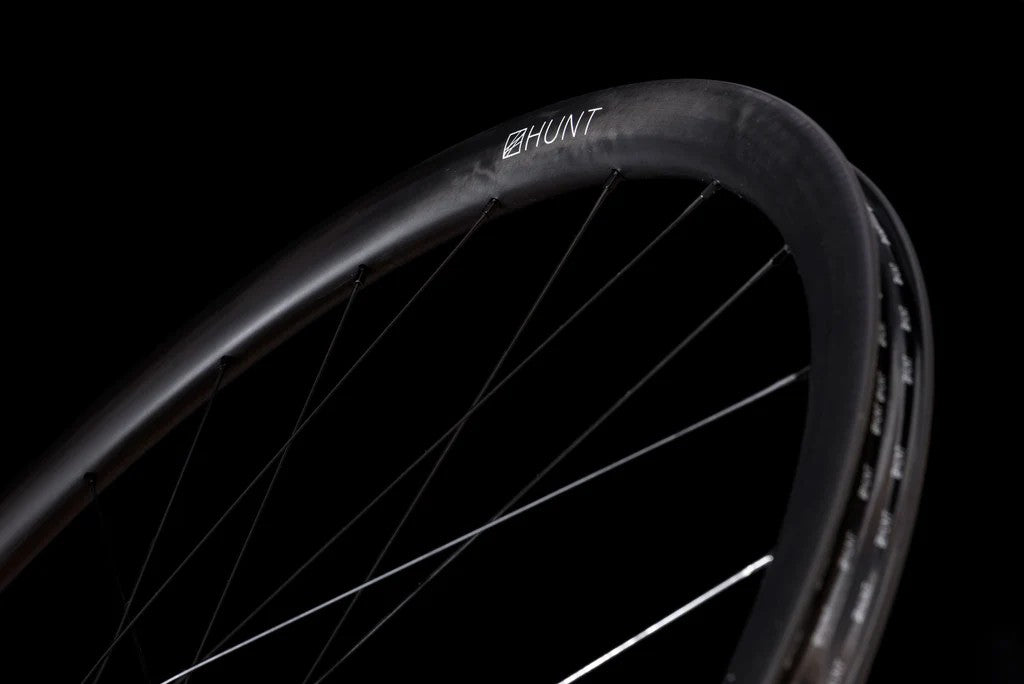

RIMS
- Disc-specific tubeless-ready profile
- Hooked
- H-lock bead-seat up-kicks for easy and secure tubeless installation
- Toray T700/T800 carbon-fibre. Unidirectional sidewalls with 3K weave bed and spoke areas
- 27mm outer and 21mm inner width ideal for 23-50mm tire widths
- 35mm depth
- Matt black base finished with matt white contrasting graphics.
SPOKES
- 20 front and 24 rear laced 2 cross.
- Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2.
- Straight-pull for excellent torsional strength and direct power transfer
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
- Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area.
- Black stainless or Oil-Slick Ti-Nitride treatment
NIPPLES
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
- 16mm length with washer for a strong connection to the spoke added durability.
- 14 gauge.
- Black anodized finish.
TIRES INFO
- Maximum tire pressure for this rim is 100psi when used with 25-28mm tires. 100 psi is more than enough for any rider on road. Click here to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
- Maximum tire pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi.
- Please do not exceed the maximum pressure stated on your tire.
- Suitable for tires from 23mm up to 50mm wide.
- Suitable tubeless road, gravel and CX tires are available from a huge range of companies including Schwalbe, Hutchinson, Panaracer, Maxxis and many more. Schwalbe Pro One 25mm tire weighs just 255g, is tubeless ready and is Schwalbe's class leading clincher racing tire.
AXLE SIZE
-
These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:
- Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
- Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

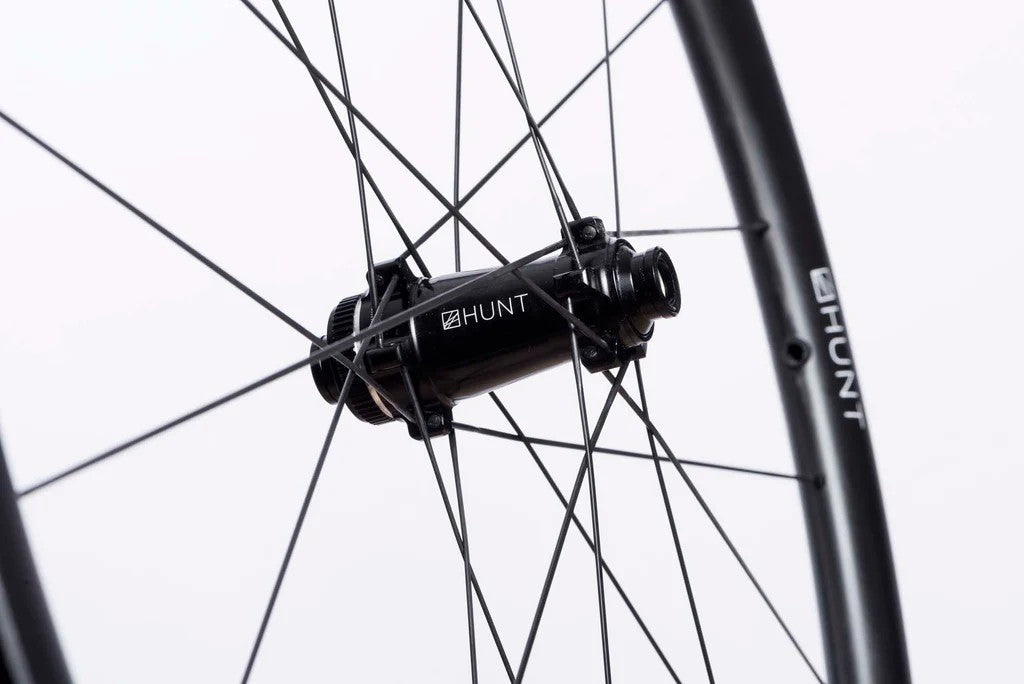

FRONT HUB
- Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
- 7075-T6 aluminum alloy axles.

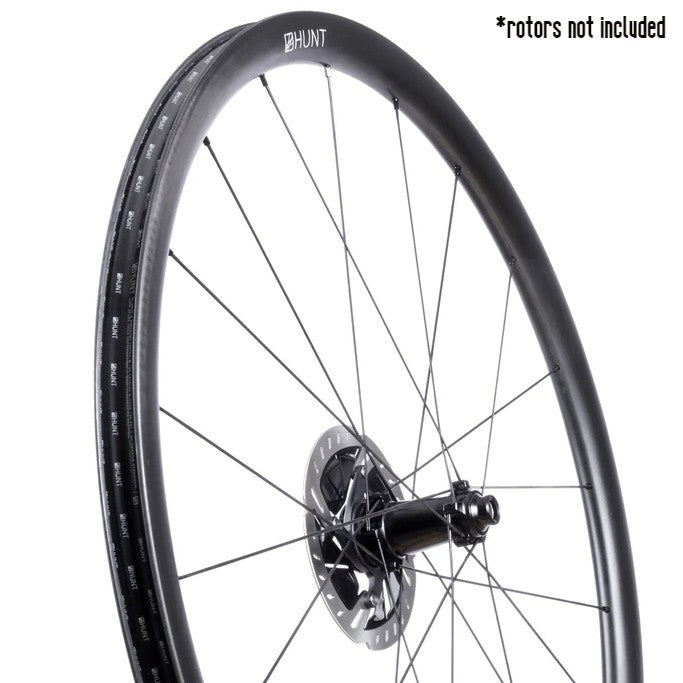

- Centre-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here
- Polished anodized black finish with laser graphics.
- Hunt Race Season Disc straight-pull super-light alloy.

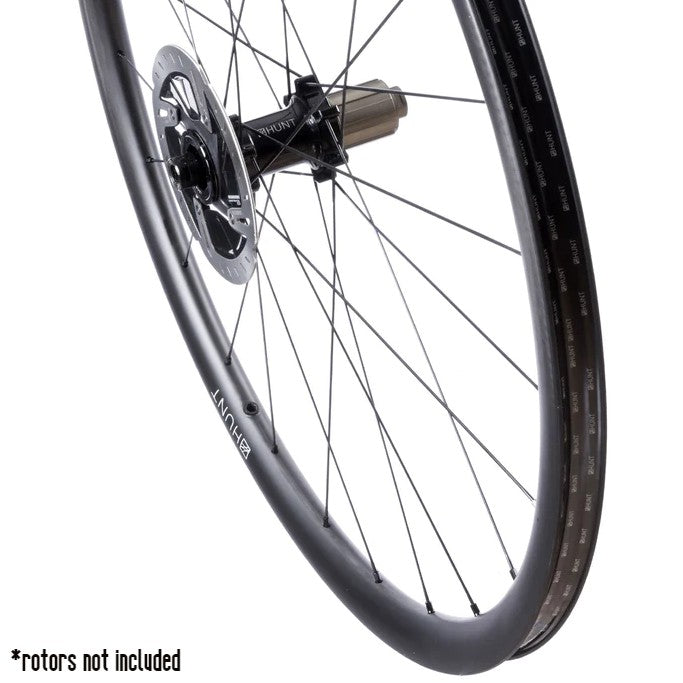

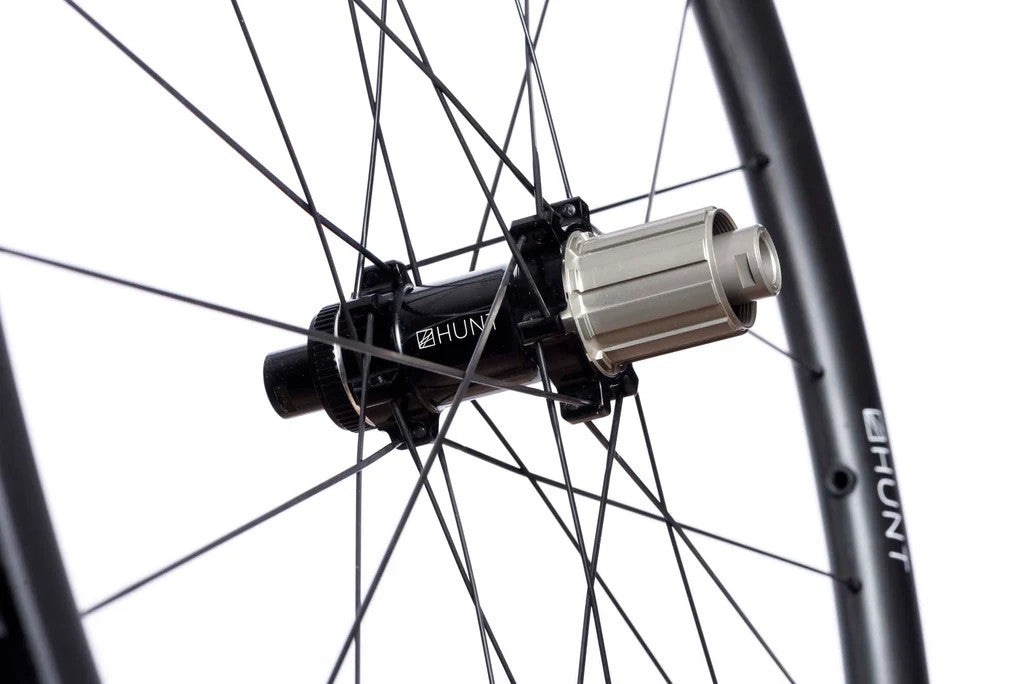

REAR HUB
- CHECK VARIANT TO SELECT THE RIGHT COMBINATION
- Contact Supreme Bikes PH for checking the type of hub in this item
- 7075-T6 heat-treated aluminum alloy freehub body.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- Supreme Bikes PH sell mostly HG hub for Shimano / SRAM, but we also sell separate freehub bodies. Visit our store or contact us for more details.
- Hunt Race Season Disc straight-pull super-light alloy.
- Forged and CNC’d 6061-T6 heat treated aluminum alloy body.
- 7075-T6 aluminum alloy axles.
- Centre-lock disc mount
- Polished anodized black finish with laser graphics.
BEARINGS
- High-grade Japanese EZO bearings.
- Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
- Incredibly fast rolling.
