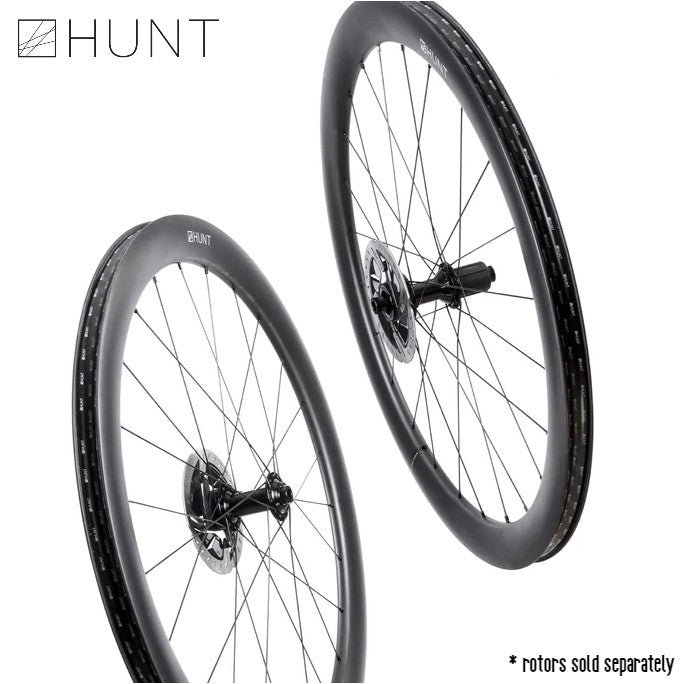

The 50mm deep U-shape carbon rim profile offers measurable aero benefits across a wide range of wind yaw angles, while the 22mm-wide internal rim bed opens out your tyre profile to provide exceptional vibration reduction, improved cornering traction and low rolling-resistance. Proven in wind tunnel, the 50 Carbon Disc offers an 8 watt aerodynamic advantage using MWAD compared to a standard, 25mm-deep alloy wheelset, and gives up only 4 watts compared to the fastest wheels in the segment, such as our SUB50 Limitless Aero Disc and ENVE 4.5 SES, when tested with 28mm tyres. Optimized for 25-35mm tyres (ETRTO compatible with road and gravel tyres ranging from 25mm to 55mm) to keep you at the front of the group, whether on a closed criterium course or a scenic gravel loop.

The HUNT team have paired the wide hooked rim with the H_Ratchet 36T SGL hubs, offering a rapid 10-degree engagement angle, in a reliable, easy-to-service and long-lasting single-sided ratchet drive system. Increased engagement surface area improves power transfer and longevity of the hubs, while using less material compared to a spring-and-pawl system, resulting in a light but robust hub system designed and tested to cope with the increased torque of 1x drivetrains.

Hand-built with top-of-the-range Pillar PSR triple butted J-bend spokes and precision sealed cartridge bearings, this wheelset is ready to help you pick up the pace.

Full Specs.

Rims

Hooked tubeless-ready rim profile. Full carbon fiber construction with re-enforced spoke holes. 30mm external and 22mm internal width. 50mm depth. UD finish with matte white contrasting graphics.

• Hooked tubeless-ready rim profile.
• Full carbon fiber construction with re-enforced spoke holes.
• 30mm external and 22mm internal width.
• 50mm depth.
• UD finish with matte white contrasting graphics.

Spokes

24 front and 24 rear spokes with a 2-cross lacing pattern. J-bend cold drawn. Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden. Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement). Black stainless treatment.

• 24 front and 24 rear spokes with a 2-cross lacing pattern.
• J-bend cold drawn.
• Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
• Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
• Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
• Black stainless treatment.

Nipples

Alloy square body for external adjustment and square head for easy internal adjustment/tensioning. 16mm length with washer for a strong connection to the spoke added durability. 14 gauge. Black anodized finish.

• Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
• 16mm length with washer for a strong connection to the spoke added durability.
• 14 gauge.
• Black anodized finish.

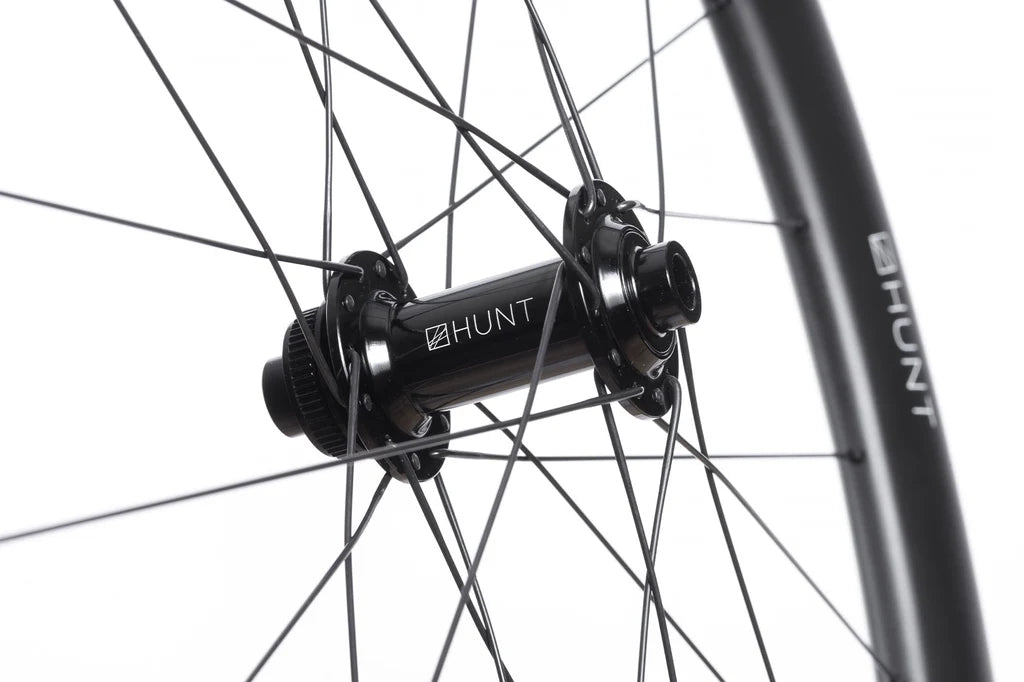

Front Hub

Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

• Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
• 7075-T6 aluminium alloy axles.
• Polished anodized black finish with laser graphics.
• Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

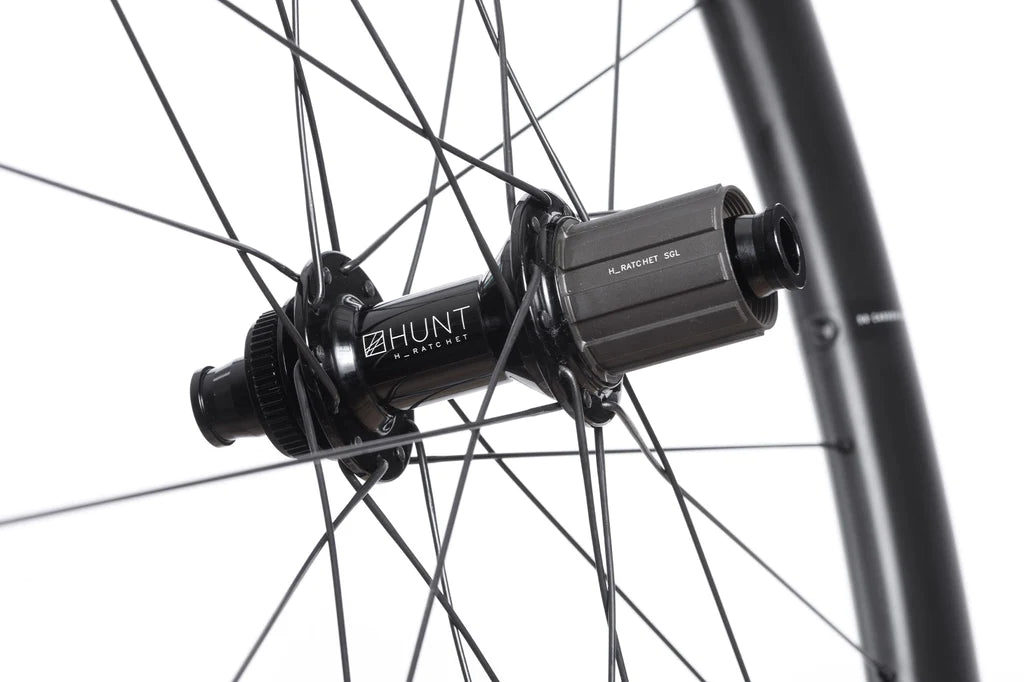

Rear Hub

HUNT H_Ratchet 36T SGL H_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies. Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance. Single 36T Ratchet Ring equals 10° engagement. Forged and CNC’d 6061-T6 heat treated aluminium alloy body. 7075-T6 aluminium alloy axles. Polished anodized black finish with laser graphics. All freehub standards accounted for. Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

• HUNT H_Ratchet 36T SGL
• H_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
• Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.
• Single 36T Ratchet Ring equals 10° engagement.
• Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
• 7075-T6 aluminium alloy axles.
• Polished anodized black finish with laser graphics.
• All freehub standards accounted for.
• Center-lock disc mount. If you require a 6 bolt adaptor you can purchase separately here

Bearings

Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather. Sealed cartridge replaceable units. Dual full-contact seals.

• Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
• Sealed cartridge replaceable units.
• Dual full-contact seals.

Tyres Info

HUNT recommends a 25-35mm tyre for best performance, tyre widths between 25mm and 50mm are also safe to use.   Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.  Tubeless-ready for lower weight and rolling resistance.  You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

• HUNT recommends a 25-35mm tyre for best performance, tyre widths between 25mm and 50mm are also safe to use.
• Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
• Tubeless-ready for lower weight and rolling resistance.
• You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.

Axle Sizes

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout: Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't get it quite right, we're happy to send you the correct adapters.Please note; this form is shown after you have completed your order.

These wheels are compatible with the following axle specifications. We fit the axle adapters you need, just complete the simple form shown after checkout:

• Front: 12x100mm Thru-Axle, 15x100mm Thru-Axle, Quick Release 9x100mm
• Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm

If you are unsure, please do not worry as our form includes the option to tell us your bike model. We will then do our best to support you and fit the correct axle adapters. We may contact you via email if we need further information. Plus, if you don't get it quite right, we're happy to send you the correct adapters.Please note; this form is shown after you have completed your order.

High Specification Components.

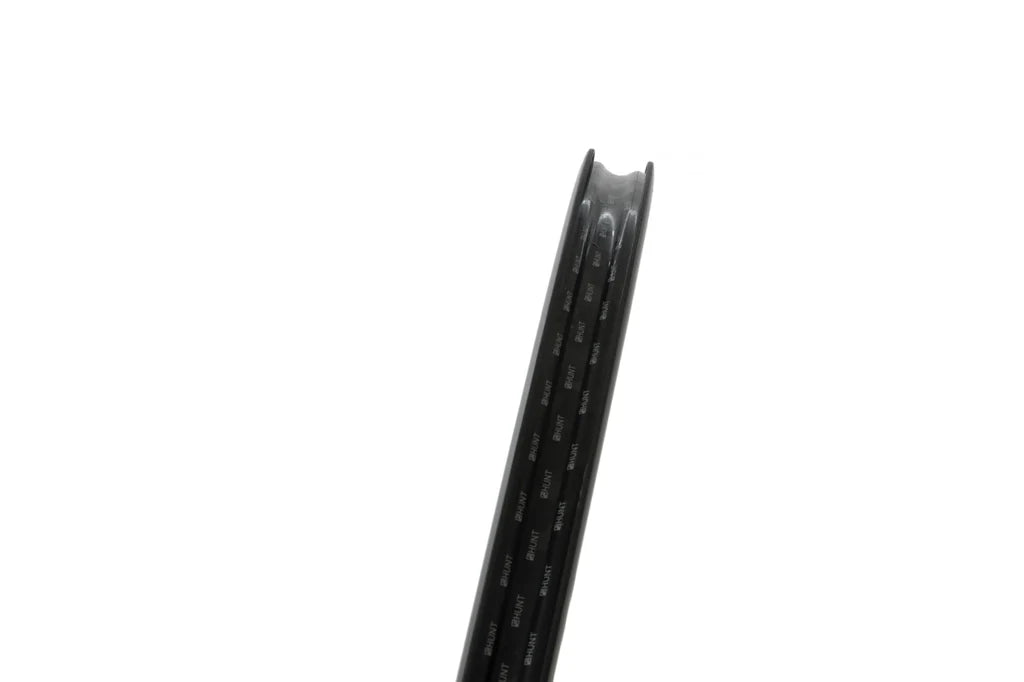

Rims

Unidirectional carbon fibre rim construction, with 3k reinforcement at spoke holes for greater durability. The layup is comprised primarily of Toray T700 fibres which offer high impact resistance and flexibility. V:Absorb resin is blended in the carbon layering process, which cures at a lower temperature. Lower temperature resin reduces brittleness, resulting in greater impact resistance and more effective vibration dampening.

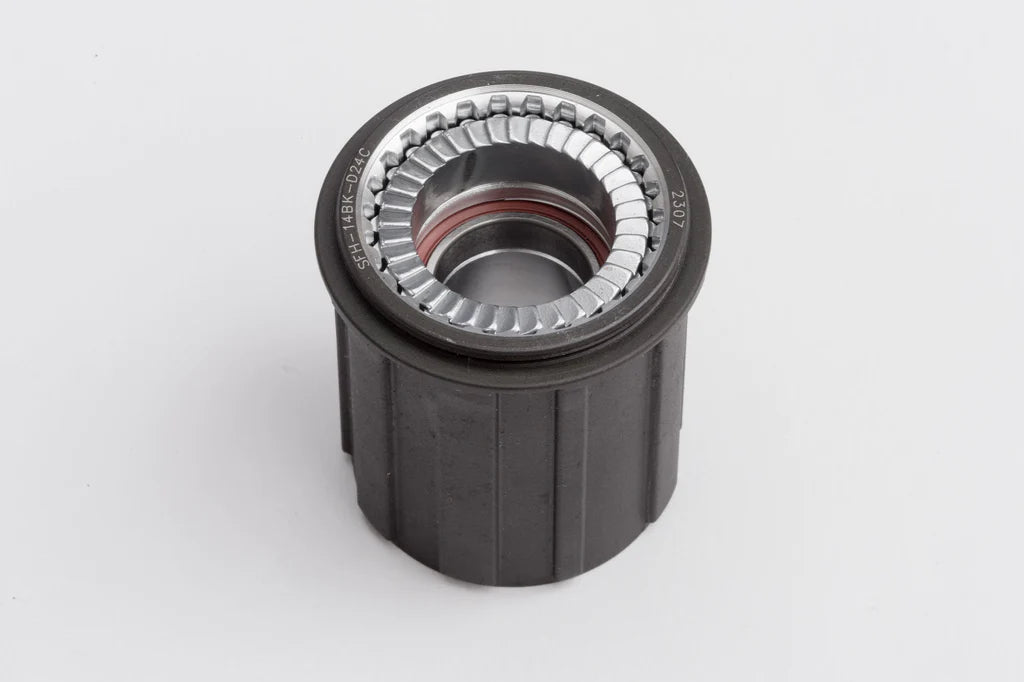

Freehub Body

The new HUNT H_Ratchet 36T SGL hubset provides a 10-degree engagement angle with improved durability, offering increased engagement surface area while using less shell materials relative to our race-proven pawl-based systems. Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance. Compatible with 15mm thru-axles for adaptability for all modern road and gravel bikes.

Bearings

The heart of any wheel. Investing in them makes huge sense. We use high-grade precision smooth-rolling sealed cartridge bearings.

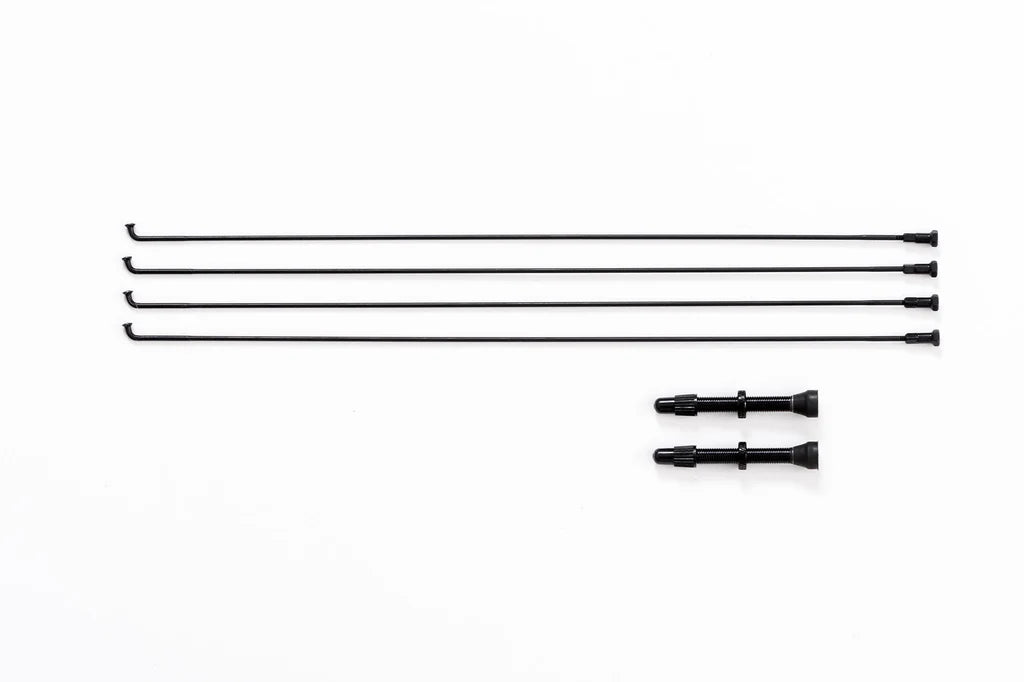

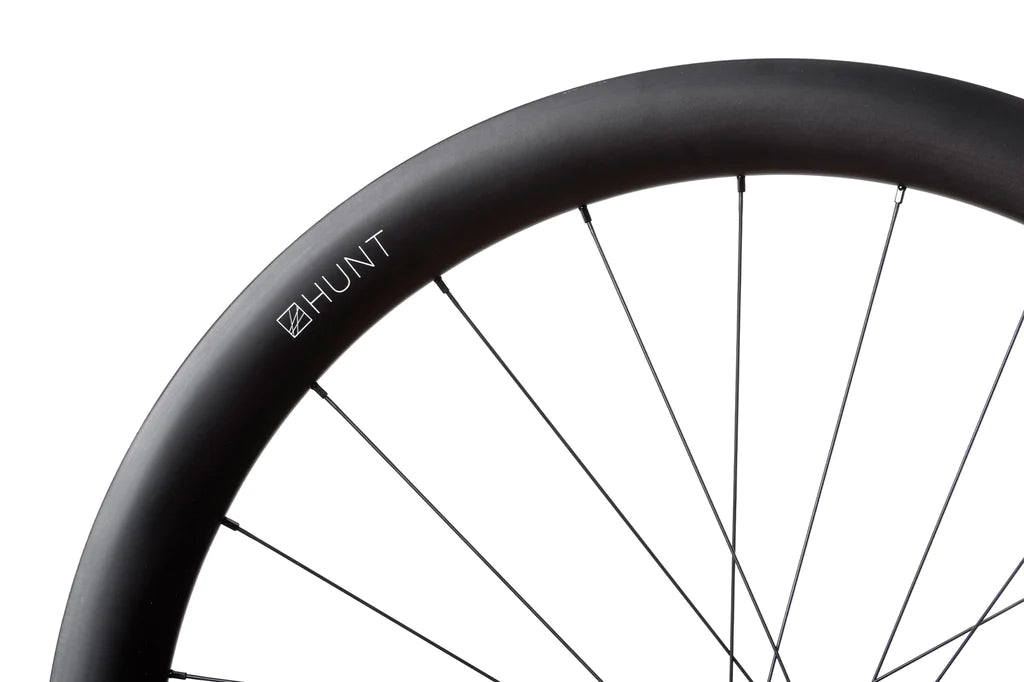

Spokes

Our team has further tuned the ride quality of the 50 Carbon Disc by selecting narrower gauge (TB2015) spokes for the front wheel to provide compliance, with slightly thicker gauge spokes (TB2016) in the rear for increased power transfer.

TYRES

At HUNT we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides, so we wanted to allow you the same option, but of course these tubeless-ready wheels are also designed to work perfectly with inner tubes, just use tubes in tubeless ready tyres.
