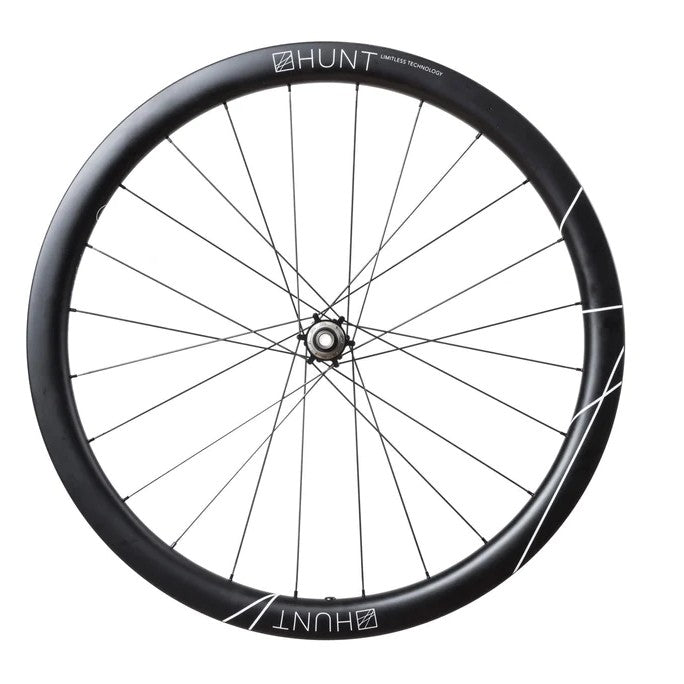

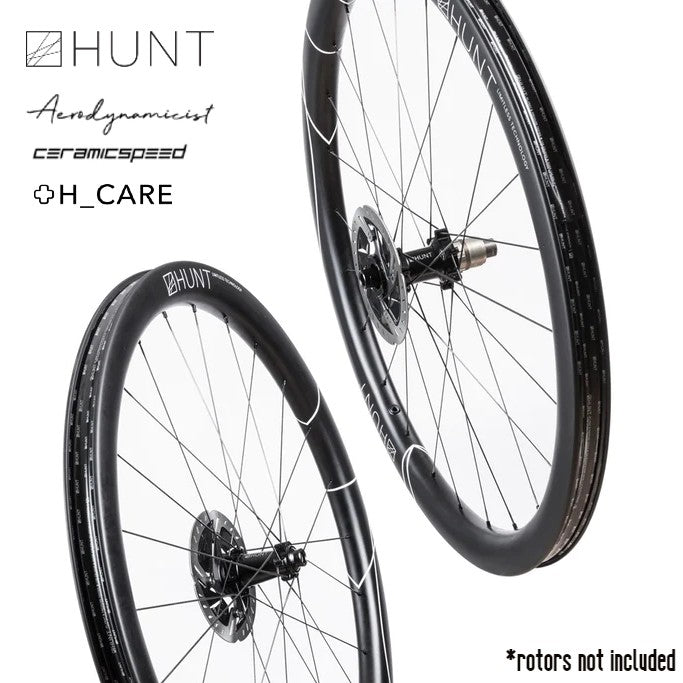

HUNT 42 LIMITLESS GRAVEL AERO WHEELSET
AERODYNAMICALLY OPTIMISED FOR MAXIMUM SPEED & CROSSWIND STABILITY
42 DEEP | 36 WIDE EXT | 25 WIDE INT | 1548G | CERAMICSPEED
THE PURPOSE
With the 42 Limitless Gravel Aero, HUNT set out to develop the premier performance gravel wheelset, optimising gravel-specific aerodynamics through patented Limitless technology, and balancing those against another critically important attribute for riders moving fast over inconsistent surfaces: crosswind stability (steering moment). The recent proliferation of gravel races across the globe means riders are now rethinking their equipment selections and employing aerodynamically designed skinsuits, helmets, frames and wheels.
With industry-leading engineering and design talent in-house, HUNT aims to set a new standard for gravel-specific wheel performance.
Includes FREE H_Care lifetime crash replacement for the first owners of these wheels. Read all about it here.

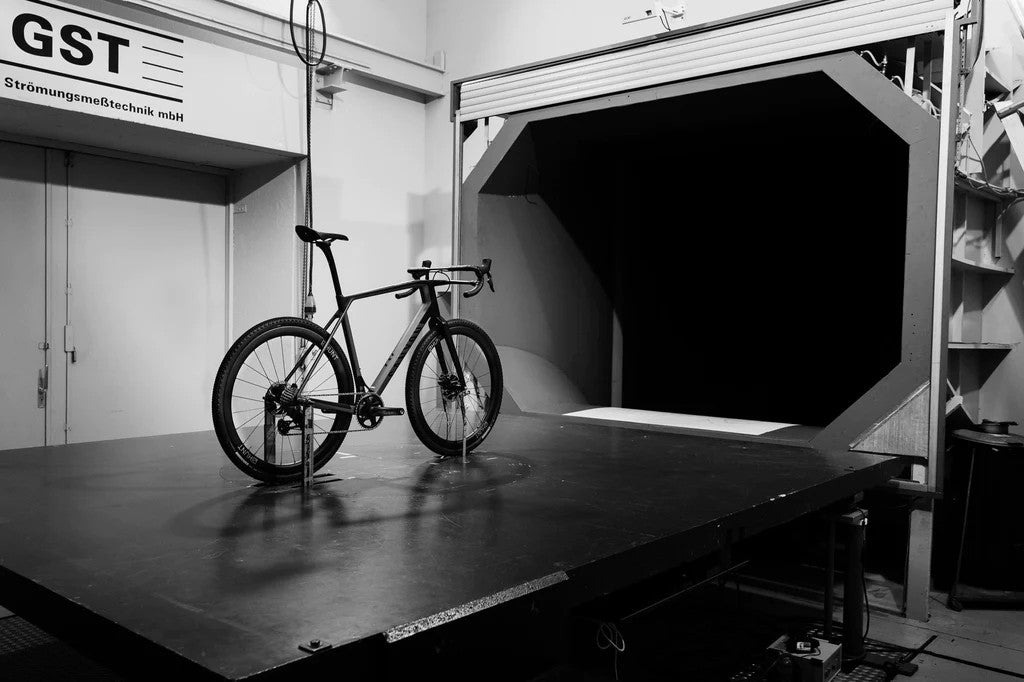

WIND TUNNEL PROVEN
The wind tunnel data we recorded is shown against the full range of world-class aero wheels. The results below depict HUNT's standing among the range (the 3T Discus 45|40 was not available to test, as it was not released to the public when testing occurred).
Further results are shown in the white paper attached; the 42 Limitless Gravel Aero wheelset offers riders the benefit of industry-leading aerodynamics ahead of industry incumbents but balanced against the clearly superior stability as measured above.
KEY FEATURES
- Wind tunnel proven to offer the lowest aerodynamic drag among tested gravel-specific wheelsets under 50mm depth, offering the rider up to .12 Watt savings over renowned competitors, and 16.8 Watt savings over non-aero gravel wheels.
- Rims | Designed by HUNT's in-house engineering team, HUNT Limitless Technology delivers industry-leading cross wind stability verified by smooth steering moment data proven in wind tunnel testing. 700c, hooked 25mm internal and 36mm external widths, and a 42mm u-shape profile.
- Bearings | Featuring CeramicSpeed's world-renowned low-friction Coated Bearings, designed for off road use. These coated bearings are a further 75% tougher than their standard hardened steel races, and boast an average lifetime 7.5 times longer than other non-coated solutions. EZO bearing option also available.
- Tires | Designed around a 25mm internal rim width optimised aerodynamically for 38-42c gravel tires, these will work with any tire up to 54c. Fully ETRTO-compliant and tubeless-ready. Work excellently with both clincher and tubeless-ready tires.
-
Hubs | New Sprint SL straight-pull center lock hubs. 15mm diameter 6066-T6 body and axle for supreme strength-to-weight. Circular dropout interface steps for added security in fitment. 3x treble-tooth pawls, resulting in just 7.5˚ engagement. Steel spline inserts to protect the cassette body.
Please note: If you require a 6 bolt adapter you can purchase separately here.
- Elliptical Wing Spokes | Pillar Wing spokes with aerofoil profile. Tested and proven to provide aerodynamic advantage over flat or bladed options both from Pillar and other competitors.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change. Click here to see all axle sizes.
- Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.

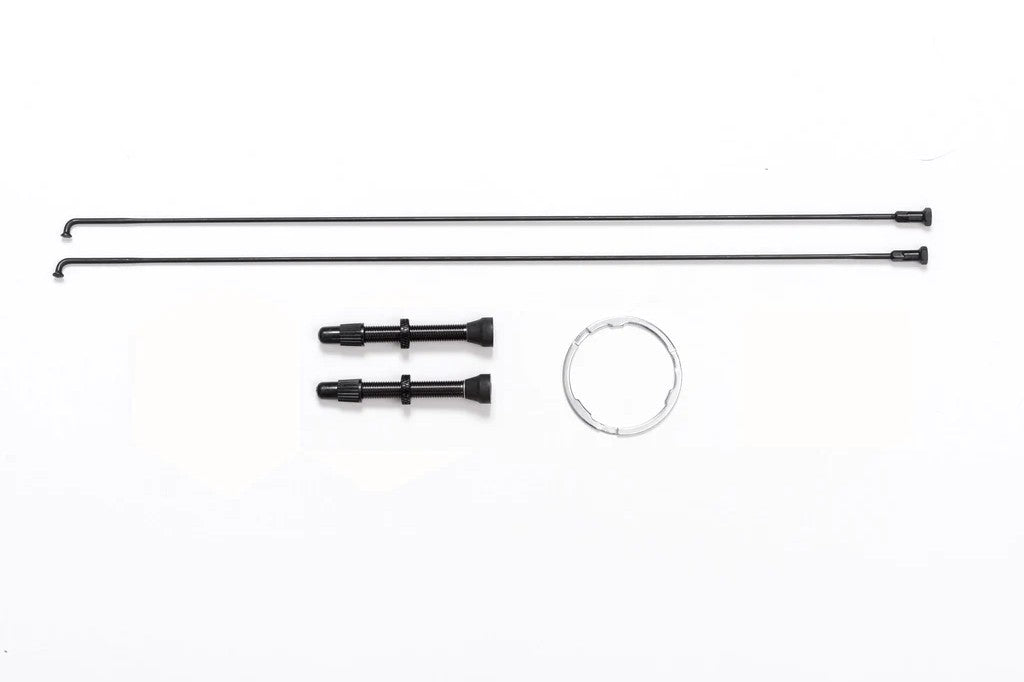

- Included | Tubeless tape & valves, spare spokes, axle adapters (please fill in the simple form after checkout to select your required size).
- Weight | 1548g
- See the full specs here
THE EXPERTS' VIEW
FULL SPECS

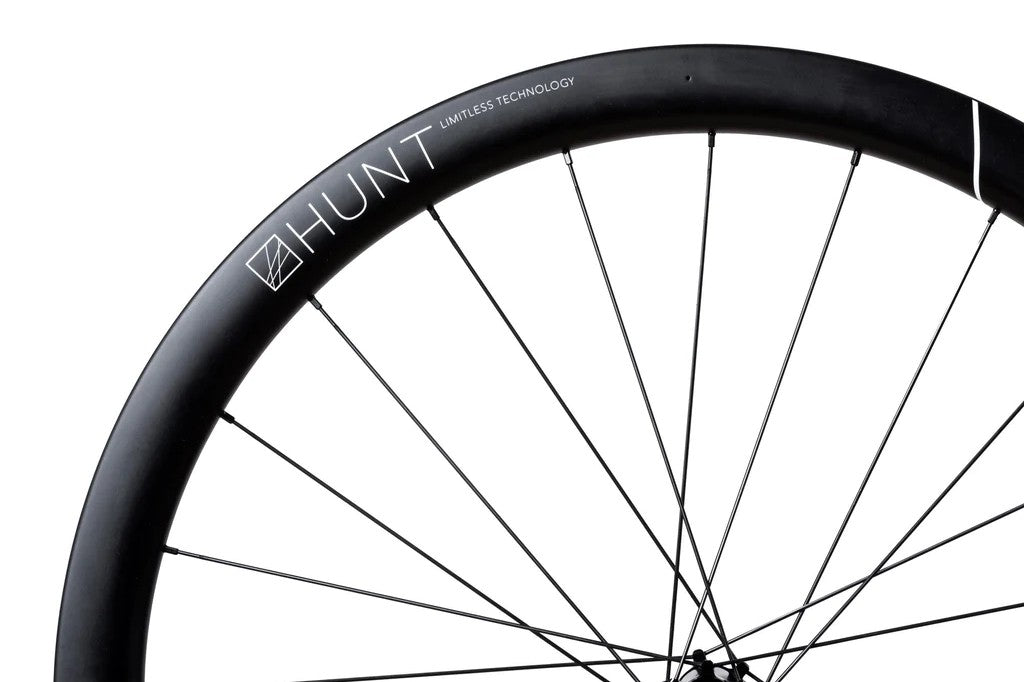

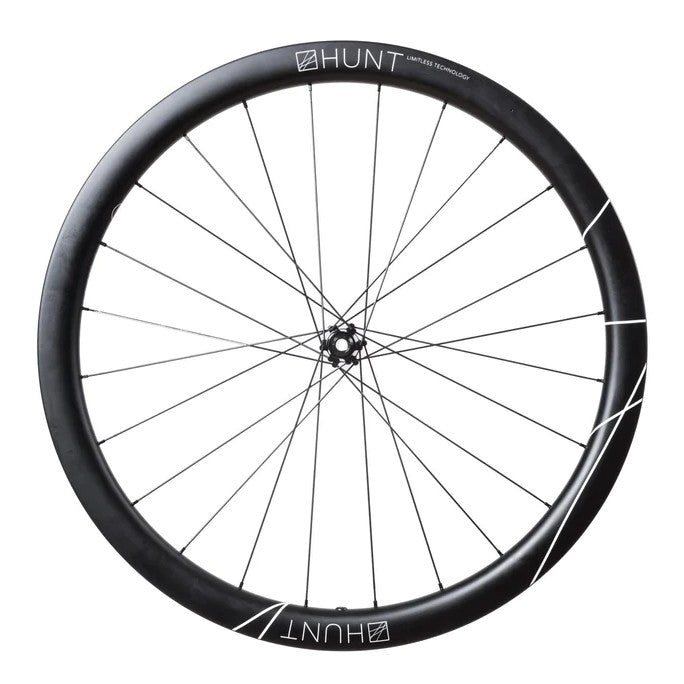

RIMS
- Wind tunnel tested, aerodynamically optimised for 38-42c tires
- 20 front and 24 rear interlaced
- H-lock bead-seat up-kicks for easy and secure tubeless installation
- Unidirectional T24/30 carbon fiber with 3K weave re-enforced spoke holes
- 36mm outer and 24.5mm inner width
- 42mm depth
- Hooked
- Matt black base finished with matt white contrasting graphics
SPOKES
- Pillar Wing with Aerofoil
- 24 front and 24 rear interlaced
- Aero Butted 2.0-2.2/0.95-2.0 then PSR section is 2.2
- Straight-pull for excellent torsional strength and direct power transfer
- Cold drawn from high grade T302 (18/10) stainless steel wire by Sandvik Sweden
- Patented Pillar Spoke Re-enforcement, butted again just before the spoke head providing more durability in high stress area
- Black stainless treatment
NIPPLES
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
- 16mm length with washer for a strong connection to the spoke added durability
- 14 gauge
- Black anodized finish
TIRES INFO
- For the 42 Limitless Gravel Aero HUNT recommend a 40mm tire for best performance, tire widths between 29mm and 64mm are also safe to use. You must not exceed the maximum tire pressure limits set out in the table below or the maximum limit set by your tire manufacturer if this is lower. Note: best performance is usually gained by using tire pressures lower than the maximum, you can see our blog post here about this.
- You must not exceed the maximum pressure stated on your tire.
- Suitable tubeless road, gravel and CX tires are available from a huge range of companies.
AXLE SIZES
These wheels are available with all existing disc brake road bike axle adapter sizes. We fit the axles you need, just complete the simple form shown after checkout:
- Front: 12x100mm Thru-Axle, 9x100mm Thru-Axle, Quick Release 9x100mm
- Rear: 12x142mm Thru-Axle, 12x135mm Thru-Axle, 10x135mm Thru-Axle, Quick Release 9x135mm
If you are unsure what size your axles are don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order.

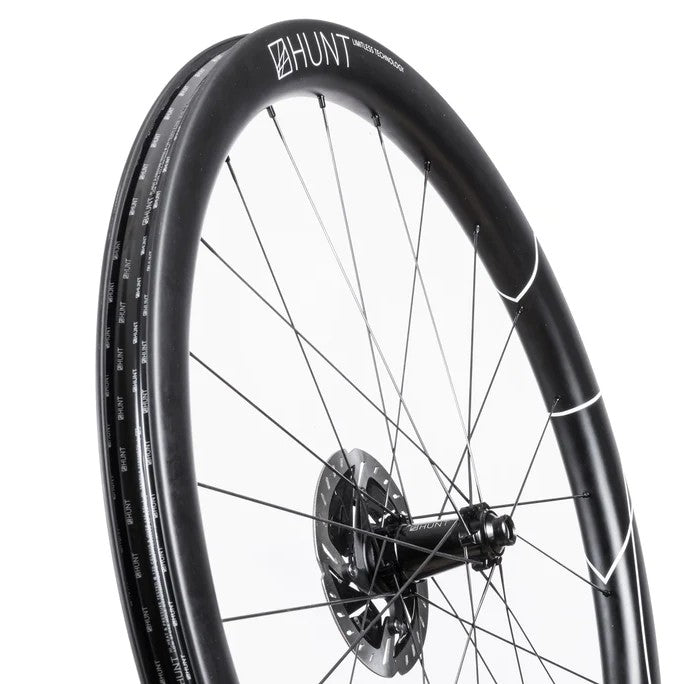

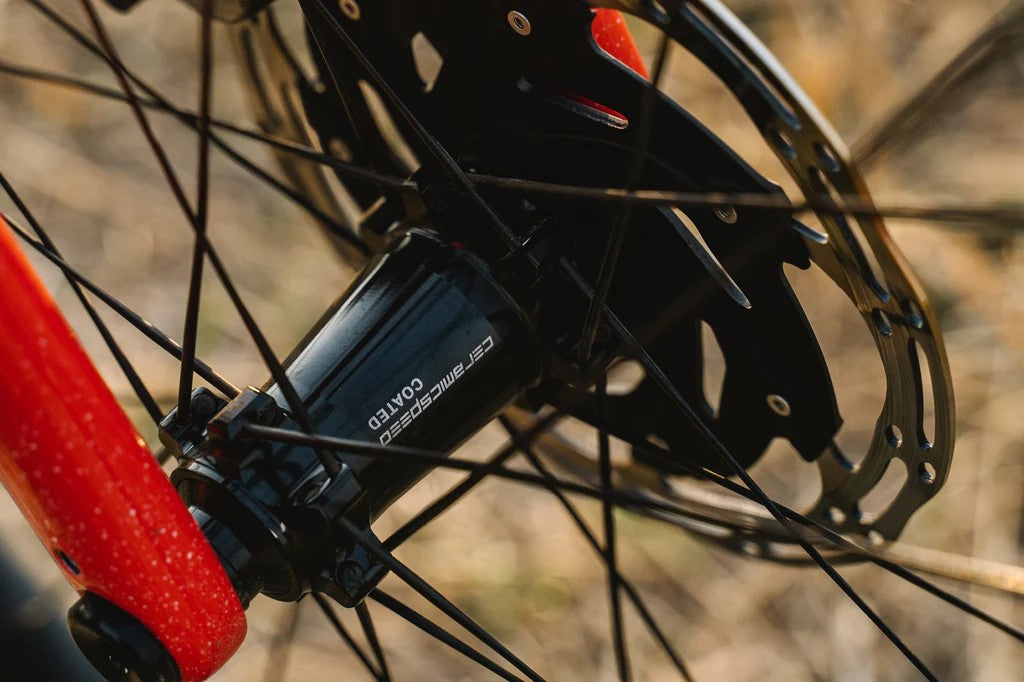

FRONT HUB
- Forged and CNC’d 6066-T6 heat treated aluminum alloy body.
- 6066-T6 aluminum alloy axles.
- Centre-lock disc mount. If you require a 6 bolt adapter you can purchase separately here.
- HUNT SPRINT SL Disc straight-pull super-light alloy.
- Polished anodized black finish with laser graphics.

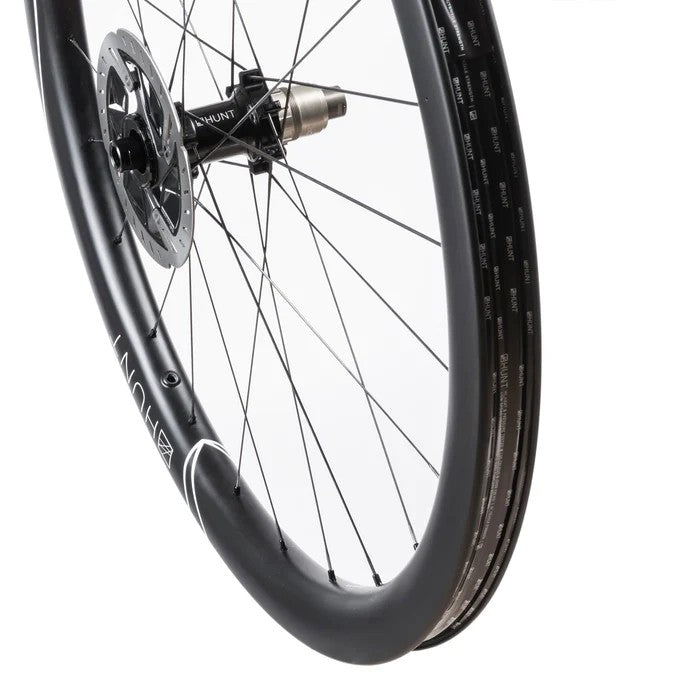

REAR HUB
- 6066-T6 heat-treated aluminum alloy freehub body.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the Shimano freehub often seen on standard alloy freehub bodies.
- 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5-degree engagement and instant acceleration.
- All freehub standards accounted for
- Hunt Race Season Disc straight-pull super-light alloy.
- Forged and CNC’d 6066-T6 heat treated aluminium alloy body.
- Centre-lock disc mount. If you require a 6 bolt adapter you can purchase separately here
- Polished anodized black finish with laser graphics.
- Intended use: Fast and light gravel riding. For loaded gravel riding and bikepacking, please consider wheelsets featuring HUNT 4 Season hubsets.
BEARINGS
- Industry leading CeramicSpeed ceramic coated bearings. EZO bearing option also available.
- 75% tougher than their standard hardened steel races, boasting an average lifetime seven and a half times longer than other non-coated solutions
- CeramicSpeed bearing balls are of the highest quality, featuring the highest achievable surface finish and roundness
- Life-time warranty (When registered with CeramicSpeed)
