An ultra-versatile, disc brake-specific upgrade wheel that shines when the terrain tilts up, but is highly capable on any terrain, from smooth tarmac to moderate gravel.
Tyre size: Aero optimised for 25-35mm tyres; works well with 25mm up to 50mm.

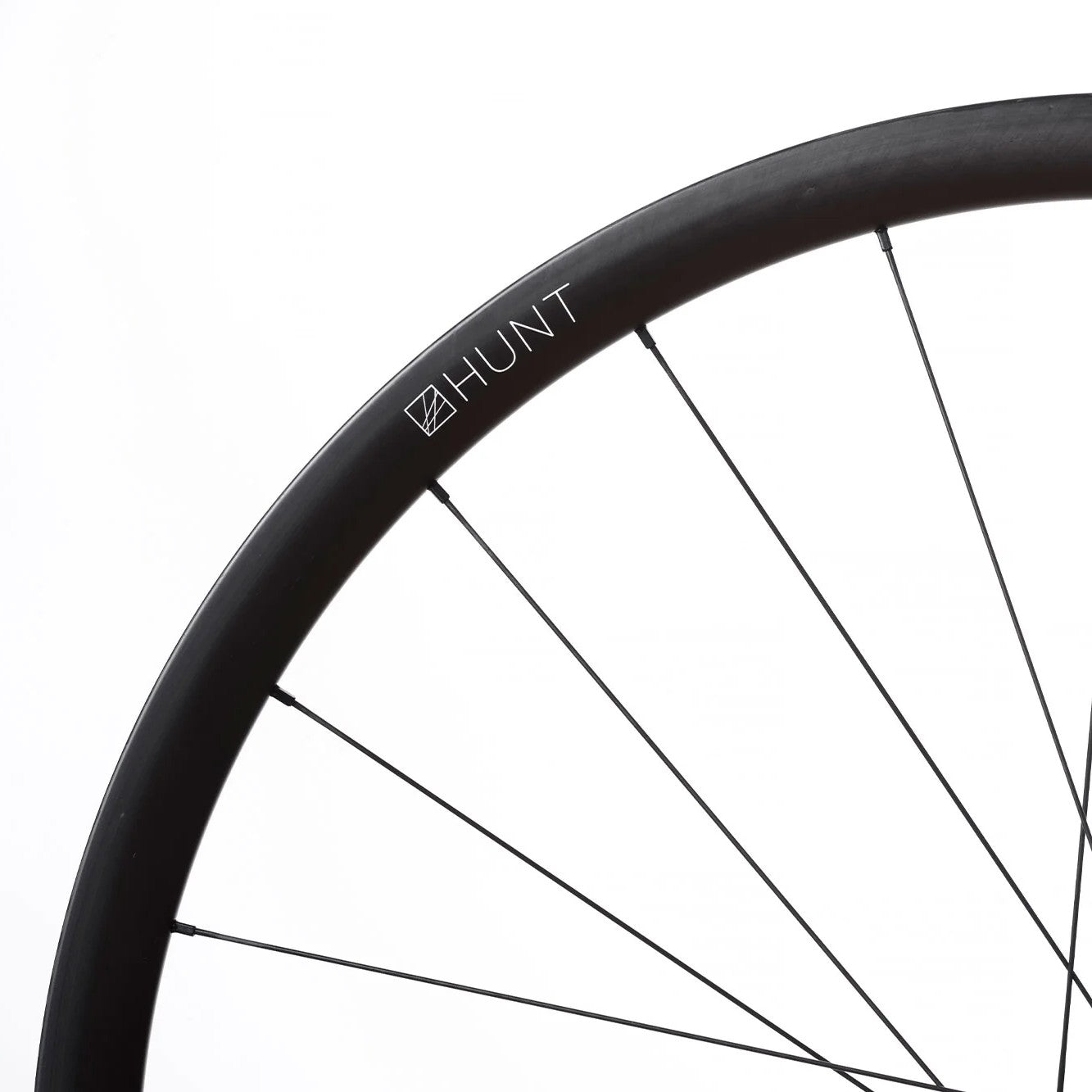

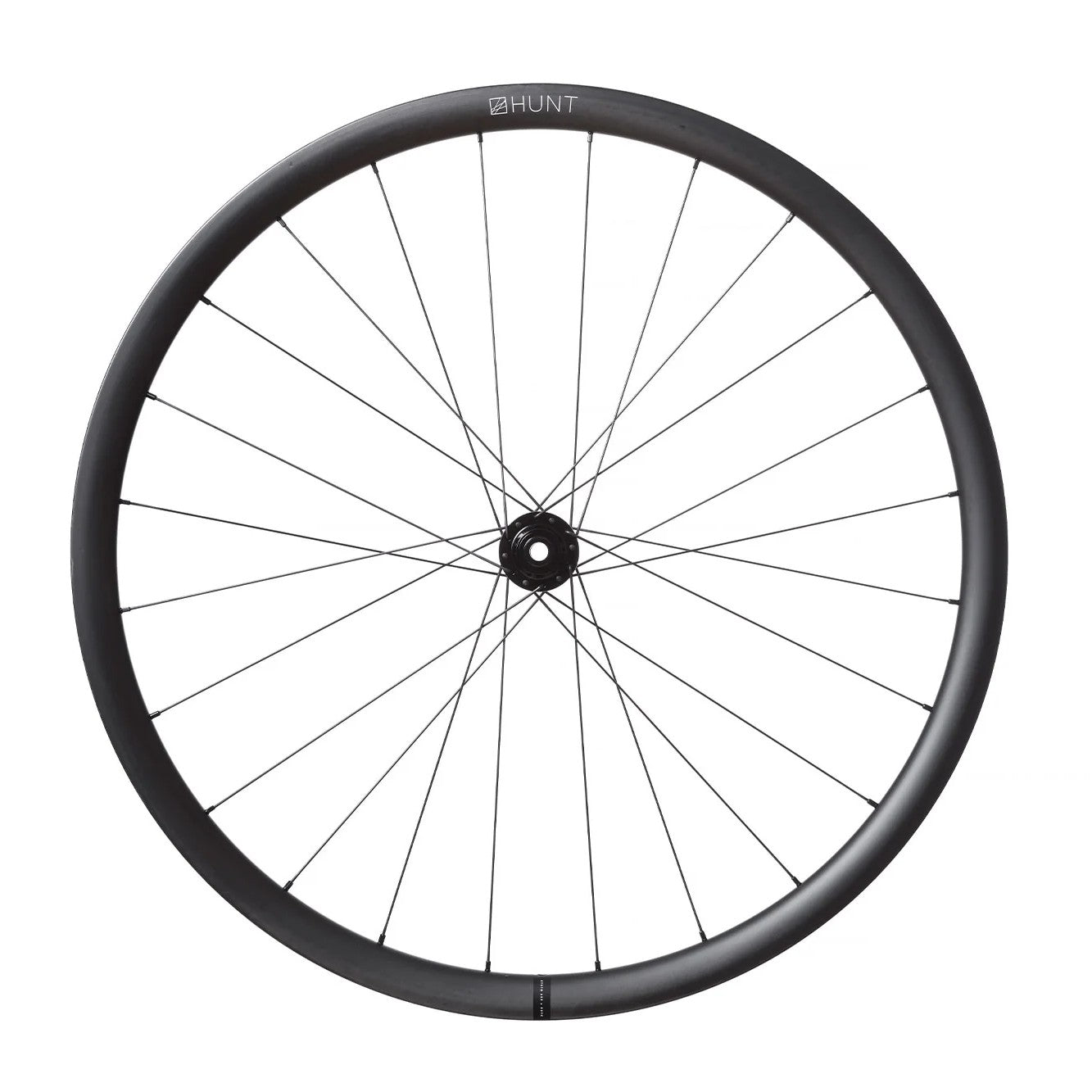

The 30 Carbon Disc is a do-it-all carbon disc-brake wheelset. The 30mm wide and 30mm deep U-profile serves up great handling and reduces aerodynamic drag across multiple wind yaw-angles, while keeping the rotating weight down for quick response when you put down the power. The extra-wide 22mm internal rim bed opens out your tyre profile to provide exceptional vibration reduction, cornering traction and low rolling-resistance.
The 30 Carbon Disc wheelset is built to transform your road, CX, or gravel rides.
Key Features.
Rims
Unidirectional carbon fibre rim construction, with 3k reinforcement at spoke holes for greater durability.
Spokes
Our team has further tuned the ride quality of the 30 Carbon Disc by selecting narrower gauge spokes for the front wheel to provide compliance, with slightly thicker gauge spokes in the rear for increased power transfer.
H_Ratchet 36T SL
HUNT H_Ratchet 36T SGL hub system with J-bend spoke interface and extra bearing shielding. 10-degree engagement angle with 36 tooth ratchet internals.
Technology.
The HUNT team have paired the light and wide hooked rim with new H_Ratchet 36T SGL hubs, offering a rapid 10-degree engagement angle, in a reliable, easy-to-service and long-lasting ratchet drive system. Increased engagement surface area improves power transfer and longevity of the hubs, while using less material compared to a spring-and-pawl system, resulting in a light but robust hub system designed and tested to cope with the increased torque of 1x drivetrains.
Hand-built with top-of-the-range Pillar PSR triple butted J-bend spokes and precision sealed cartridge bearings.
Full Specs.

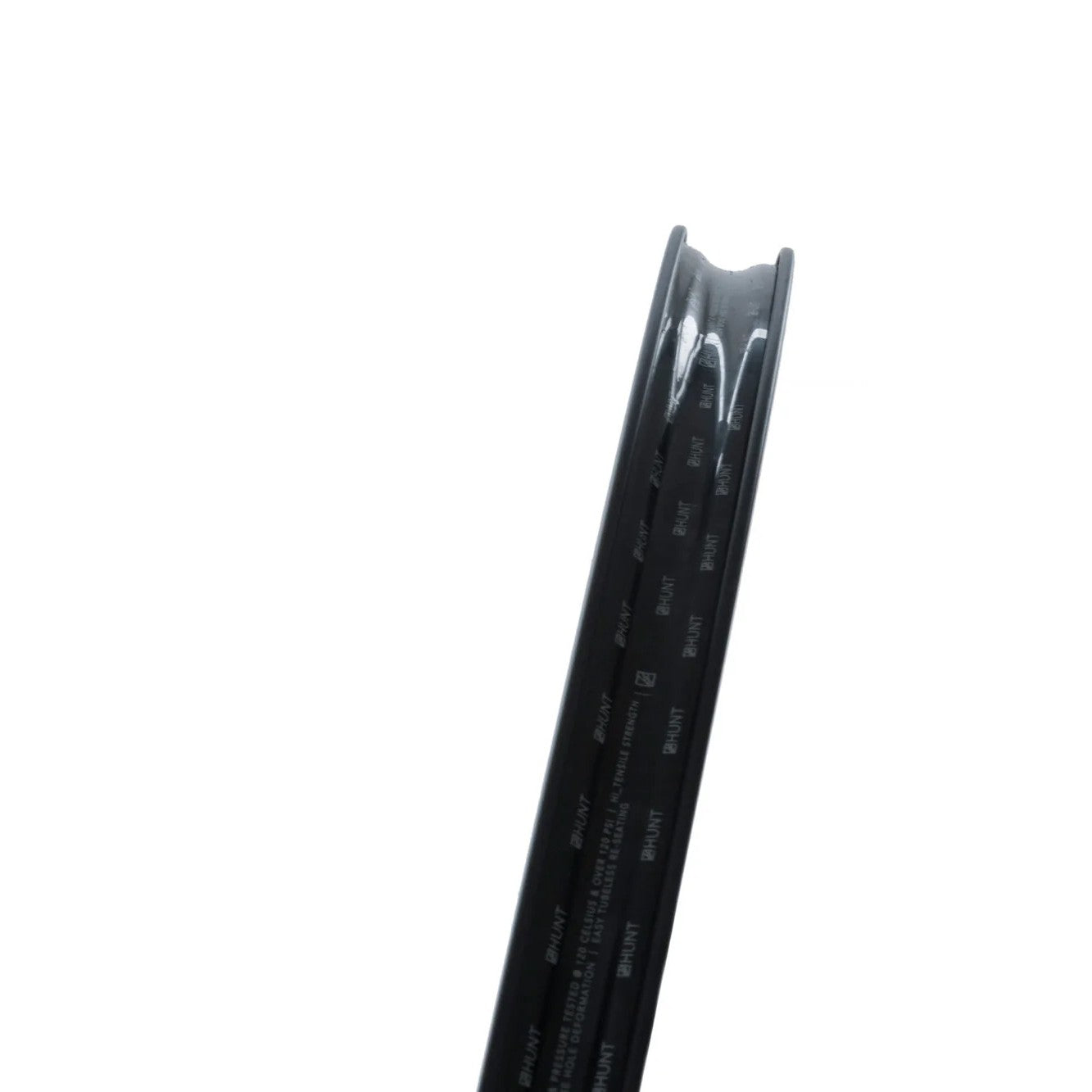

RIMS
- Hooked tubeless-ready rim profile.
- Full carbon fiber construction with re-enforced spoke holes.
- 30mm external and 22m internal width.
- 30mm depth
- UD finish with matte white contrasting graphics.
SPOKES
- 24 front and 24 rear laced 2 cross.
- J-bend cold drawn.
- Made from high grade T302 (18/10) stainless steel wire by Sandvik Sweden.
- Front Triple butted 2.0-1.5-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
- Rear Triple butted 2.0-1.6-2.0 (then 2.2 at the head for the patented Pillar Spoke Re-enforcement).
- Black stainless treatment.
NIPPLES
- Alloy square body for external adjustment and square head for easy internal adjustment/tensioning.
- 16mm length with washer for a strong connection to the spoke added durability.
- 14 gauge.
- Black anodized finish.

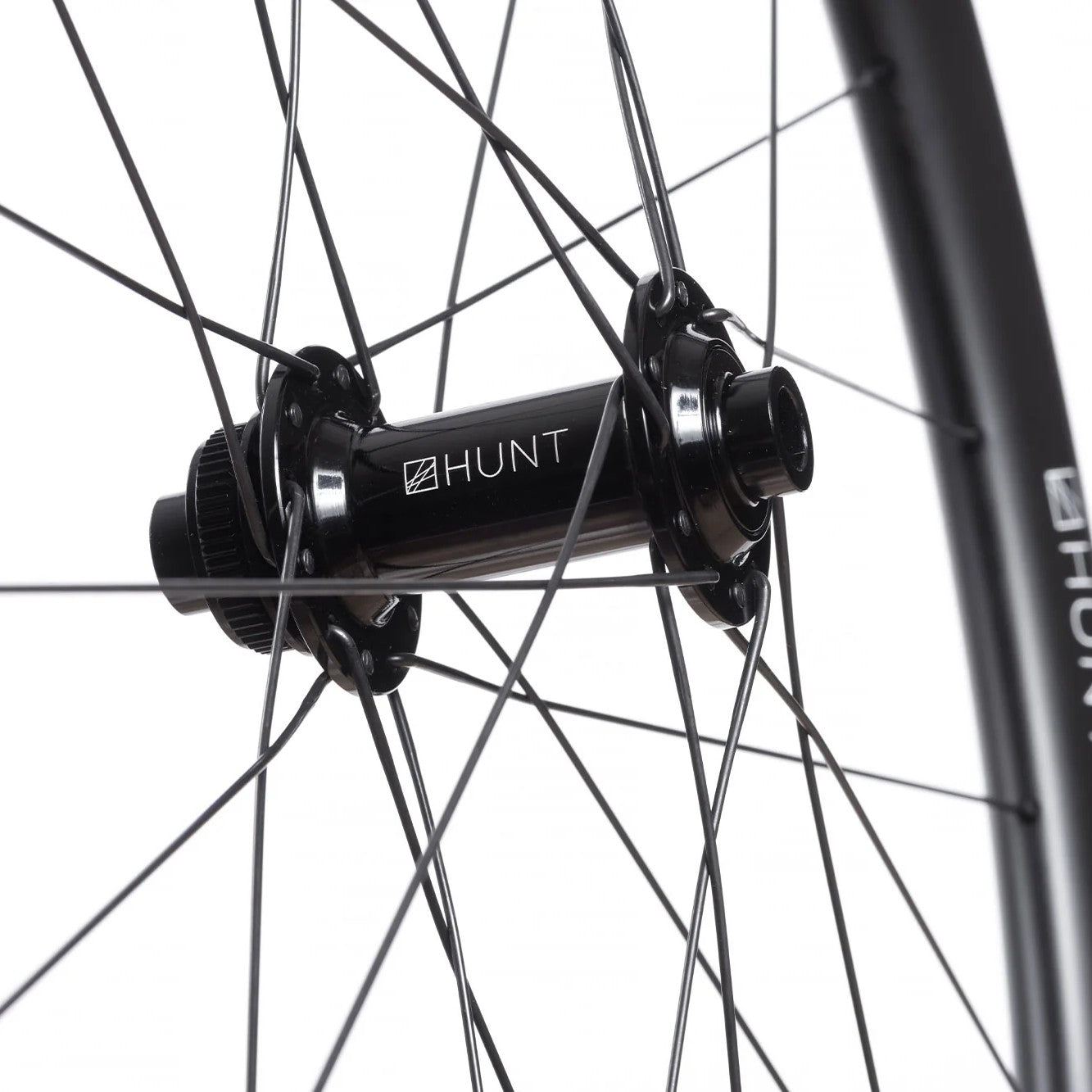

FRONT HUB
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- Center-lock disc mount.

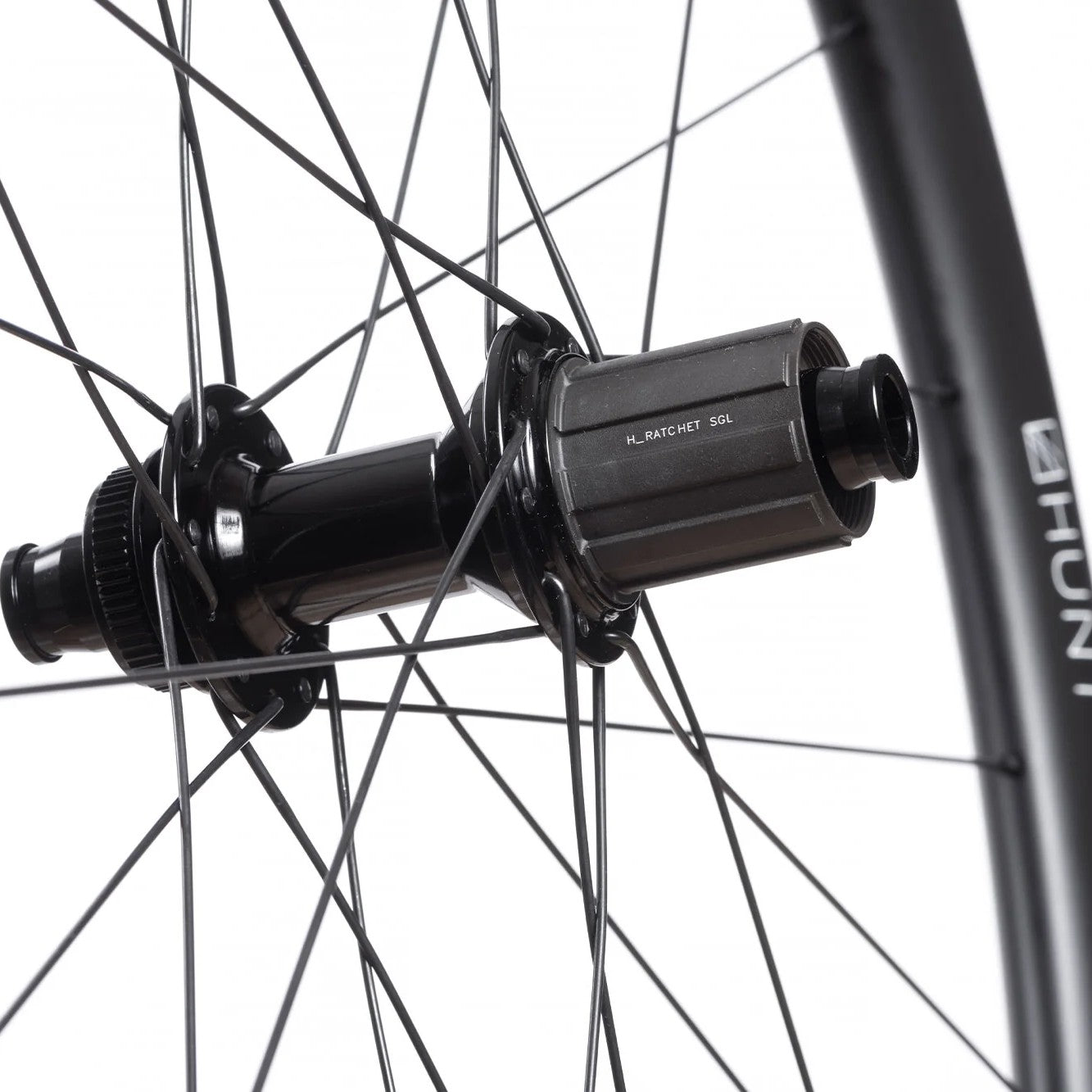

REAR HUB
- HUNT H_Ratchet 36T SGL.

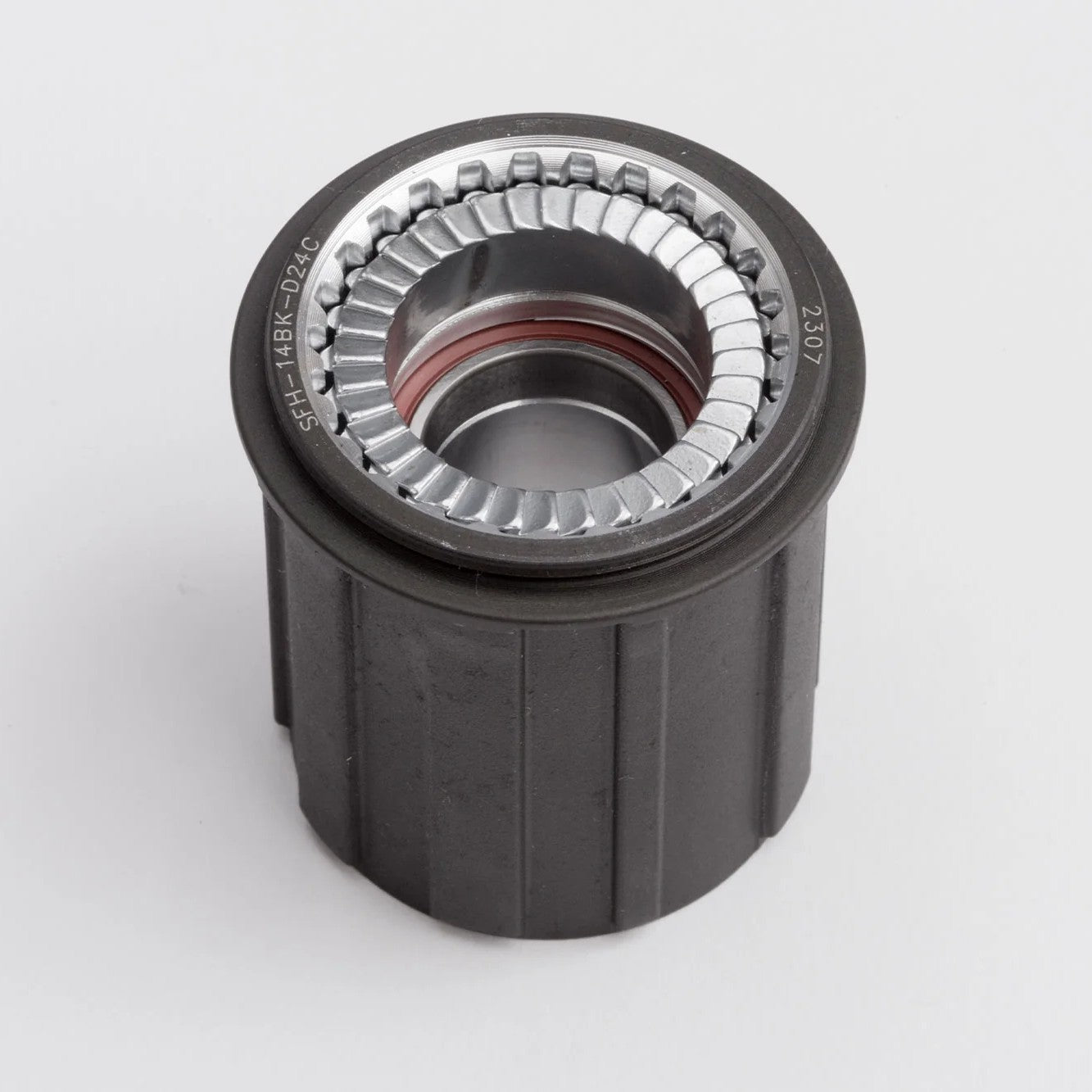

- H_CERAMIK freehub body re-enforcement coating provides excellent durability and protects against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- Ships with Dumonde Tech Pro X freehub grease applied for long service life and contamination resistance.
- Single 36T Ratchet Ring equals 10° engagement.
- Forged and CNC'd 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Polished anodized black finish with laser graphics.
- All freehub standards accounted for.
BEARINGS
- Super smooth precision bearings with proprietary waterproof grease specially selected for even the worst weather.
- Sealed cartridge replaceable units.
- Dual full-contact seals.
TIRES INFO
- For the 30 Carbon Disc, HUNT recommends a 25-35mm tire for best performance, tire widths between 25mm and 50mm are also safe to use.
- Note: best performance is usually gained by using tyre pressures lower than the maximum, you can see our blog post about this, read here.
- Tubeless-ready for lower weight and rolling resistance.
- You must not exceed the maximum tyre pressure limits set out in the table below or the maximum limit set by your tyre manufacturer if this is lower.
