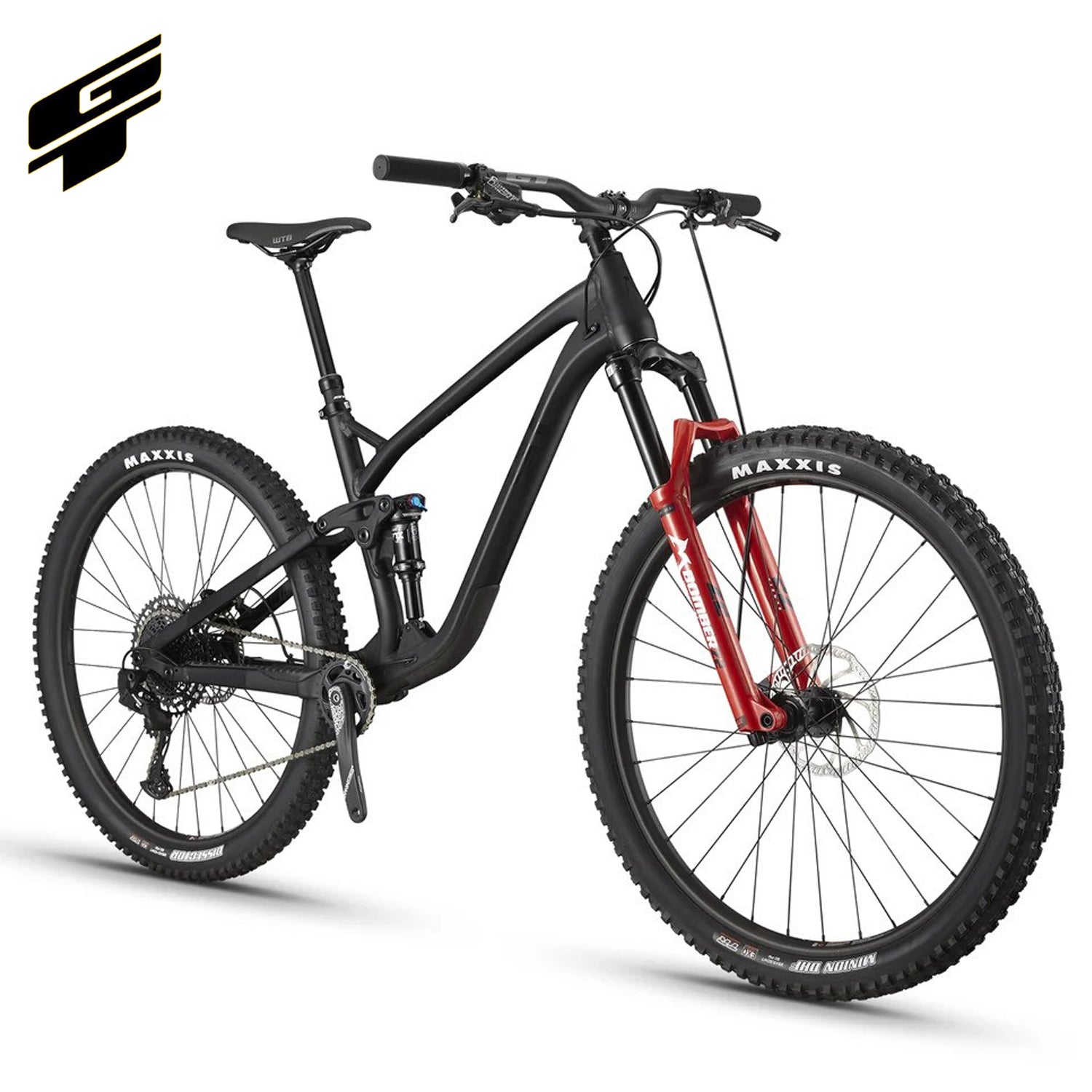

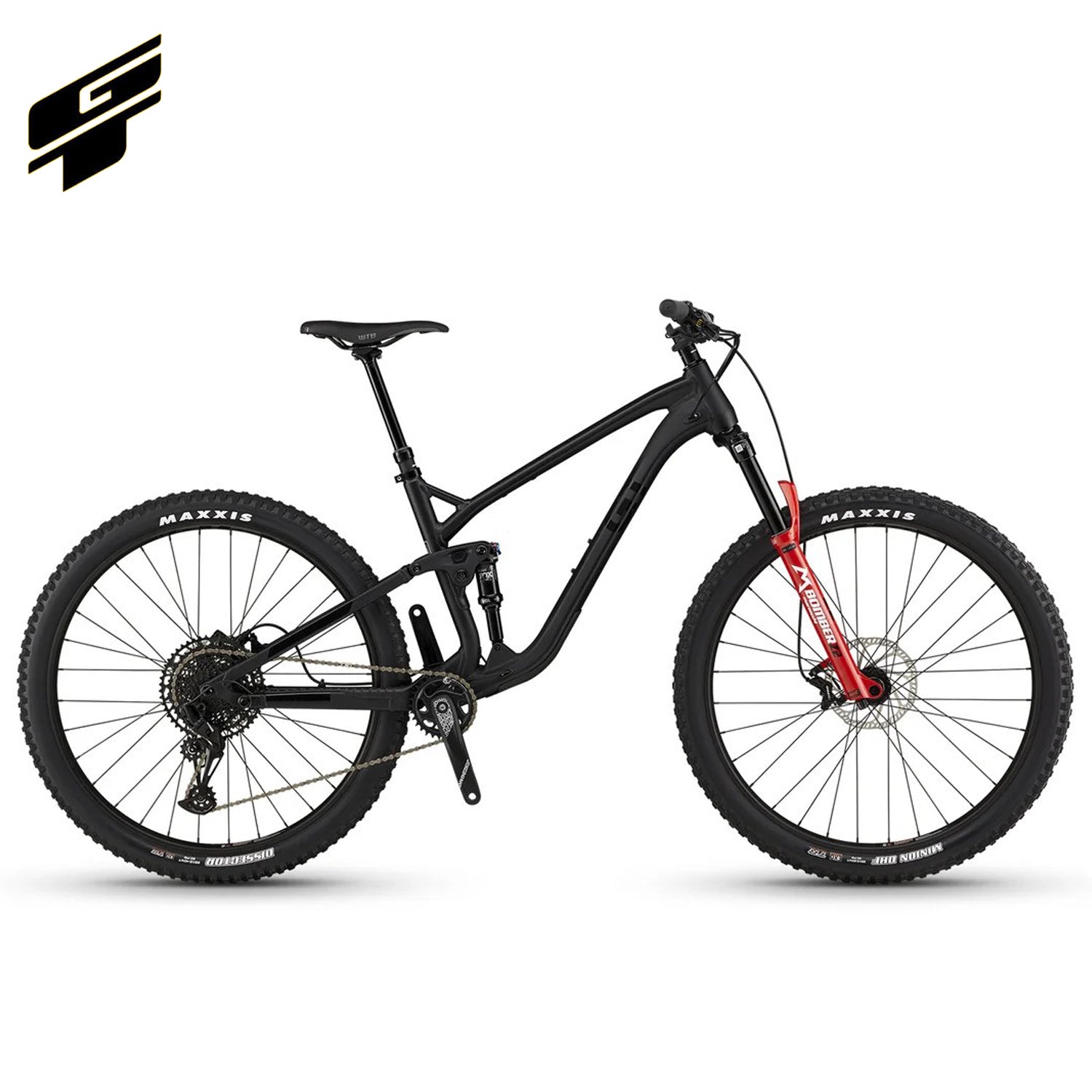

Sensor Comp

Whether you’re weekend warrior everyday adventurer, the Sensor Comp 29” trail bike brings out the best in your pedaling performance. Its aluminum frame mimics our carbon construction ethos, meaning less weight, more control for quicker handling on every ride—while keeping extra coin in your pocket. Float through long climbs, breeze over bumps and harness the speed of gravity thanks to 130mm of intuitive suspension and optimized geometry that join together for efficiency and responsiveness throughout every frame size. Finished with durable frame features and reliable components, Ride what makes you happy, shred what sets you free.

Trail-Tune Geometry

With the goal of maximizing good times on trail; Sensor’s geometry inspires riders to push their fun to a whole new level. It’s 65 degree headtube angle keeps it poised on the descents and the steep 77 degree seattube angle makes climbing a breeze.

LTS Suspension

Linkage Tuned Suspension provides a consistent and efficient suspension platform. The 4-bar system is designed to be a highly tunable suspension platform that maintains ground hugging traction even under heavy braking.

Specifications

Frame

• Frame: Sensor Alloy 29” Frame, 130mm Travel, 12x148mm Thru-Axle, UDH
• Sizes Available: SM, MD, LG, XL
• Fork: Marzocchi Bomber Z2, 140mm, 15x110mm, 44mm Offset
• Rear Shock: Fox DPS Performance, 185x50mm Trunnion
• Wheel Size: 29

Wheels

• Rims: WTB ST i30 TCS 2.0, 32h, Tubeless Ready
• Front Hub: Formula, 15x110mm
• Rear Hub: Formula, 12x148mm, HG Freehub Body
• Front Tire: Maxxis Minion DHF, 29x2.5", EXO
• Rear Tire: Maxxis Dissector, 29x2.4", EXO

Drivetrain

• Rear Derailleur: SRAM SX Eagle
• Shifters: SRAM SX Eagle, 12-Speed
• Rear Cogs: SRAM PG-1210, 11-50T
• Chain: SRAM SX Eagle, 12-Speed
• Crank: Truvativ Descendant 6K, 30T
• Bottom Bracket: Truvativ Powerspline BSA, 73mm

Cockpit

• Handlebar: GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back (Width: S/M/L/XL - 80cm)
• Stem: GT Alloy, 45mm
• Grips: GT Mushroom
• Headset: FSA No.42
• Seatpost: GT DropKick, 31.6mm, (S - 125mm, M - 150mm, L/XL - 170mm)
• Saddle: WTB Silverado

Brakes

• Brakes: Tektro M745, 203/180mm Rotors

Geometry & Sizing

Fit Guide

• XS: 4'8" - 5'1"
• S: 5'0" - 5'6"
• M: 5'5" - 5'11"
• L: 5'10" - 6'2"
• XL: 6'1" - 6'6"

Geometry
