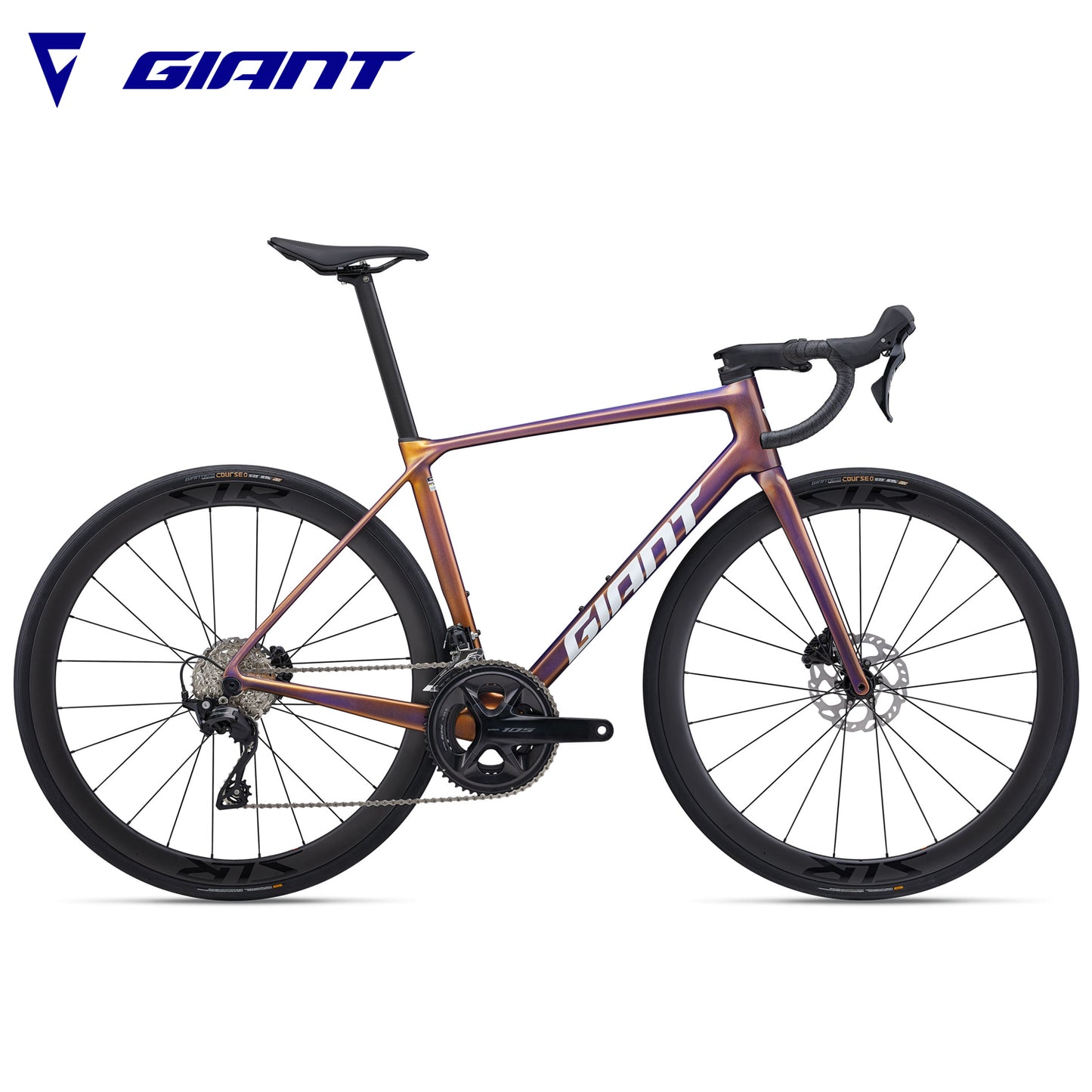

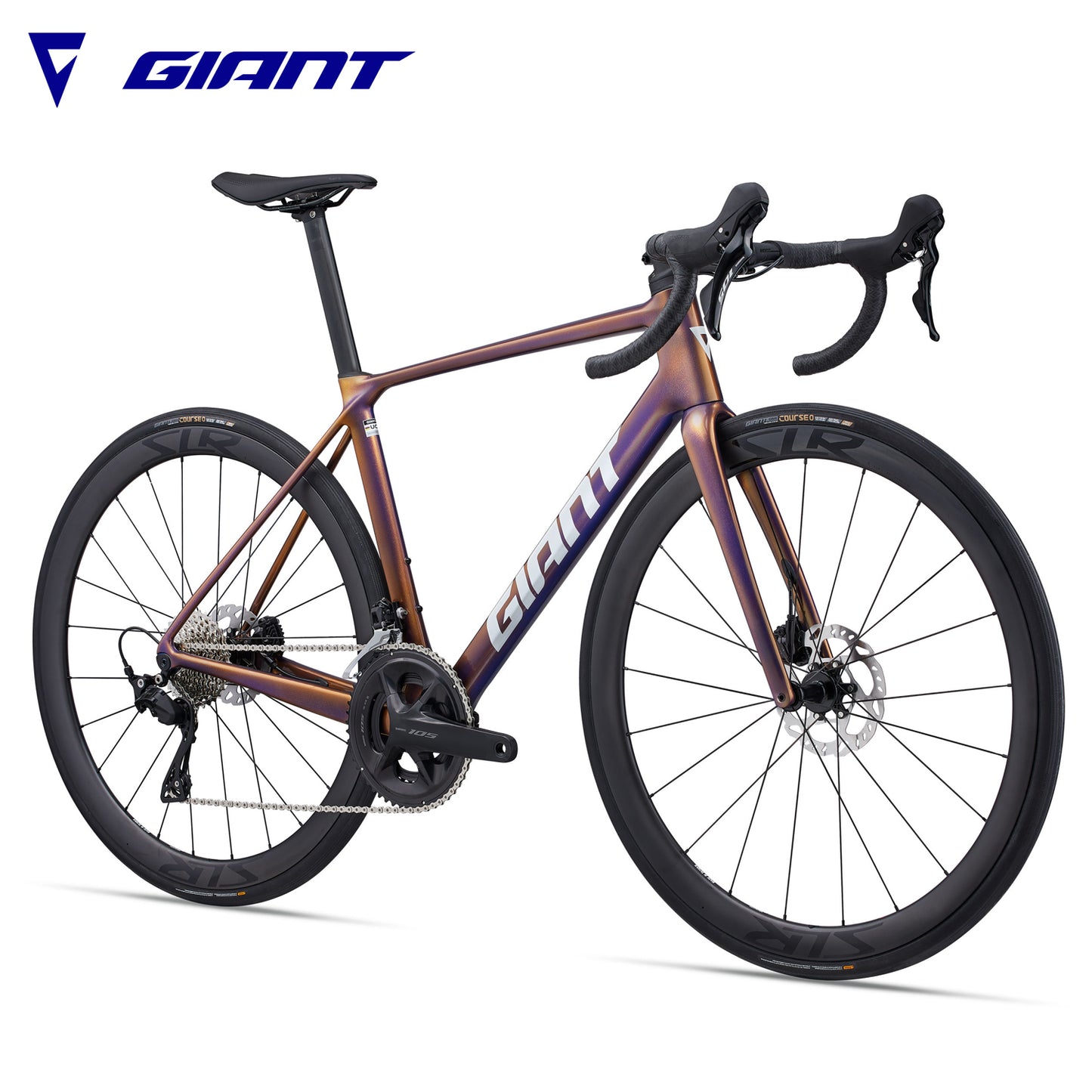

TCR Advanced Pro 2

SUPERLIGHT, ULTRA-EFFICIENT AND RIDES LIKE A DREAM. THIS WELL-ROUNDED RACE BIKE BLENDS INDUSTRY-LEADING COMPOSITE FRAME ENGINEERING WITH FULLY INTEGRATED COMPONENTS TO HELP YOU CLIMB, CORNER AND DESCEND WITH ASTONISHING SPEED AND SUBLIME ROAD HANDLING.

KEY PERFORMANCE FACTORS

SYSTEM OPTIMIZATION

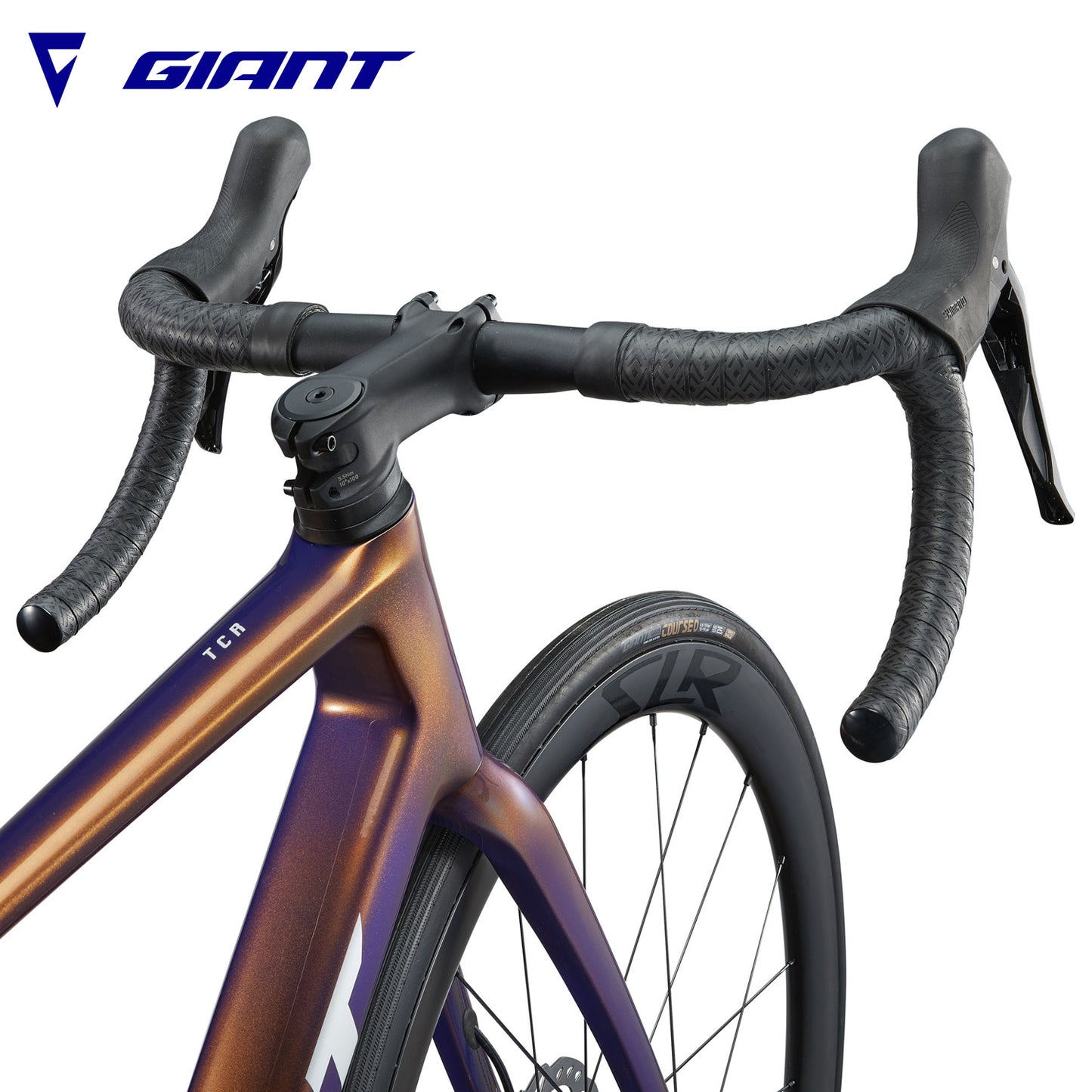

The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

MADE FASTER

This versatile road racer combines race-winning stiffness-to-weight with aerodynamic tube shaping and system integration. From the road-smoothing Variant seatpost to the composite WheelSystem, every piece is optimized as part of the system. The new OverDrive Aero steerer tube technology is combined with a Contact SL AeroLight stem and Contact SL handlebar to incorporate new internal cable routing for easy setup and adjustment, while integrated disc brakes and generous clearance for tyres up to 33mm make it adaptable to all road conditions.

TECHS & FEATURES

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

COMPACT ROAD DESIGN

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

OVERDRIVE AERO

Found inside the head tube of the Defy, Propel and TCR ranges, the D-shaped fork steerer tube and corresponding spacers provide an extremely aerodynamic, easier to service system of internally routed brake and derailleur cables.

TUBELESS SYSTEM

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

• S: 165cm to 175cm
• M: 171cm to 181cm
• ML: 177cm to 187cm
• L: 183cm to 193cm
• XL: 189cm to 199cm

SPECS

• Sizes: S, M, ML, L, XL
• Colours: Gloss Meteor Storm/White
• Frame: Advanced-Grade Composite 12x142mm thru-axle, Disc
• Fork: Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
• Handlebar: Giant Contact SL, 10.5 degree flare
• Grips: Giant Stratus Lite 2.0 with gel
• Stem: Giant Contact SL Aerolight
• Seatpost: Giant Variant, composite, -5/+15mm offset
• Saddle: Giant Fleet SL 7mm SST Rail With Giant ParticleFlow technology
• Pedals: PEDALS NOT SUPPLIED
• Shifters: Shimano 105 2x12
• Front Derailleur: Shimano 105
• Rear Derailleur: Shimano 105
• Brakes: Shimano 105 hydraulic disc, RT70 160/140mm rotors
• Brake Levers: Shimano 105 hydraulic disc
• Cassette: Shimano 105, 11x34
• Chain: KMC X12L-1
• Crankset: Shimano 105, 36/52 with Giant Power Pro power meter
• Bottom Bracket: Shimano, PressFit 71
• Rims: New Giant SLR 1 40 Carbon Disc Wheel System with GIANT patented DBL (Dynamic Balanced Lacing) technology
• Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
• Spokes: Sapim CX-Ray
• Tyres: Giant Gavia COURSE 0 Tubeless, 700x25C(28mm effective), 170 TPI , Folding
• Extras: Factory tubeless set up, out front computer mount
• Max Tyre Clearance: 33mm
