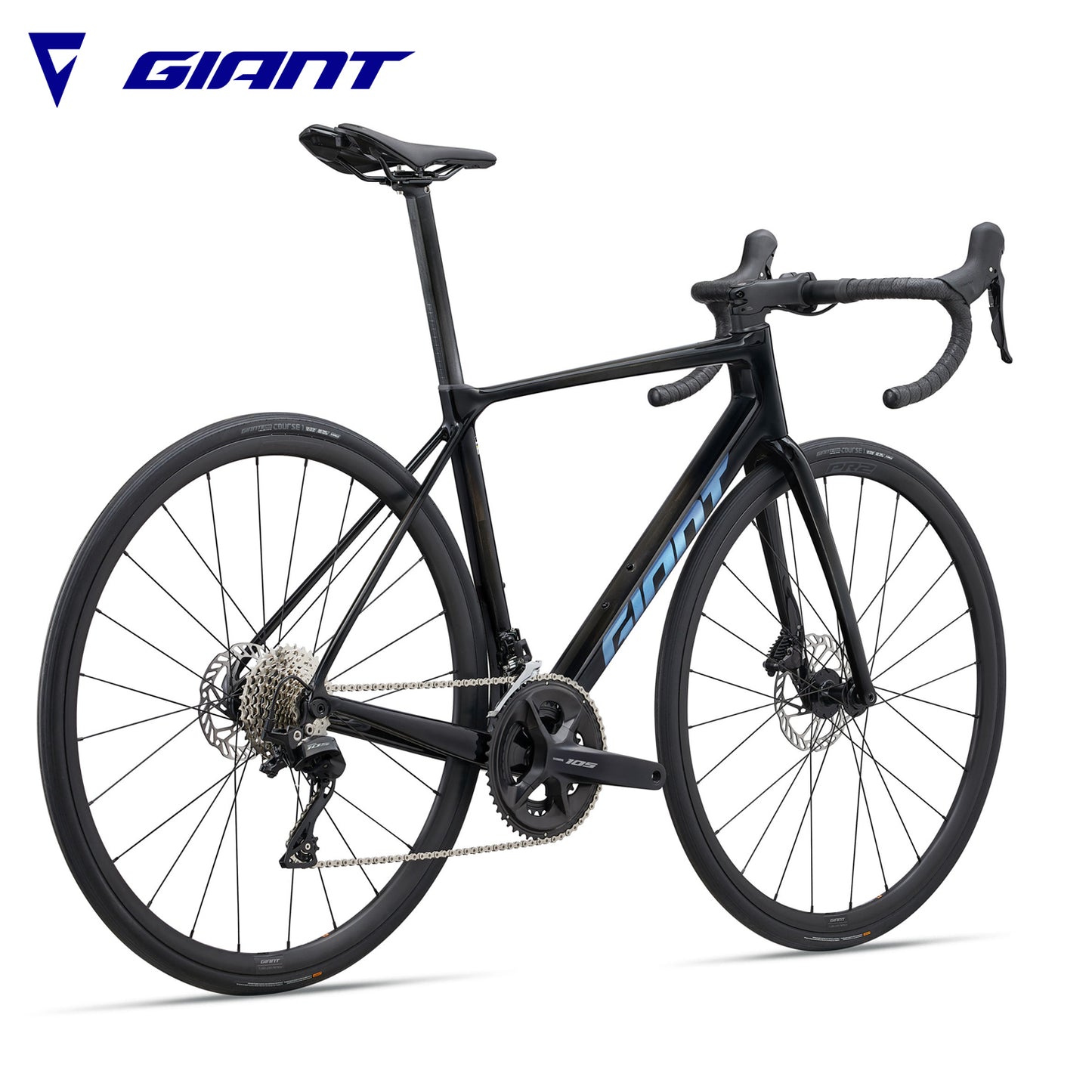

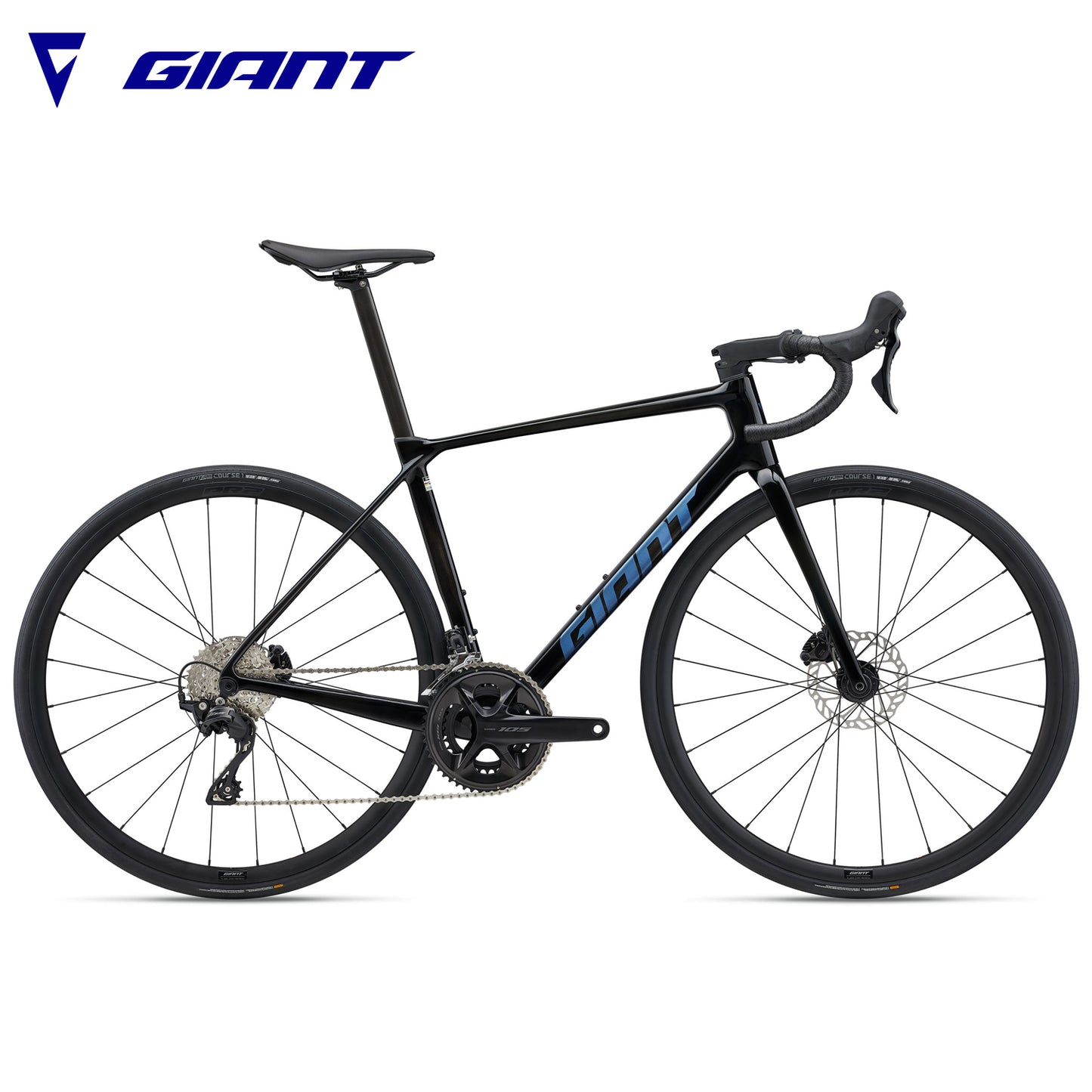

TCR Advanced 2 KOM

BUILT TO GO FASTER. WHETHER YOU’RE CLIMBING, CORNERING OR LAUNCHING AN ATTACK, THIS ALL-NEW COMPOSITE ROAD RACER IS MADE FOR THAT MOMENT. LIGHTWEIGHT, EFFICIENT, AND INTEGRATED FOR SPEED, IT’S ENGINEERED TO GIVE YOU A COMPETITIVE EDGE IN EVERY SITUATION.

KEY PERFORMANCE FACTORS

SYSTEM OPTIMIZATION

The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

WINNING EFFICIENCY

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

INTEGRATED AERODYNAMICS

All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.

MADE FASTER

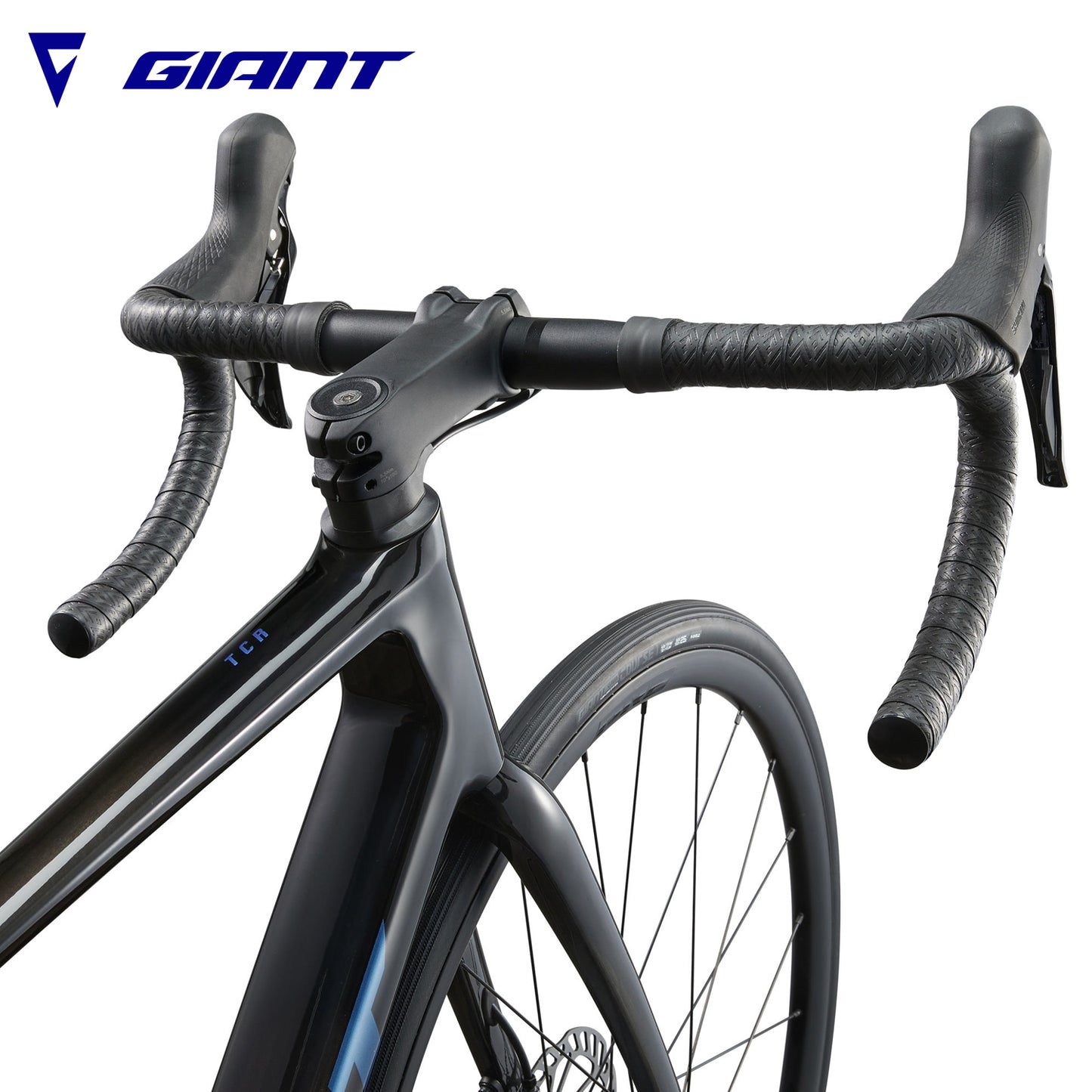

Newly integrated components including the Contact AeroLight stem create a sleeker, more aero profile. The Variant seatpost adds just enough compliance for a balanced, race-tuned feel on the road, while generous tire clearance (up to 33mm) and compliant wheels keep you rolling with speed on smooth or bumpy roads.

TECHS & FEATURES

ADVANCED COMPOSITE TECHNOLOGY

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

COMPACT ROAD DESIGN

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

TUBELESS SYSTEM

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

• XS: 157cm to 169cm
• S: 165cm to 175cm
• M: 171cm to 181cm
• ML: 177cm to 187cm
• L: 183cm to 193cm
• XL: 189cm to 199cm

SPECS

• Sizes: XS, S, M, M/L, L, XL
• Colors: Carbon, Illusion White
• Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc

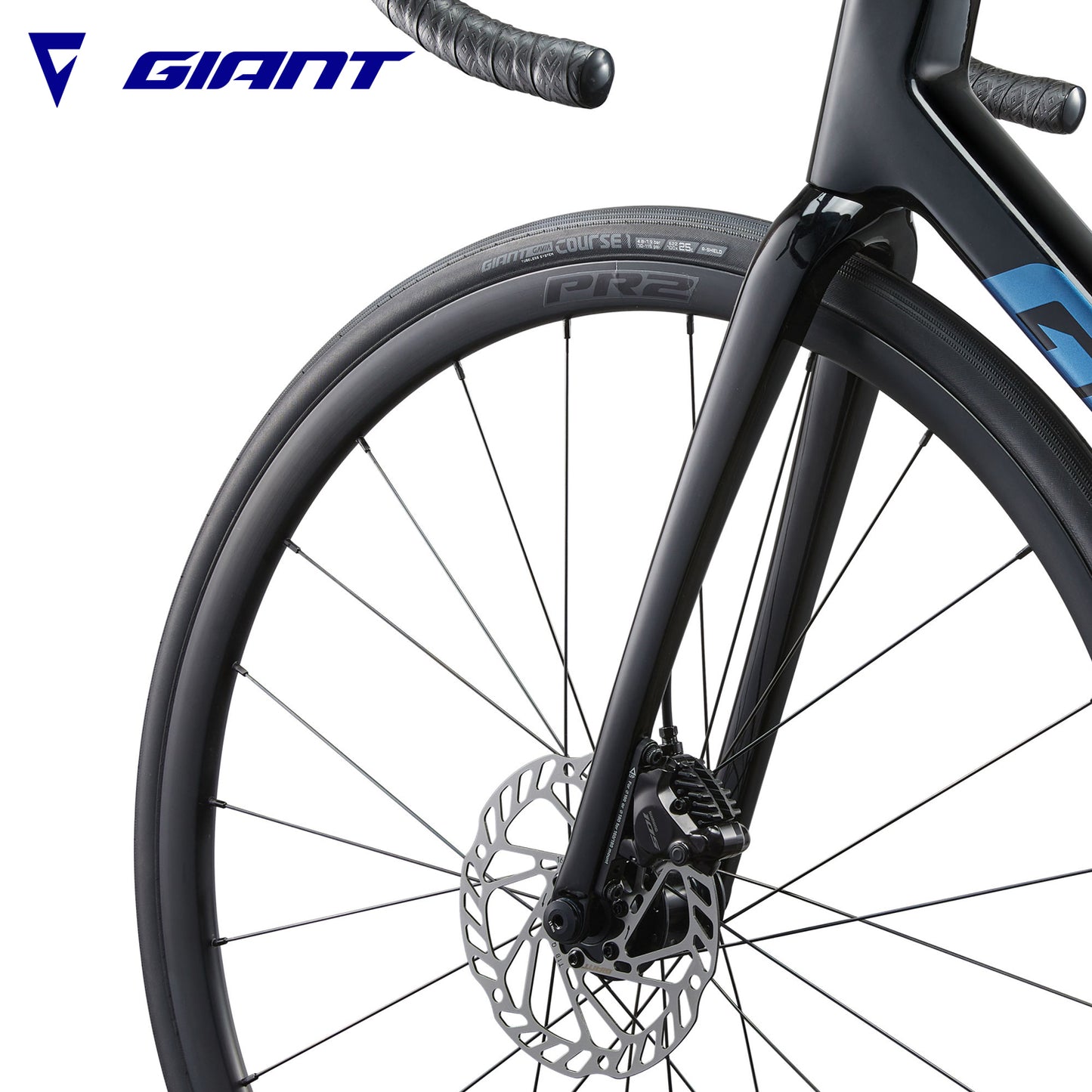

• Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
• Handlebar: Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
• Grips: Stratus Lite 2.0
• Stem: Giant Contact AeroLight

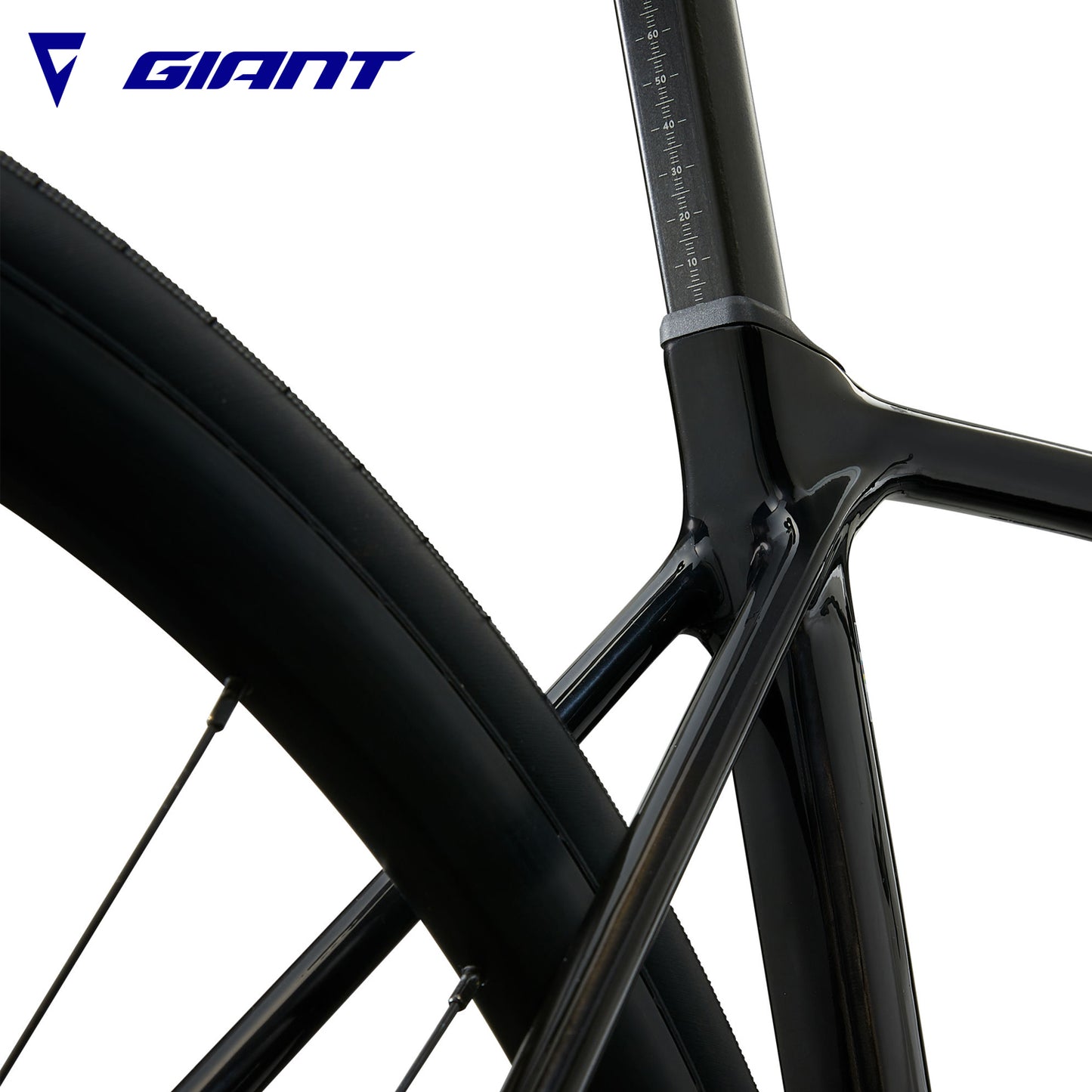

• Seatpost: Giant Variant, composite, -5/+15mm offset
• Saddle: Giant Approach
• Pedals: N/A
• Shifters: Shimano 105
• Front Derailleur: Shimano 105
• Rear Derailleur: Shimano 105
• Brakes: Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm
• Brake Levers: Shimano 105
• Cassette: Shimano 105, 12-speed, 11x36
• Chain: KMC X12L-1
• Crankset: Shimano 105, 34/50 XS, S:170mm, M, M/L:172.5mm, L, XL:175mm
• Bottom Bracket: Shimano RS500, press fit
• Rims: Giant P-R2 alloy Disc wheelset
• Hubs: 12mm thru-axle
• Spokes: Sapim stainless
• Tires: Giant Gavia Course 1, tubeless, 700x25c (28mm), folding
• Extras: tubeless prepared, 33mm max tire size
