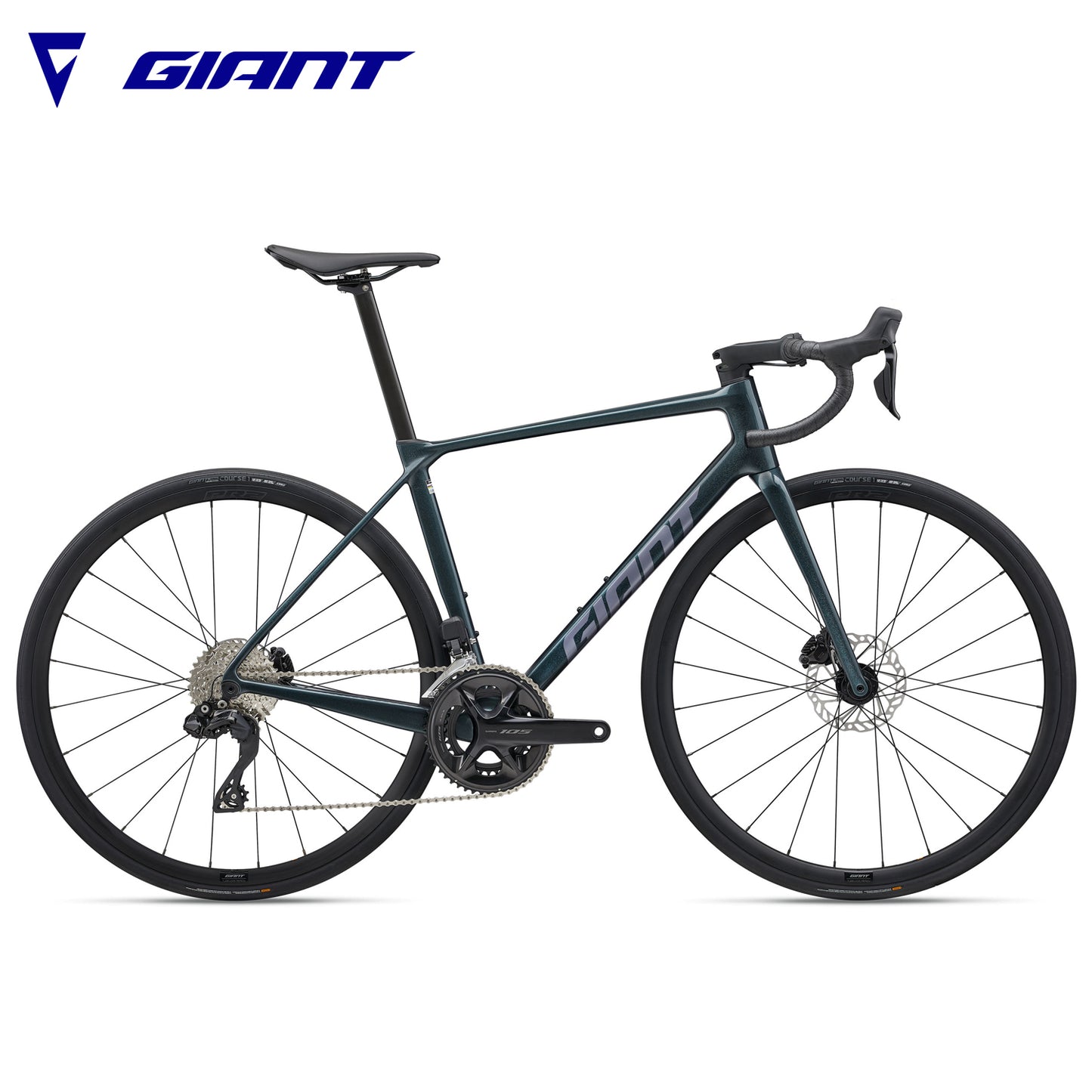

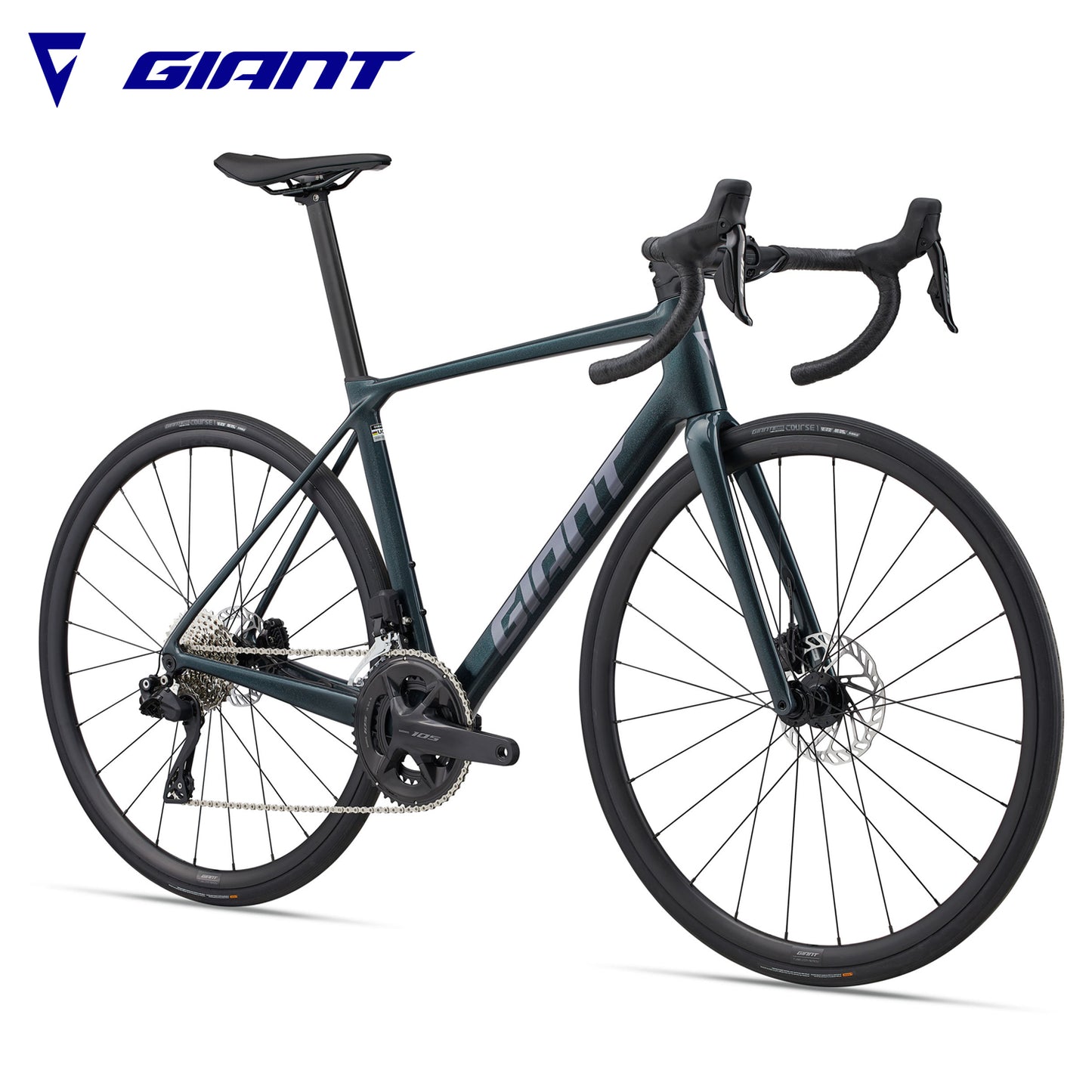

Giant TCR Advanced 1 KOM Advanced-Grade Composite Road, Race Bike Shimano 105 Di2 - Asphalt Green
Giant TCR Advanced 1 KOM Advanced-Grade Composite Road, Race Bike Shimano 105 Di2 - Asphalt Green
SKU:
Couldn't load pickup availability
CR Advanced 1
BUILT TO GO FASTER. WHETHER YOU’RE CLIMBING, CORNERING OR LAUNCHING AN ATTACK, THIS ALL-NEW COMPOSITE ROAD RACER IS MADE FOR THAT MOMENT. LIGHTWEIGHT, EFFICIENT, AND INTEGRATED FOR SPEED, IT’S ENGINEERED TO GIVE YOU A COMPETITIVE EDGE IN EVERY SITUATION.
KEY PERFORMANCE FACTORS
SYSTEM OPTIMIZATION
The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.
WINNING EFFICIENCY
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
INTEGRATED AERODYNAMICS
All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous generation.
MADE FASTER

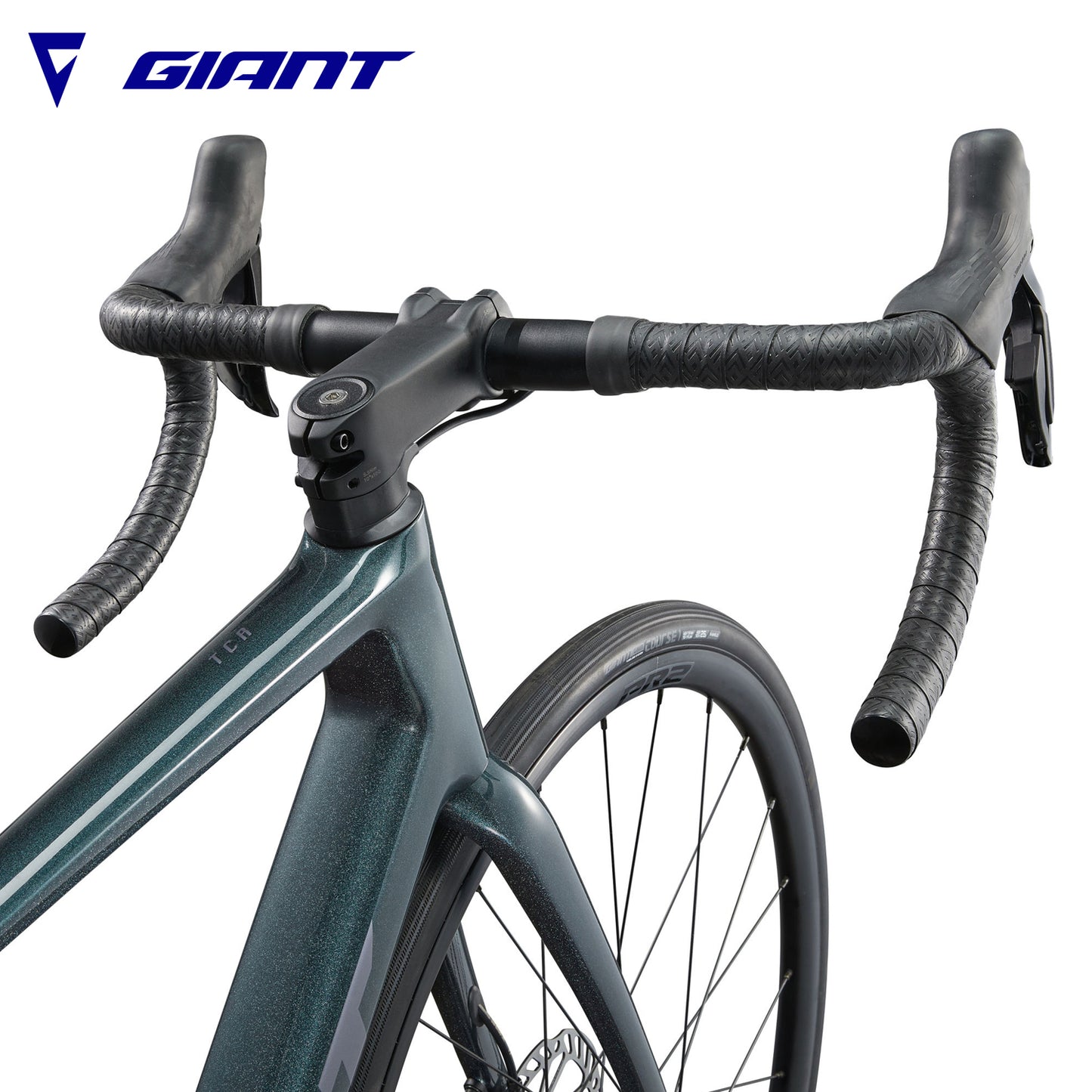

Newly integrated components including the Contact AeroLight stem create a sleeker, more aero profile. The Variant seatpost adds just enough compliance for a balanced, race-tuned feel on the road, while generous tire clearance (up to 33mm) and compliant wheels keep you rolling with speed on smooth or bumpy roads.
TECHS & FEATURES
ADVANCED COMPOSITE TECHNOLOGY
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
TUBELESS SYSTEM
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
COMPACT ROAD DESIGN
Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
- S: 165cm to 175cm
- M: 171cm to 181cm
- ML: 177cm to 187cm
- L: 183cm to 193cm
- XL: 189cm to 199cm
S | M | ML | L | XL | ||
A | SEAT TUBE LENGTH (mm) | 445 | 470 | 500 | 530 | 560 |
B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
C | TOP TUBE LENGTH (mm) | 535 | 550 | 565 | 580 | 600 |
D | HEAD TUBE LENGTH (mm) | 130 | 145 | 165 | 185 | 200 |
E | HEAD TUBE ANGLE | 72.3° | 73.5° | 73.0° | 73.0° | 72.5° |
F | FORK RAKE (mm) | 45 | 45 | 45 | 45 | 45 |
G | TRAIL (mm) | 64 | 59 | 59 | 59 | 59 |
H | WHEELBASE (mm) | 977 | 980 | 991 | 1006 | 1020 |
I | CHAIN STAY LENGTH (mm) | 405 | 405 | 405 | 405 | 405 |
J | BOTTOM BRACKET DROP (mm) | 69.5 | 69.5 | 67 | 67 | 67 |
K | STACK (mm) | 528 | 545 | 562 | 581 | 596 |
L | REACH (mm) | 383 | 388 | 393 | 402 | 412 |
M | STAND OVER HEIGHT (mm) | 722 | 743 | 771 | 798 | 822 |
N | HANDLEBAR WIDTH (mm) | 400 | 420 | 420 | 440 | 440 |
O | STEM LENGTH (mm) | 90 | 100 | 110 | 110 | 120 |
P | CRANK LENGTH (mm) | 170 | 172.5 | 172.5 | 175 | 175 |
Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C |
SPECS
-
Sizes: S, M, ML, L, XL
-
Colours: Gloss Asphalt Green/Mercury
-
Frame: Advanced-Grade Composite 12x142mm thru-axle, Disc
-
Fork: Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12x100mm thru-axle, Disc
-
Handlebar: Giant Contact
-
Grips: Giant Stratus Lite 2.0 with gel
-
Stem: Giant Contact Aerolight
-
Seatpost: Giant Variant, composite, -5/+15mm offset
-
Saddle: Giant Approach 7mm Steel Rail, with UniClip / ParticleFlow technology
-
Pedals: PEDALS NOT SUPPLIED
-
Shifters: Shimano 105 Di2 2x12
-
Front Derailleur: Shimano 105 Di2
-
Rear Derailleur: Shimano 105 Di2
-

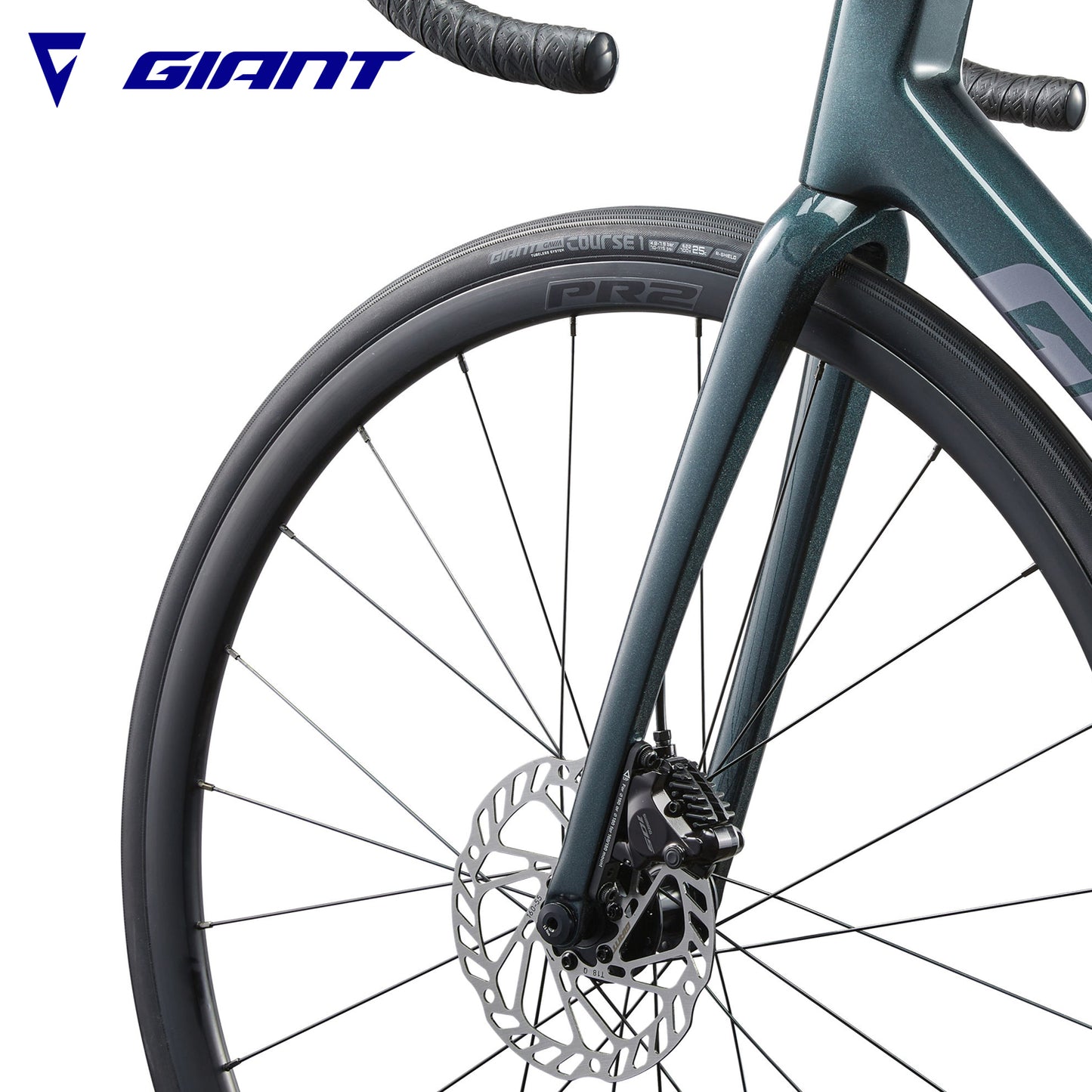

Brakes: Shimano 105 hydraulic disc, MPH 160/140mm rotors
-
Brake Levers: Shimano 105 hydraulic disc
-
Cassette: Shimano 105, 11x34
-
Chain: KMC X12L-1
-
Crankset: Shimano 105, 36/52
-
Bottom Bracket: Shimano, PressFit 71
-
Rims: Giant P-R2 Disc wheelset, alloy, 22mm inner width
-
Hubs: Giant alloy, 12mm thru-axle
-
Spokes: Sapim
-
Tyres: Giant Gavia COURSE 1 Tubeless, 700x25C(28mm effective), 60 TPI , Folding
-
Extras: Factory tubeless set up
-
Max Tyre Clearance: 33mm
