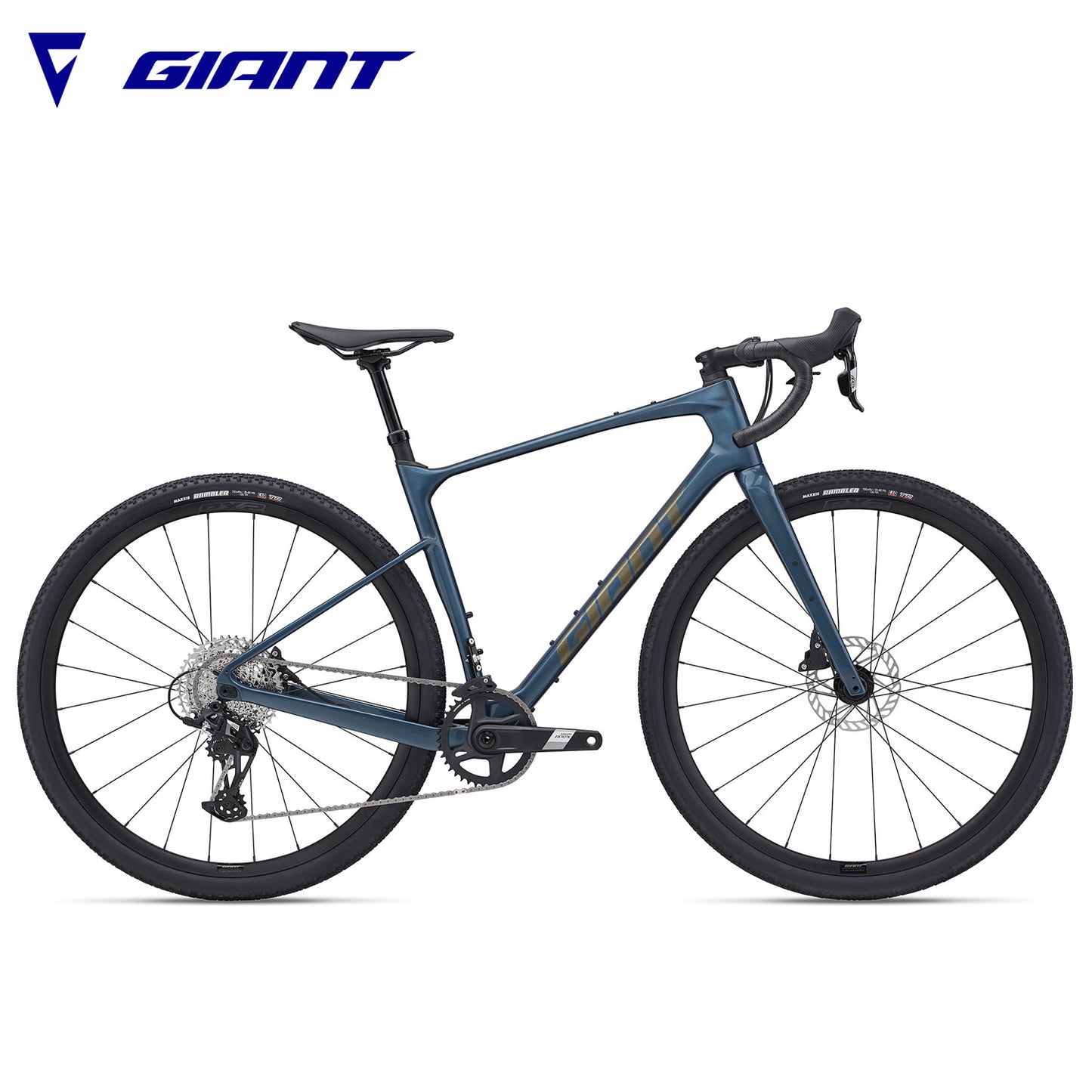

Giant Revolt Advanced 1 Advanced-Grade Composite Road, Gravel Bike SRAM Apex - Blue Ashes
Giant Revolt Advanced 1 Advanced-Grade Composite Road, Gravel Bike SRAM Apex - Blue Ashes
SKU:
REVOLT ADVANCED 1
ROUGH ROADS, GRAVEL OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. THE LIGHTWEIGHT, SMOOTH-RIDING COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.
KEY PERFORMANCE FACTORS
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance
Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
TECHS & FEATURES
ADVANCED COMPOSITE TECHNOLOGY
Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.
D-FUSE TECHNOLOGY
The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
OVERDRIVE
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
TUBELESS SYSTEM
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
FLIP CHIP - DROPOUT
Allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with us to determine the correct size.
- XS: 155cm to 166cm
- S: 169cm to 171cm
- M: 169cm to 181cm
- ML: 174cm to 186cm
- L: 179cm to 191cm
- XL: 189cm to 200cm
XS | S | M | ML | L | XL | ||
SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
A | SEAT TUBE LENGTH (mm) | 430 | 450 | 470 | 490 | 510 | 530 |
B | SEAT TUBE ANGLE | 74,0° | 73,5° | 73,5° | 73,0° | 73,0° | 73,0° |
C | TOP TUBE LENGTH (mm) | 540 | 550 | 560 | 575 | 585 | 600 |
D | HEAD TUBE LENGTH (mm) | 125 | 135 | 150 | 165 | 180 | 195 |
E | HEAD TUBE ANGLE | 70,0° | 71,0° | 71,5° | 72,0° | 72,0° | 72,0° |
F | FORK RAKE (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
G | TRAIL (mm) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
H | WHEELBASE (mm) | 1024 | 1034 | 1020 | 1030 | 1026 | 1036 | 1031 | 1041 | 1041 | 1051 | 1056 | 1066 |
I | CHAIN STAY LENGTH (mm) | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 | 425 | 435 |
J | BOTTOM BRACKET DROP (mm) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
K | STACK (mm) | 556 | 570 | 586 | 602 | 616 | 630 |
L | REACH (mm) | 381 | 381 | 387 | 391 | 397 | 407 |
M | STAND OVER HEIGHT (mm) | 7241 | 731 | 740 | 747 | 757 | 764 | 774 | 780 | 791 | 797 | 807 | 814 |
N | HANDLEBAR WIDTH (mm) | 420 | 420 | 440 | 440 | 460 | 460 |
O | STEM LENGTH (mm) | 50 | 60 | 70 | 80 | 80 | 90 |
P | CRANK LENGTH (mm) | 170 | 170 | 172,5 | 172,5 | 175 | 175 |
Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
SPECS
-
Sizes: XS, S, M, M/L, L, XL
-
Colors: Blue Ashes, Shell White
-
Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
-
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
-
Shock: N/A
-
Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
-
Grips: Stratus Lite 3.0
-
Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
-
Seatpost: Giant Contact Switch, dropper, 30.9mm XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm
-
Saddle: Giant Approach
-
Pedals: N/A
-
Shifters: SRAM Apex 1, 1x12
-
Front Derailleur: N/A
-
Rear Derailleur: SRAM Apex XPLR
-
Brakes: SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
-
Brake Levers: SRAM Rival 1, left lever dropper switch
-
Cassette: SRAM PG-1231, 12-speed, 11x44
-
Chain: SRAM Apex D1
-
Crankset: SRAM Apex 1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom Bracket: SRAM DUB, press fit
-
Rims: Giant P-X2 Disc wheelset, alloy
-
Hubs: Giant alloy, 12mm thru-axle
-
Spokes: Sapim
-
Tires: Maxxis Rambler, 700x45c, tubeless
-
Extras: Giant 1x chain guide, tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
