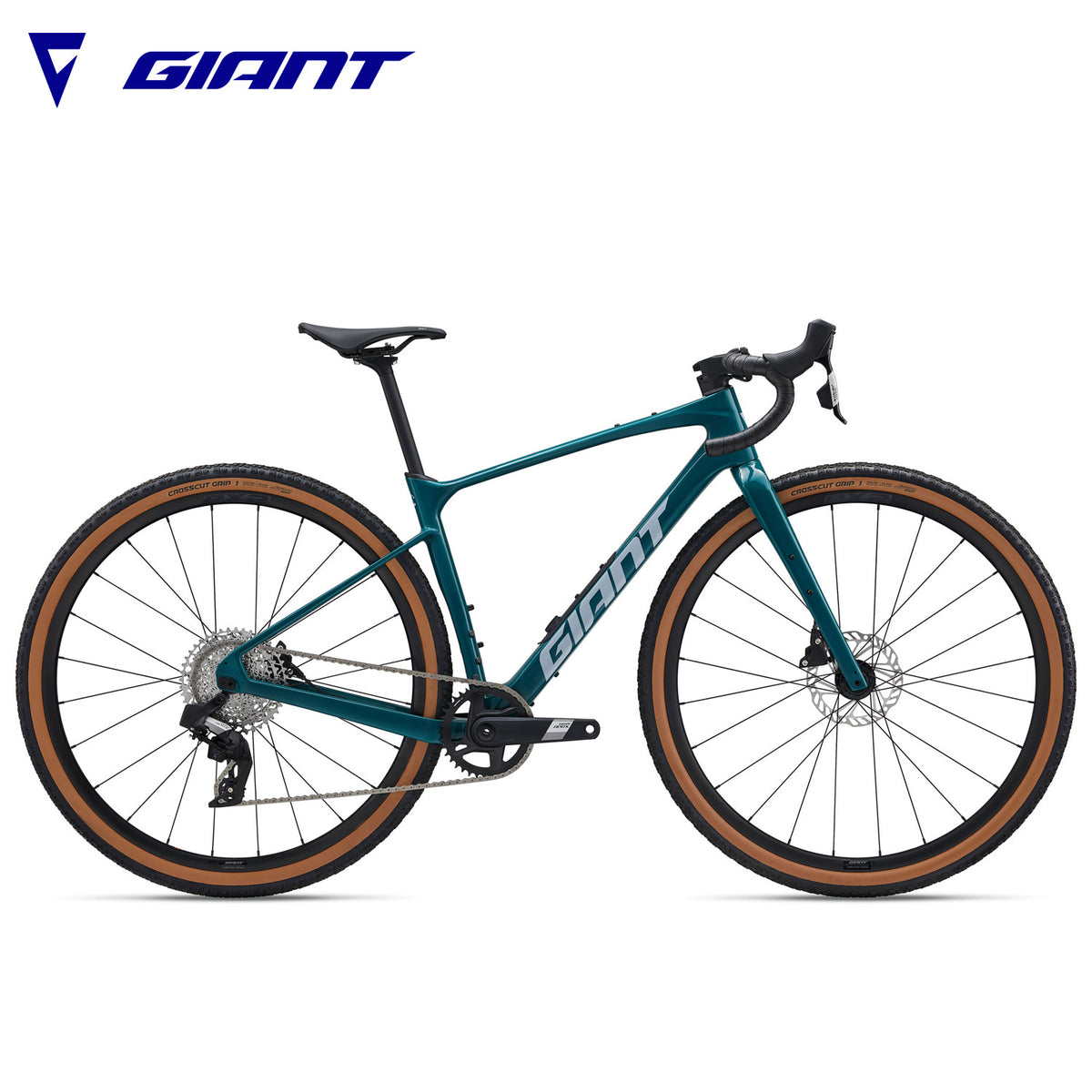

Revolt Advanced 1 (Giant Store Exclusive) 2027

Uneven roads, gravel, or dirt. However you decide, this bicycle will do the trick. The lightweight yet comfortable carbon frame and the adjustable wheelbase make it more powerful than ever before.

The Revolt Advanced is designed for gravel, forest trails, bad roads and fast kilometers on asphalt. The lightweight carbon frame ensures efficient acceleration, while the balanced gravel geometry offers control and comfort even on long distances. D-Fuse seatpost and handlebars reduce vibrations on rough surfaces without losing the direct driving feel. The flip chip at the rear dropout allows the bike to be tuned to be more agile or more smooth to run, depending on the route. At the same time, the long setting creates more tire clearance for more challenging trails. Whether it's a quick road trip, a long gravel tour, a bikepacking adventure or a forest trail, the Revolt Advanced is lightweight, versatile and ready for more.

Key performance factors

Fast and easy

Frame and fork made of advanced composite material save more than 160 g compared to the previous model. Modern geometry includes a lower bottom bracket, a longer reach, and a steeper head tube angle for improved acceleration and climbing ability.

Agreed compliance

Low-positioned seat stays with thin tubes absorb road shocks and vibrations. D-Fuse handlebars and seatposts provide more flexibility as a system without compromising stiffness during cornering, sprints or climbs.

Adaptable to the terrain

A flip-chip at the rear dropout adjusts the wheelbase: short for faster handling or long for improved stability at high speed. The long setting allows for tires with a larger diameter up to 53 mm. You can also choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9 mm round or dropper seatpost.

Technologies

Advanced Composite Technology

GIANT's high-performance carbon fiber is used to manufacture this special carbon frame material, which is woven and processed in-house and has an excellent stiffness-to-weight ratio. The front frame triangle is formed as the only piece. The modified monocoque construction eliminates the need for the outer braided composite layer. This reduces weight without affecting ride quality, stability, or stiffness.

OverDrive

An oversized fork steerer tube increases front-end stiffness for precise steering at speed, giving you greater control through corners and over rough road surfaces.

Tubeless System

Fewer mishaps. Better traction. Lower rolling resistance. GIANT'sTubeless System makes assembly easier and provides extra driving fun.

D-Fuse Technology

The seatpost and handlebars with D-Fuse technology were designed to function as a system, absorbing shocks and vibrations from the road so you can drive farther and faster.

Size and geometry data

The size and geometry data provide guidance for you. Your local GIANT or Liv dealers will be happy to help you find the perfect size.

• XS - 155 cm to  166 cm
• S - 159 cm to  171 cm
• M - 169 cm to  181 cm
• ML - 174 cm to  186 cm
• L - 179 cm to  191 cm
• XL - 189 cm to  200 cm

• Frame Sizes: XS, S, M, M/L, L, XL
• Color: Abyss Teal
• Frame: Advanced Carbon frame, frame storage compartment, flip chip dropouts, 12x142 mm Max. Tire clearance: 45mm (short), 53mm (long)
• Fork: Advanced full carbon fork, OD1 fork steerer tube, 12x100 mm
• Handlebars: GIANT Contact XR D-Fuse
• Handles: GIANT Stratus Lite 3.0
• Extension: Giant Contact Aerolight
• Seatpost: GIANT Contact D-Fuse Carbon
• Saddle: GIANT Grit
• Gearshift Lever: Sram Apex eTap AXS HRD, 1x12x
• Switchgear: Sram Apex eTap AXS, 12x
• Brakes: Sram Apex AXS HRD, 160/160mm
• Brake Lever: Sram Apex AXS HRD
• Cassette: PG-1231 11-44
• Chain: Sram Apex CN-APX-D1
• Crank Set: Sram Apex 1, 38T
• Bottom Storage: Sram DUB PressFit
• Rims: GIANT P-X2 Disc, Tubeless Ready
• Hubs (V/H): GIANT P-X2 Disc
• Spokes: Giant P-X2
• Tires: Giant CrossCut Grip 1, 700x45C
• Accessories (partially built): Tubeless Kit (sealant, valves, tire lifter, valve core tool, user manual)
• Maximum Tire Width: 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
• Weight (kg): 9.24
