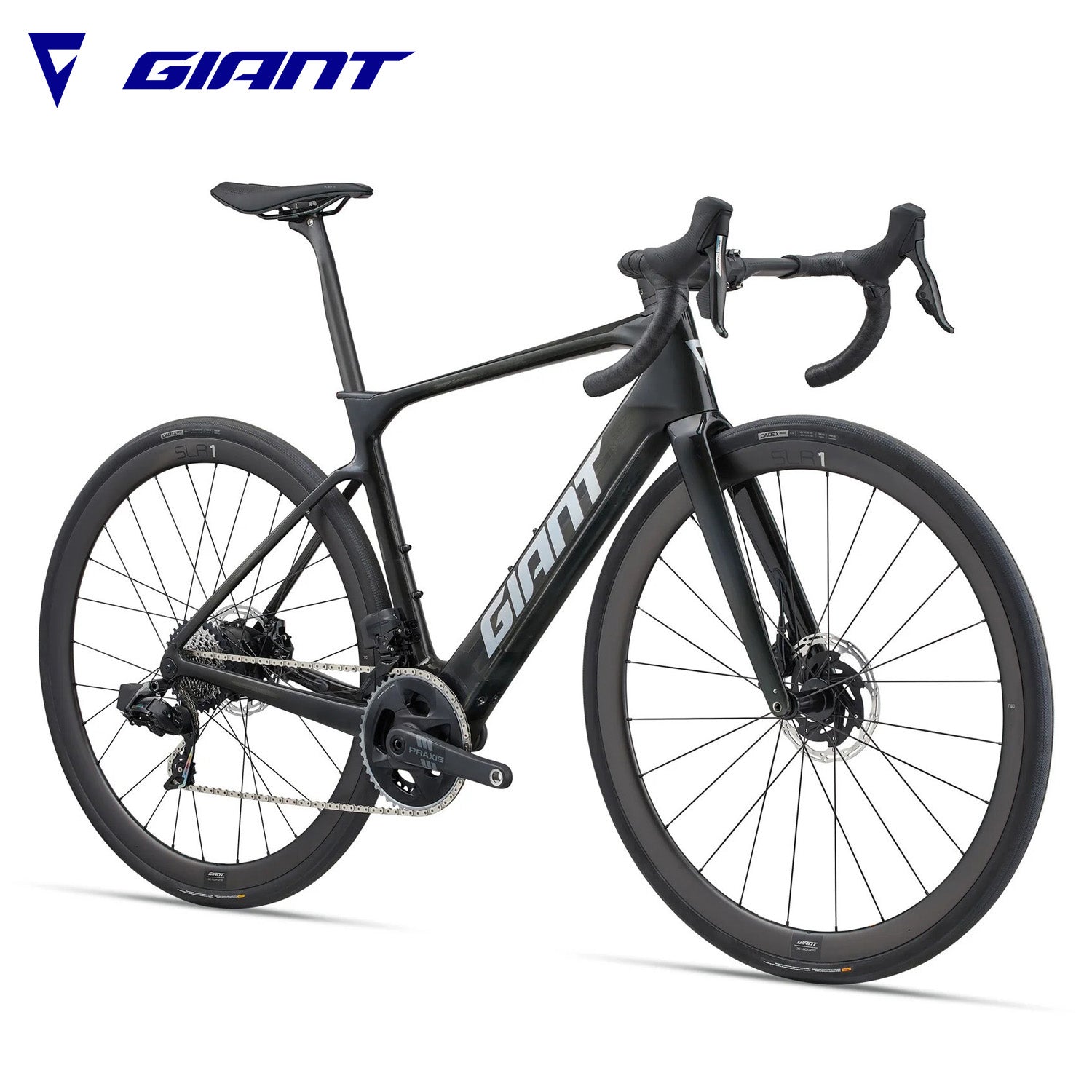

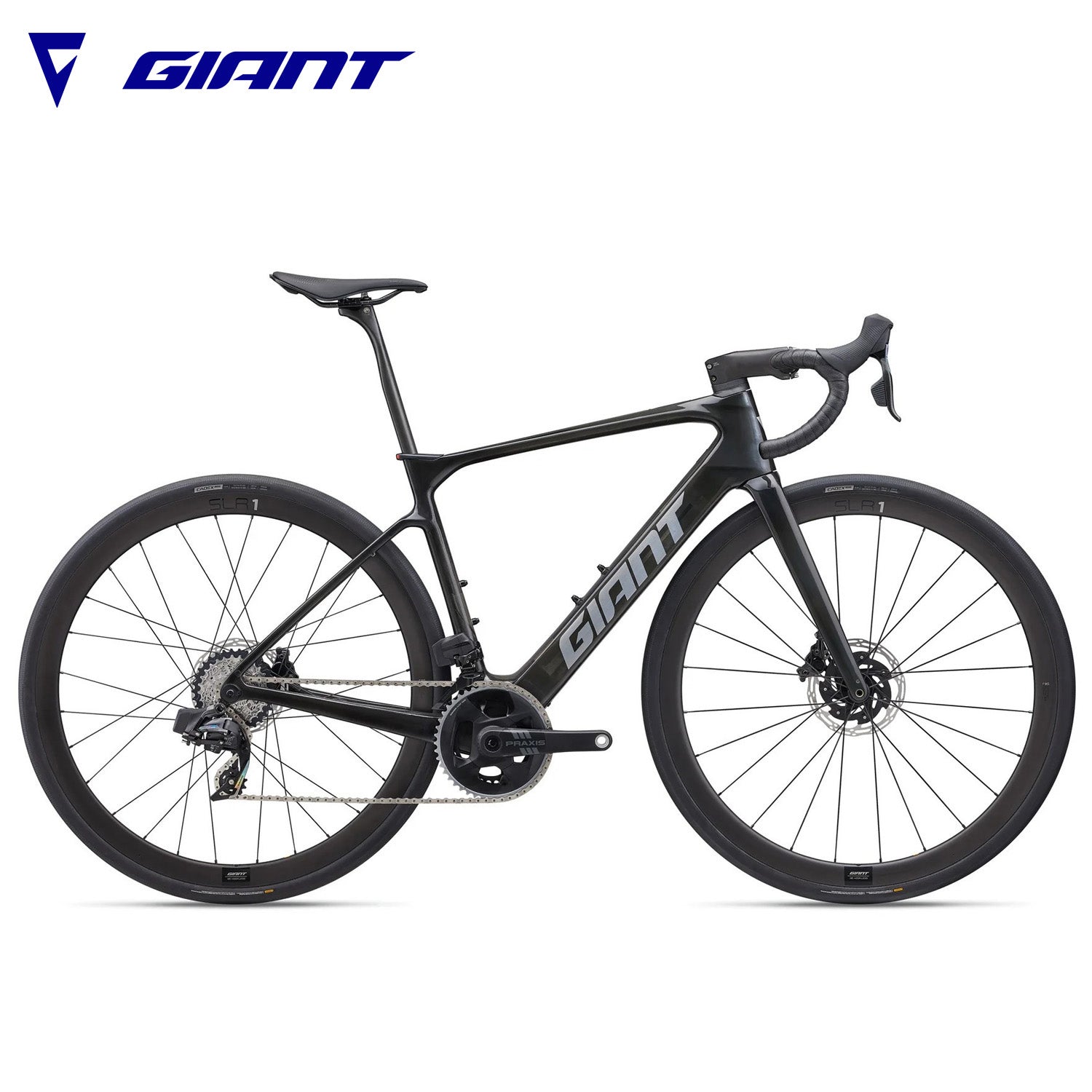

Defy Advanced E+ Elite 1

With its smooth-riding composite frame, lightweight battery, and new SyncDrive Move Plus integrated rear hub motor, the Defy Advanced E+ is the ideal choice for performance-minded road riders who want to tackle steep hills, maintain higher speeds, and experience road riding with no limitations.

Key Performance Factors

SEAMLESS POWER

The SyncDrive Move Plus motor is integrated into the rear hub and delivers 30Nm of power (equivalent to 75Nm with a mid-drive motor) directly to the rear wheel. Weighing just 1.7kg, it’s specially tuned for the pedaling pattern of performance road riding, with minimal energy loss and more torque at higher speeds. The result is a natural feel when accelerating or maintaining steady power at speed, and no motor drag while freewheeling or coasting.

SYSTEM INTEGRATION

The down tube integrated EnergyPak 400 battery system weighs just 2.3kg and is purpose-built for the specific needs of E-bikes. A top tube mounted RideControl Go button makes it quick and easy to turn the E-bike on or off and change power modes. Smart Assist technology uses three sensors to precisely measure the power being applied to the pedals and produce just the right amount of support for a smooth, natural ride experience. All models feature SRAM wireless electronic shifters and an integrated taillight.

PURE ROAD PERFORMANCE

A lightweight composite frameset and high-performance components including a D-Fuse seatpost and handlebars for compliance, integrated WheelSystems with tubeless tires, and a wireless electronic drivetrain all add up to a smooth, efficient ride quality that mirrors the award-winning performance of the Defy endurance road bike range.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Techs & Features

Advanced Composite Technology

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

D-Fuse Technology

The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.

Energypak

Giant’s latest EnergyPak battery systems feature streamlined designs that are integrated with the E-bike for a sleek and modern profile. Giant E-bikes offer several different EnergyPak options including the EnergyPak Smart and EnergyPak. Each one is designed to optimize the E-bike experience for a specific style of riding.

E+ System

E+ System combines electric power with human power to produce a smart, natural and powerful E-bike riding experience. It’s an integrated group of technologies that includes our RideControl control units, EnergyPak battery systems and SyncDrive motors.

RideControl App

The updated RideControl App expands the existing customization options for your SyncDrive motor. Now you choose exactly how you want the system to perform. You can use the app to adjust from the battery-saving Eco mode all the way up to Power mode, and collect all relevant ride metrics during your activity.

Smart Assist

All SyncDrive motors have Smart Assist technology, which adjusts the support to match the rider’s needs. By using information from multiple sensors, both rider input and terrain feedback are used to determine the optimal amount of pedaling assistance. SyncDrive is the only e-bike system that utilizes both rider input and terrain feedback. It gives you a smooth, natural riding experience with ample power when you need it, while also conserving power when you don’t need as much.

SyncDrive Move Plus

The new SyncDrive Move Plus motor delivers 30Nm of torque, which is comparable to 75Nm of torque in a mid-drive motor—all in a lightweight, quiet system that’s fully integrated into the rear hub. It features five support levels plus Smart Assist technology, which can automatically adjust pedaling support without having to change settings while riding. The motor uses sensors to constantly adjust output based on advanced algorithms.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.

• Small: 166 to 174cm
• Medium: 172 to 180cm
• Medium Large: 178 to 186cm
• Large: 184 to 192cm

• Motor: SyncDriveMove Plus Hub drive 75Nm max
• Controller: Mode support switch from SRAM bonus button
• Display: Giant RideControl GO, frame-integrated LED console Optional wireless ANT+ display
• Battery: Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
• Charger: Giant EnergyPak smart charger 4A
• Connectivity: Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
• Sizes: S, M, ML, L, XL
• Colors: Raw Carbon
• Frame: Advanced-grade composite,12x145 thru-axle
• Fork: Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12x100mm thru-axle, Disc
• Handlebar: Giant Contact SLR D-Fuse 31.8 carbon
• Stem: Contact SLR Aerolight 31.8 carbon
• Seatpost: Giant D-Fuse SL, Composite, 16mm offset
• Saddle: Giant Fleet SL
• Shifters: Sram Force AXS
• Front Derailleur: Sram Force AXS
• Rear Derailleur: Sram Force AXS
• Brakes: Sram Force AXS HRD, Centerline 160mm center-lock [F] 160mm 6-bols [R]
• Brake Levers: Sram Force AXS HRD
• Cassette: SRAM Force XG-1270 10x33T 12-speed
• Chain: Sram Force 12-speed
• Crankset: Sram Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Carbon ISIS
• Bottom Bracket: Giant E+ System BBSS
• Rims: Giant SLR 1 E+ 36 Carbon Disc Wheel System, Hookless, Tubeless Ready, 12mm thru-axle, w/ Sapim spoke E-Light [R] CX-Ray [F], e-bike optimized
• Tires: Cadex Classic, tubeless, 700x32, folding
• Extras: Fender adapter
• Lighting: Seatpost clamp integrated tail light
