The D-Fuse seatpost and handlebar were designed to function as a system, absorbing road shocks and vibrations so you can ride farther, faster.
OverDrive
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Tubeless System
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
Sizing Guide and Geometry
Sizing to be used as a reference only.
- XS: 157cm to 169cm
- S: 165cm to 175cm
- M: 171cm to 181cm
- ML: 177cm to 187cm
- L: 183cm to 193cm
- XL: 189cm to 199cm

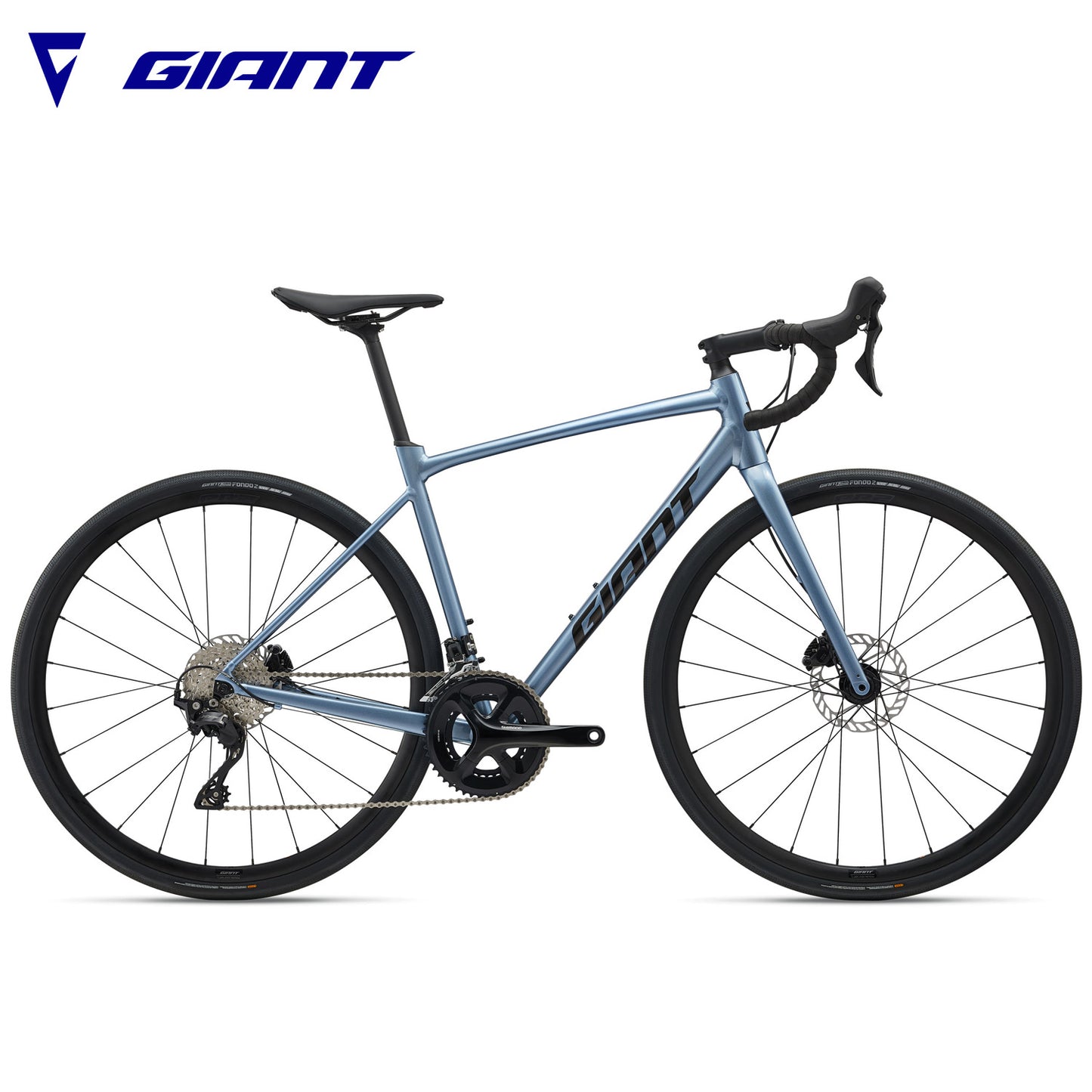

SPECS
-
Sizes: XS, S, M, M/L, L, XL
-
Colors: Frost Silver/Chrome
-
Frame: ALUXX-grade aluminum, 12x142mm thru-axle, disc
-
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
-
Shock: N/A
-
Handlebar: Giant D-Fuse SL XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
-
Grips: Velo cork tape with gel
-
Stem: Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:110mm
-
Seatpost: Giant D-Fuse, composite, 14mm offset
-
Saddle: Giant Approach
-
Pedals: platform pedal [GU,GV,GJ] pedal with toe clips/straps [rest of GSC]
-
Shifters: Shimano 105
-
Front Derailleur: Shimano 105
-
Rear Derailleur: Shimano 105 GS
-
Brakes: Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
-
Brake Levers: Shimano 105
-
Cassette: Shimano 105, 12-speed, 11x36
-
Chain: KMC X12L-1
-
Crankset: Shimano FC-RS520, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
-
Bottom Bracket: cartridge
-
Rims: Giant P-R2 Disc wheelset, alloy, [F]25mm, [R]25mm
-
Hubs: Giant alloy, 12mm thru-axle
-
Spokes: Sapim
-
Tires: Giant Gavia Fondo 2, tubeless, 700x32c (34mm)
-
Extras: fender mount, tubeless prepared, 38mm max tire size
