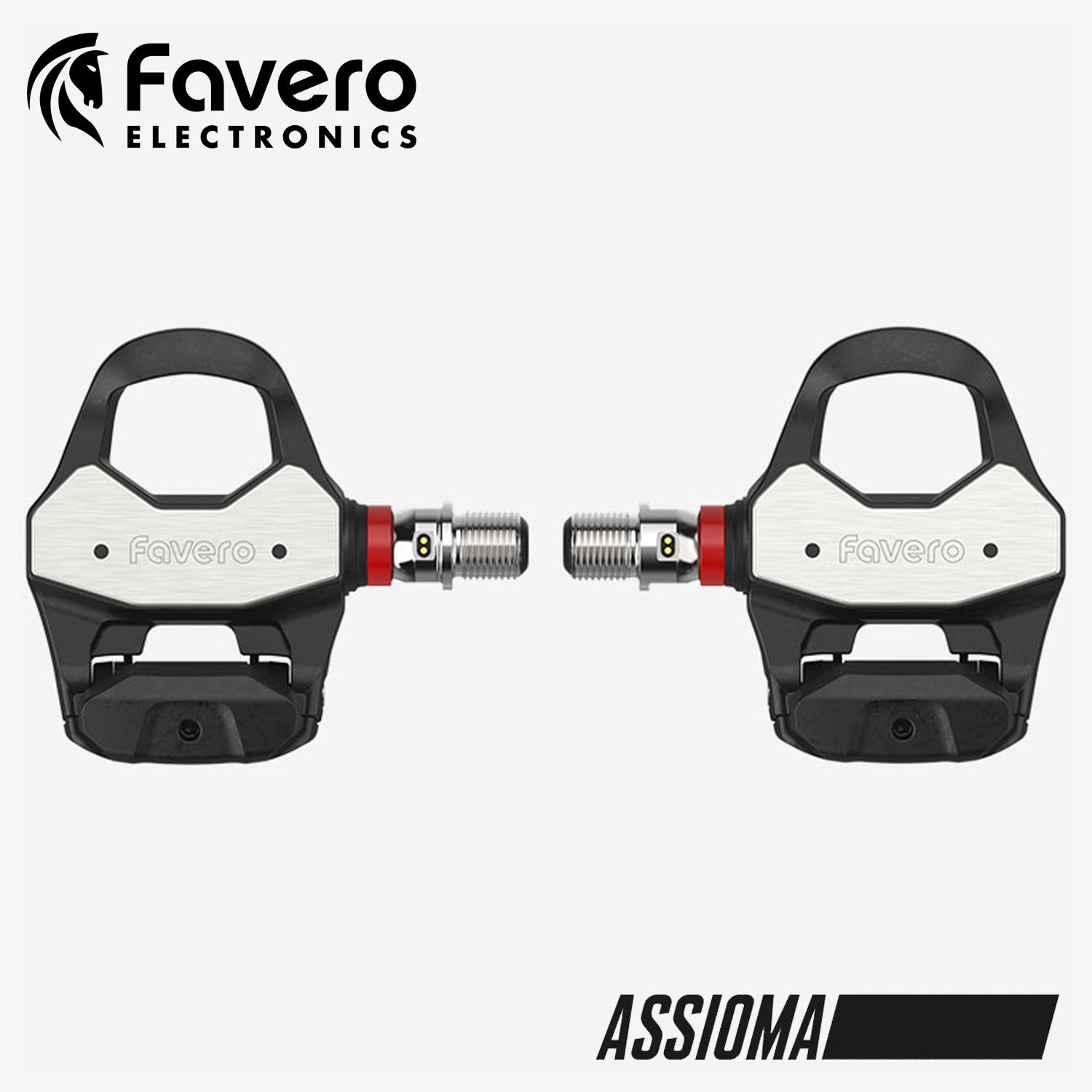

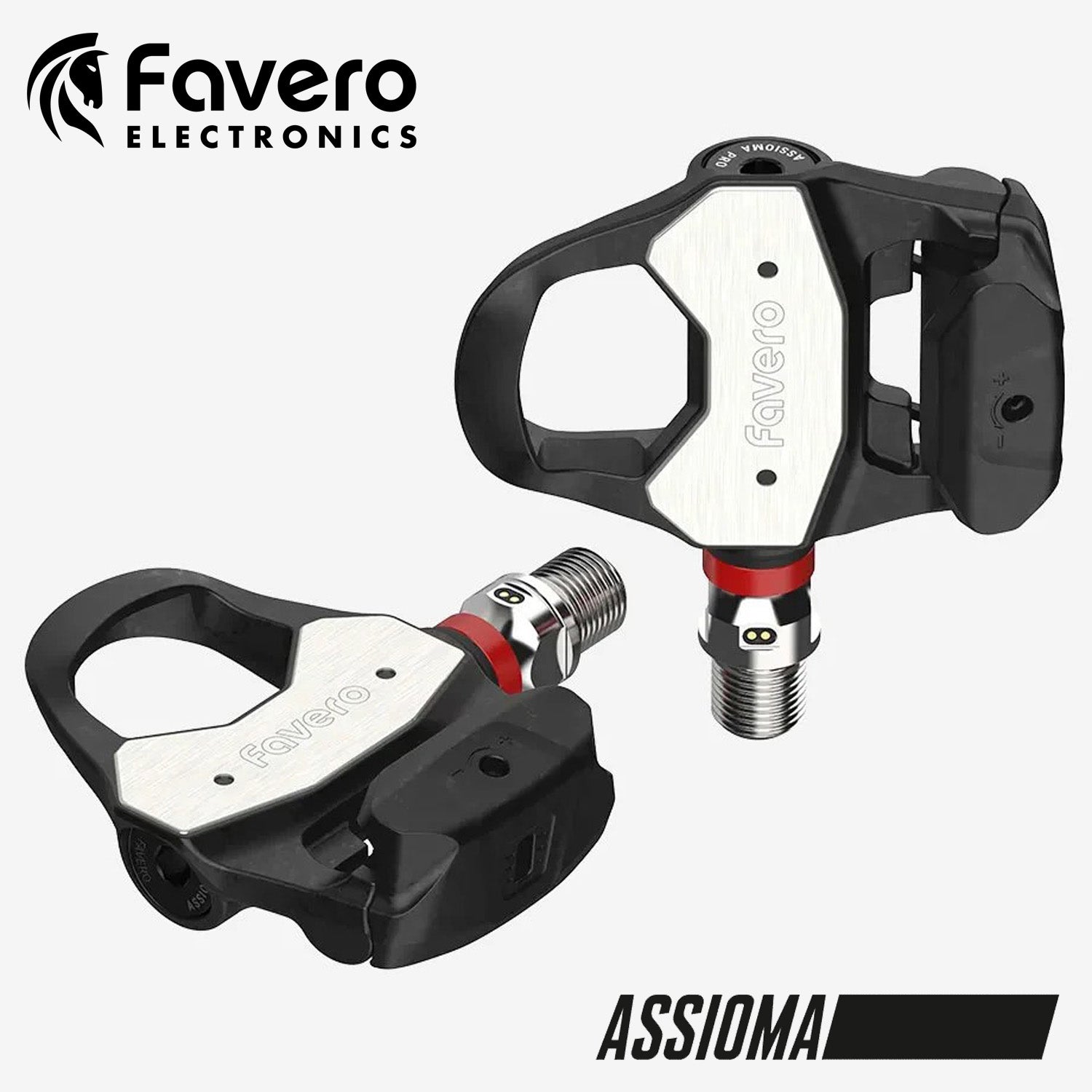

Assioma PRO RL-2

Look®-compatible power meter with power sensor on both sides.
The best choice to take full advantage of the real dual-sided measurement.

773-30-02

Tech Specs

• Bike Type: Road Cycling

Technical Sheet

• Power Meter:
  • Left pedal with power sensor
  • Right pedal with power sensor
• Clip-in System: 100% compatible with Look® Keo
• Compatible cleats:
  • Provided cleats (art. 773-00-71)
  • Favero Look®-compatible cleats (art. 773-00-70, 773-00-72, 771-40, 771-42)
  • Look® Keo, Look® Keo Grip
• Power measurement: Total power with L/R balance insights
• Data provided:
  • Power
  • Cadence
  • L/R Balance
  • PCO
  • Power Phase (PP)
  • Rider Position (RP)
  • Pedal Smoothness (PS)
  • Torque Effectiveness (TE)
• Waterproofness: IP67
• Temperature compensation: Yes – ATC (Active Temperature Compensation)
• Pedal body: Pedal body in carbon-fibre tech-polymers
• Modular design: Interchangeable pedal bodies (road/MTB)
• Oval-chainrings compatible: Yes
• Warranty: 2 yrs
• Made in: Italy

Dimensions

• Weight per power pedal:
  • 130 g
  • Lightest on the market among Look®-compatible power meter pedals with adjustable release tension regulation rate
• Stack height: 10.5 mm
• Q-factor: +53 mm
• Contact surface: 755 mm²

Battery

• Battery type: Lithium-ion, rechargeable
• Battery duration: Up to 160 hours per charge

Communication and sensors

• Cadence sensor: Included, built-in
• Gyroscope: Included, built-in
• Radio communication: ANT+, Bluetooth (up to 3 BLE connections at the same time)
• Visible data/channel:
  • Via Bluetooth, ANT+/Favero Assioma app
    • Power
    • Cadence
    • L/R Balance
  • Via ANT+/Favero Assioma app
    • PCO
    • Power Phase (PP)
    • Rider Position (No Favero Assioma app)
    • Pedal Smoothness (PS)
    • Torque Effectiveness (TE)
• Power calculation system: IAV (Instantaneous Angular Velocity-based)
• Cycling Dynamics: Available (PCO, PP, RP)
• Accuracy: ± 1%

Package Content

• A1-A2: Power meter with sensors on both sides
• B: Favero | Look® Keo cleats 5°
• C1-C2: 2 Magnetic connectors
• D: Two-way charging cable
• E1-E2: Greasing tools kit
• F: Warranty and safety manual
• G: Welcome flyer
• H:
  • 6 Cleat washers
  • 6 Screws
  • 4 washers
