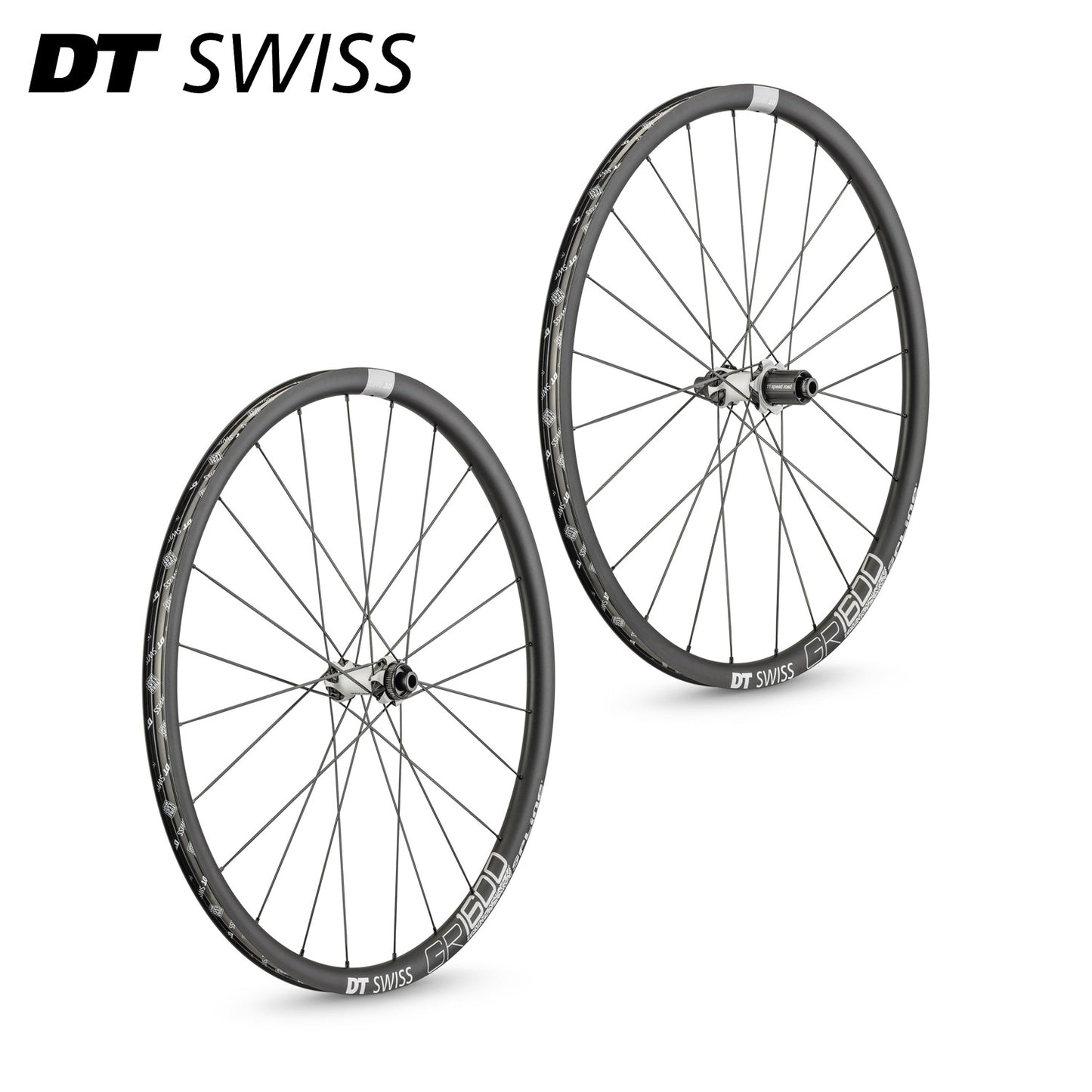

GR 1600 SPLINE^®

^{Leave the pavement behind and embrace the freedom of off-road cycling.}

PRODUCT DETAILS

Leave the pavement behind and experience the thrill of off-road cycling with the GR 1600 SPLINE. Whether you're venturing into the world of bikepacking or simply craving a speedy off-road ride, you'll enjoy the agility delivered by the combination of its components. The premium alloy of its welded rim, available in 650b or 700c, provides an ideal blend of lightness and strength. In addition, its 350 hub and ratchet system will let you ride off-road with confidence thanks to a quicker engagement than its predecessor.

• HUB TYPE: 350 with Ratchet System 36 SL
• RIM: Aluminum, Hooked / Crotchet tubeless TC
• RIM HEIGHT: 25 mm
• SPOKES: DT aero comp® wide straightp

RIM

The premium welded aluminum rim features an inner width of 24mm, and is available in 2 different rim sizes, specifically engineered to fit wide knobby tires up to 53mm.

SPOKES

The DT aero comp wide straightpull middle section is cold-forged, making it lighter and stronger. It is then shaped into a blade-like profile that optimizes aerodynamics and increases material strength.

HUB

The 350 road hub features our no-tool concept, ideal when you need to service your hub during long adventures.

FREEHUB BODY

The Ratchet System 36 SL ensures reliable power transmission so you can ride off-road with confidence.

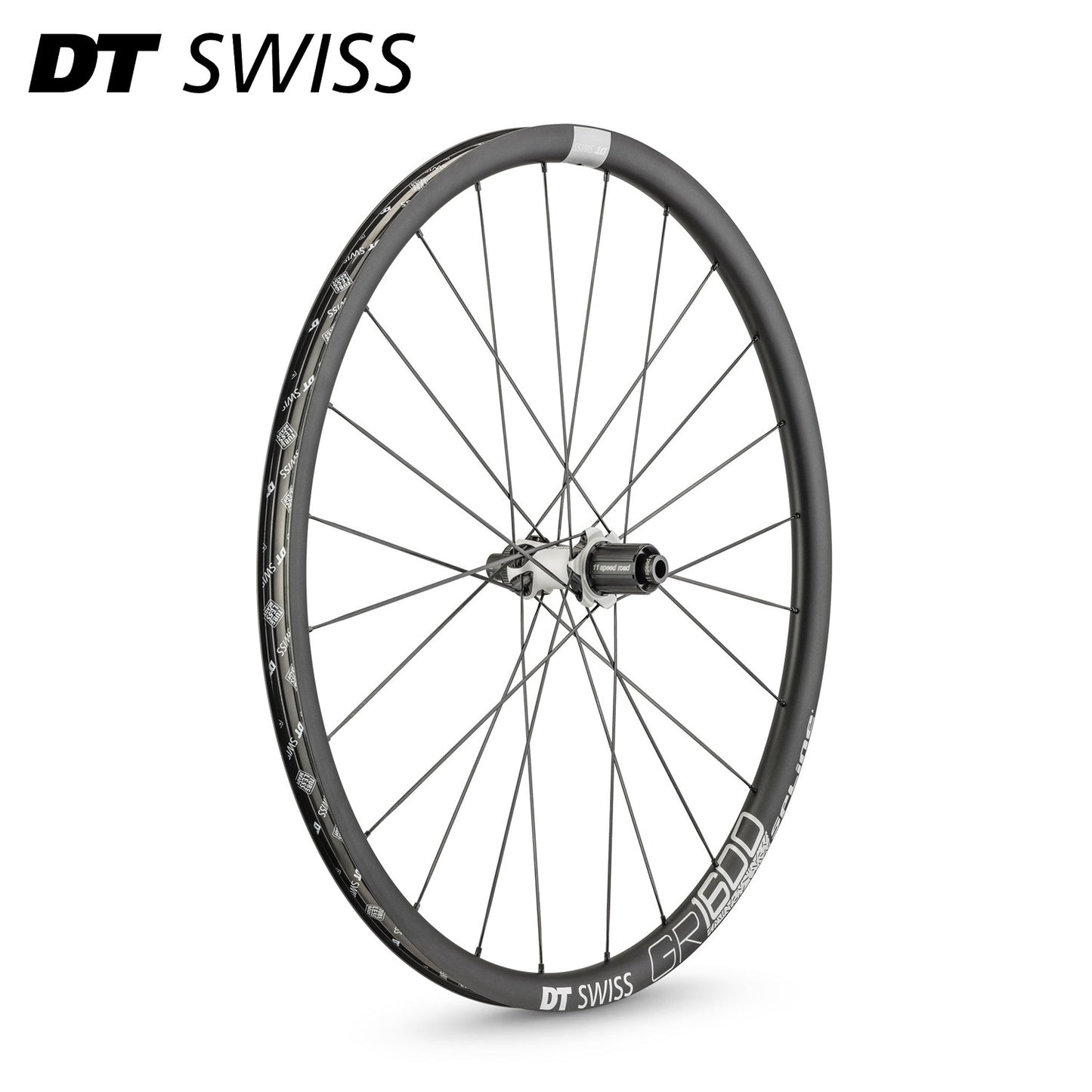

REAR WHEEL

GR 1600 SPLINE db 25 12/142 mm Shimano

WGR1600NIDMSA10677

• Net Weight: 970g
• Recommended System Weight Max.: 130kg
• ASTM Classification: 2
• Rim: Aluminum, Hooked / Crotchet tubeless TC
• Rim Diameter: 29"/700c
• Rim Height: 25mm
• Inner Width: 24mm
• Outer Width: 28mm
• Hub Type: 350 with Ratchet System 18
• Spokes:
• Spokes left: DT aero comp® wide straightp
• Spokes right: DT aero comp® wide straightp

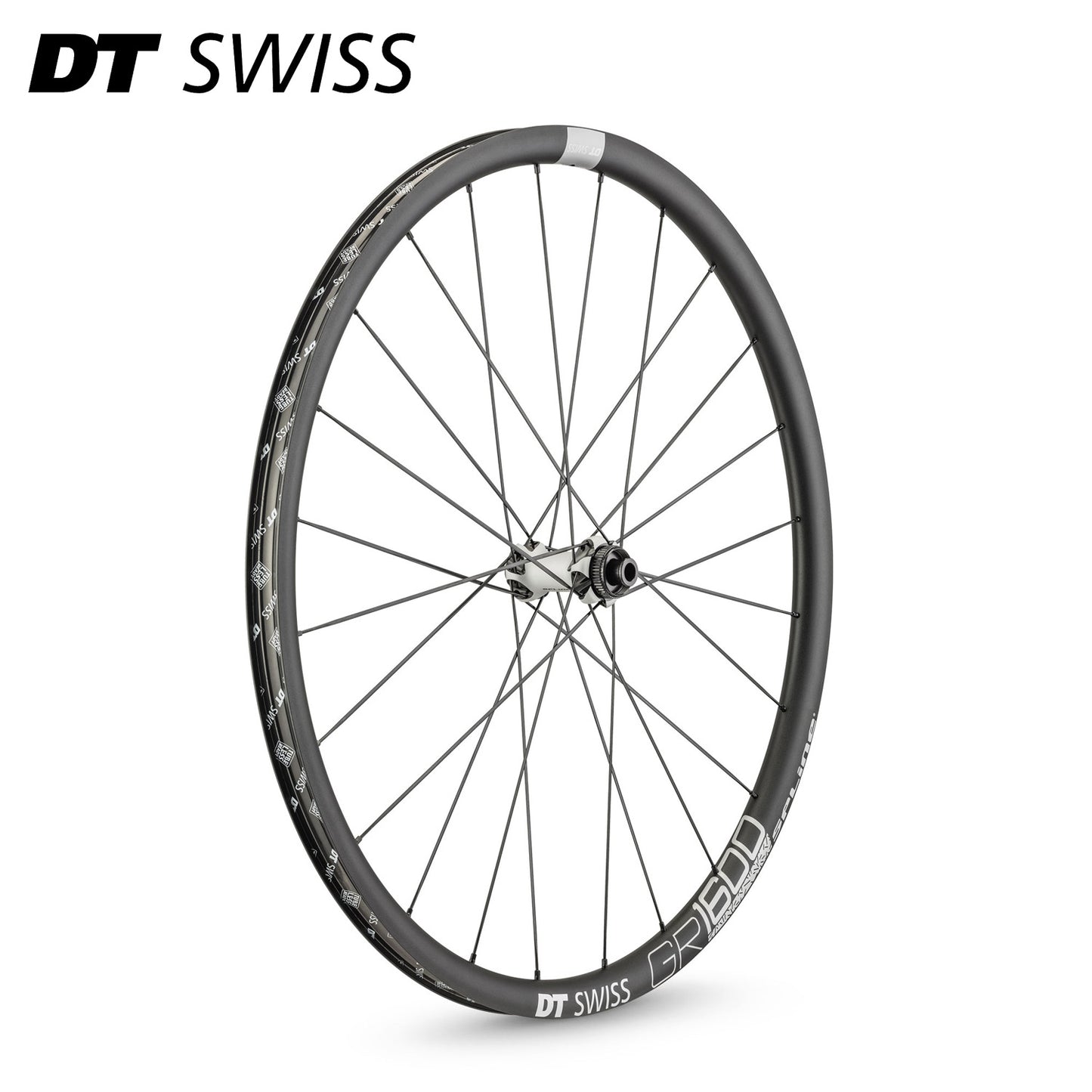

FRONT WHEEL

GR 1600 SPLINE db 25 12/100 mm

WGR1600AIDXSA10676

• Net Weight: 841g
• Recommended System Weight Max.: 130kg
• ASTM Classification: 2
• Rim: Aluminum, Hooked / Crotchet tubeless TC
• Rim Diameter: 29"/700c
• Rim Height: 25mm
• Inner Width: 24mm
• Outer Width: 28mm
• Hub Type: 350
• Spokes:
• Spokes left: DT aero comp® wide straightp
• Spokes right: DT aero comp® wide straightp

CONVERSION KIT

HWYAAX00S8888S

• Freehub Body: SRAM XDR RD. (AXDR)
• Cassette Interface: SRAM XDR
• Freehub Technology: Ratchet
• Material: Aluminum
• Bearing Quality: Standard
• Version: Standard
• Kit/Without Endcap: Kit
• Color: Black
