FR 541

Not the first, but the last.

Product details

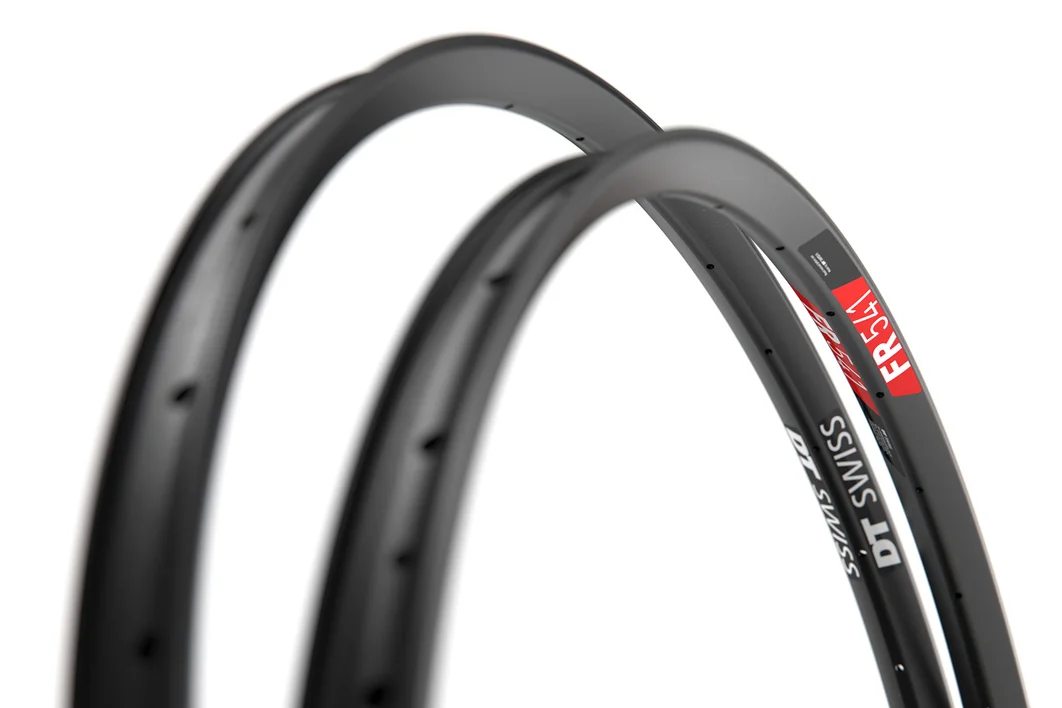

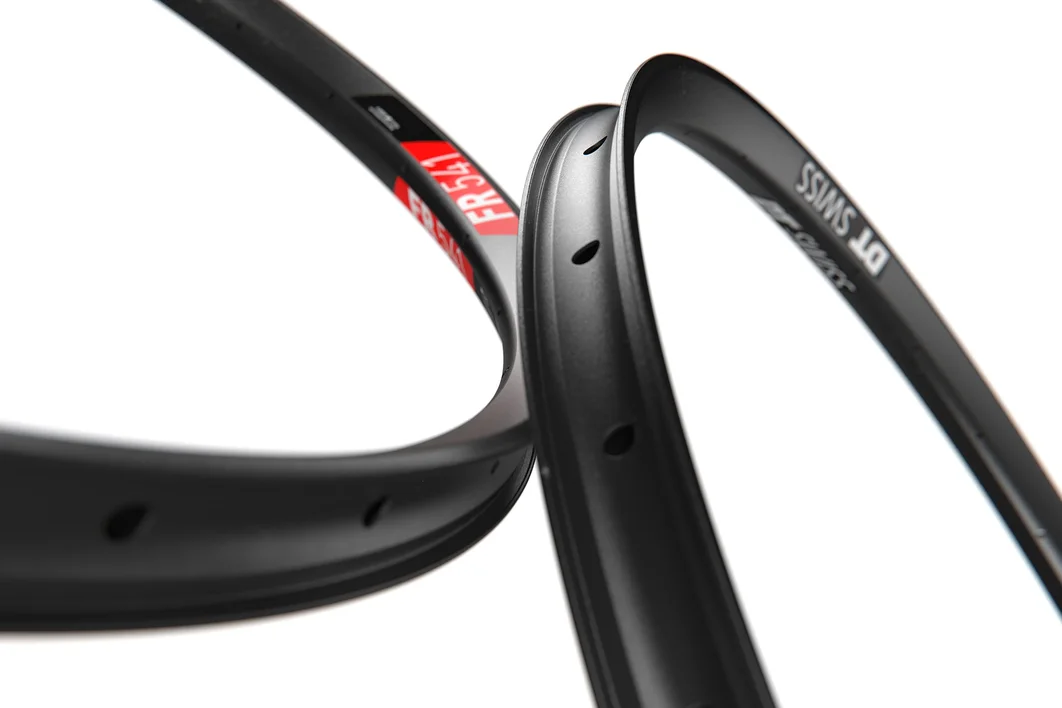

The FR 541 may not be your first rim, but it aspires to be the last. The new rim shape improves the impact resistance, enabling you to push a little harder on the trails. It also enhances the pinch flat protection for a trusty ride on rougher tracks. Build this rim with care and it will reward you with resistance and lightness for a long-lasting bond.

Material: Aluminum

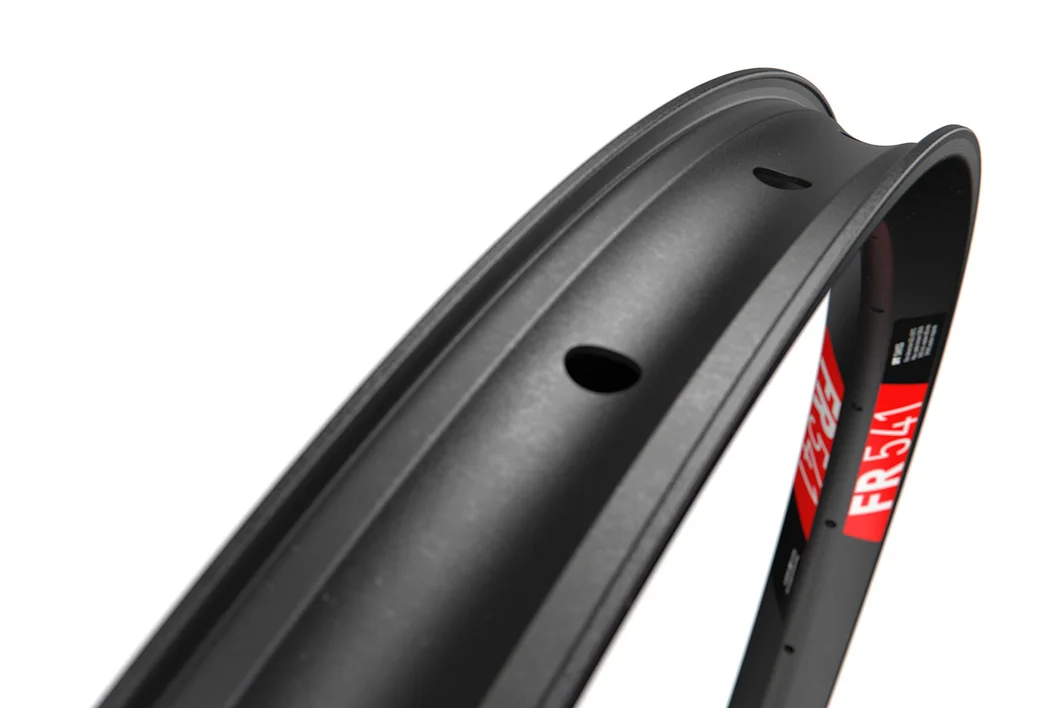

PINCHFLAT PROTECTION

Tests conducted with a leading tire supplier showed a 17% increase in pinch flat resistance compared to the previous FR 560 rim.

SIZE OPTIONS

Ride in full 29", full 27.5", or mullet. The FR 541 is available in both sizes and both sizes are available in 28 or 32 spoke count.

WELDED RIM

The welding process on aluminum rims is the most resistant joining method of the DT Swiss aluminum portfolio.

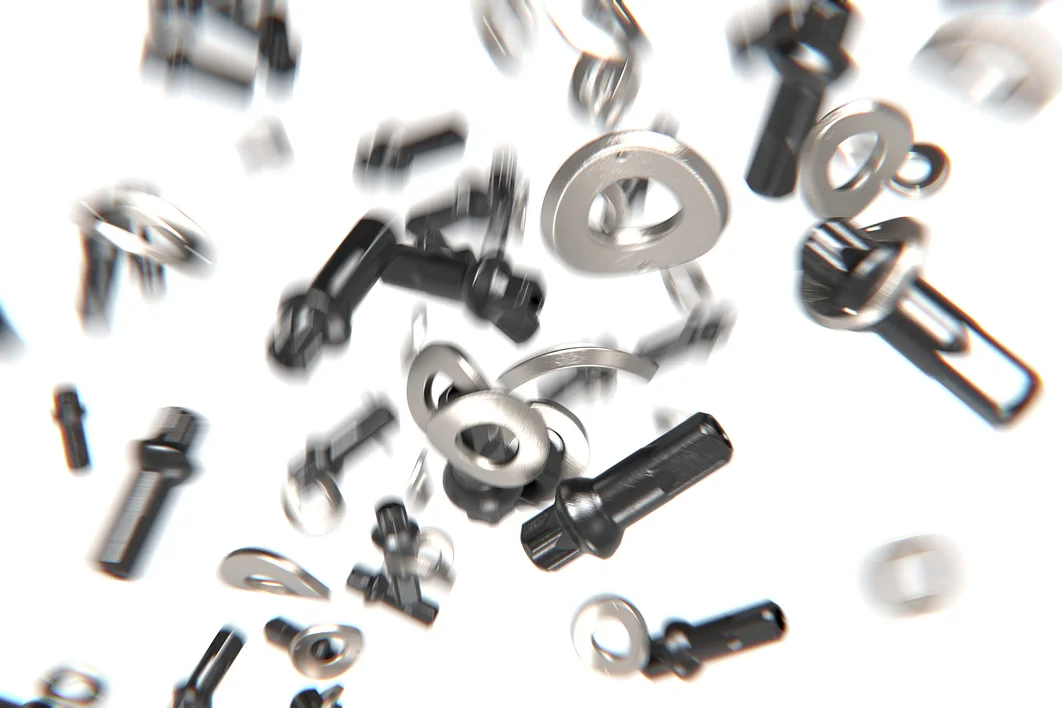

PHR SYSTEM

The PHR System increases the load-bearing surface of the nipples on the rim and reduces localized stresses.

PERSONALIZE YOUR RIDE

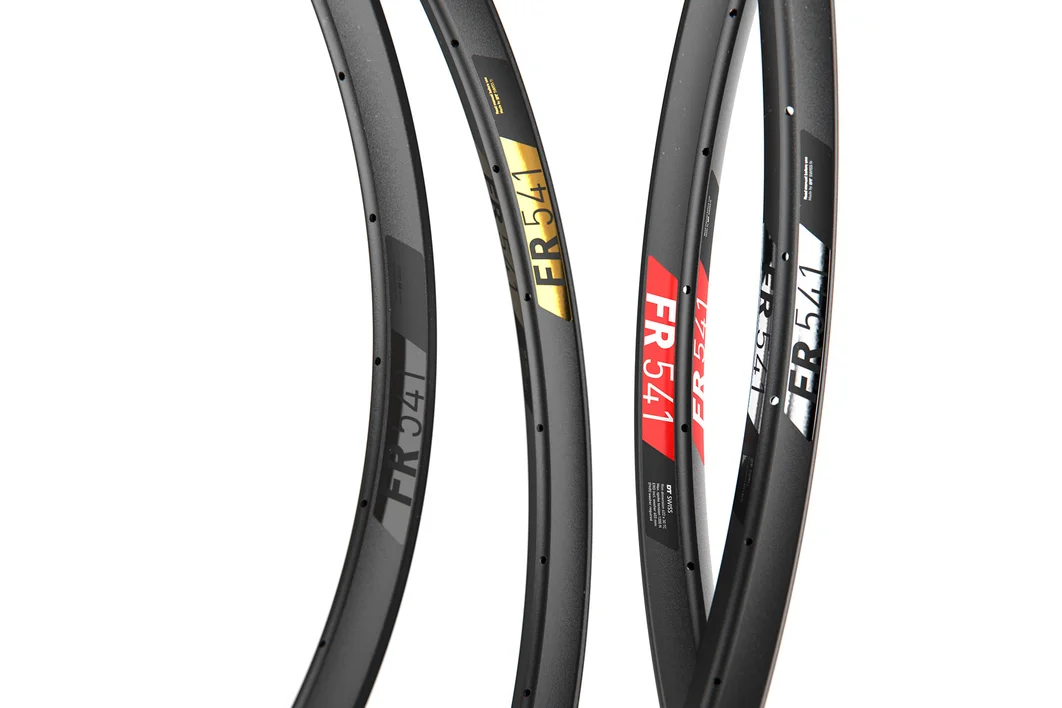

The FR 541 comes with 3 additional stickers to match your style

TECHNOLOGY

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

FR 541 27.5 30 mm DB VI

RDFR54BDPW32SA1488

General

• Net Weight: 570g
• Recommended System Weight Max.: 140kg
• ASTM Classification: 5

Material & Brake Interface

• Material: Aluminum
• Rim Joint: Welded
• Tire Interface: Hooked/Crotchet Tubeless TC
• Brake Interface: Disc

Dimensions

• Rim Diameter: 27.5" / 650B
• Reference Diameter ERD: 565mm
• Inner Width: 30mm
• Outer Width: 35mm
• Rim Height: 21mm

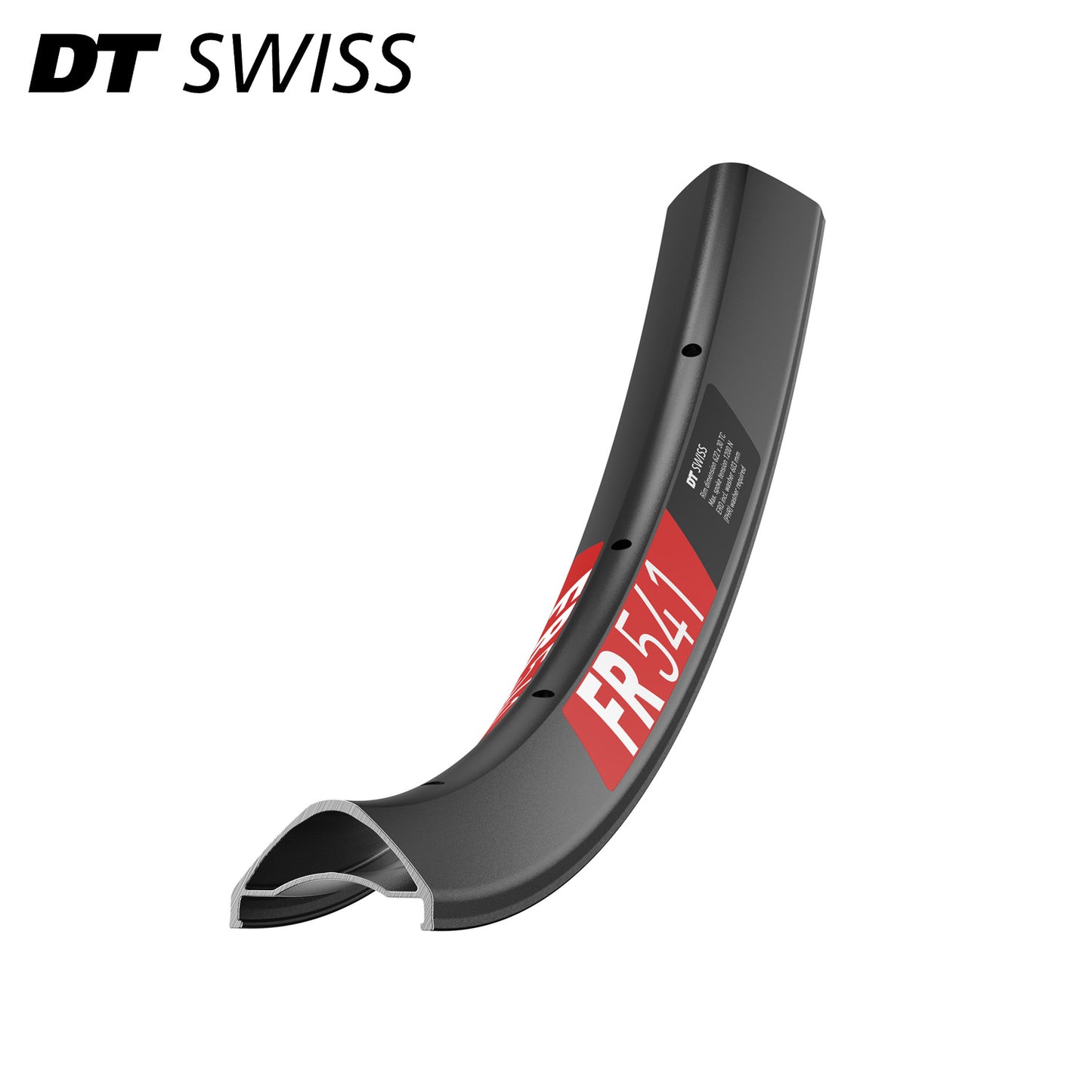

• Cross Section:

Holes

• Number of Holes: 32
• Spoke Bore Rim: Non Eyelet PHR
• Valve Hole: Presta

Inclusive

• Inclusive: Decalset Black Chrome Gold, DT Pro Lock Squorx alu black
  Washer PHR
