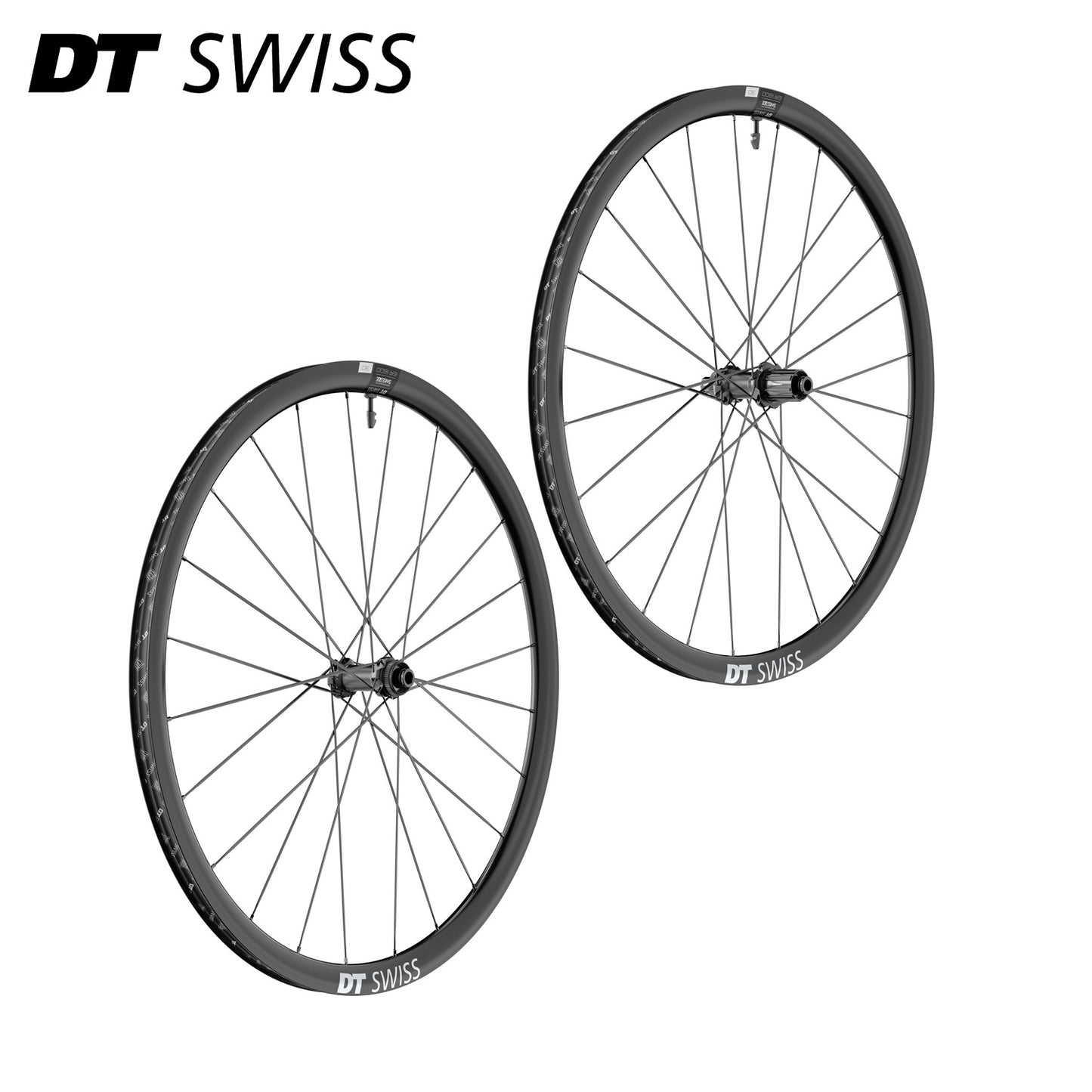

DT Swiss ER 1600 Spline 700c Road Bike Wheelset Front and Rear HG

DT Swiss ER 1600 Spline 700c Road Bike Wheelset Front and Rear HG

Regular price ₱36,000.00
Regular price Sale price ₱36,000.00
Sale Sold out
Tax included.

SKU:

ER 1600 SPLINE®

Ride further faster with this ideal upgrade to your bike.

PRODUCT DETAILS

It is easy to lose track of time on these Endurance wheels. Thanks to the 22mm rim and the mix of comfort and grip provided by the ideal support of wide tires, you can easily change your plans and extend the ride. You will enjoy the quick engagement of the 350 hub with 36 SL Ratchet which, combined with the strong spokes, will give you a smooth ride even on technical roads. Available in two specific rim heights, the 30mm has been aero optimized to help you go further (or faster), whichever you prefer...

  • ER 1600 SPLINE 23: makes the hills you may encounter along the way barely noticeable
  • ER 1600 SPLINE 30: its aero-optimized design will keep you going in windy conditions
  • HUB TYPE: 350 with Ratchet System 36 SL
  • RIM: Aluminum, Hooked / Crotchet tubeless TC
  • RIM HEIGHT: 23 mm, 30 mm
  • SPOKES: DT aero comp® II straightpull, DT aero comp® wide straightp

RIM WIDTH

The new rim has an increased width of 22mm, providing ideal support for wide tires, resulting in a great mix of comfort and stability.

RIM HEIGHT

The 30mm height of the aero optimized design of the new E 550 rim will help you ride further.

SPOKES

The DT aero comp® II straightpull has an updated shape from the previous version, providing an aerodynamic advantage.

HUB

The 350 road hub saves some weight by using a lightweight axle along with a milled hub body and includes the prized Ratchet System.

FREEHUB BODY

The fast engagement of the beloved Ratchet System 36 SL results in responsive acceleration, ideal when riding on winding roads.

AERO FOR ALL

Our first aero-optimized aluminum wheels

TECHNOLOGY

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

FRONT WHEEL SPECIFICATION

WER1600AIDXSA21171 - ER 1600 SPLINE DB 30 12/100 MM

General

  • Net Weight: 873g
  • Recommended System Weight Max.: 130kg
  • ASTM Classification: 2

Rim

  • Material: Aluminum
  • Rim Joint: Sleeve joint
  • Tire Interface: Hooked/Crotchet tubeless TC
  • Valve Hole: Presta
  • Rim Diameter: 29"/700C
  • Rim Height: 30mm
  • Inner Width: 22mm
  • Outer Width: 26mm
  • Cross-Section:

Hub

  • Hub Type: 350
  • Axle System: 12mm Thru Axle
  • Built-In Dimension: 100mm
  • Brake Interface: Disc Center Lock

Spokes & Nipples

  • Spokes Left: DT aero comp® II Straightpull
  • Spokes Right: DT aero comp® II Straightpull
  • Spoke Pattern: Two-cross (1:1)
  • Nipples: DT ProLock Squorx ProHead alu

Inclusive

  • Inclusive:
    • Tubeless tape 25mm
    • TL valve alu black 26-35mm

REAR WHEEL SPECIFICATION

WER1600NIDISA21172 - ER 1600 SPLINE DB 30 12/142 MM SHIMANO

General

  • Net Weight: 969g
  • Recommended System Weight Max.: 130kg
  • ASTM Classification: 2

Rim

  • Material: Aluminum
  • Rim Joint: Sleeve joint
  • Tire Interface: Hooked/Crotchet tubeless TC
  • Valve Hole: Presta
  • Rim Diameter: 29"/700C
  • Rim Height: 30mm
  • Inner Width: 22mm
  • Outer Width: 26mm
  • Cross-Section:

Hub

  • Hub Type: 350
  • Axle System: 12mm Thru Axle
  • Built-In Dimension: 142mm
  • Brake Interface: Disc Center Lock
  • Cassette Interface: Shimano ROAD
  • Freehub Body: Shim. RD. 11SP Light (ASL11)
  • Freehub System: Ratchet System 36 SL

Spokes & Nipples

  • Spokes Left: DT aero comp® II Straightpull
  • Spokes Right: DT aero comp® II Straightpull
  • Spoke Pattern: Two-cross (1:1)
  • Nipples: DT ProLock Squorx ProHead alu

Inclusive

  • Inclusive:
    • Tubeless tape 25mm
    • TL valve alu black 26-35mm
