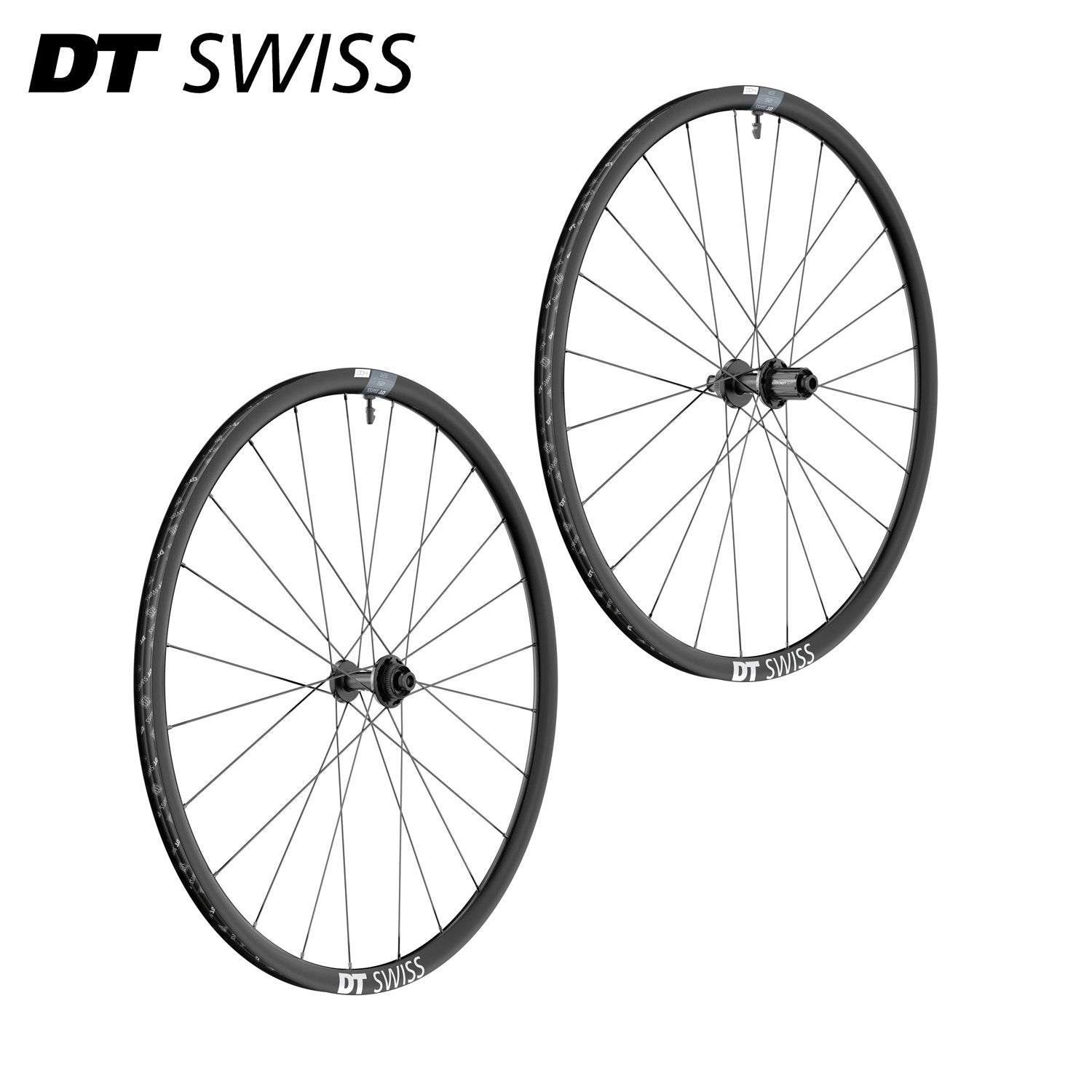

ER 1400 DICUT®

Alloyed in the pursuit of perfection.

• Weight per Set: From 1598g
• Brake Interface: Disc Brake

Experience unmatched durability and reliability on your rides with this premium wheelset. Its welded aluminum rim made out of a premium alloy, provides an ideal blend of strength and lightness, and its 22mm internal width allows for wide tires and low tire pressure for exceptional grip on challenging terrain. The DICUT hub with its patented two-in-one spoke holes guarantees a permanent aerodynamic advantage and encloses the Ratchet EXP system for seamless acceleration and reduced weight. It all adds up to a smooth ride so you can make your miles look bigger than ever.

• Hub Type: 240mm with Ratchet EXP 36
• Rim: Aluminum, Hooked/Crotchet tubeless TC
• Rim Height: 25mm
• Spokes: DT aero comp t-head, DT aerolite t-head

FEATURES

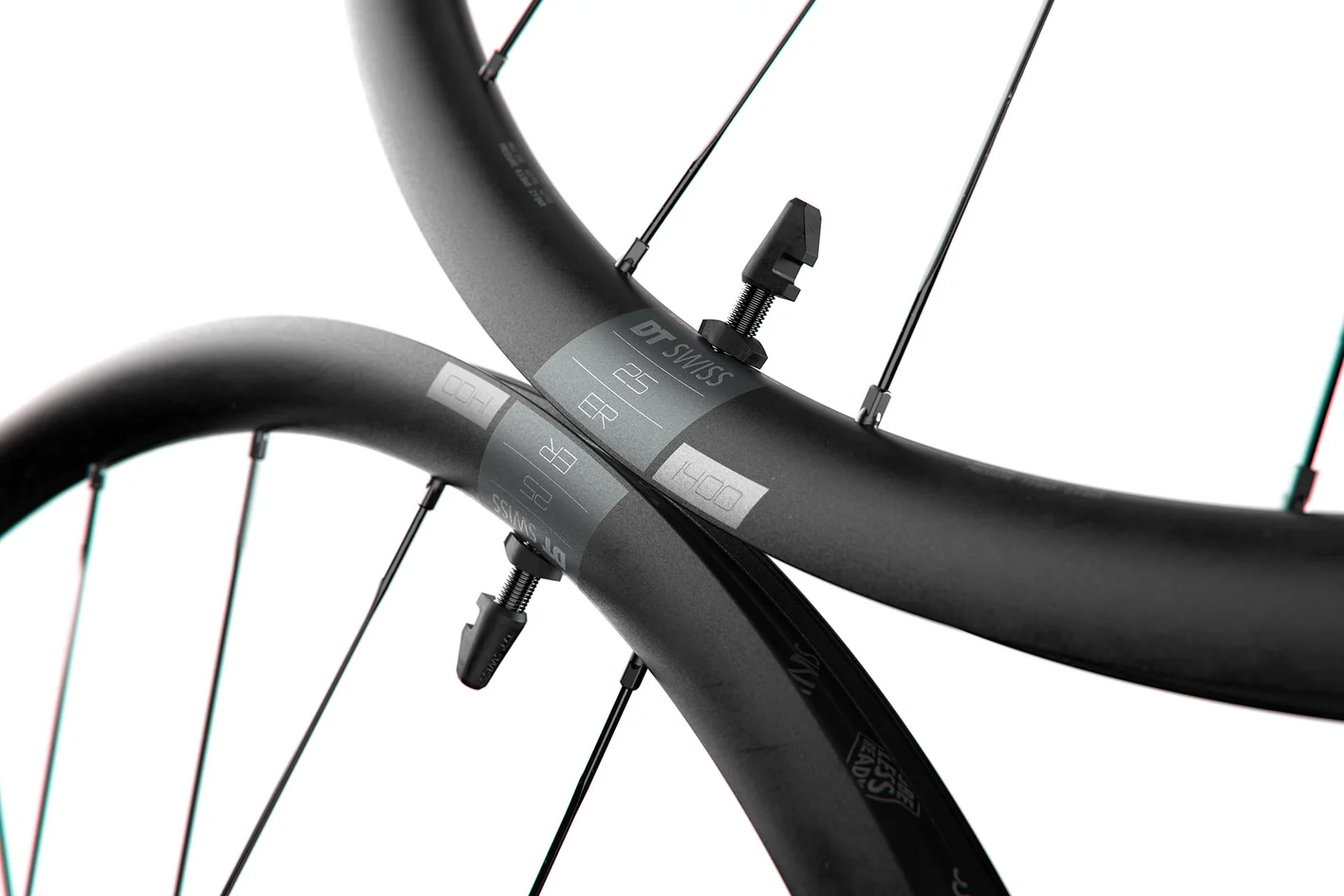

RIM

The welded rim is made of a premium aluminum offering an ideal blend of lightness and strength. Its 22mm inner width provides comfort thanks to the support of wide tires that you can ride at lower pressure.

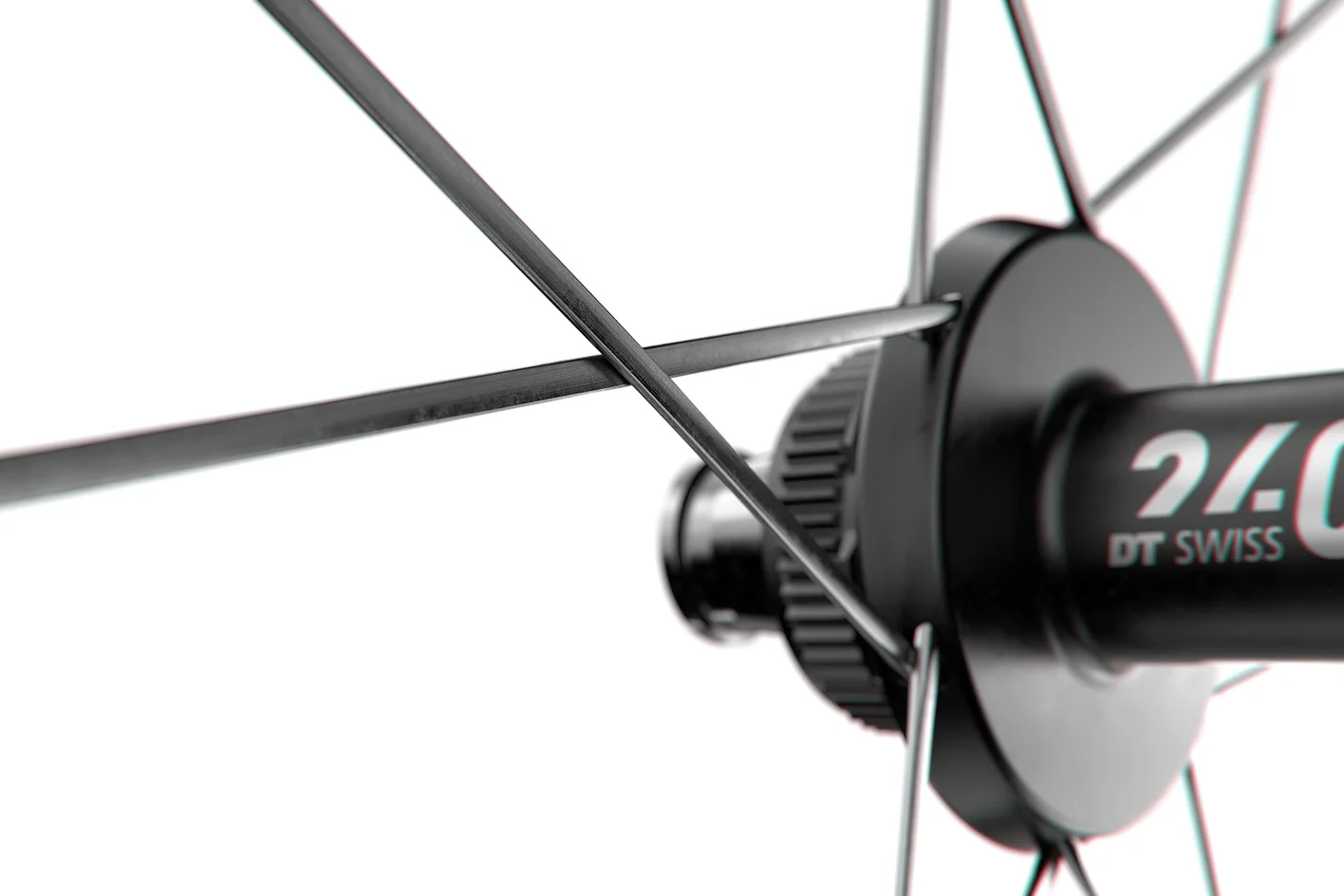

SPOKES

The DT aerolite on the front wheel and the DT aero comp on the rear wheel offer an ideal mix of durability, lightness and aerodynamic advantage ensured by their T-head.

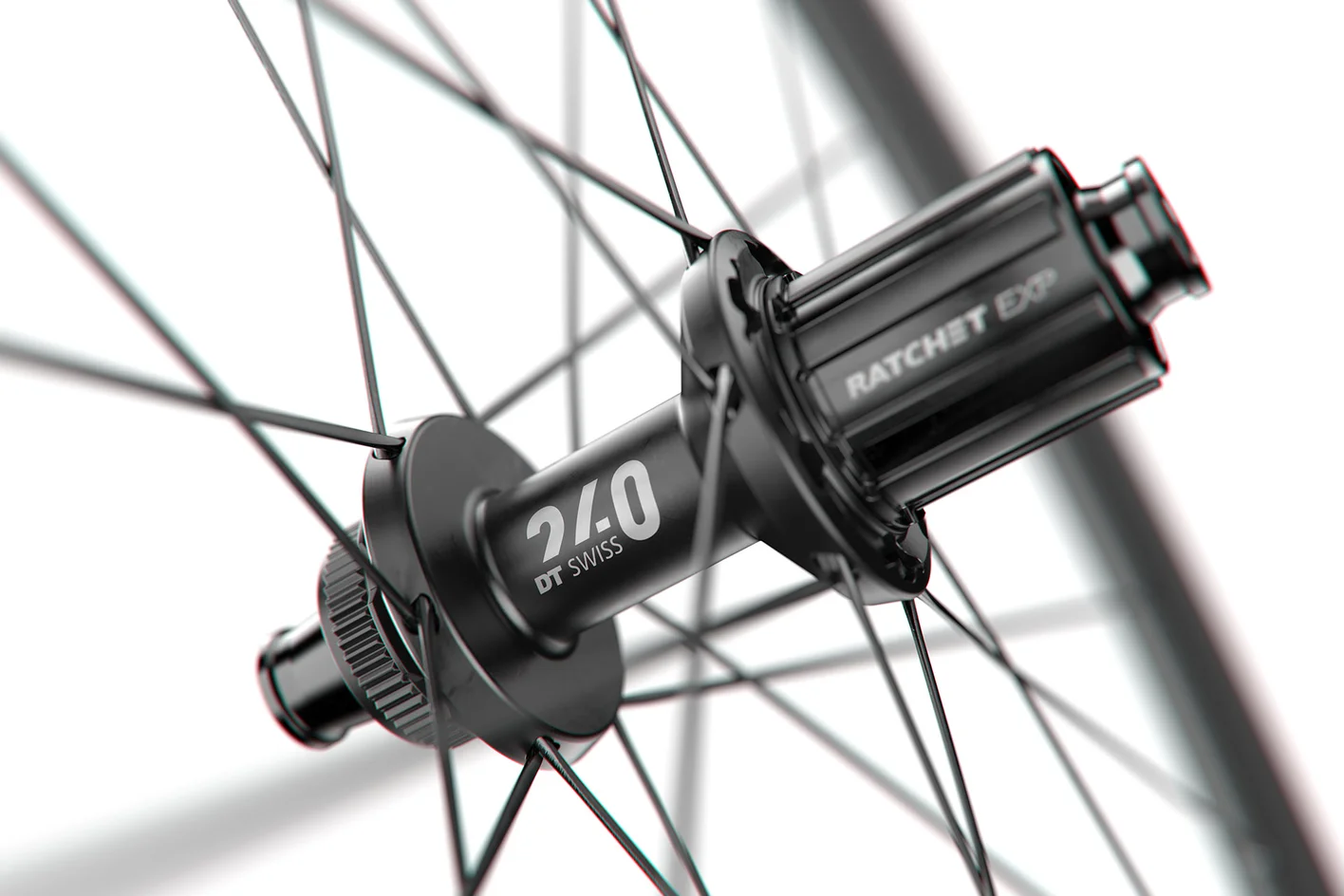

HUB

The DICUT hub is our top of the line hub technology. It offers aerodynamic performance thanks to its shape and patented two-in-one spoke holes.

FREEHUB BODY

The Ratchet EXP system not only increases reliability, but also reduces weight by fusing the ratchet and threaded ring into a single component.

ALUMINUM RECREATION

Upgrade of our aluminum road range

TECHNOLOGY

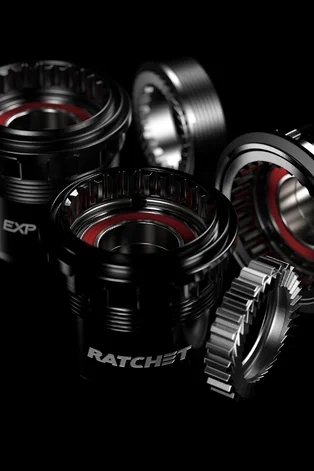

RATCHET TECHNOLOGIES OVERVIEW

Every ratchet has its purpose. Learn more about the different DT Swiss freehub systems.

TUBELESS TECHNOLOGY

All DT Swiss wheelsets are tubeless compatible and come tubeless ready, equipped with tubeless tape and valves.

BEARING TECHNOLOGY

Learn how to ensure the optimal rotating property of the ball bearings and discover why DT Swiss does not offer hubs with adjustable bearing clearance.

SPOKE TECHNOLOGY

DT Swiss spokes stand for durability and precision, thanks to their unique production process which ensures they are lightweight and durable.

EXPERIENCED HANDBUILDING

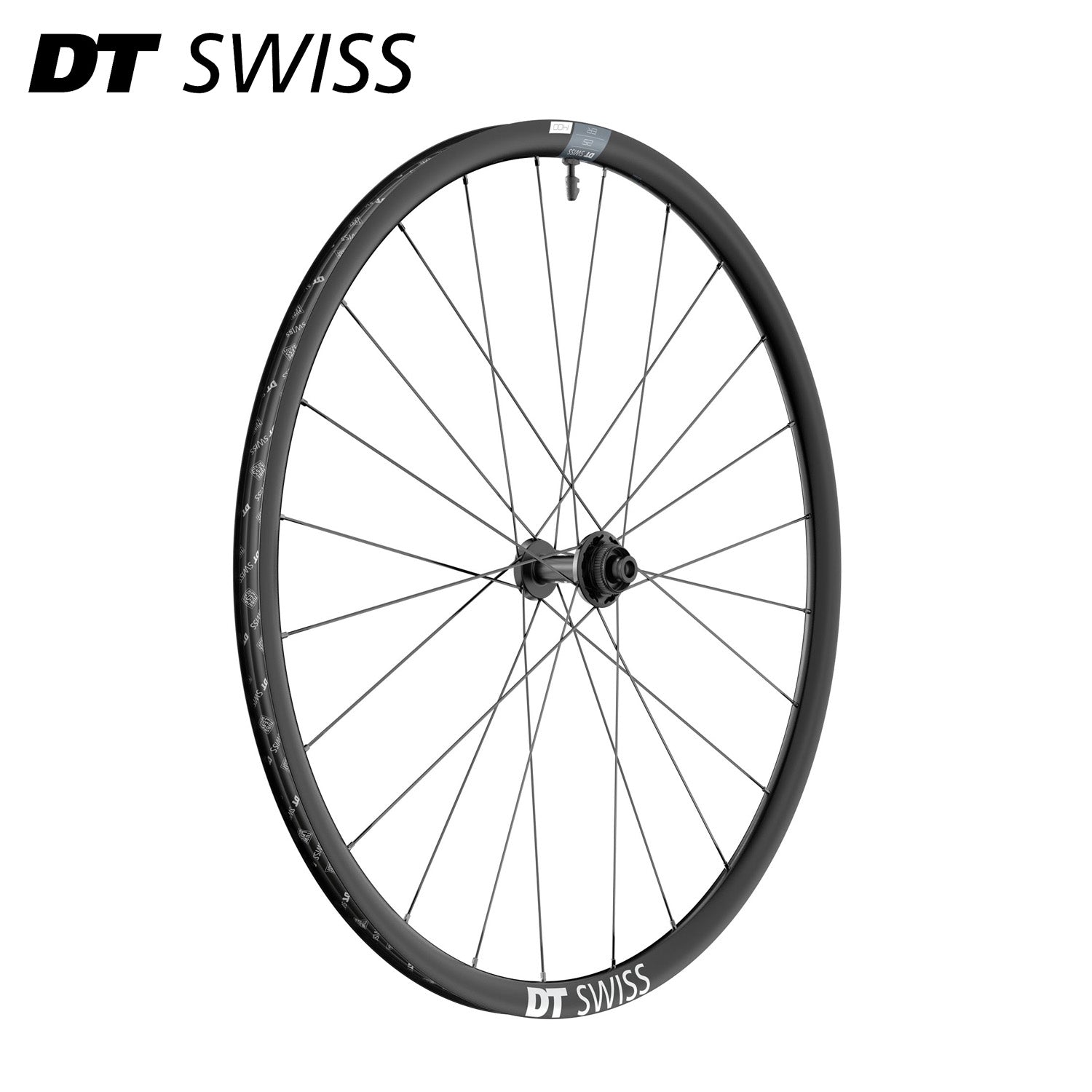

Front Wheel

ER 1400 DICUT db 25 12/100 mm

WER1400AIDXSA20984

General

• Net Weight: 723g
• Recommended System Weight Max.: 120kg
• ASTM Classification: 2
• Approved for E-Bikes: Yes (max. 23Km/h or max. 250W)

Rim

• Material: Aluminum
• Rim Joint: Welded
• Tire Interface: Hooked / Crotchet tubeless TC
• Valve Hole: Presta
• Rim Diameter: 29" / 700c
• Rim Height: 25mm
• Inner Width: 22mm
• Outer Width: 26mm
• Cross Section:

HUB

• Hub Type: 240
• Axle System: 12mm Thru Axle
• Built-In Dimension: 100mm
• Brake Interface: Disc Center Lock

SPOKES & NIPPLES

• Spokes Left: DT aerolite t-head
• Spokes Right: DT aerolite t-head
• SPoke Pattern: Two-across (1:1)
• Nipples: DT ProLock Squorx ProHead alu

INCLUSIVE

• Tubeless tape 25mm
• TL valve alu black 18-25mm

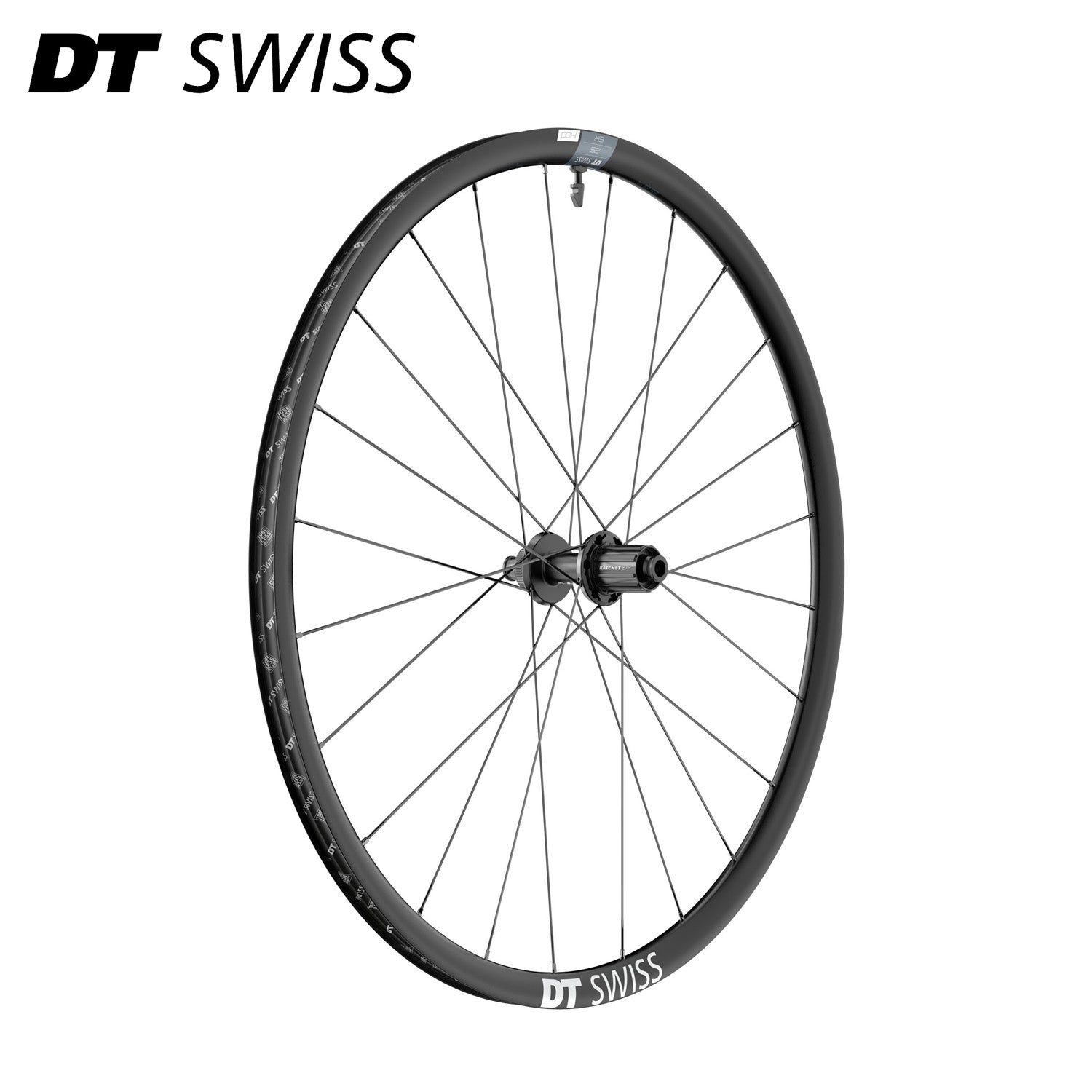

Rear Wheel

ER 1400 DICUT db 25 12/142 mm Shimano

WER1400NIDISA20985

General

• Net Weight: 875g
• Recommended System Weight Max.: 120kg
• ASTM Classification: 2
• Approved for E-Bikes: Yes (max. 32Km/h or max. 250W)

RIM

• Material: Aluminum
• Rim Joint: Welded
• Tire Interface: Hooked / Crotchet tubeless TC
• Valve Hole: Presta
• Rim Diameter: 29"/700c
• Rim Height: 25mm
• Inner Width: 22mm
• Outer Width: 26mm
• Cross Section:

HUB

• Hub Type: 240
• Axle System: 12mm Thru Axle
• Built-In Dimension: 142mm
• Brake Interface: Disc Center Lock
• Cassette Interface: Shimano ROAD
• Freehub Body: Shim. RD. 11SP Light (ASL11)(mounted)
• Freehub System: Ratchet EXP 36

SPOKES & NIPPLES

• Spokes Left: DT aero comp t-head
• Spokes Right: DT aero comp t-head
• Spoke Pattern: Two-cross (1:1)
• Nipples: DT ProLock Squorx ProHead alu

INCLUSIVE

• Tubeless tape 25 mm
• TL valve alu black 18-25 mm
• SRAM XDR Road freehub body kit
