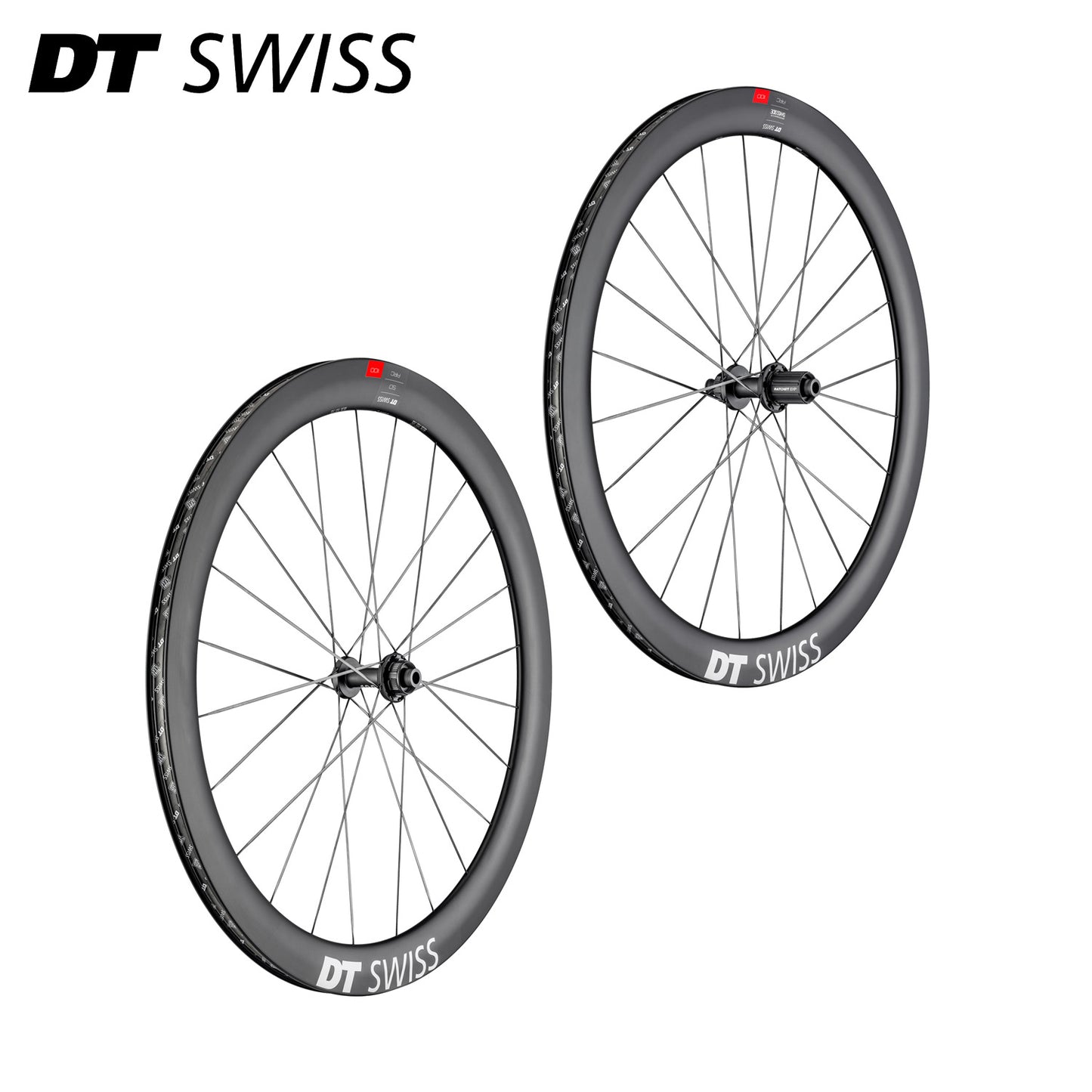

ARC 1100 DICUT® DB

The most advanced DT Swiss aero disc brake wheelset for new top speeds while handling the bike safely anytime.

Product details

The latest generation of ARC 1100 DICUT wheels – available in disc brake version in four different rim heights 80 mm, 62 mm, 50 mm and 38 mm – was developed in cooperation with SWISS SIDE, leading expert in aerodynamic optimization. Consequently, the new AERO+ rim profile minimizes both aero drag and steering moment to improve its aerodynamic and controlling in even strong cross wind. Thus, it makes it easier for the rider to keep the aero wheel under control while taking advantage of the forward-pushing sailing effect. The wheel setup is completed by the new DT Swiss aero spokes in combination with the sleek 180 DICUT hub including ultra-light running SINC ceramic bearings.

• ARC 1100 DICUT 80: The sophisticated wheelset in the quest for best times on flat to slightly undulating courses.
• ARC 1100 DICUT 62: The all-round aero wheelset with excellent performance for various riding fields.
• ARC 1100 DICUT 50: The most agile and fast accelerating wheelset for hilly or flat courses with sharp turns.
• ARC 1100 DICUT 38: The ultimate climbing wheelset combining light weight and aero-optimization for a swift rise to the top.
• ARC 1100 DICUT WTS: The ARC 1100 DICUT db wheels are now available as an aero-optimized wheel tire system (WTS), mounted with the new AERO 111 tire in 26 mm width in the front and a Continental GP 5000 STR in 28 mm width in the rear.

• Hub type: 180 with Ratchet EXP 36, Ratchet EXP 54
• Rim: Carbon, Hooked / Crotchet tubeless TC
• Rim height: 38 mm, 50 mm, 62 mm, 80 mm
• Spokes: DT aerolite® II t-head, DT aero comp® II t-head

Rim

Each rim is designed for a specific riding environment, from 38mm ideal for big climbs, to 80mm for all-out triathlons and time trials.

Hub

New aero 180 DICUT hubs with low-friction SINC Ceramic bearings.

Spokes

The latest generation of aerodynamically optimized spokes for lower rational and translational drag.

Wheel Tire System

Now available as an aero-optimized wheel tire system (WTS) mounted with the new AERO 111 tire in the front.

Rim Height

Available in disc brake version in four different rim heights 80mm, 62mm, 50mm, and 38mm.

A perfected Storm

AERO 111 Tire

When Swiss Side's aero expertise, Continental's tire know-how, and DT Swiss's wheel competence collide, the result is the AERO 111 tire: a perfected storm. Specially designed aero cavities in the patented tread pattern function as vortex generators, creating turbulent airflow on the surface that enables the air to stick to the rim shape of the front wheel. The result is a maximization of the sailing effect by delaying the flow separation from the rim, resulting in the ultimate aero wheel tire system. No matter if chasing personal bests, your friends or competing professionally, the lower drag and even further improved handling will push you to storm ahead.

Technology

We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.

• Aero+ Technology
• Ratchet EXP Technology
• Sinc Ceramic Technology
• Tubeless Technology
• Bearing Technology

FRONT WHEEL SPECIFICATION

WARC110AIDXCA12571 - ARC 1100 DICUT db 50 12/100 mm

General

• Net Weight: 674g
• Recommended System Weight Max.: 110kg
• ASTM Classification: 1

Rim

• Material: Carbon
• Tire Interface: Hooked / Crotchet tubeless TC
• Valve Hole: Presta
• Rim Diameter: 29" / 700C
• Rim Height: 50mm
• Inner Width: 20mm
• Outer Width: 27mm
• Cross Section:

Hub

• Hub Type: 180
• Axle System: 12mm Thru Axle
• Built-In Dimension: 100mm
• Brake Interface: Disc Center Lock

Spokes & Nipples

• Spokes Left: DT aerolite® II t-head
• Spokes Right: DT aerolite® II t-head
• Spoke Pattern: Two-cross (1:1)
• Nipples: DT Pro Lock hidden aluminum

Inclusive

• Inclusive:
  • Tubeless tape 23 mm
  • TL valve alu black 49-65 mm
  • Valve guard
  • Wheel bag

REAR WHEEL SPECIFICATION

WARC110NIDJCA12572 - ARC 1100 DICUT db 50 12/142 mm Shimano

General

• Net Weight: 798g
• Recommended System Weight Max.: 110kg
• ASTM Classification: 1

Rim

• Material: Carbon
• Tire Interface: Hooked / Crotchet tubeless TC
• Valve Hole: Presta
• Rim Diameter: 29" / 700C
• Rim Height: 50mm
• Inner Width: 20mm
• Outer Width: 27mm
• Cross Section:

Hub

• Hub Type: 180
• Axle System: 12 mm Thru Axle
• Built-In Dimension: 142mm
• Brake Interface: Disc Center Lock
• Cassette Interface: Shimano ROAD
• Freehub Body: Shim. RD. 11SP Light S ASLS11 (mounted)
• Freehub System: Ratchet EXP 36

Spokes & Nipples

• Spokes Left: DT aerolite® II t-head
• Spokes Right: DT aero comp® II t-head
• Spoke Pattern: Two-cross (1:1)
• Nipples: DT Pro Lock hidden aluminum

Inclusive

• Inclusive:
  • Tubeless tape 23 mm
  • TL valve alu black 49-65 mm
  • SRAM XDR Road freehub body kit
  • Valve guard
  • Wheel bag
