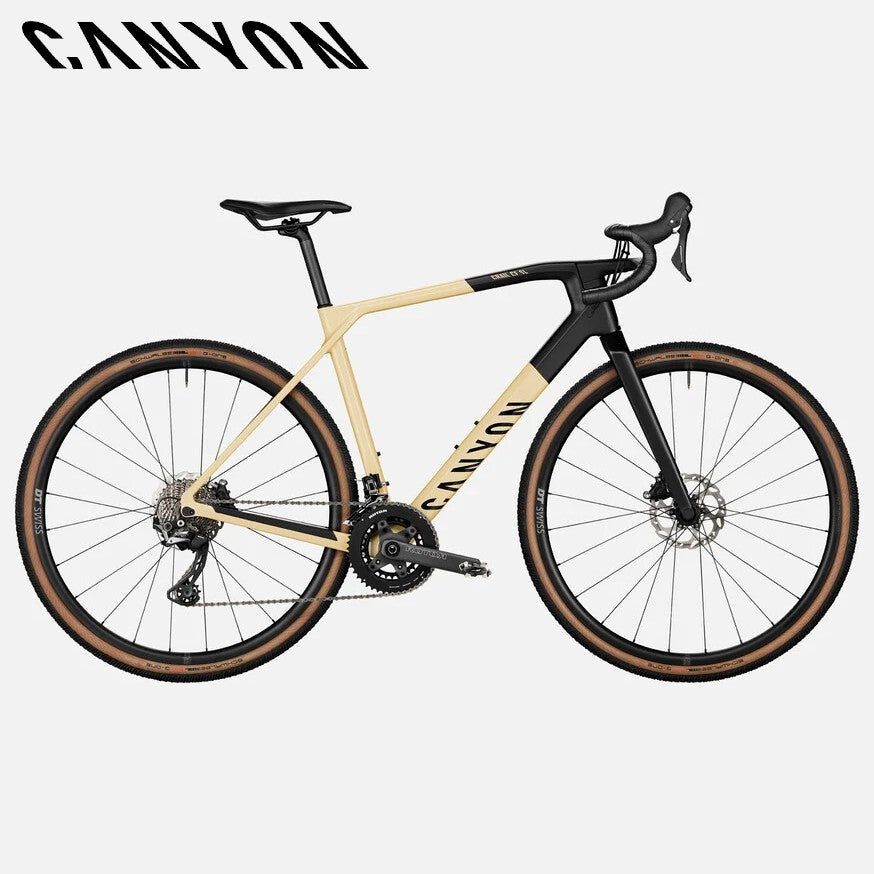

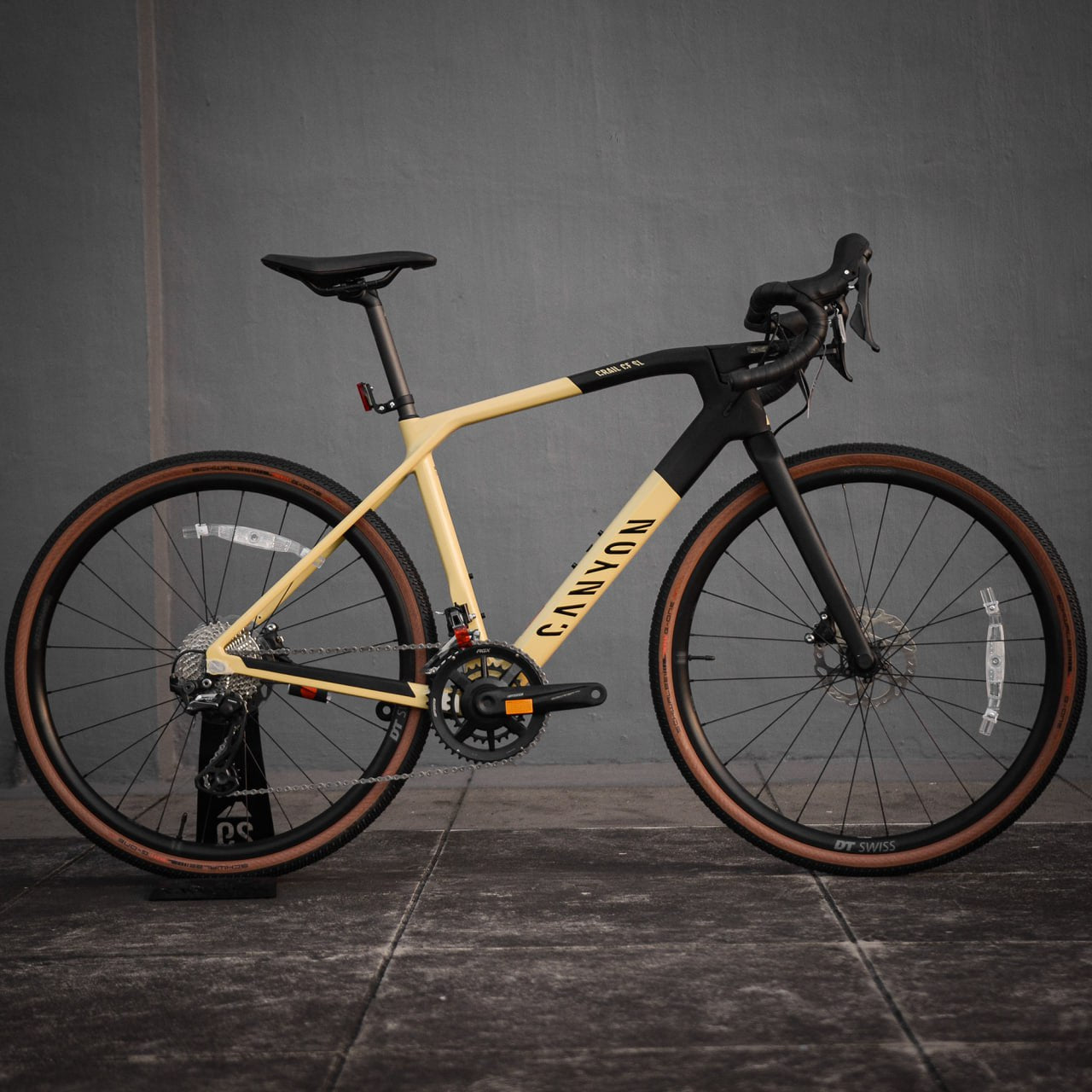

Grail CF SL 7

If you need to shake up your riding routine, then gravel is the answer. The lightweight Grail CF SL 7 is a hugely versatile bike ready for all your year-round off-road adventures, and comes complete with Shimano’s GRX810 gravel groupset.

Frame

• Canyon Grail CF SL Disc
• Axle dimension: 12x142 mm
• Tyre Clearance: 42 mm
• Material: Carbon (CF)

Fork

• Canyon FK0070 CF Disc
• Material: Carbon
• Steerer: 1 1/4"
• Axle Dimension: 12 x 100 mm
• Brake Mount: Flat Mount

Drivetrain

• Crankset
• Rotor
• Rear Derailleur
• Shimano GRX RX810 GS
• Gravel-specific rear derailleur. With adjustable chain stabiliser to prevent chain slap and chain drops.
• Max. cassette size: 34T
• Cage length: long
• Front Derailleur
• Shimano GRX RX810
• Gravel-specific derailleur with lighter operation and easier setup thanks to the new link construction and integrated cable tensioner.
• Max chainring gear range: 17T.
• Cassette
• Shimano HG700 11-34 11s
• Shimano 105-level cassette.
• Gear range: 11-34T
• Bottom bracket
• Token Ninja Lite BB4124
• Thread-Fit Technology reduces chances of bearing misalignment. BB86 Road standard, compatible with 24 mm axles.
• Weight: 83 g
• Chain
• Shimano CN-HG601 11s
• Chain featuring SIL-TEC ultra-low friction surface treatment for precise shifting and improved durability.

Brakes

• Shift-/ Brake Lever
• Shimano GRX RX600, 2-speed
• Gravel-specific shifter with ergonomic design for improved comfort and textured, anti-slip brake lever for more control on bumpy terrain. Featuring adjustable reach.
• Shift-/ Brake Lever
• Shimano GRX RX600 11s
• Premium shift/brake levers with gravel-specific ergonomics and outstanding control over rough terrain. With road-level shifting lightness.
• Brake Rotor
• Shimano RT70
• Disc Mount: Centerlock

Wheels

• Wheel
• DT Swiss Gravel LN
• Rotor mount: Center Lock
• Wheel
• DT Swiss Gravel LN SH11
• Rotor mount: Center Lock
• Tyre
• Schwalbe G-One R, 40mm
• High-end gravel race tyres for light gravel and asphalt.
• Combining incredible smoothness, speed, and control.
• Technology: tubeless-ready, V-Guard puncture protection.
• Width: 40mm
• Thru Axle
• Canyon Thru Axle
• Through axle developed for simple wheel removal and mounting. After tightening, the handle stays fixed onto the axle. You can freely adjust the handle into your required position. Axle dimensions: 12 x 100 mm.
• Thru Axle
• Canyon Thru Axle
• Through axle developed for simple wheel removal and mounting. After tightening, the handle stays fixed onto the axle. You can freely adjust the handle into your required position. Axle dimensions: 12 x 142 mm.

Cockpit

• Cockpit

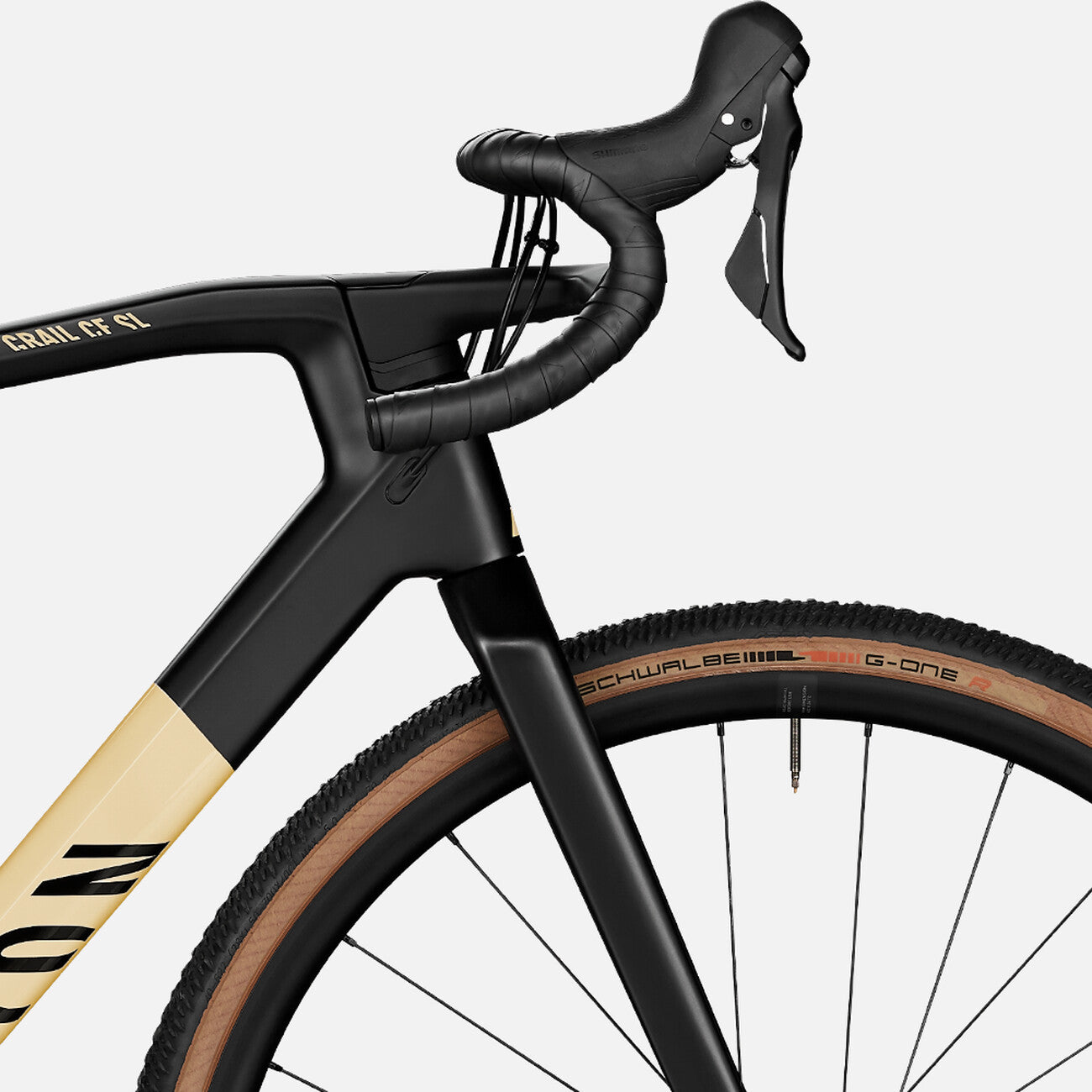

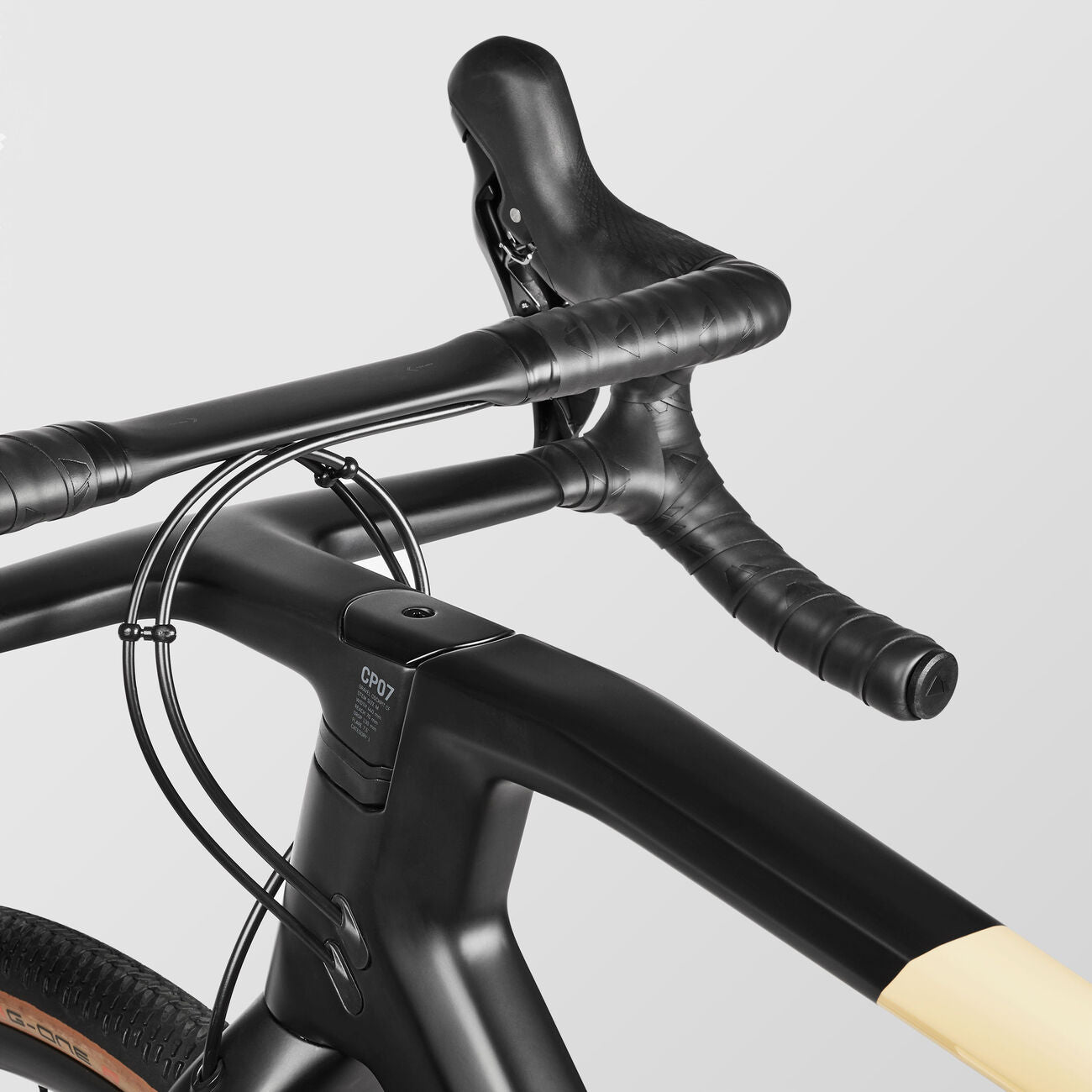

  • Canyon CP07 Gravel Cockpit CF
  • Material: Carbon (CF)

Seat

• Saddle
• Fizik Argo Terra X5
• Short-nose, pressure-relieving saddle.
• Shell material: carbon fibre-reinforced nylon.
• Rail material: S-alloy.
• Seatpost
• Canyon SP0043 VCLS CF
• Material: Carbon
• Setback: 20 mm
• Technology: VCLS

Accessories

• Pedals
• None included
• Canyon Bag
• Storage box for tools and replacement parts.
• Manuals and Accessories
• Canyon starter box
• All you need to get riding: Quick Start Guide, manual, torque wrench incl. bit set, assembly paste
